TMA TWIN 800 L-BAND+1800 BYPASS
Designed to be deployed in collocated 800, 1800 and L-Band systems, the Kaelus MI-188 enhances cell uplink coverage in 800, through improved system noise figure, thereby saving operational and capital expenditure.
FEATURES
- Improved base station sensitivity through gain in the 800 uplink
- 2 Antenna ports: one port to low band (800) and one port to high band (1800 and L band)
- Excellent noise figure performance
- Full AISG operation and RET antenna support, AISG2.0 compatible
- Small and light for minimum visual impact
- Passive 1800 Bypass band response for feedline/antenna non-intrusive PIM testing
| Passband |
791 – 821MHz |
| Insertion loss |
0.3dB typical |
| Return loss |
18dB |
| Maximum input power |
200W (average) |
| Intermodulation products |
-160dBc in RX band at ANT |
| Passband |
832 – 862MHz |
| Gain |
12dB |
| Return loss |
16dB |
| Bypass return loss |
12dB |
| Bypass loss |
2dB typical |
| Noise figure |
1.4dB typical |
| Output IP3 |
25dBm typical |
| Passband |
1427 – 1517MHz & 1710 – 1880MHz |
| Insertion loss |
0.2dB typical |
| Maximum input power |
200W average |
| Intermodulation products |
-160dBc at ANT |
| DC supply voltage |
+9.0V to +30V DC |
| AISG version |
2.0 |
| Power consumption, AISG mode |
< 2W |
| AISG connector, current rating |
IEC60130-9, 8-pin female |
| Temperature range |
-40ºC to +65ºC | -40°F to +149°F |
| Ingress protection |
IP67 |
| MTBF |
>1,200,000 hours |
| Compliance |
EMC: EN 301 489-8
Safety: IEC/EN 62368-1
Operation: ETSI EN 300 019-1-4 class 4.1E
Storage: ETS 300 019-1-1 class 1.2 |

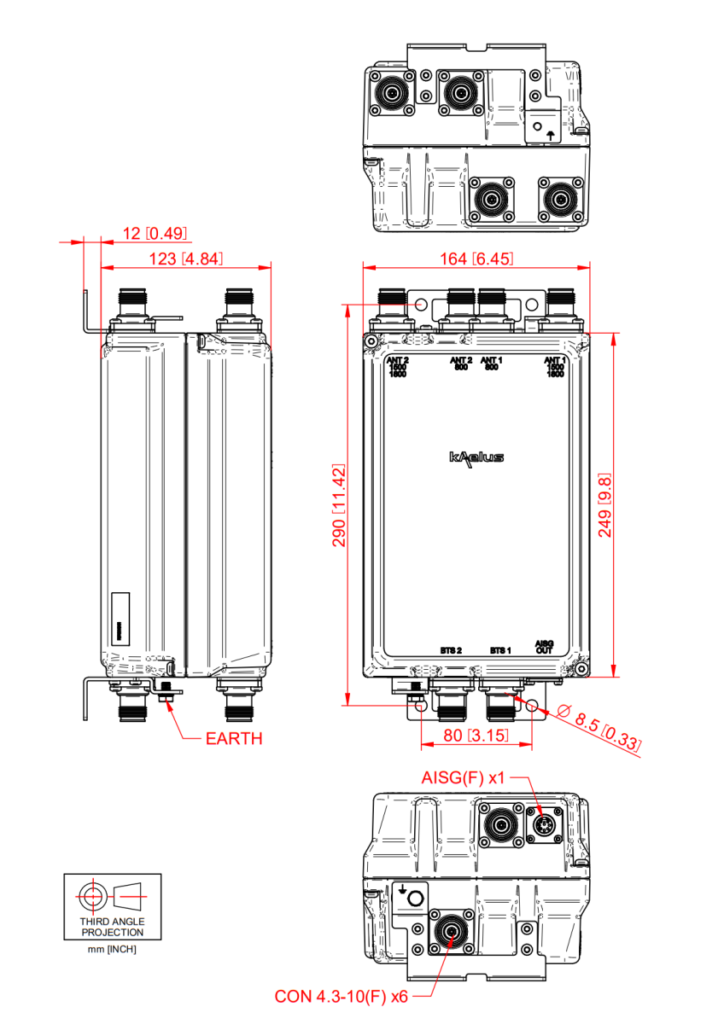

| Dimensions H x D x W |
249 x 123 x 164 mm | 9.8 x 4.8 x 6.4in (excluding brackets and connectors) |
| Weight |
TBD |
| Finish |
Powder coated, NCS 1502-R |
| Mounting |
Pole/wall bracket using two metal clamps, suits 40-140mm diameter poles |
| PART NUMBER |
CONFIGURATION |
OPTIONAL FEATURES |
CONNECTORS |
AISG MODE |
| MI-18801 |
TWIN, 2 in / 4 out |
BASE MODEL |
7/16 (F)
1xAISG |
Refer to AISG MODE OF OPERATION section |
| MI-18831 |
TWIN, 2 in / 4 out |
BASE MODEL |
4.3-10 (F)
1xAISG |
Refer to AISG MODE OF OPERATION section |
