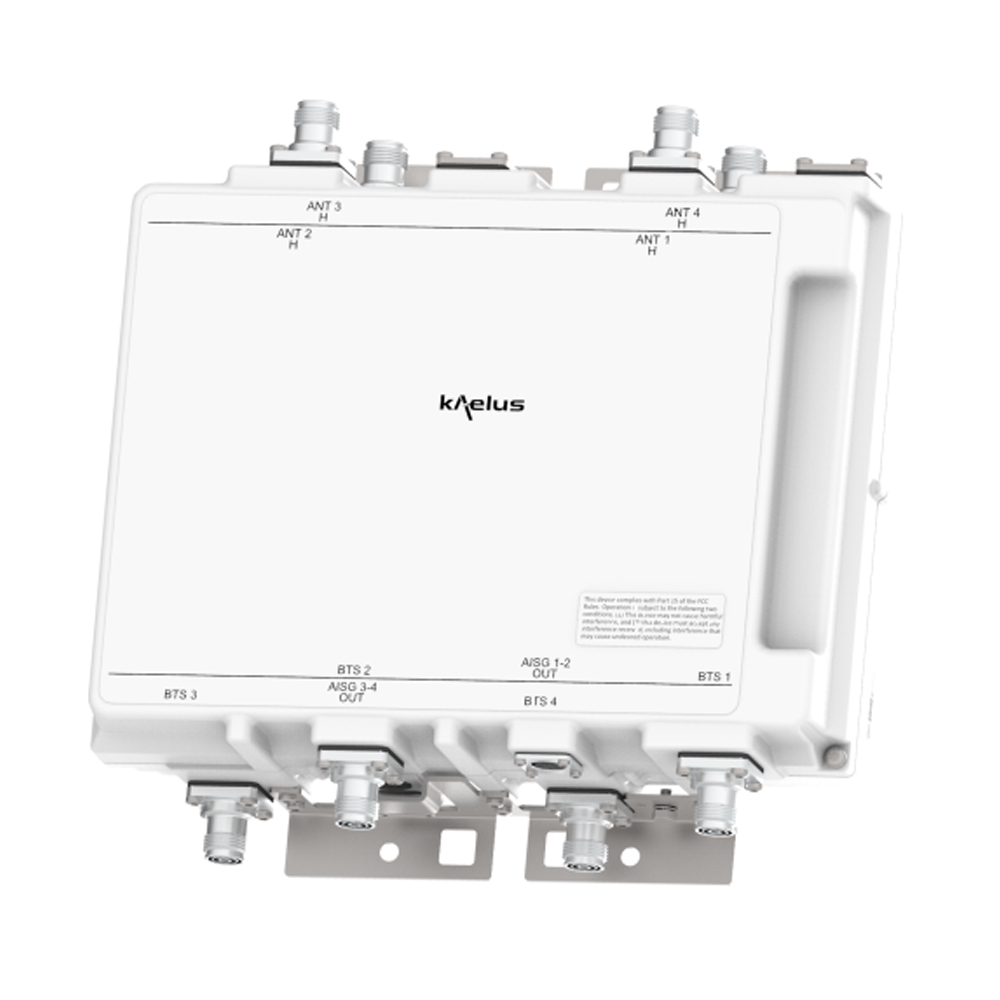

TMA TWIN PCS/AWS
Designed to be deployed in collocated PCS and AWS systems, the Kaelus MI-190 enhances cell uplink coverage in PCS and AWS through improved system noise figure, thereby saving operational and capital expenditure.
FEATURES
- Improved base station sensitivity through gain in the PCS and AWS uplink
- Internal diplexing on the antenna port of PCS and AWS bands: 2 or 4 Antenna ports(See ordering info)
- Excellent noise figure performance
- Full AISG operation and RET antenna support, AISG2.0 compatible
- Small and light for minimum visual impact
- Available as a twin or quad configuration
TECHNICAL SPECIFICATIONS |
|||||||||||||||
| BAND NAME | PCS | AWS | |||||||||||||
| DOWNLINK | |||||||||||||||
| Passband | 1930 – 1990MHz | 2110 – 2200MHz | |||||||||||||
| Insertion loss | 0.5dB typical | 0.3dB typical | |||||||||||||
| Return loss | 20dB typical, 18dB minimum | ||||||||||||||
| Maximum input power | 200W (average) | ||||||||||||||
| Intermodulation products | -165dBc typical in RX band at ANT | ||||||||||||||
| UPLINK | |||||||||||||||
| Passband | 1850 – 1910MHz | 1695 – 1780MHz | |||||||||||||
| Gain | 12dB +/- 1dB typical | ||||||||||||||
| Return loss | 16dB | ||||||||||||||
| Bypass loss | 2.2dB typical | 1.5dB typical | |||||||||||||
| Noise figure | 1.3dB typical | 1.1dB typical | |||||||||||||
| Output IP3 | 25dBm typical | ||||||||||||||
| ELECTRICAL | |||||||||||||||
| Impedance | 50Ohms | ||||||||||||||
| AISG MODE OF OPERATION (AUTO SELECTED ON VALID AISG 2.0 FRAMES) | |||||||||||||||
| AISG signals can be applied to the BTS ports. The TMA unit switches to AISG mode when valid frames are detected on either port. | |||||||||||||||
| DC supply voltage | 24 V DC Nominal +9.0V to +30V DC |
||||||||||||||
| AISG version | 2.0 | ||||||||||||||
| Power consumption, AISG mode | < 4W | ||||||||||||||
| AISG connector, current rating | IEC60130-9, 8-pin female | ||||||||||||||
| ENVIRONMENTAL | |||||||||||||||
| For further details of environmental compliance, please contact Kaelus. | |||||||||||||||
| Temperature range | -40ºC to +65ºC | -40°F to +149°F | ||||||||||||||
| Ingress protection | IP67 | ||||||||||||||
| MTBF | >1,200,000 hours | ||||||||||||||
| Compliance | EMC:FCC part 15 Safety: IEC/EN 62368-1 Operation: ETSI EN 300 019-1-4 class 4.1E Storage: ETS 300 019-1-1 class 1.2 |
||||||||||||||
| MECHANICAL | |||||||||||||||
| Feature | TWIN | QUAD | |||||||||||||
| Dimensions H x D x W | 258 x 58 x 344mm | 10.1 x 2.3 x 13.5in | 258 x 109 x 344mm | 10.1 x 4.3 x 13.5in | |||||||||||||
| Weight | 6.5kg | 14.33lbs | 11kg | 24.25lbs | |||||||||||||
| Finish | Powder coated, NCS 1502-R | ||||||||||||||
| Mounting | Pole/wall bracket using two metal clamps, suits 40-140mm diameter poles | ||||||||||||||
ORDERING INFORMATION |
|||||||||||||||
| PART NUMBER | CONFIGURATION | OPTIONAL FEATURES | CONNECTORS | AISG MODE | |||||||||||
| MI-19031 | TWIN, 2 in / 4 out | BASE MODEL | 4.3-10 (F) 1xAISG |
ONETWO (*) | |||||||||||
| MI-19032 | TWIN, 2 in / 4 out | BASE MODEL | 4.3-10 (F) 1xAISG |
TWOTWO (*) | |||||||||||
| MI-19041 | TWIN, 4 in /8 out | BASE MODEL | 4.3-10 (F) 2xAISG |
ONETWO (*) | |||||||||||
| MI-19042 | TWIN, 4 in /8 out | BASE MODEL | 4.3-10 (F) 2xAISG |
TWOTWO (*) | |||||||||||
| (*) ONETWO: the TMA is identified as 1 logic unit with 2 subunits | |||||||||||||||
| (**) TWOTWO: the TMA is identified as 2 logic units with 2 subunits each | |||||||||||||||

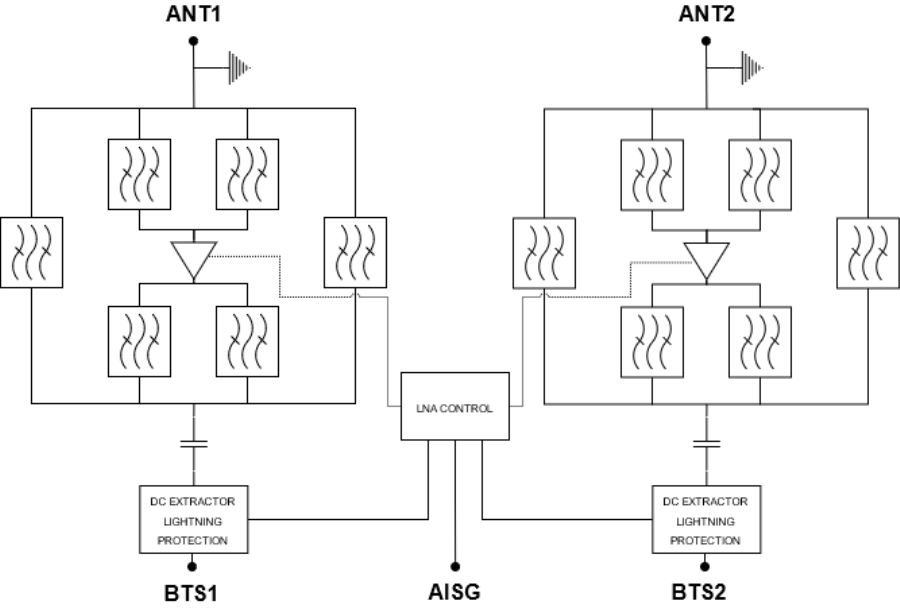

ELECTRICAL BLOCK DIAGRAM |

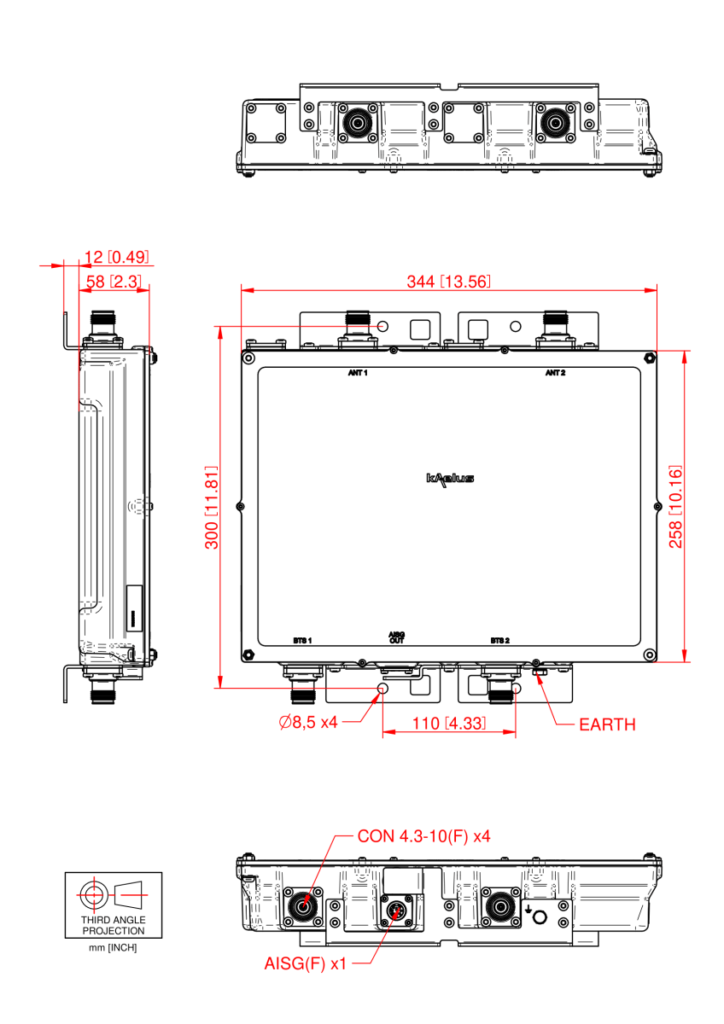

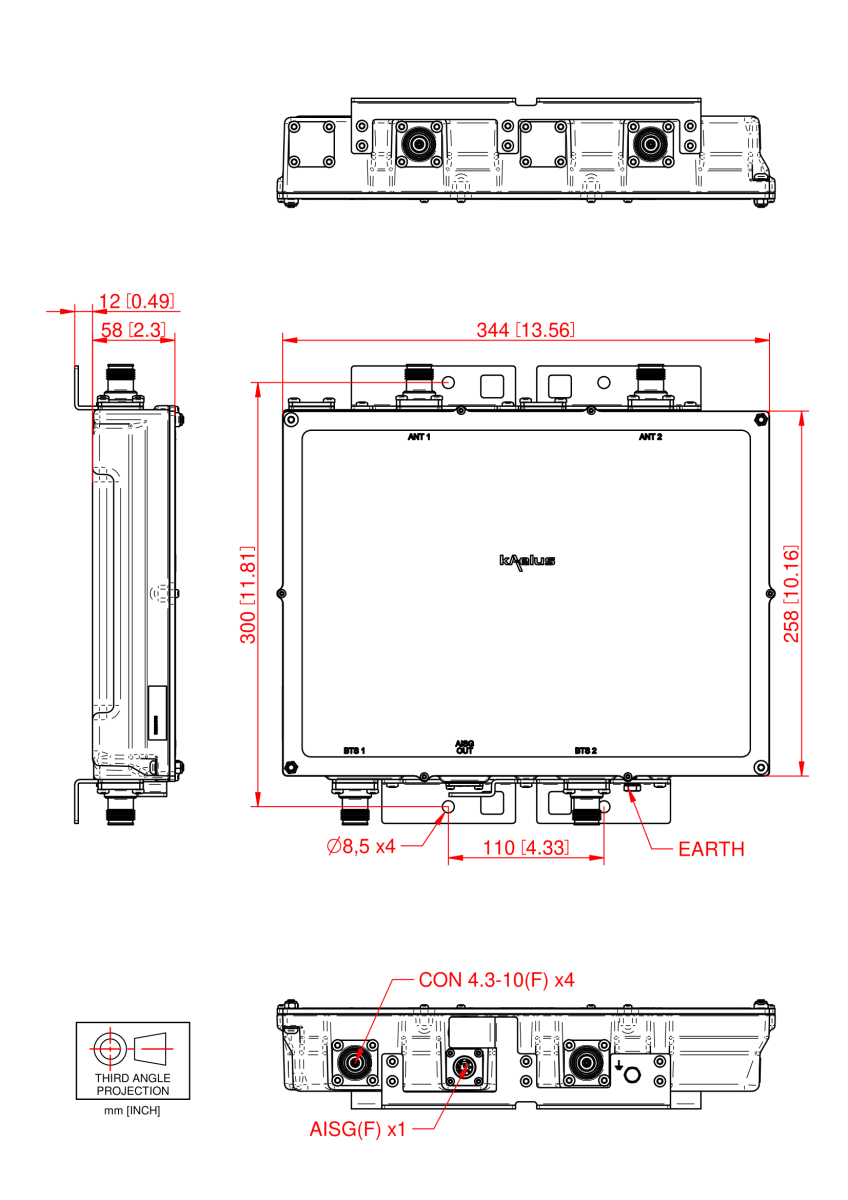

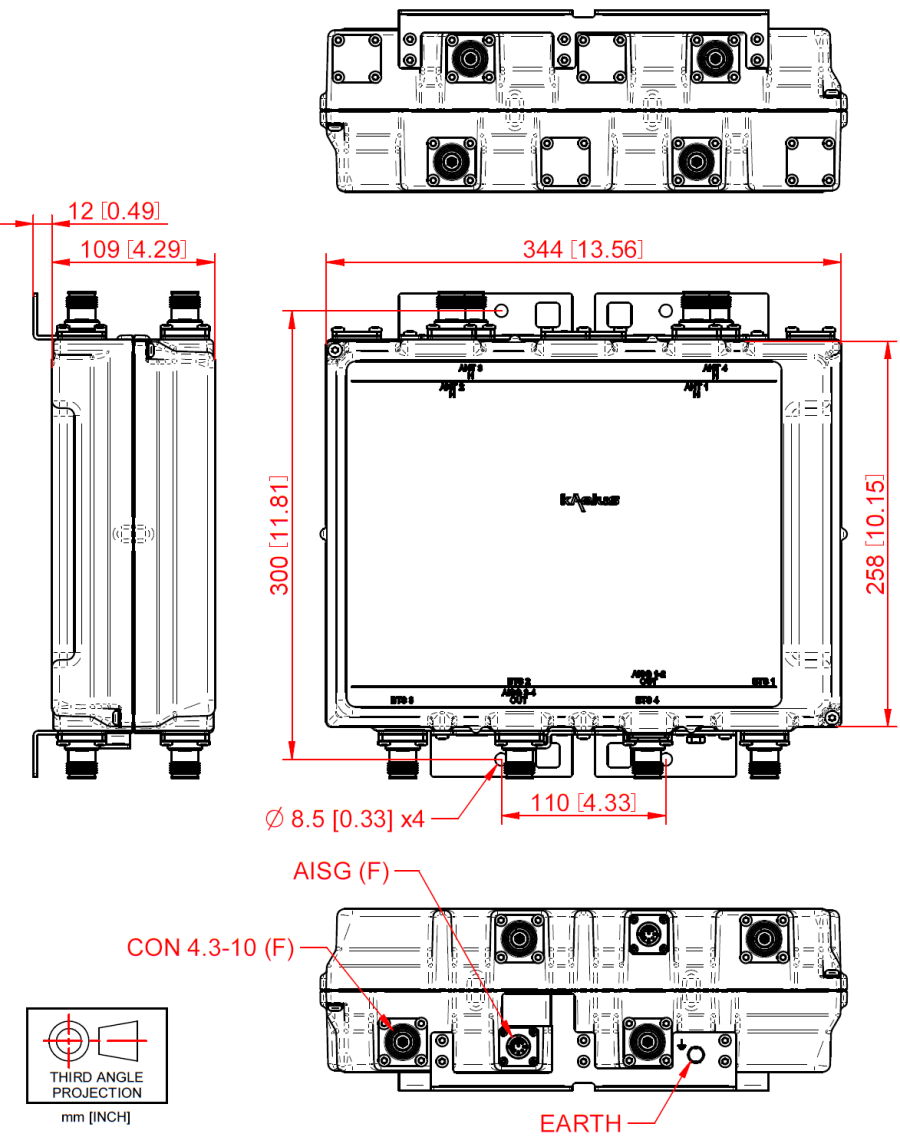

MECHANICAL BLOCK DIAGRAM |
