DIPLEXER 1800-2100/2300-2400 MHZ

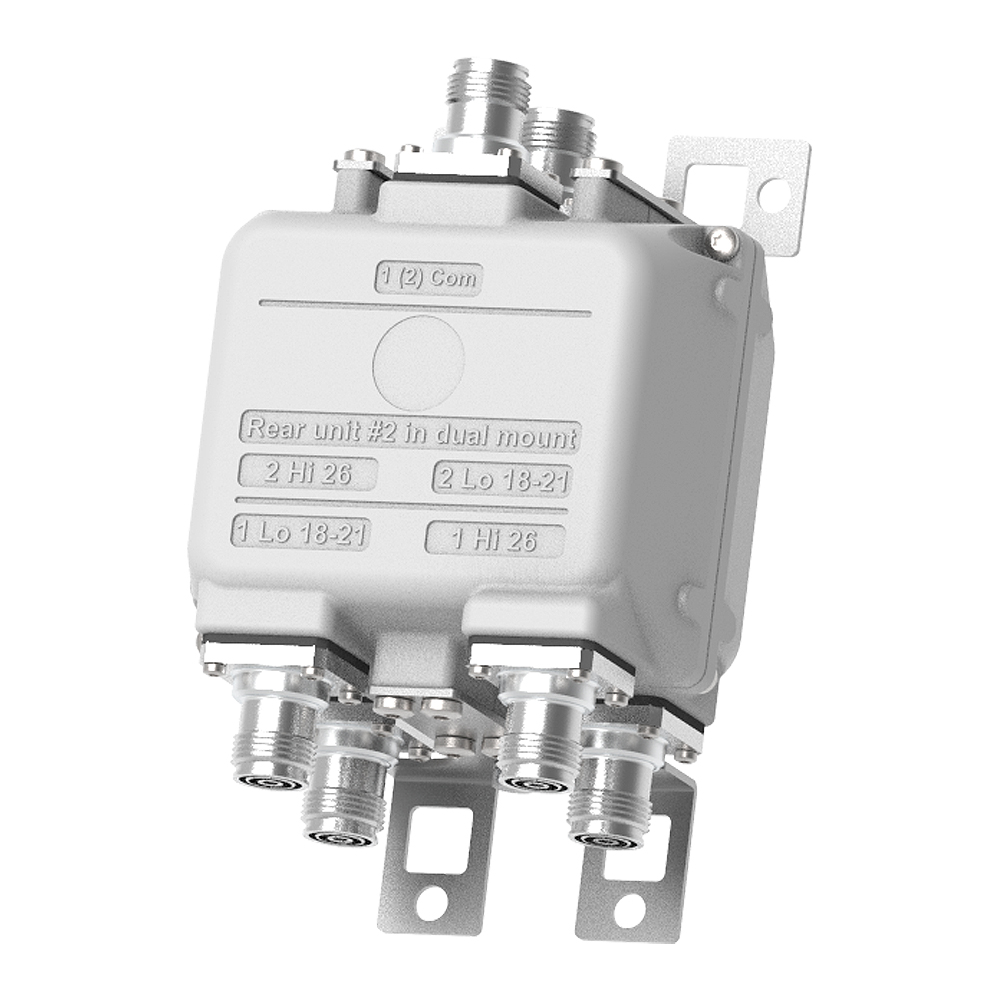

The Kaelus MI-241 is a bi-directional Diplexer, designed to combine or split 1800 – 2100 and 2300-2400 MHz. The MI-241 provides low insertion loss and high return loss with excellent passive inter-modulation performance in an extremely small and lightweight IP67 capable package
FEATURES
- Enables antenna & coax sharing for 1800 – 2100 and 2300-2400 MHz bands system
- Compact & lightweight – perfect for Small Cell applications
- Low insertion loss & high return loss
- Low passive IM performance
- Single twin and dual twin models available
- 7/16 (F) or 4.3-10 (F) connectors
- Hard Wired and DC Autosense versions available
- Provisions for wall or mast mounting
| PORT NAME |
1800 – 2100 MHZ |
2300-2400 MHZ |
| Passband |
1710-2170 MHz |
2300-2400 MHz |
| Insertion loss |
0.15 dB typical, 0.2 db maximum |
0.15 dB typical, 0.2 db maximum |
| Return loss |
20 dB typical, 18 dB minimum |
| Maximum input power |
250 W |
| Intermodulation products |
-159 dBc with 2 x 43 dBm TX Carrier |
| Rejection |
50 dB minimum in 2300-2400 MHz |
50 dB minimum in 1710-2170 MHz |
| Insertion loss |
1 dB max |
| Return loss |
12 18 dB min |
| Input voltage range |
8 – 30 V DC max 0.3 W |
| DC current rating |
2 A continuous, Drop max 2.4 V |
| Compliance |
3GPP TS 37.461 |
| Temperature range |
-40 ºC to +65 ºC | -40 ºF to +149 ºF |
| Ingress protection |
IP67 |
| Lightning protection |
3 kA 10/350 us, 10 kA 8/20 us |
| MTBF |
>1.000.000 |
| Compliance |
ETSI EN 300 019-1-4 class 4.1E, RoHS |
| Feature |

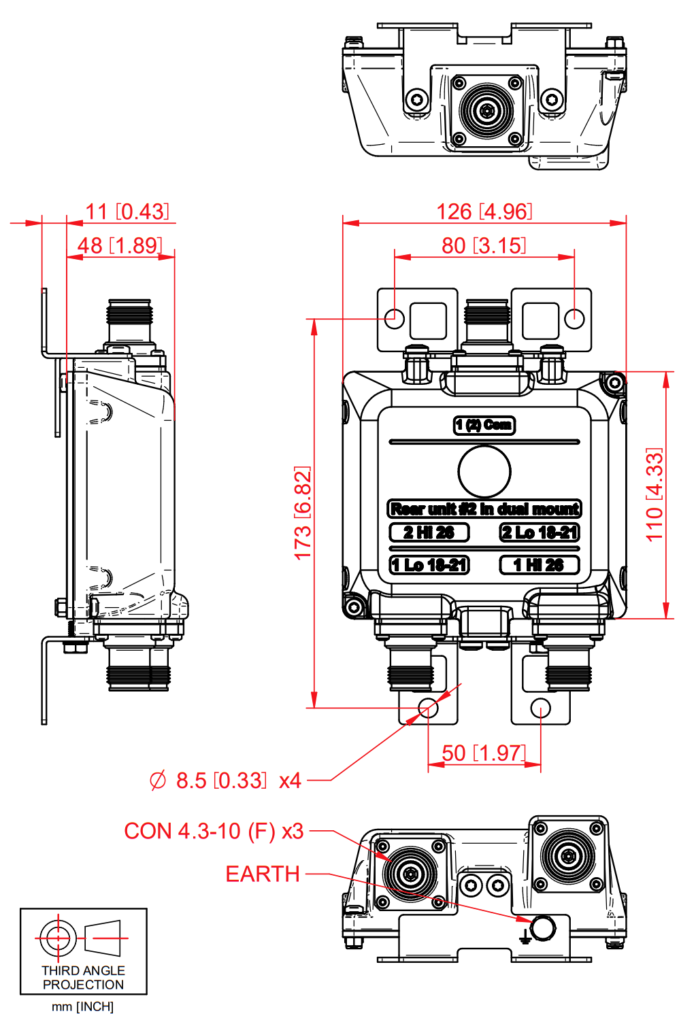

Single Mount |

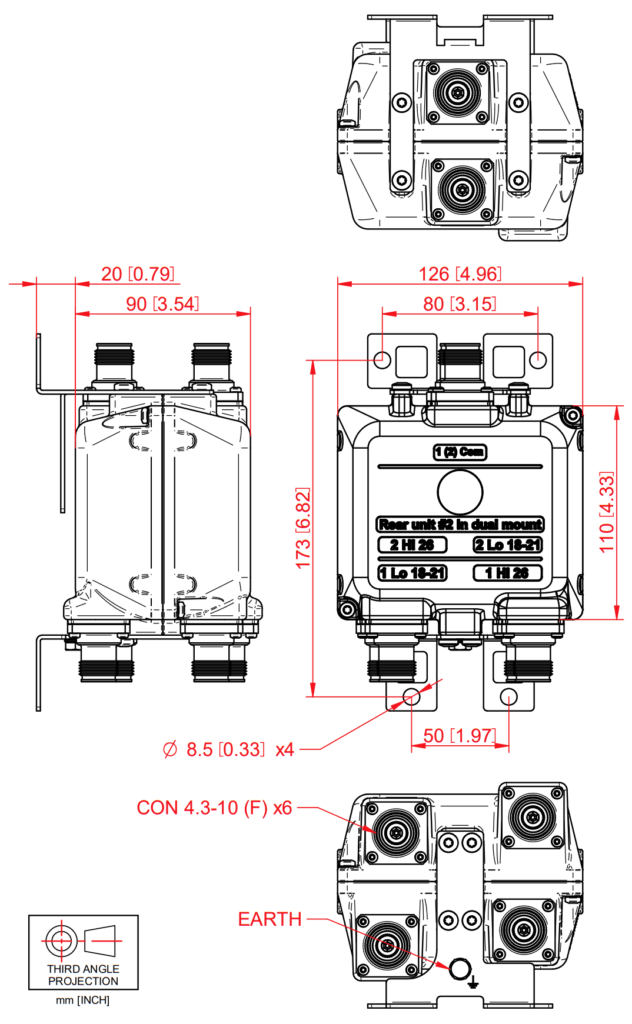

Dual Mount |
| Dimensions H x D x W |
126 x110 x 48 mm I 4.96 x 4.33 x 2.05 in |
126 x 110 x 90 mm I 4.96 x 4.33 x 3.78 in |
| Volume |
0.7 l |
1.4 l |
| Weight |
1.8 kg/1.4kg I 3.97 lb/3.09 lb |
3.6 kg/3.0 kg I 7.94 lb/6.61 lb |
| Finish |
Painted, NCS 1502-R |
| Mounting |
Hose clamps or wall mount. Supporterpole diameter: 40-140mm |
| PART NUMBER |
CONFIGURATION |
OPTIONAL FEATURES |
CONNECTORS |
DC/AISG CONFIGURATION |
| MI-2410n |
Single Mount |
BASE MODEL |
7/16 (F) |
Refer to DC /AISG table |
| MI-2411n |
Dual Mount |
BASE MODEL |
7/16 (F) |
Refer to DC /AISG table |
| MI-2413n |
Single Mount |
BASE MODEL |
4.3-10 (F) |
Refer to DC /AISG table |
| MI-2414n |
Dual Mount |
BASE MODEL |
4.3-10 (F) |
Refer to DC /AISG table |

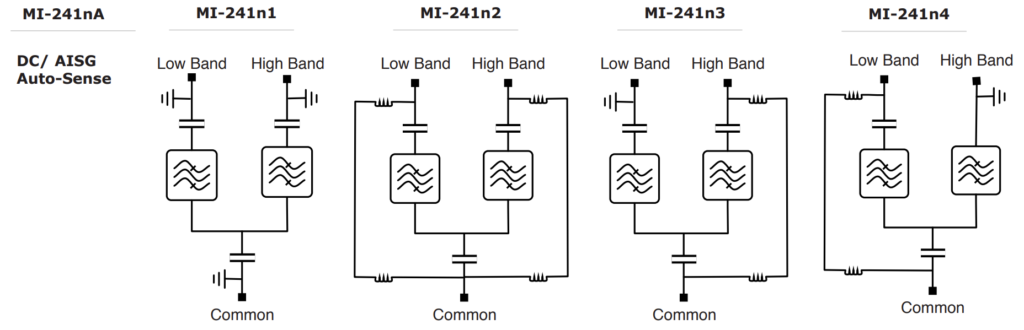

| MI-241nA |
Auto-sense |
| MI.241n1 |
DC Block |
| MI-241n2 |
DC to all |
| MI-241n3 |
DC to 2300 |
| MI-241n4 |
DC to 1800 – 2100 |
| MI-241A.1 |
FPO to 1800 – 2100 and 2300 – 2400 |
| MI-241nA.2 |
XOR to 1800 – 2100 and 2300 – 2400 |
| MI-241nA.3 |
2300 – 2400 Priority 1 and 1800 – 2100 prority 2 |
| MI-241nA.4 |
1800 – 2100 Priority 1 and 2300 – 2400 Priority 2 |
