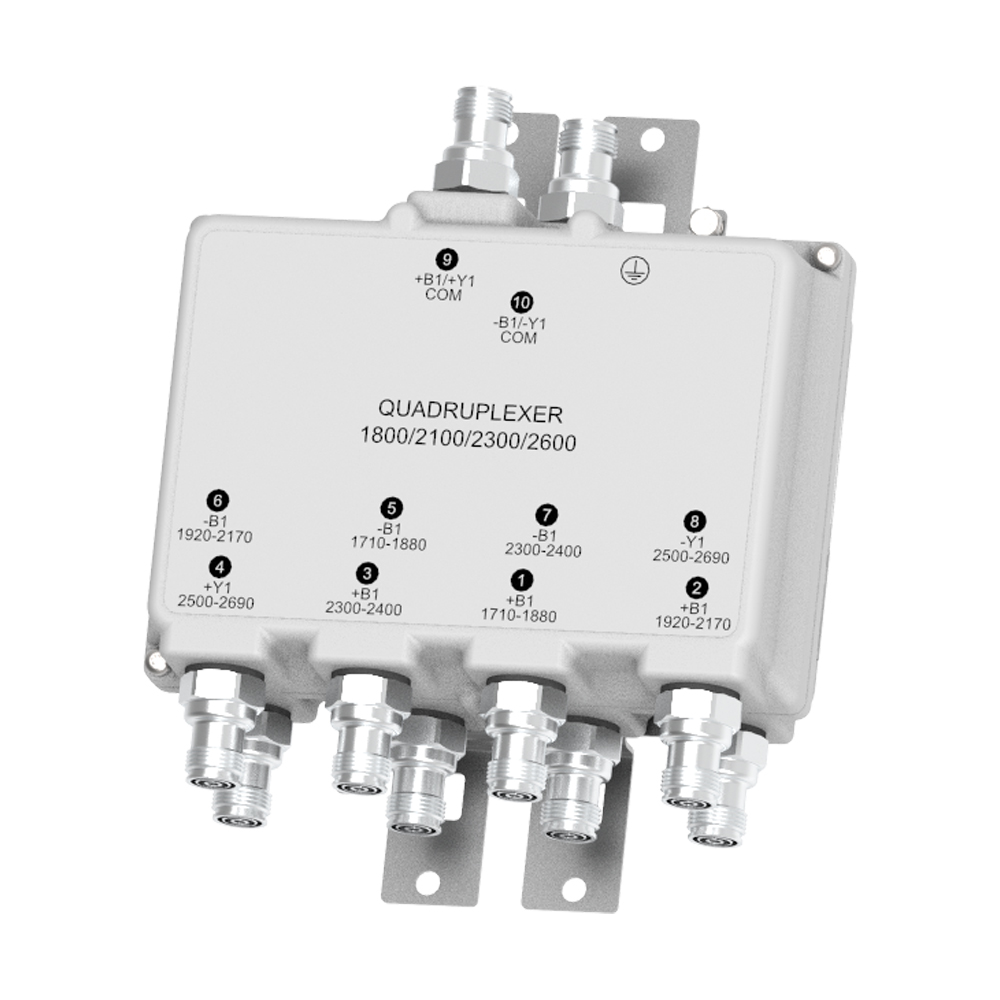

QUADRUPLEXER 1800/2100/2300/2600
The Kaelus MI-261 is a bi-directional Quadruplexer, designed to combine or split 1800/2100/2300/2600 MHz. The MI-261 provides low insertion loss and high return loss with excellent passive inter-modulation performance in an extremely small and lightweight IP67 capable package
FEATURES
- Enables antenna & coax sharing for 800/900/2100-2600 MHz bands systems.
- Compact & lightweight – perfect for Small Cell applications
- Low insertion loss & high return loss
- High passive IM performance
- Single and dual models available
- 7/16 (F) or 4.3-10 (F) connectors
- Hard Wired and DC Autosense versions available
- Provisions for wall or mast mounting
| BAND NAME |
1800 |
2100 |
2300 |
2600 |
| Passband |
1710 – 1880 MHz |
1920 – 2170 MHz |
2300 – 1400 MHz |
2500 – 2690 MHz |
| Insertion loss |
0.2 dB typical |
0.2 dB typical |
0.2 dB typical |
0.2 dB typical |
| Return loss |
>18 dB |
>18 dB |
>18 dB |
>18 dB |
| Intermodulation products |
-160 dBc at 2 x 43dBm TX Carrier |
| Rejection |
50 dB minimum in rejections to other bands |
50 dB minimum in rejections to other bands |
50 dB minimum in rejections to other bands |
50 dB minimum in rejections to other bands |
| Insertion loss |
1 dB max |
| Return loss |
12 dB min |
| Input voltage range |
8 – 30 V DC max 0.3 W |
| DC current rating |
3 A continuous, Drop max 2.4 V |
| Compliance |
3GPP TS 37.461 |
| Temperature range |
-40 ºC to +65 ºC | -40 ºF to +149 ºF |
| Ingress protection |
IP67 |
| Lightning protection |
5 kA maximum (8/20 us) |
| MTBF |
> 1,000,000 Hours |
| Compliance |
ETSI EN 300 019-1-4 class 4.1E, RoHS |
| Feature |
Single Mount |
Dual Mount |

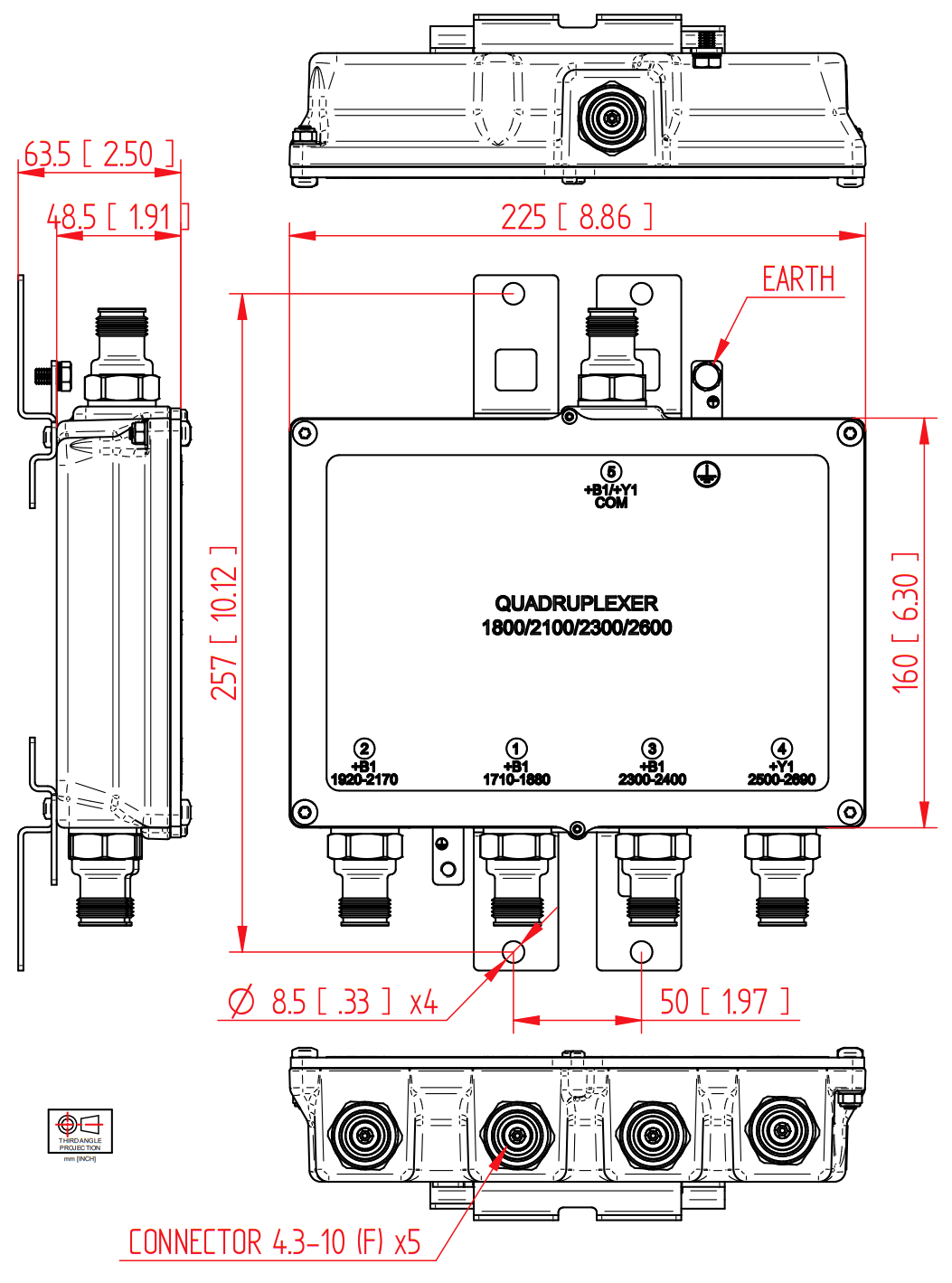

| Dimensions H x D x W |
225 x 160 x 49 mm I 8.86 x 6.30 x 1.93 in |
225 x 160 x 89 mm I 8.86 x 6.30 x 3.50 in |
| Volume |
1.7 l |
2.9 l |
| Weight |
2.8 kg I 6.2 lb |
4.6 kg I 10.01 lb |
| Finish |
Painted, NCS 1502-R ( Light Grey ) |
| Mounting |
Hose clamps or wall mount ( Supporter pole Diameter: 40 – 140 mm ) |
| Feature |
Single Mount With Auto-Sense |
Dual Mount With Auto-Sense |
| Dimensions H x D x W |
225 x 160 x 63 mm I 8.86 x 6.30 x 2.48 in |
225 x 160 x 118 mm I 8.86 x 6.30 x 4.65 in |
| Volume |
1.7 l |
2.9 l |
| Weight |
2.9 kg I 6.2 lb |
4.8 kg I 10.5 llb |
| Finish |
Painted, NCS 1502-R ( Light Grey ) |
| Mounting |
Hose clamps or wall mount ( Supporter pole Diameter: 40 – 140 mm ) |
| PART NUMBER |
CONFIGURATION |
OPTIONAL FEATURES |
CONNECTORS |
DC/AISG CONFIGURATION |
| MI-261n |
Single Mount |
BASE MODEL |
7/16 (F) |
Refer to DC /AISG table |
| MI-2611n |
Dual Mount |
BASE MODEL |
7/16 (F) |
Refer to DC /AISG table |
| MI-2613n |
Single Mount |
BASE MODEL |
4.3-10 (F) |
Refer to DC /AISG table |
| MI-2614n |
Dual Mount |
BASE MODEL |
4.3-10 (F) |
Refer to DC /AISG table |

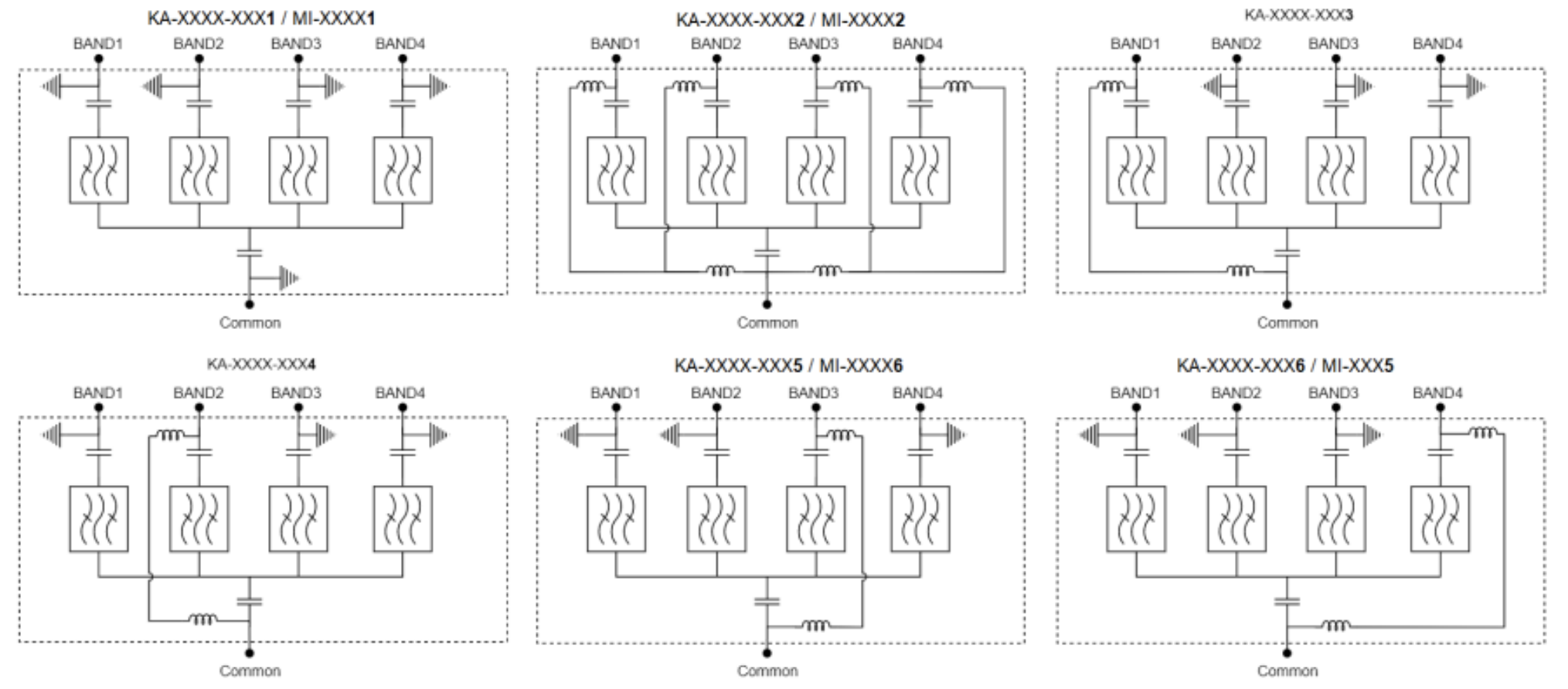

| MI-261nA |
Auto-sense |
| MI-261n1 |
DC BLOCK |
| MI-261n2 |
DC TO All |
| MI-261n3 |
DC TO 2300 and 2600 |
| MI-261n4 |
DC TO 2100, 2300 and 2600 |
| MI-261n5 |
DC TO 2600 |
| MI-261n6 |
DC TO 2300 |
| MI-261nA.1 |
FPO TO 1800, 2100, 2300 and 2600 |
| MI-261nA.2 |
XOR TO 1800, 2100, 2300 and 2600 |
| MI-261nA.3 |
2600 priority 1, 2300 priority 2 and 2100 priority 3 and 1800 priority 4 |
| MI-261nA.4 |
1800Priority 1, 2100 Priority 2 and 2300 Priority 3 and 2600 priority 4 |
