SMART BIAS TEE/BTS

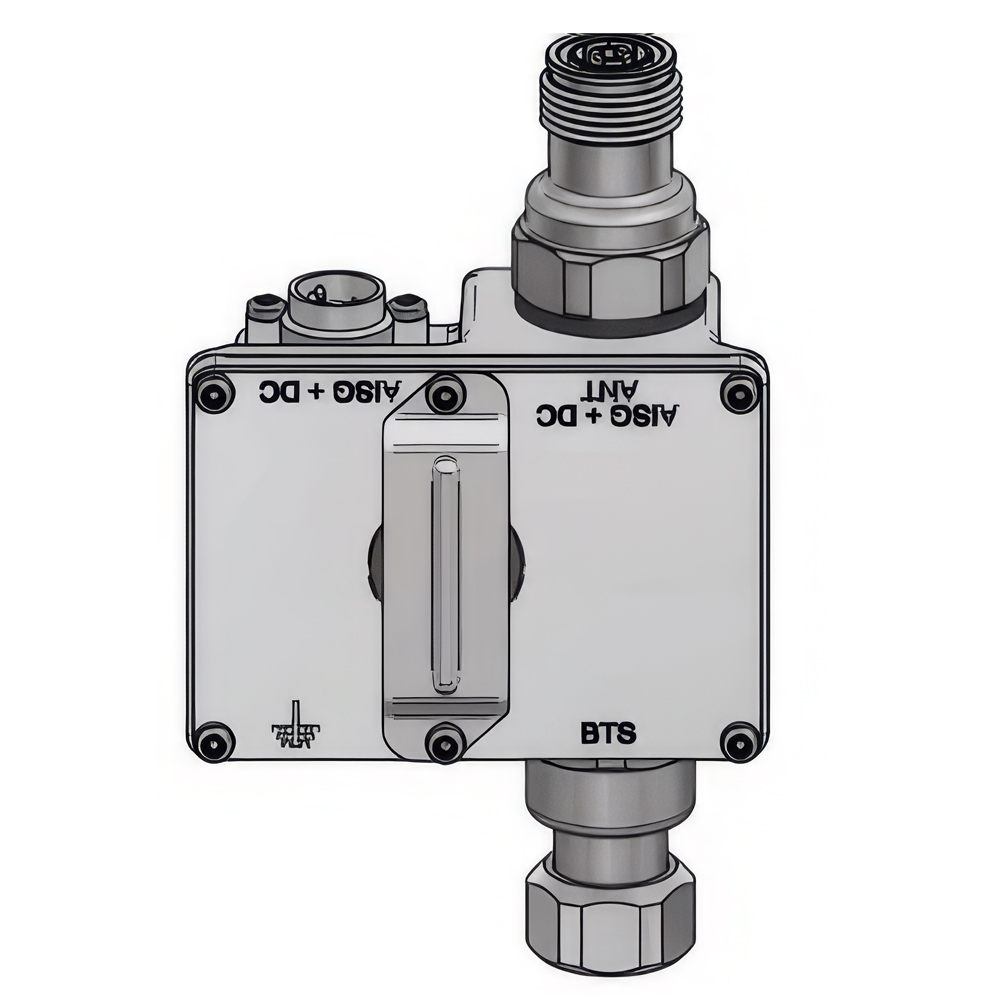

The Kaelus MI-318 provides a flexible Smart Bias Tee solution allowing for AISG and DC to be placed onto a feeder at the bottom of the tower or extracted from the feeder at the top. Operating across 555-3800MHz the MI-318 provides the following additional benefits.
FEATURES
- Primary surge protection limits the voltage let-through from the feeder to the DC port
- Available in top of the tower or bottom of the tower applications
- Variable connector configurations to allow for different installation techniques and scenarios
- IP67 for continuous outdoor operation
- Connectors: BTS-Side – 4.3-10 M ANT-Side – 4.3-10 F (DC+AISG) AISG 8-pin circular M (IEC 60130-9)
