QUADRUPLEXER 700-900/1800/2100/2300-2600

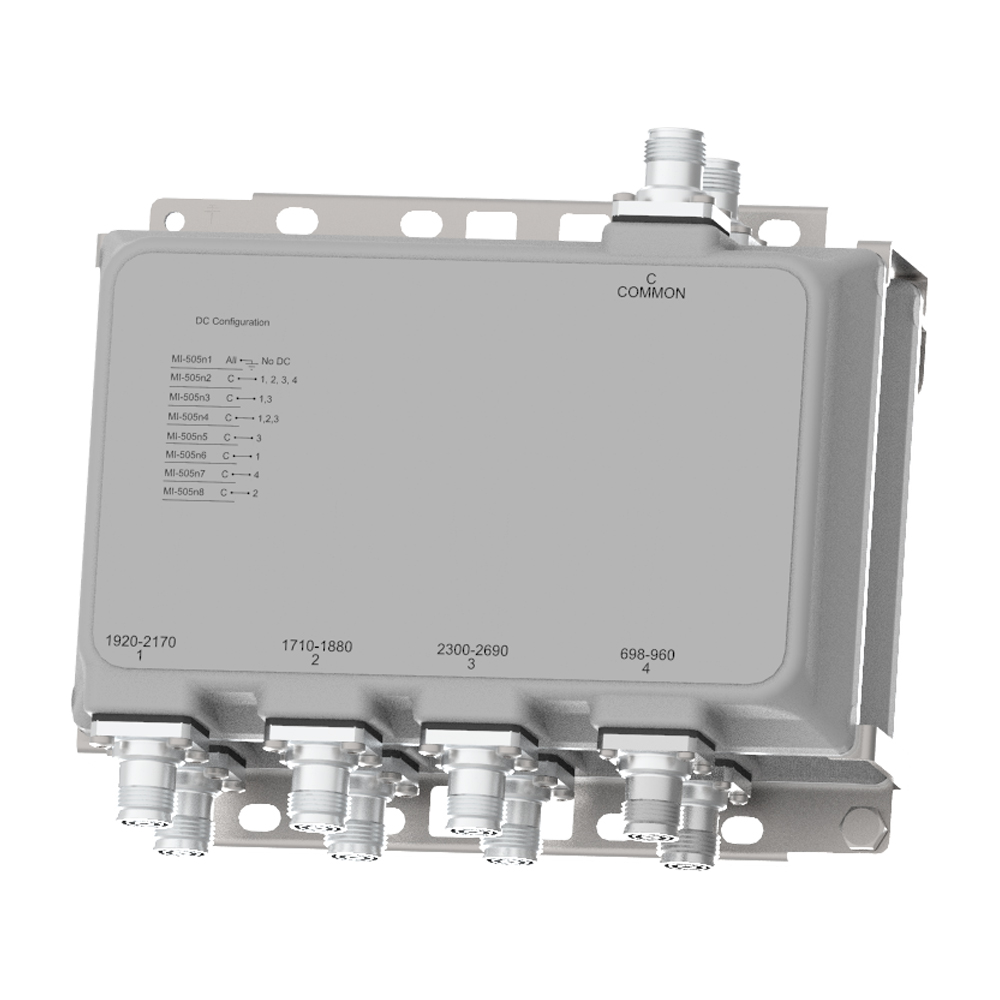

The Kaelus MI-505 is a bi-directional Quadruplexer, designed to combine or split 700-900/1800/2100/2300-2600 MHz. The MI-505 provides low insertion loss and high return loss with excellent passive inter-modulation performance in an extremely small and lightweight IP67 capable package
FEATURES
- Enables antenna & coax sharing for 800/900/2100-2600 MHz bands systems.
- Compact & lightweight – perfect for Small Cell applications
- Low insertion loss & high return loss
- High passive IM performance
- Single and dual models available
- 7/16 (F) or 4.3-10 (F) connectors
- Hard Wired and DC Autosense versions available
- Provisions for wall or mast mounting
| BAND NAME |
700-900 |
1800 |
2100 |
2300-2600 |
| Passband |
698 – 960 MHz |
1710 – 1880 MHz |
1920 – 2170 MHz |
2300 – 2690 MHz |
| Insertion loss |
< 0.2 dB |
0.4 dB typical |
0.3 dB typical, 0.5 dB maximum |
0.2 dB typical |
| Return loss |
>18 dB |
>18 dB |
>18 dB |
>18 dB |
| Intermodulation products |
-160 dBc at 2 x 43dBm TX Carrier |
| Rejection |
50 dB minimum in 1710 – 2690 MHz |
50 dB minimum in 1920 – 2690 and 698 – 960 MHz |
50 dB minimum in 698 – 1880 and 2300 – 2690 MHz |
50 dB minimum in 698 – 2170 MHz |
| Insertion loss |
1 dB max |
| Return loss |
12 dB min |
| Input voltage range |
8 – 30 V DC max 0.3 W |
| DC current rating |
3 A continuous, Drop max 2.4 V |
| Compliance |
3GPP TS 37.461 |
| Temperature range |
-40 ºC to +65 ºC | -40 ºF to +149 ºF |
| Ingress protection |
IP67 |
| Lightning protection |
5 kA maximum (8/20 us) |
| MTBF |
> 1,000,000 Hours |
| Compliance |
ETSI EN 300 019-1-4 class 4.1E, RoHS |
| Feature |
Single Mount |
Dual Mount |

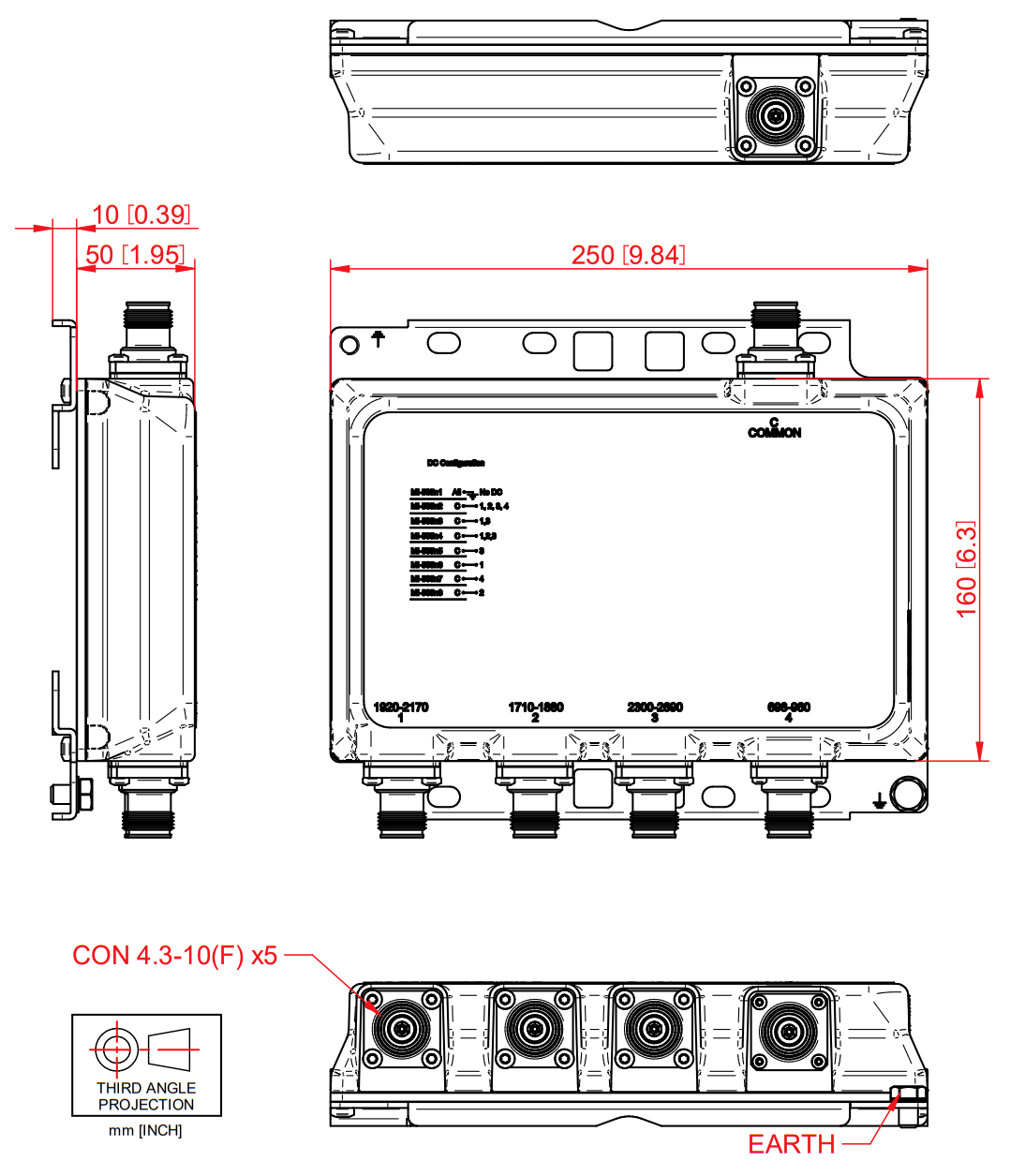

| Dimensions H x D x W |
250 x 160 x 50 mm I 9.84 x 6.30 x 1.93 in |
250 x 160 x 104 mm I 9.84 x 6.30 x 4.09 in |
| Volume |
1.96 l |
4.16 l |
| Weight |
4.5 kg I 9.92 lb |
8.2 kg I 18.0 lb |
| Finish |
Painted, NCS 1502-R ( Light Grey ) |
| Mounting |
Hose clamps or wall mount ( Supporter pole Diameter: 40 – 140 mm ) |
| Feature |
Single Mount With Auto-Sense |
Dual Mount With Auto-Sense |
| Dimensions H x D x W |
250 x 160 x 60 mm I 9.84 x 6.30 x 2.36 in |
TBD |
| Volume |
2.4 l |
4.8 l |
| Weight |
5.2 kg I 11.4 lb |
8.9 kg I 19.6 lb |
| Finish |
Painted, NCS 1502-R ( Light Grey ) |
| Mounting |
Hose clamps or wall mount ( Supporter pole Diameter: 40 – 140 mm ) |
| PART NUMBER |
CONFIGURATION |
OPTIONAL FEATURES |
CONNECTORS |
DC/AISG CONFIGURATION |
| MI-505n |
Single Mount |
BASE MODEL |
7/16 (F) |
Refer to DC /AISG table |
| MI-5051n |
Dual Mount |
BASE MODEL |
7/16 (F) |
Refer to DC /AISG table |
| MI-5053n |
Single Mount |
BASE MODEL |
4.3-10 (F) |
Refer to DC /AISG table |
| MI-5054n |
Dual Mount |
BASE MODEL |
4.3-10 (F) |
Refer to DC /AISG table |

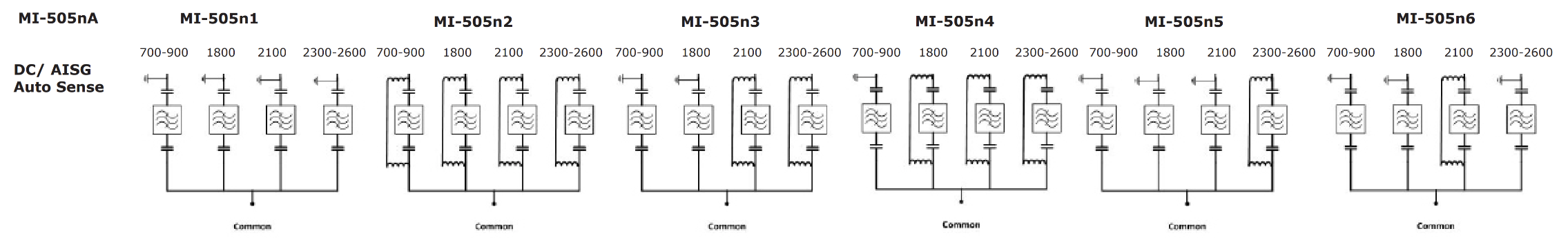

| MI-505nA |
Auto-sense |
| MI-505n1 |
DC BLOCK |
| MI-505n2 |
DC TO All |
| MI-505n3 |
DC TO 2100 and 2300-2600 |
| MI-505n4 |
DC TO 1800, 2100 and 2300-2600 |
| MI-505n5 |
DC TO 2300-2600 |
| MI-505n6 |
DC TO 2100 |
| MI-505nA.1 |
FPO TO 700-900, 1800, 2100 and 2300-2600 |
| MI-505nA.2 |
XOR TO 700-900, 1800, 2100 and 2300-2600 |
| MI-505nA.3 |
2300-2600 priority 1, 2100 priority 2, 1800 priority 3 and 700-900 priority 4 |
| MI-505nA.4 |
700 – 900 Priority 1, 2100 Priority 2 and 1800 Priority 3 and 700-900 priority 4 |
| MI-505nA.5 |
2100 priority 1, 700-900 priority 2, 2300-2600 priority 3 and 1800 priority 4 |
| MI-505nA.6 |
2300-2600 priority 1, 700-900 priority 2, 2100 priority 3 and 1800 priority 4 |
| MI-505nA.7 |
2300-2600 priority 1, 700-900 priority 2, 1800 priority 3, and 2100 priority 4 |
