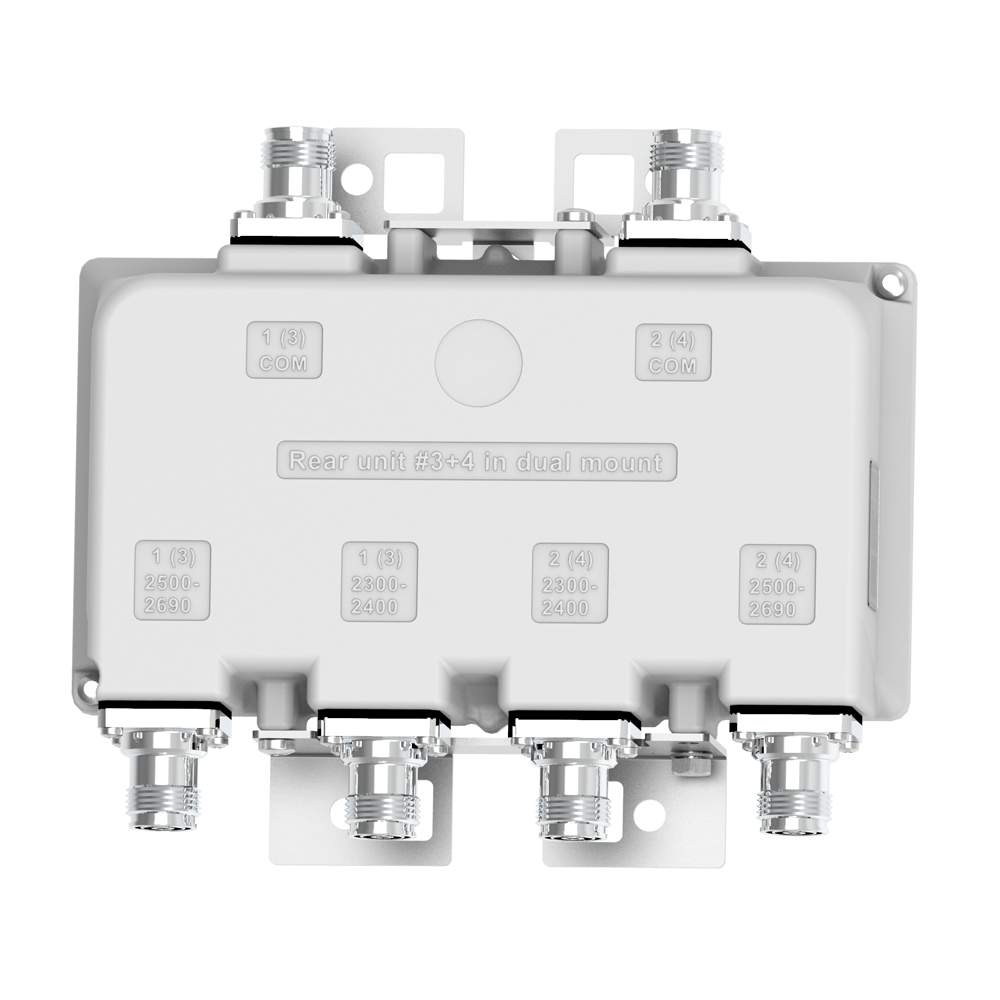

DIPLEXER 2300/2600
The Kaelus MI-513 is a bi-directional Diplexer, designed to combine or split 2300 and 2600 MHz bands. The MI-513 provides low insertion loss and high return loss with excellent passive inter-modulation performance in an extremely small and lightweight IP67 capable package
FEATURES
- Enables antenna & coax sharing for 2300 and 2600 MHz bands systems
- Compact & lightweight – perfect for Small Cell applications
- Low insertion loss & high return loss
- Low passive IM performance
- Single twin and dual twin models available
- 7/16 (F) or 4.3-10 (F) connectors
- Hard Wired and DC Autosense versions available
- Provisions for wall or mast mounting
| PORT NAME |
LOW BAND |
HIGH BAND |
| Passband |
2300 – 2400MHz |
2496 – 2690MHz |
| Insertion loss |
0.15dB typical, 0.3dB maximum |
0.15dB typical, 0.25dB maximum |
| Return loss |
18dB minimum |
| Maximum input power |
250W (average) |
250W (average) |
| Intermodulation products |
N.A |
-160dBc with 2 x 20W carriers |
| Rejection |
50dB minimum in 2496 – 2690MHz band |
50dB minimum in 2300 – 2400MHz band |
| Feature |
DC-FIXED |
AUTOSENSE |
| Insertion loss, single DC/AISG pass |
1dB maximum |
| Return loss, single DC/AISG pass |
12dB minimum |
| Input voltage range |
8 – 30V DC, 0.3W |
| DC current rating |
3A |
2A, drop max 2.4V |
| Temperature range |
-40ºC to +65ºC | -40ºF to +149ºF |
| Ingress protection |
IP67 |
| Lightning protection |
10kA maximum (8/20us) |
| Compliance |
ETSI 300 019-1-4 Class 4.1E (OPERATIONAL)
ETSI 300 019-1-1 Class 1.2 (STORAGE) |
| Feature |
Single Mount |
Dual Mount |

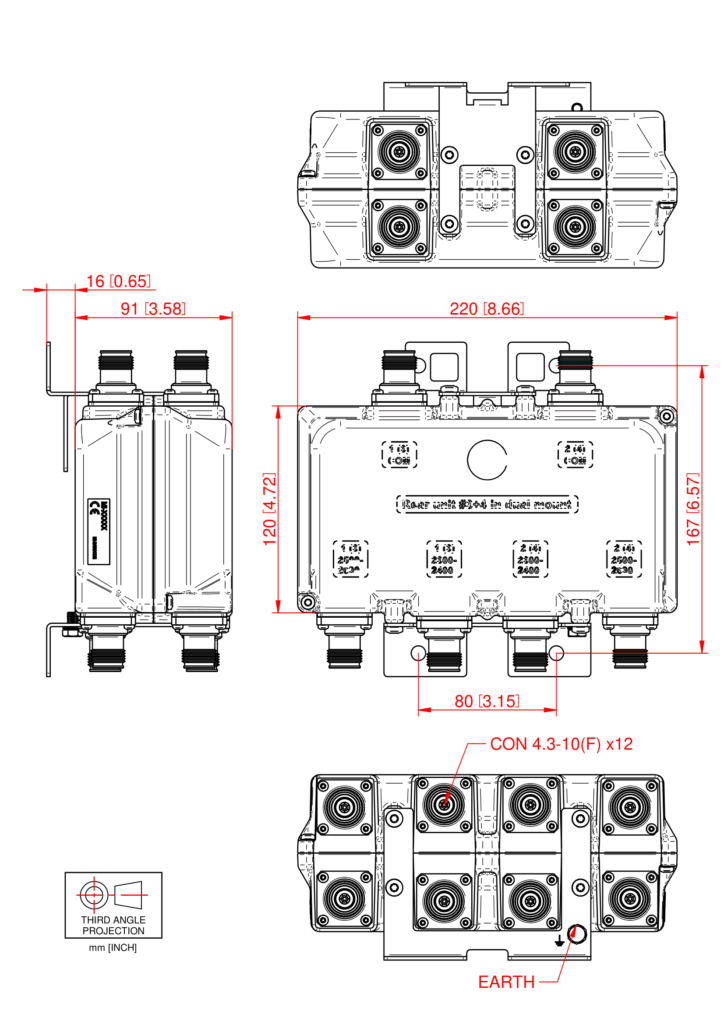

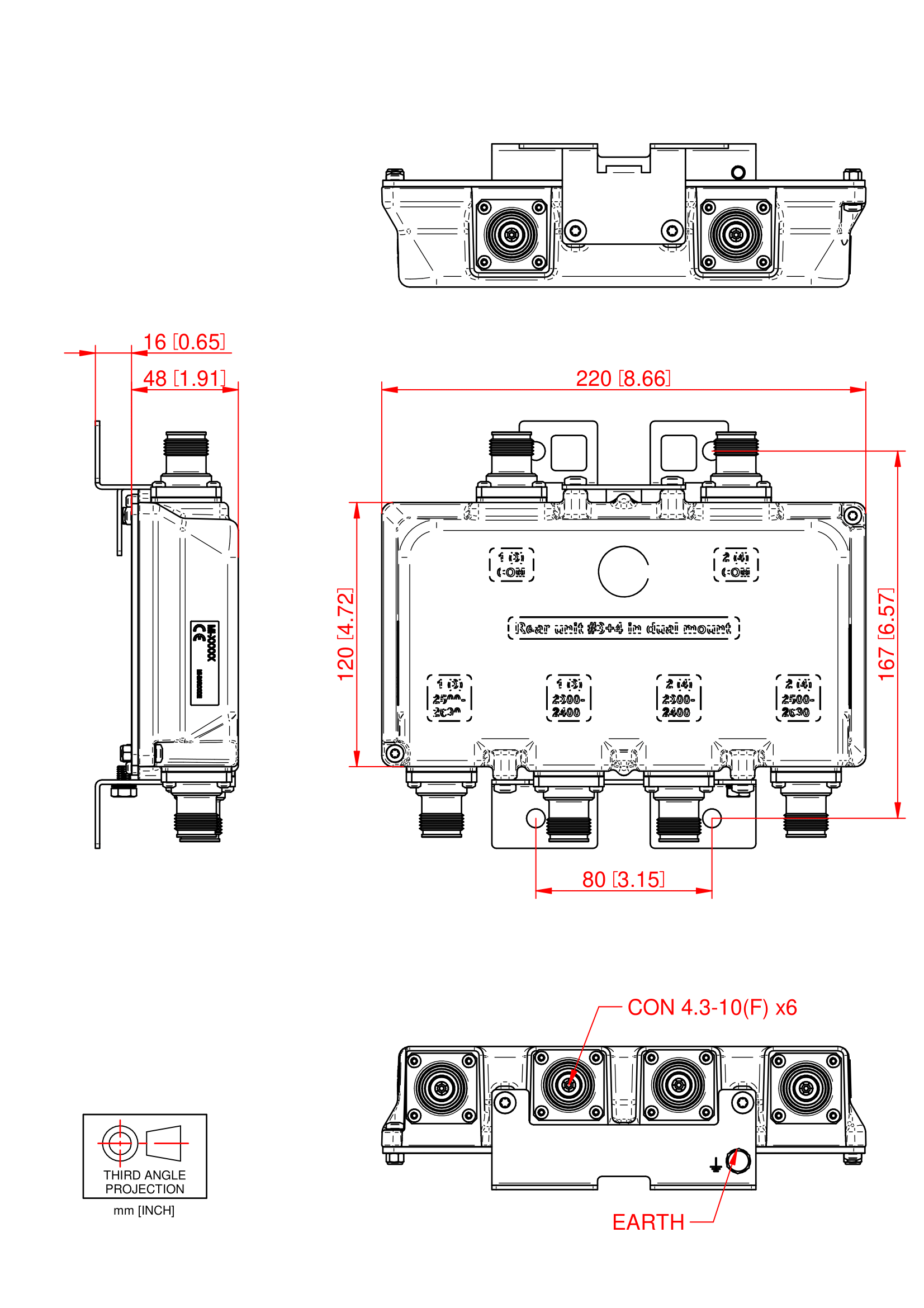

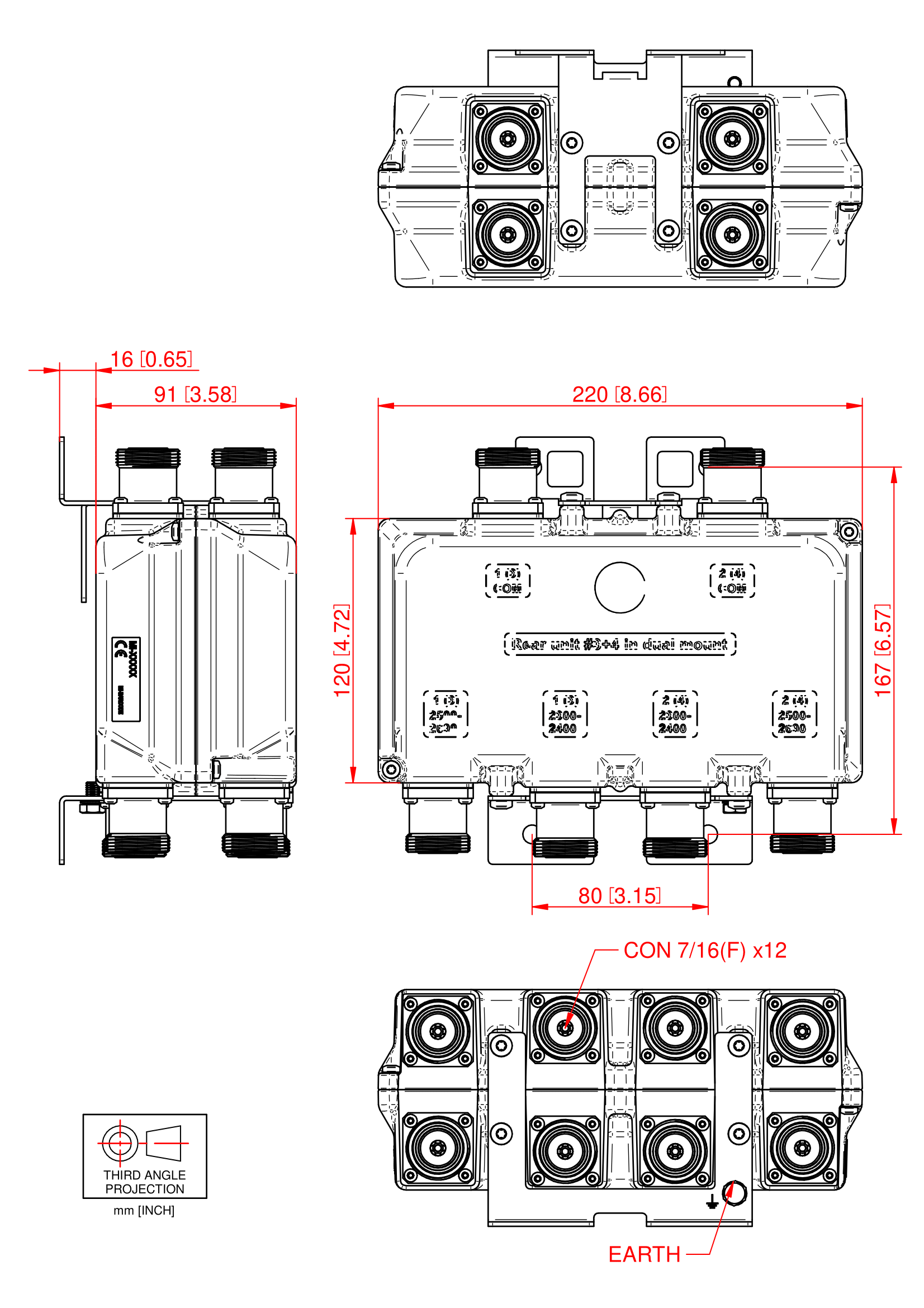

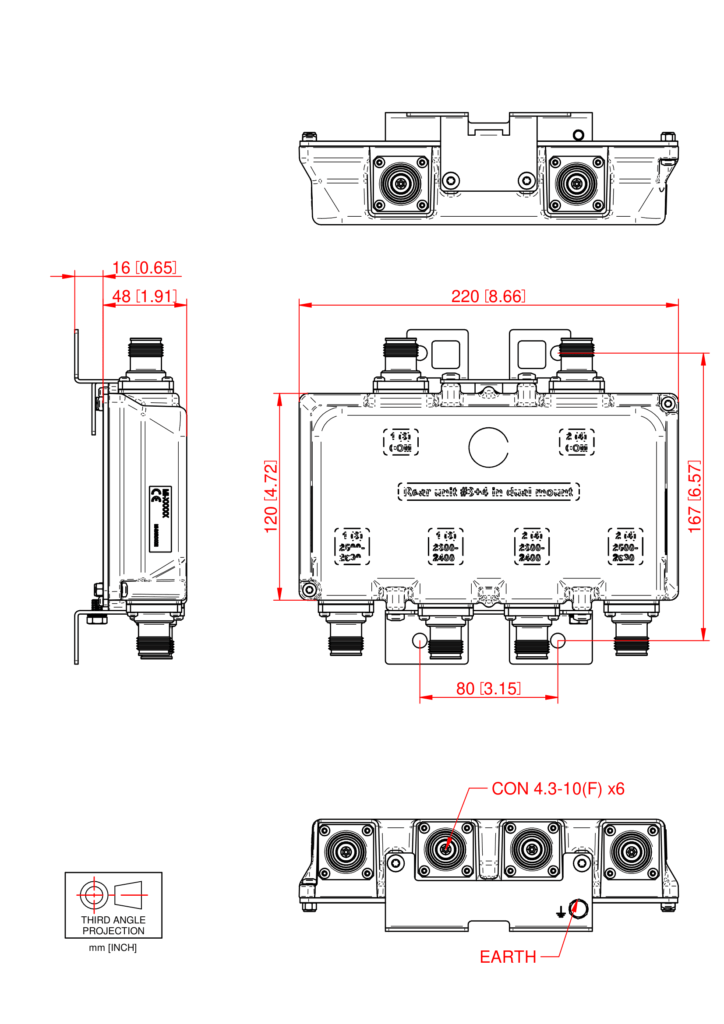

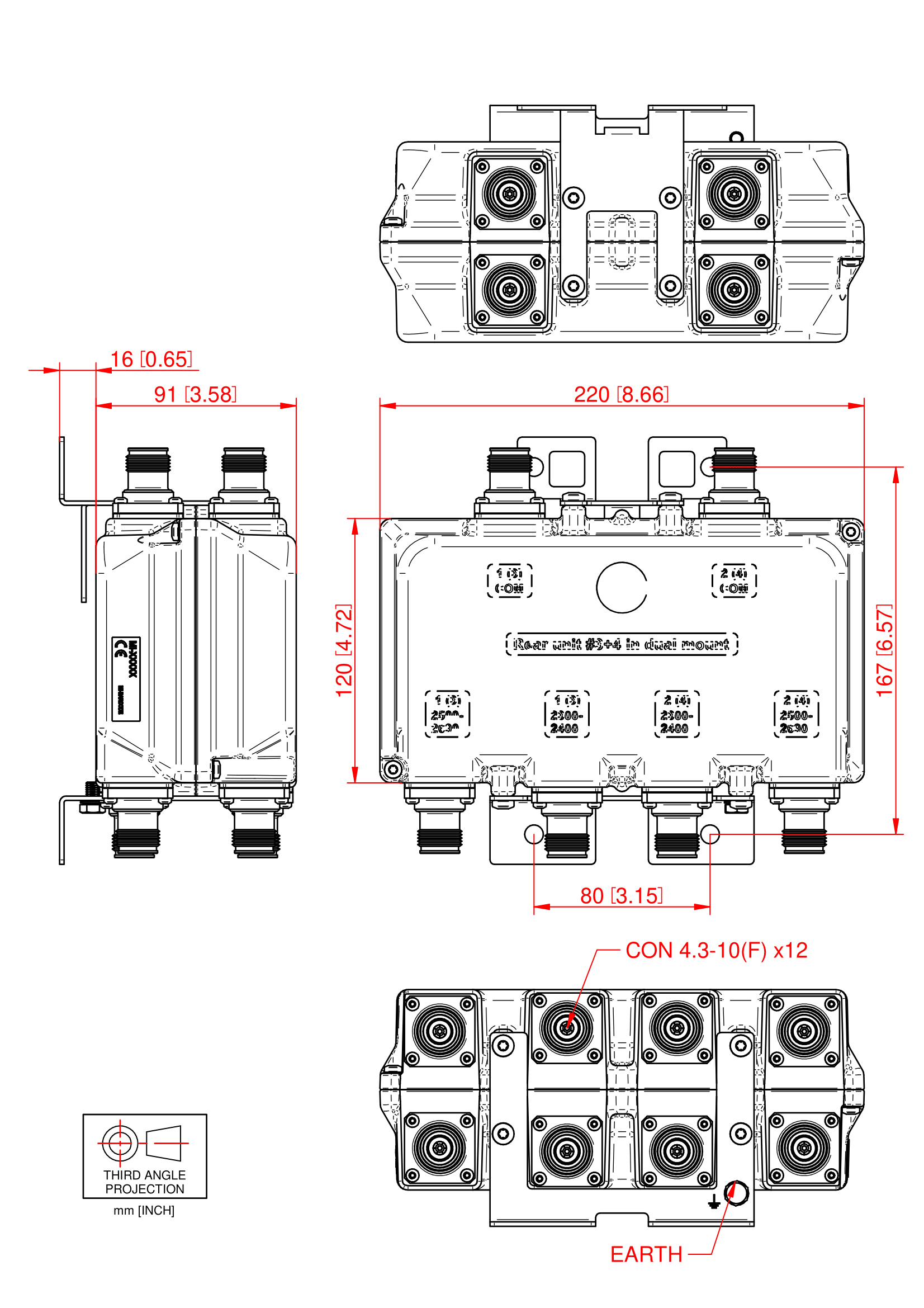

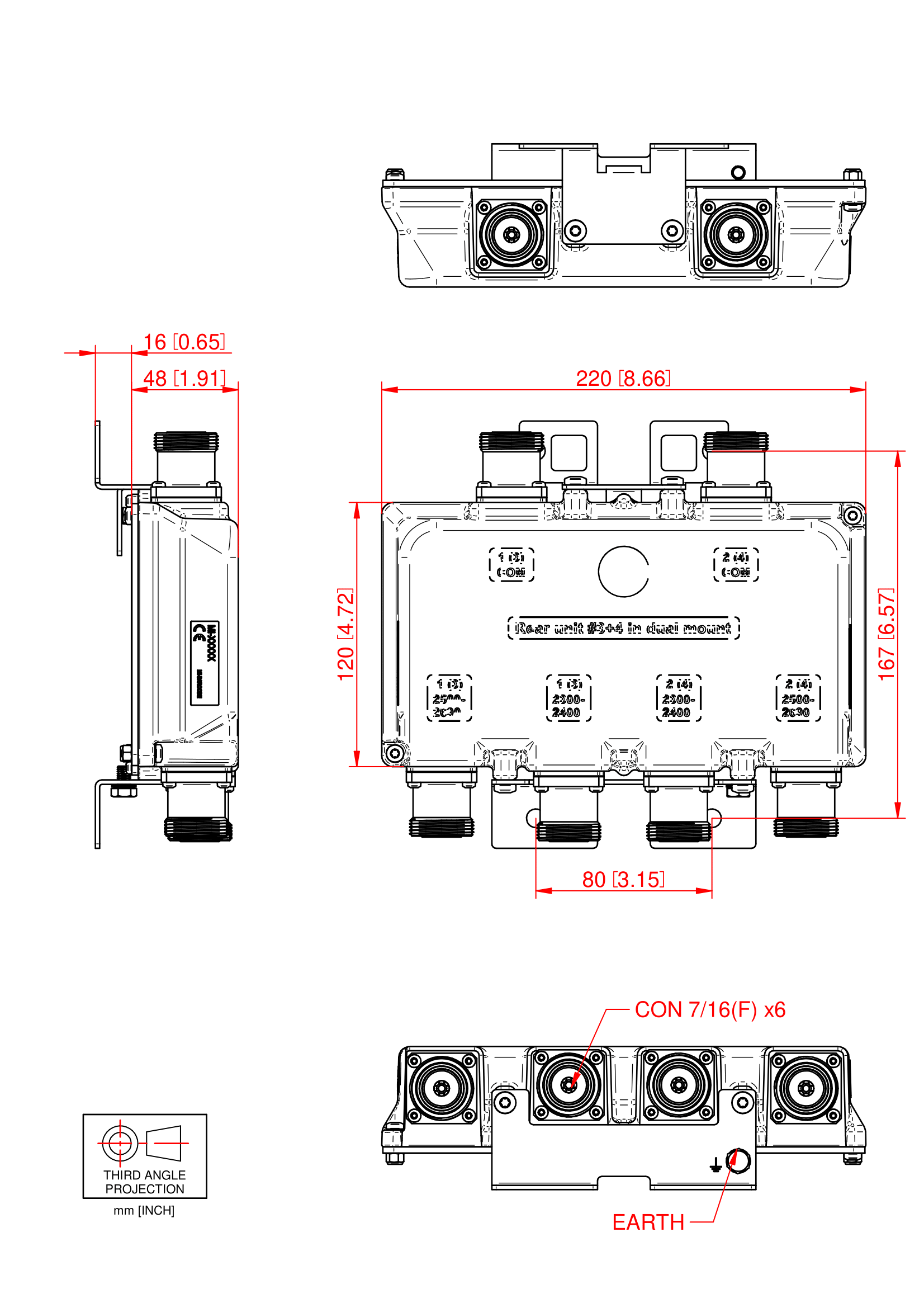

| Dimensions H x D x W |
220 x 48.5 x 120 mm | 8.66 x 1.91 x 4.72 in |
220 x 91 x 120 mm | 8.66 x 3.58 x 4.72 in |
| Weight |
TBD |
TBD |
| Finish |
Painted, NCS 1502-R |
| Mounting |
Pole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles |
| PART NUMBER |
CONFIGURATION |
OPTIONAL FEATURES |
CONNECTORS |
DC/AISG CONFIGURATION |
| MI-5130n |
Single Mount |
BASE MODEL |
7/16 (F) |
Refer to DC /AISG table |
| MI-5131n |
Dual Mount |
BASE MODEL |
7/16 (F) |
Refer to DC /AISG table |
| MI-5133n |
Single Mount |
BASE MODEL |
4.3-10 (F) |
Refer to DC /AISG table |
| MI-5134n |
Dual Mount |
BASE MODEL |
4.3-10 (F) |
Refer to DC /AISG table |

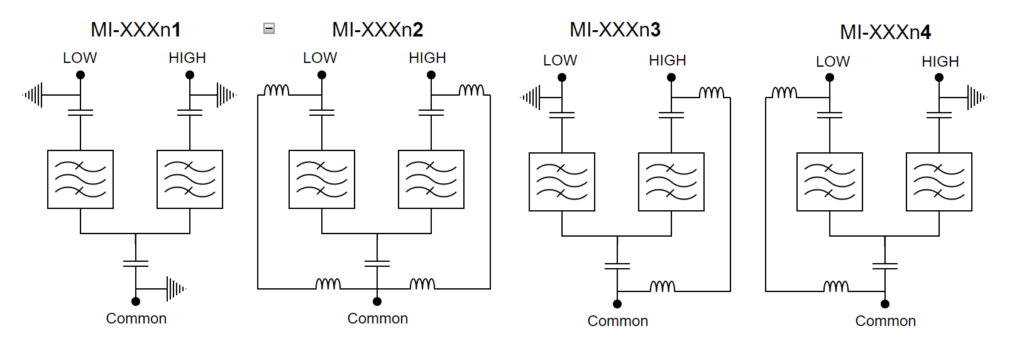

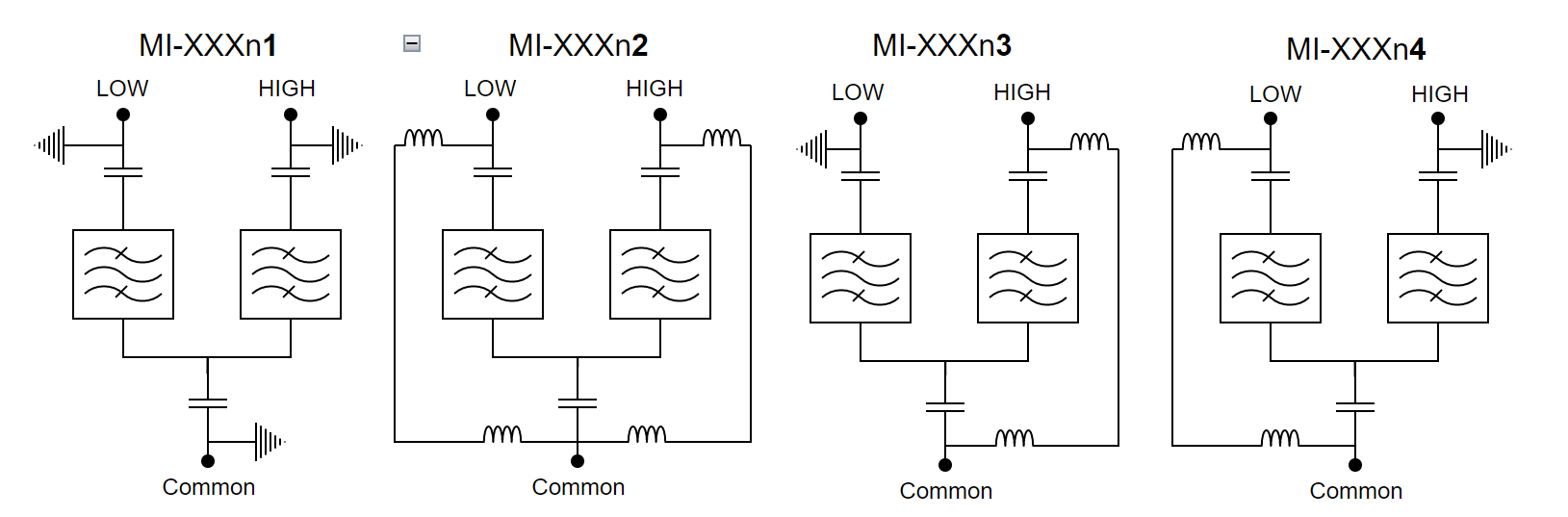

| MI-513nA |
Auto-Sense |
| MI-513n1 |
NO DC Path |
| MI-513n2 |
DC to Low band and High band |
| MI-513n3 |
DC to High band |
| MI-513n4 |
DC to Low band |
