TRIPLEXER 700/800/900

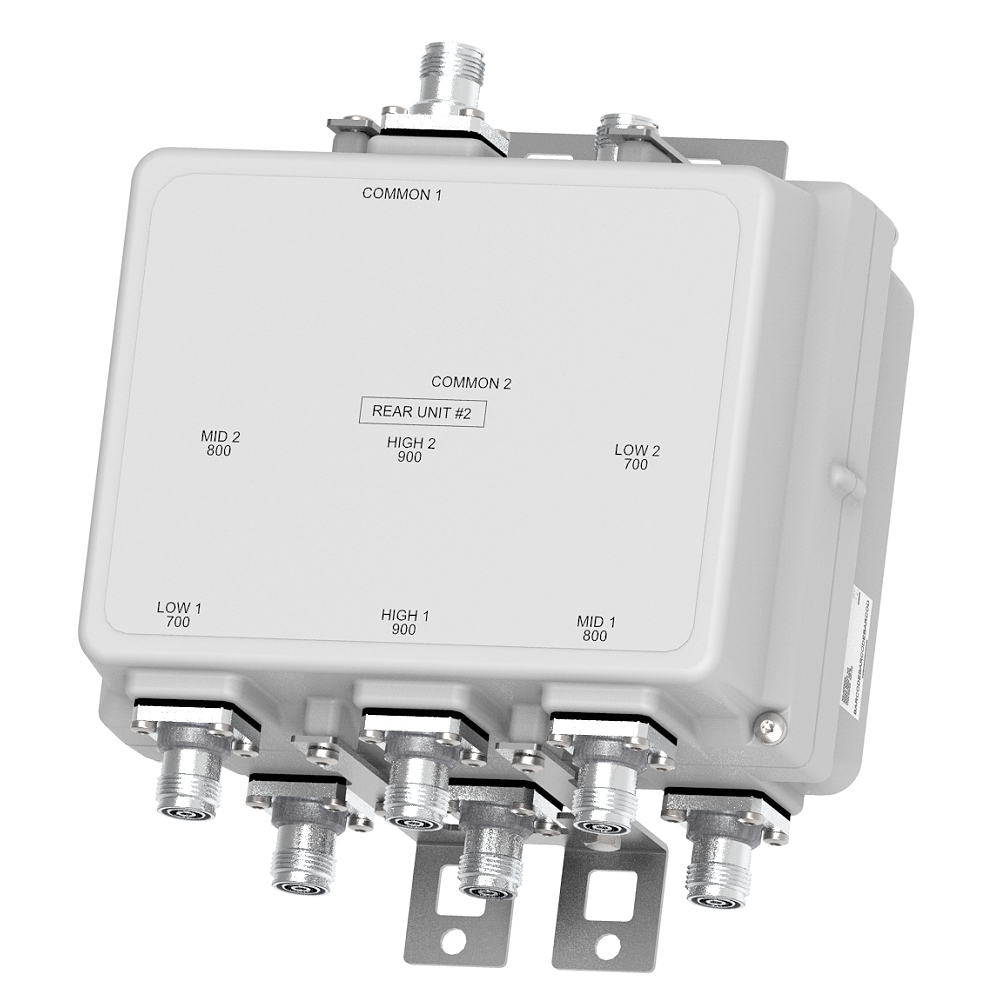

The Kaelus MI-528 is a bi-directional Triplexer, designed to combine or split 700, 800 and 900 bands. The MI-528 provides low insertion loss and high return loss with excellent passive inter-modulation performance in an extremely small and lightweight IP67 capable package
FEATURES
- Enables antenna & coax sharing for 700, 800, and 900 systems
- Compact & lightweight
- Low insertion loss & high return loss
- Low passive IM performance
- Single twin and dual twin models available
- Hard Wired and DC Autosense versions available
TECHNICAL SPECIFICATIONS |
|||||||||||||||
| BAND NAME | 700 | 800 | 900 | ||||||||||||
| Passband | 703-778MHz | 791-862MHz | 880-960MHz | ||||||||||||
| Insertion loss | 0.2dB typical, 0.5dB max | 0.25dB typical, 0.5dB max | 0.2dB typical, 0.4dB max | ||||||||||||
| Return loss | 18dB minimum | ||||||||||||||
| Maximum input power | 250W (average) * | 250W (average) * | 250W (average) * | ||||||||||||
| Intermodulation products | < -160dBc at 2 x 43dBm TX Carrier | ||||||||||||||
| Rejection | 50dB minimum in 800 TX and 900 TX band | 50dB minimum in 700 TX and 900 TX band | 50dB minimum in 700 TX and 800 TX band | ||||||||||||
| (*) Limited to 500W (average) combined power at the common port. | |||||||||||||||
| ELECTRICAL | |||||||||||||||
| Impedance | 50Ohms | ||||||||||||||
| DC / AISG | |||||||||||||||
| DC/AISG path is factory configurable, see ordering information | |||||||||||||||
| Passband | 0 – 3MHz | ||||||||||||||
| Insertion loss | 1dB maximun | ||||||||||||||
| Return loss | 12dB minimun | ||||||||||||||
| Input voltage range | ± 8-30V | ||||||||||||||
| DC current rating | 3A continuous | ||||||||||||||
| Compliance | 3GPP TS 37.461 | ||||||||||||||
| ENVIRONMENTAL | |||||||||||||||
| For further details of environmental compliance, please contact Kaelus. | |||||||||||||||
| Temperature range | -40ºC to +65ºC | -40ºF to +149ºF | ||||||||||||||
| Ingress protection | IP67 | ||||||||||||||
| Lightning protection | 5kA maximum (8/20us) | ||||||||||||||
| MTBF | > 1,000,000 Hours | ||||||||||||||
| Compliance | Operation: ETSI EN 300 019 class 4.1E Transport: ETS 300 019-1-2 class 2.3 RoHS |
||||||||||||||
| MECHANICAL | |||||||||||||||
| Dimensions H x D x W (single unit) | 180 x 75 x 225mm | ||||||||||||||
| Dimensions H x D x W (twin unit) | 180 x 141 x 225mm | ||||||||||||||
| Weight (single unit) | 4.9kg | ||||||||||||||
| Weight (twin unit) | 9.3kg | ||||||||||||||
| Finish | Powder Coated, light grey, NCS 1502-R | ||||||||||||||
| Connectors | 4.3-10 (F) long neck | ||||||||||||||
| Mounting | Pole/wall bracket supplied with two metal clamps for 40-140 mm diameter poles | ||||||||||||||
| SHIPPING INFORMATION | |||||||||||||||
| Feature | 6 in / 2 out | 3 in / 1 out | |||||||||||||
| Carton size | 330 x 290 x 215mm | 330 x 290 x 148mm | |||||||||||||
| Gross weight (including packaging) | 9.9kg | 5.4kg | |||||||||||||
ORDERING INFORMATION |
|||||||||||||||
| PART NUMBER | CONFIGURATION | OPTIONAL FEATURES | CONNECTORS | DC/AISG CONFIGURATION | |||||||||||
| MI-5284A | 6 in / 2 out | AUTOSENSE WITHOUT LED |
4.3-10 (F) | AUTOSENSE FIRST POWER ON |
|||||||||||
| MI-52841 | 6 in / 2 out | FIXED DC FACTORY CONFIGURABLE |
4.3-10 (F) | DC TO HIGH PORT | |||||||||||
| MI-52842 | 6 in / 2 out | FIXED DC FACTORY CONFIGURABLE |
4.3-10 (F) | DC TO MID PORT | |||||||||||
| MI-52843 | 6 in / 2 out | FIXED DC FACTORY CONFIGURABLE |
4.3-10 (F) | DC TO LOW PORT | |||||||||||
| MI-52844 | 6 in / 2 out | FIXED DC FACTORY CONFIGURABLE |
4.3-10 (F) | DC TO MID AND HIGH PORT | |||||||||||
| MI-52845 | 6 in / 2 out | FIXED DC FACTORY CONFIGURABLE |
4.3-10 (F) | DC TO ALL | |||||||||||
| MI-52846 | 6 in / 2 out | FIXED DC FACTORY CONFIGURABLE |
4.3-10 (F) | DC TO LOW AND HIGH PORT | |||||||||||
| MI-52847 | 6 in / 2 out | FIXED DC FACTORY CONFIGURABLE |
4.3-10 (F) | DC TO LOW AND MID PORT | |||||||||||
| MI-52848 | 6 in / 2 out | FIXED DC FACTORY CONFIGURABLE |
4.3-10 (F) | DC BLOCK | |||||||||||
| Note: DC autosense versions and single unit versions available, contact Kaelus for information | |||||||||||||||

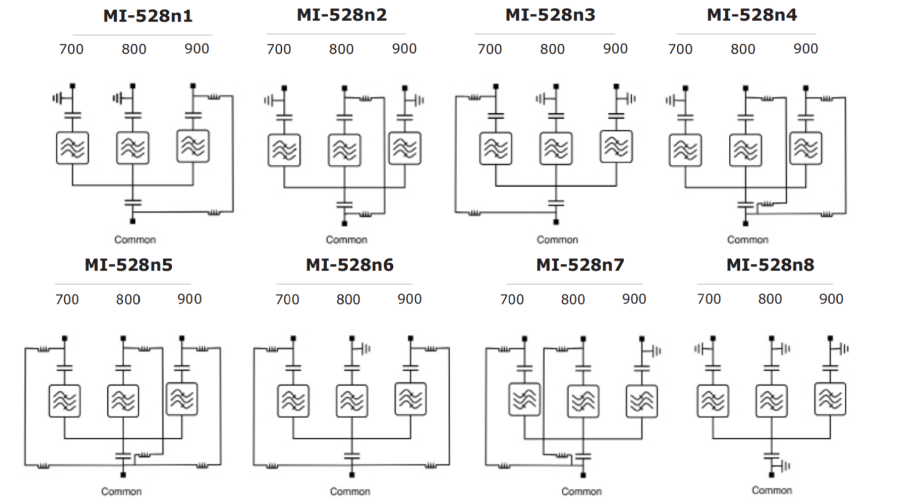

ELECTRICAL BLOCK DIAGRAM |
MI-528nZ where Z denotes the DC path variant
|

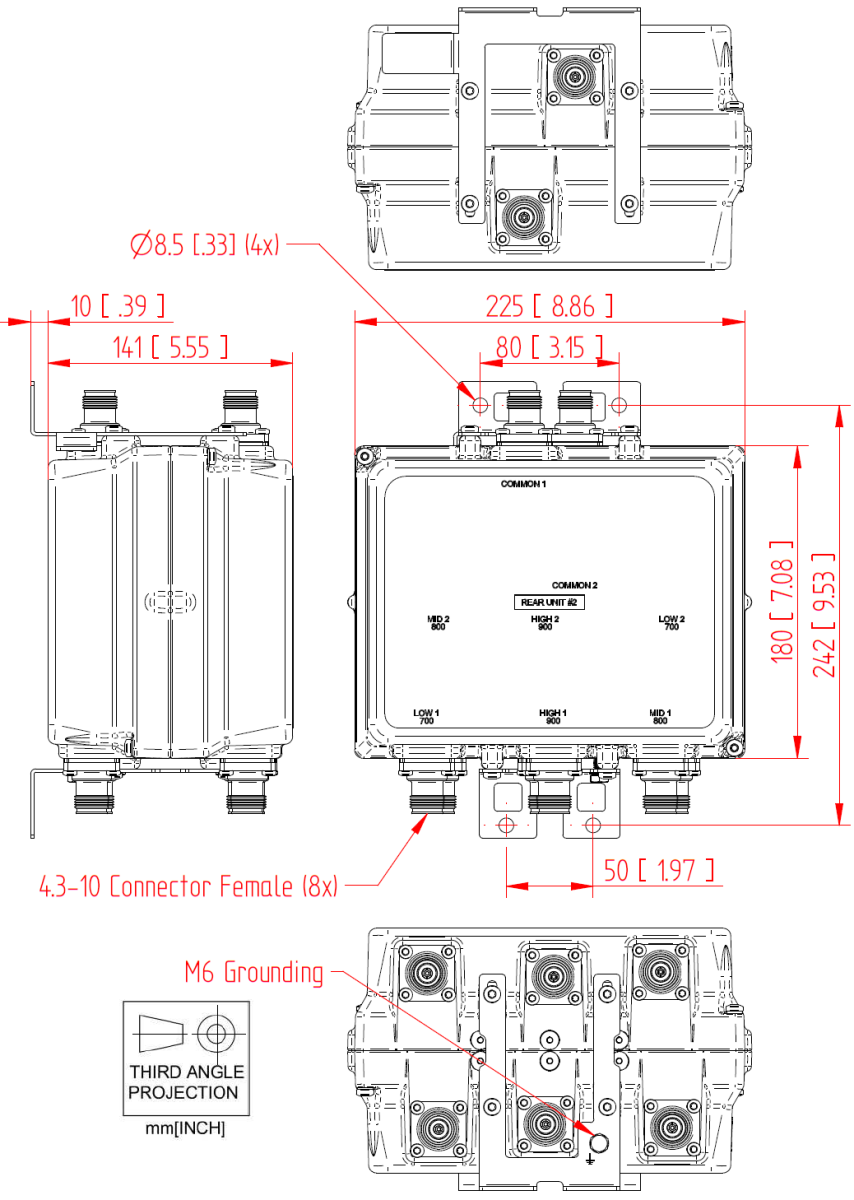

MECHANICAL BLOCK DIAGRAM |
