TRIPLEXER 600-900/1695-2200/2300-2600

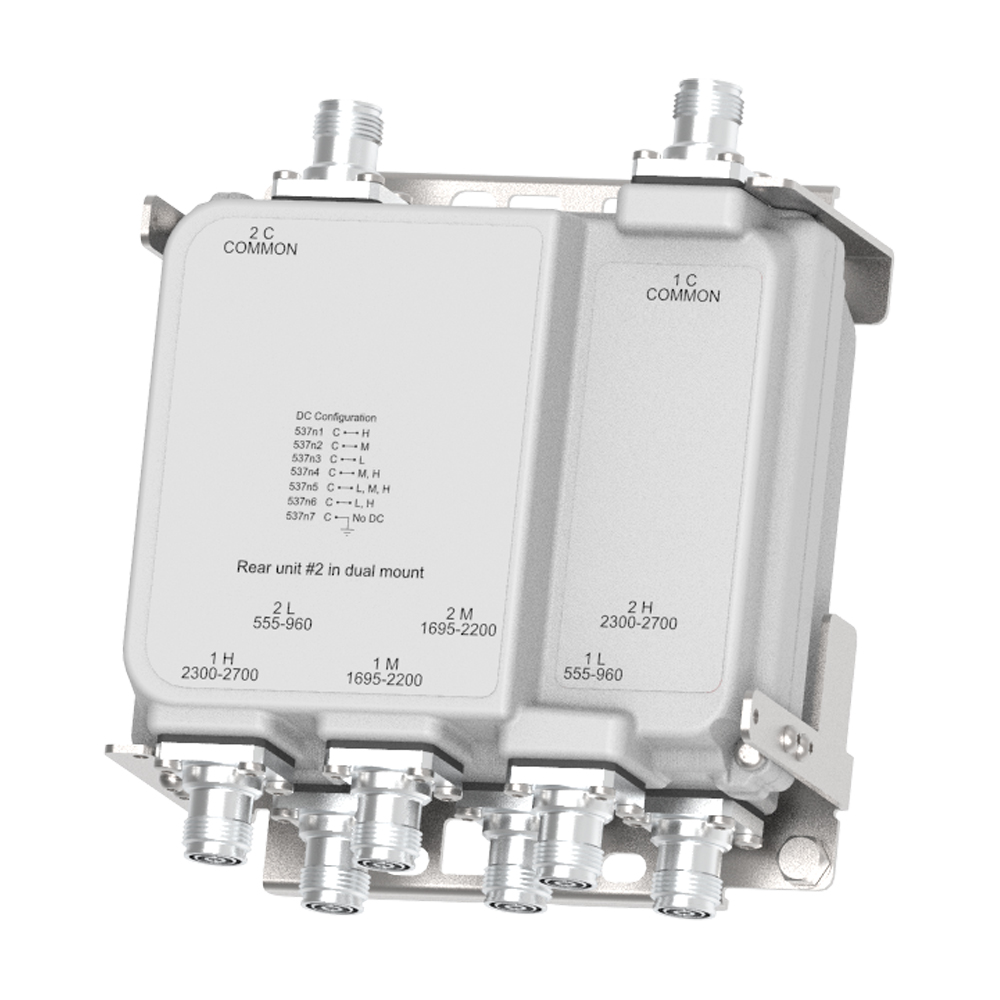

The Kaelus MI-537 is a bi-directional triplexer, designed to combine or split 600-900/1695-2200/2300-2600 MHz. The MI-537 provides low insertion loss and high return loss with excellent passive inter-modulation performance in an extremely small and lightweight IP67 capable package
FEATURES
- Enables antenna & coax sharing for 600-900/1695-2200/2300-2600 MHz bands systems.
- Compact & lightweight – perfect for Small Cell applications
- Low insertion loss & high return loss
- High passive IM performance
- Single and dual models available
- 7/16 (F) or 4.3-10 (F) connectors
- Hard Wired and DC Autosense versions available
- Provisions for wall or mast mounting
| BAND NAME |
600 – 900 |
1695 – 2200 |
2300 – 2600 |
| Passband |
555 – 960 MHz |
1695 – 2200 MHz |
2300 – 2700 MHz |
| Insertion loss |
< 0.2 dB typical |
< 0.2 dB typical |
< 0.2 dB typical |
| Return loss |
> 20 dB maximum |
> 20 dB maximum |
> 20 dB maximum |
| Maximum input power |
250 W / 2000 W |
| Intermodulation products |
-160 dBc at 2 x 43dBm TX Carrier |
| Rejection |
50 dB minimum in 1695 – 2200 and 2300 – 2700 MHz |
50 dB minimum in 555 – 960 and 2300 – 2700 |
50 dB minimum in 555 – 2200 MHz |
| Insertion loss |
1 dB max |
| Return loss |
12 dB min |
| Input voltage range |
8 – 30 V DC max 0.3 W |
| DC current rating |
3 A continuous, Drop max 2.4 V |
| Compliance |
3GPP TS 37.461 |
| Temperature range |
-40 ºC to +65 ºC | -40 ºF to +149 ºF |
| Ingress protection |
IP67 |
| Lightning protection |
5 kA maximum (8/20 us) |
| MTBF |
> 1,000,000 Hours |
| Compliance |
ETSI EN 300 019-1-4 class 4.1E, RoHS |
| Feature |
Single Mount |
Dual Mount |

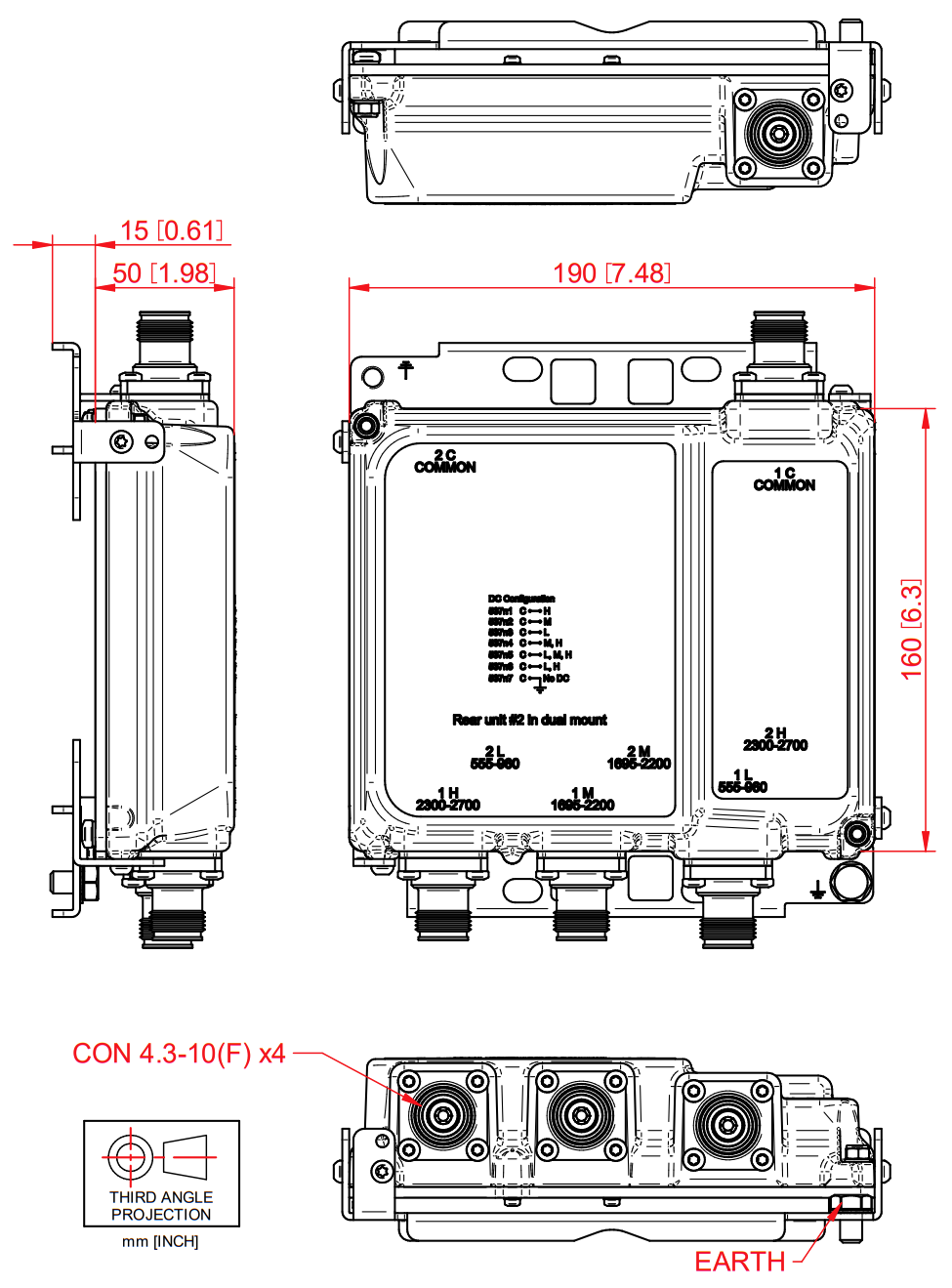

| Dimensions H x D x W |
190 x160 x 50 mm I 7.48 x 6.3 x 1.96 in |
190 x 160 x106 mm I 7.48 x 6.3 x 4,17 iin |
| Volume |
1.5 l |
3.2 l |
| Weight |
2.6 kg I 5.73 lb |
4.7 kg I 10.36 lb |
| Finish |
Painted, NCS 1502-R ( Light Grey ) |
| Mounting |
Hose clamps or wall mount ( Supporter pole Diameter: 40 – 140 mm ) |
| Feature |
Single Mount With Auto-sense |
Dual Mount With Auto-sense |
| Dimensions H x D x W |
190 x160 x 61 mm I 7.48 x 6.3 x 2.4 in |
190 x 160 x128 mm I 7.48 x 6.3 x 5.0 in |
| Volume |
1.9 l |
3.9 l |
| Weight |
TBD |
TBD |
| Finish |
Painted, NCS 1502-R ( Light Grey ) |
| Mounting |
Hose clamps or wall mount ( Supporter pole Diameter: 40 – 140 mm ) |
| PART NUMBER |
CONFIGURATION |
OPTIONAL FEATURES |
CONNECTORS |

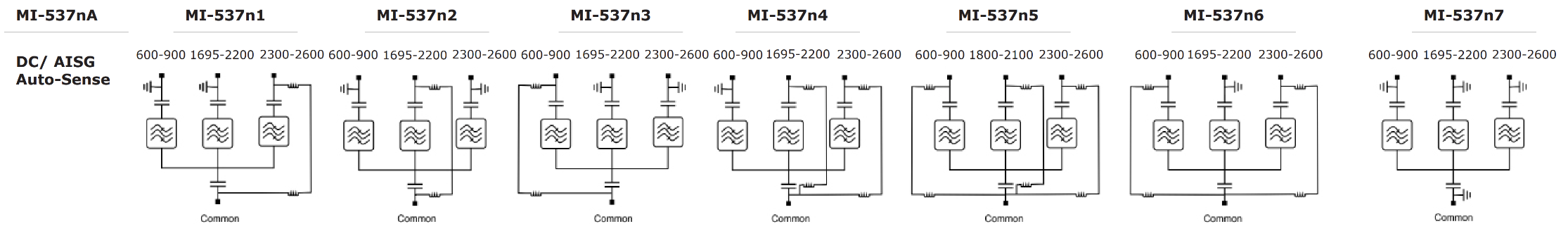

DC/AISG CONFIGURATION |
| MI-5370n |
Single Mount |
BASE MODEL |
7/16 (F) |
Refer to DC /AISG table |
| MI-5371n |
Dual Mount |
BASE MODEL |
7/16 (F) |
Refer to DC /AISG table |
| MI-5373n |
Single Mount |
BASE MODEL |
4.3-10 (F) |
Refer to DC /AISG table |
| MI-5374n |
Dual Mount |
BASE MODEL |
4.3-10 (F) |
Refer to DC /AISG table |
| MI-537nA |
Auto-sense |
| MI-537n1 |
DC TO 2300 – 2600 |
| MI-537n2 |
DC TO 1695 – 2100 |
| MI-537n3 |
DC TO 600 – 900 |
| MI-537n4 |
DC TO 1695 – 2100 and 2300 – 2600 |
| MI-537n5 |
DC TO ALL |
| MI-537n6 |
DC TO 600 – 900 and 2300 – 2600 |
| MI-537n7 |
DC BLOCK |
| MI-537nA.1 |
FPO TO 600 – 900 1695 – 2100 and 2300 – 2600 |
| MI-537nA.2 |
XOR TO 600 – 900 1695 – 2100 and 2300 – 2600 |
| MI-537nA.3 |
2300 – 2600 Priority 1, 1695 – 2100 Priority 2 and 600 – 900 Priority 3 |
| MI-537nA.4 |
600 – 900 Priority 1, 1695 – 2100 Priority 2 and 2300 – 2600 Priority 3 |
| MI-537nA.5 |
1695 – 2100 Priority 1 2300 – 2600 Priority 2 and 600 – 900 Priority 3 |
| MI-537nA.6 |
1695 – 2100 Priority 1, 600 – 900 Priority 2 and 2300 – 2600 Priority 3 |
| MI-537nA.7 |
600 – 900 Priority 1, 2300 – 2600 Priority 2 and 1695 – 2100 Priority 3 |
| MI-537nA.8 |
2300 – 2600 Priority 1, 600 – 900 Priority 2 and 1695 – 2100 Priority 3 |
