DIPLEXER L-BAND/1800-2100

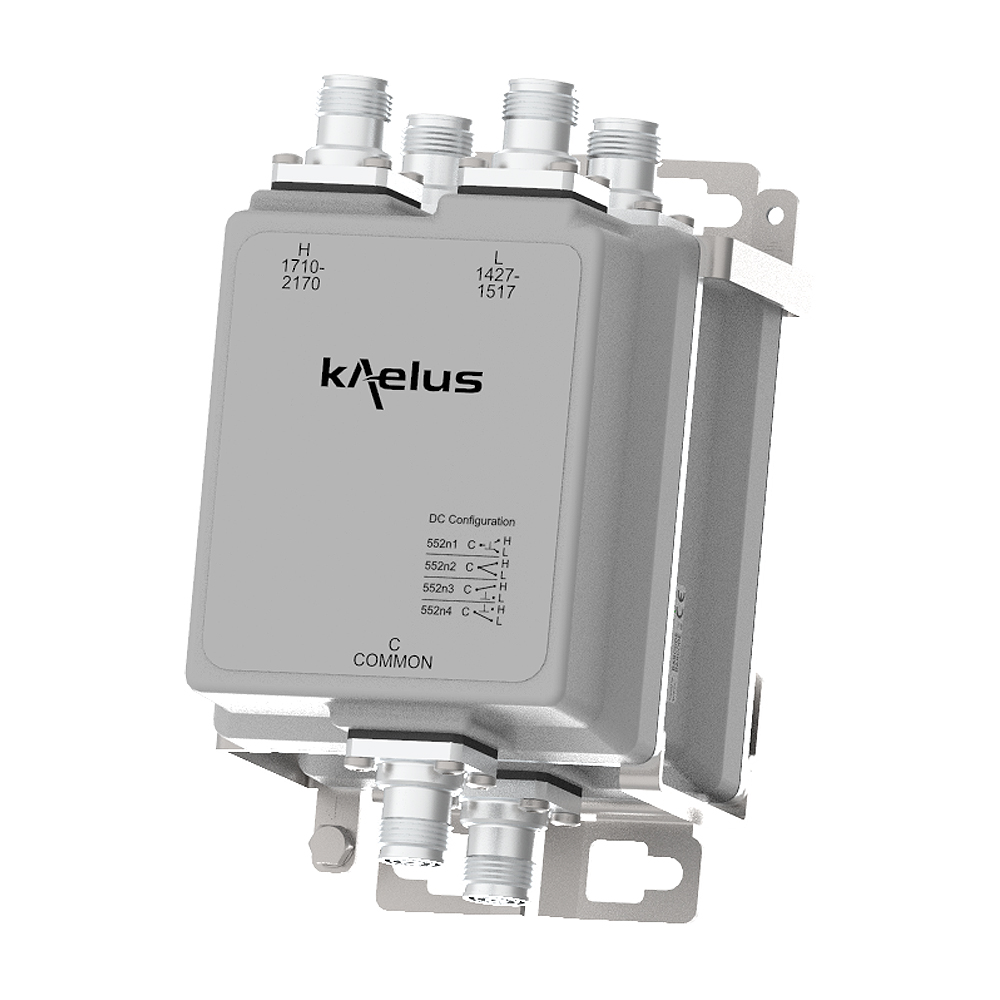

The Kaelus MI-552 is a bi-directional Diplexer, designed to combine or split 1400 – 1500 MHz and 1800 – 2100 MHz bands. The MI-552 provides low insertion loss and high return loss with excellent passive inter-modulation performance in an extremely small and lightweight IP67 capable package
FEATURES
- Enables antenna & coax sharing for 1427 – 1517 MHz and 1710 – 2170 MHz bands systems.
- Compact & lightweight – perfect for Small Cell applications
- Low insertion loss & high return loss
- High passive IM performance
- Single and dual models available
- 7/16 (F) or 4.3-10 (F) connectors
- Hard Wired and DC Autosense versions available
- Provisions for wall or mast mounting
TECHNICAL SPECIFICATIONS |
|||||||||||||||
| PORT NAME | 1400-1500 MHZ | 1800-2100 MHZ | |||||||||||||
| Passband | 1427 – 1517 MHz | 1710 – 2170 MHz | |||||||||||||
| Insertion loss | < 0.25 dB typical | < 0.25 dB typical | |||||||||||||
| Return loss | > 18 dB | > 18 dB | |||||||||||||
| Maximum input power | 250 W (average) | ||||||||||||||
| Intermodulation products | -145 dBc with 2 x 43 dBm TX Carrier | -160 dBc with 2 x 43 dBm TX Carrier | |||||||||||||
| Rejection | 50 dB minimum in 1710 – 2170 MHz | 50 dB minimum in 1427 – 1517 MHz | |||||||||||||
| ELECTRICAL | |||||||||||||||
| Impedance | 50 Ω | ||||||||||||||
| DC / AISG | |||||||||||||||
| For hardwired versions, DC/AISG can be fully connected (DC all) or a specific connection can be orderd (DC custom). For DC autosense versions, the DC/AISG path is automatically selected. In bottom of the tower applications (combiner mode), each RF channel port is sequentially checked for the presence of DC voltage. If more than one port has voltage, the port that has the highest (programmed) priority is passed to the common port. If a short circuit is detected on the common port DC/AISG is disabled. In top-of-tower applications (splitter mode), DC/AISG is passed to all ports that do not present a short circuit. If a short circuit is detected, the shorted RF port will be disabled for DC/AISG while other RF ports remain connected. |
|||||||||||||||
| Insertion loss | 1 dB max | ||||||||||||||
| Return loss | 12 dB min | ||||||||||||||
| Input voltage range | 8 – 30 V DC max 0.3 W | ||||||||||||||
| DC current rating | 3 A continuous, Drop max 2.4 V | ||||||||||||||
| Compliance | 3GPP TS 37.461 | ||||||||||||||
| ENVIRONMENTAL | |||||||||||||||
| For further details of environmental compliance, please contact Kaelus. | |||||||||||||||
| Temperature range | -40 ºC to +65 ºC | -40 ºF to +149 ºF | ||||||||||||||
| Ingress protection | IP67 | ||||||||||||||
| Lightning protection | 5 kA maximum (8/20 us) | ||||||||||||||
| MTBF | > 1,000,000 Hours | ||||||||||||||
| Compliance | ETSI EN 300 019-1-4 class 4.1E, RoHS | ||||||||||||||
| MECHANICAL | |||||||||||||||
| Feature | Single Mount | Dual Mount | |||||||||||||
| Dimensions H x D x W | 118 x 140 x 61 mm I 4.64 x 5.51 x 2.40 in | 118 x 140 x 127mm I 4.65 x 5.51 x 5 in | |||||||||||||
| Volume | 1.0 l | 1.9 l | |||||||||||||
| Weight | 1.8 kg I 3.97 lb | 3.2 kg I 7.05 lb | |||||||||||||
| Finish | Painted, NCS 1502-R | ||||||||||||||
| Mounting | Hose clamps or wall mount ( Supporter Pole Diameter: 40-140 mm ) | ||||||||||||||
| Feature | Single Mount with Auto-Sense | Dual Mount with Auto-sense | |||||||||||||
| Dimensions H x D x W | 118 x 140 x 72 mm I 4.64 x 5.51 x 2.83 in | 118 x 140 x 143 mm I 4.65 x 5.51 x 5.62 in | |||||||||||||
| Volume | 1.2 l | 2.4 l | |||||||||||||
| Weight | 1.9 I 4.19 lb | 3.4 kg I 7.49 lb | |||||||||||||
| Finish | Painted, NCS 1502-R | ||||||||||||||
| Mounting | Hose clamps or wall mount ( Supporter Pole Diameter: 40-140 mm ) | ||||||||||||||
ORDERING INFORMATION |
|||||||||||||||
| PART NUMBER | CONFIGURATION | OPTIONAL FEATURES | CONNECTORS | DC/AISG CONFIGURATION | |||||||||||
| MI-5520n | Single Mount | BASE MODEL | 7/16 (F) | Refer to DC /AISG table | |||||||||||
| MI-5521n | Dual Mount | BASE MODEL | 7/16 (F) | Refer to DC /AISG table | |||||||||||
| MI-5523n | Single Mount | BASE MODEL | 4.3-10 (F) | Refer to DC /AISG table | |||||||||||
| MI-5524n | Dual Mount | BASE MODEL | 4.3-10 (F) | Refer to DC /AISG table | |||||||||||
| DC / ASIG CONFIGURATION | |||||||||||||||
| MI-552A | Auto-sense | ||||||||||||||
| MI-552n1 | DC Block | ||||||||||||||
| MI-552n2 | DC TO ALL | ||||||||||||||
| MI-552n3 | DC TO 1800-2100 | ||||||||||||||
| MI-552n4 | DC TO 1400-1500 | ||||||||||||||
| Auto-sense Priority | |||||||||||||||
| MI-552nA.1 | FPO to 1400 – 1500 and 1800 – 2100 | ||||||||||||||
| MI-552nA.2 | XOR to 1400 – 1500 and 1800 – 2100 | ||||||||||||||
| MI-552nA.3 | 1800-2100 Priority 1 and 1400 – 1500 Priority 2 | ||||||||||||||
| MI-552nA.4 | 1400 – 1500 Priority 1 and 1800 – 2100 Priority 2 | ||||||||||||||

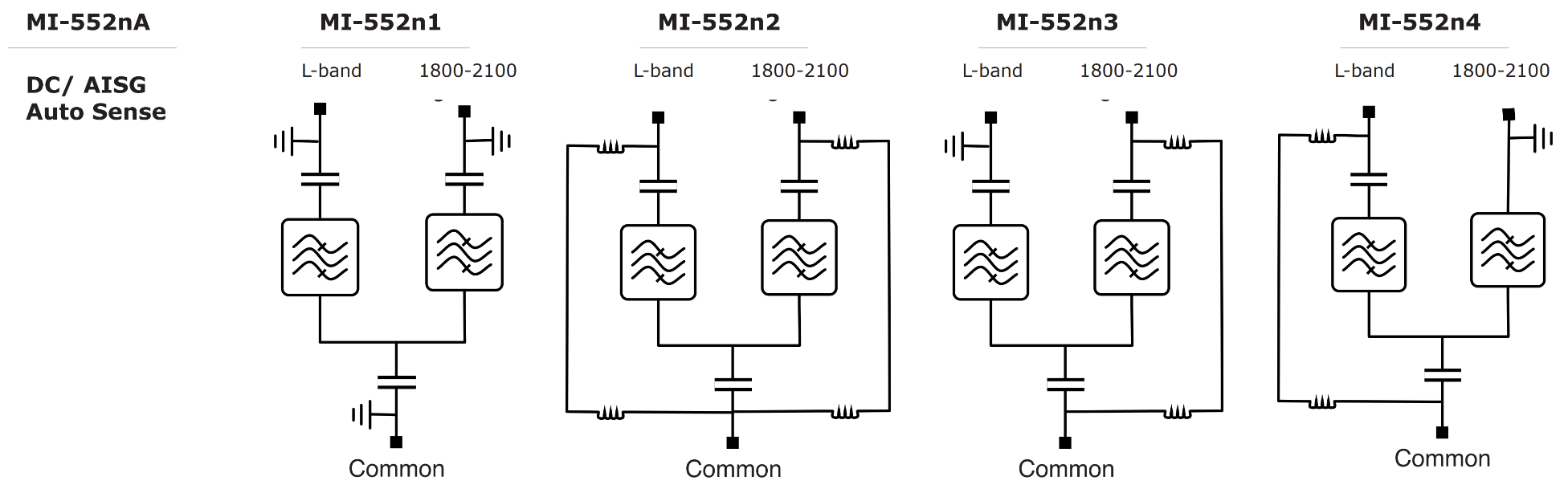

ELECTRICAL BLOCK DIAGRAM |

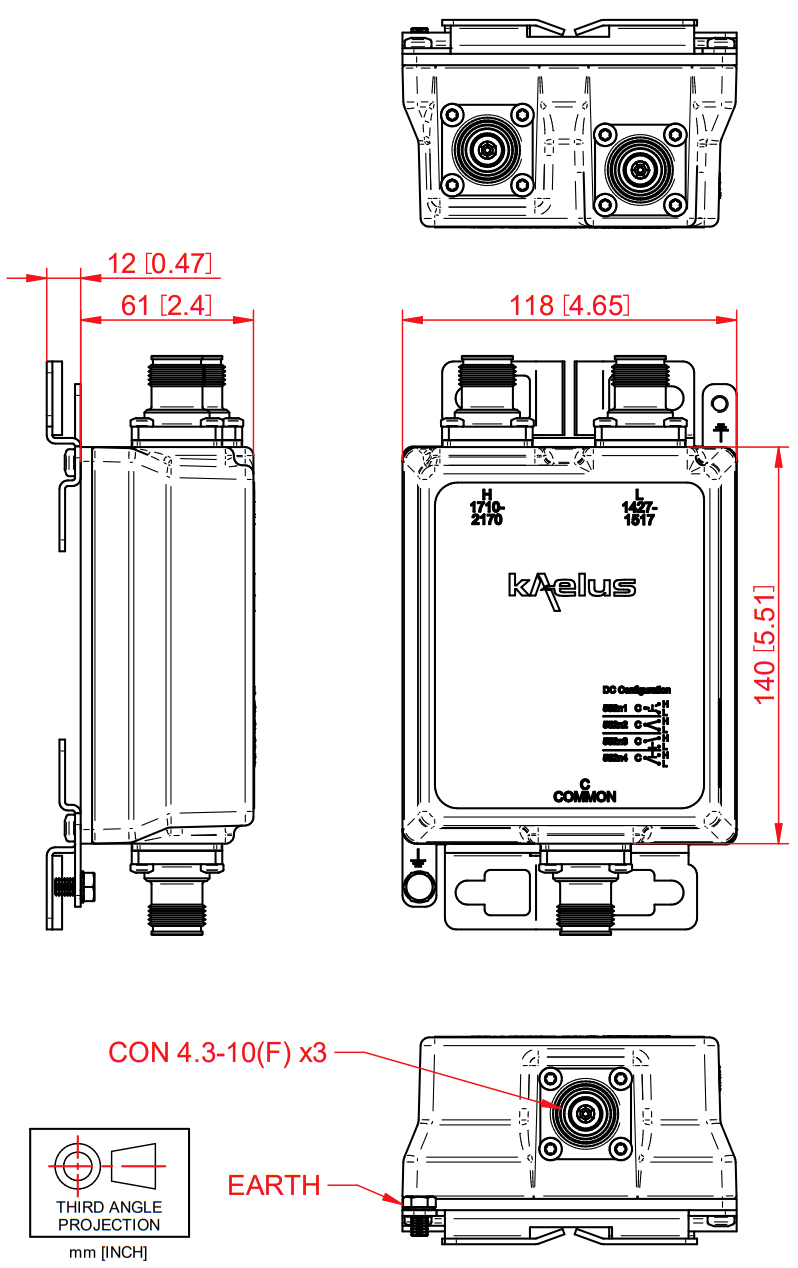

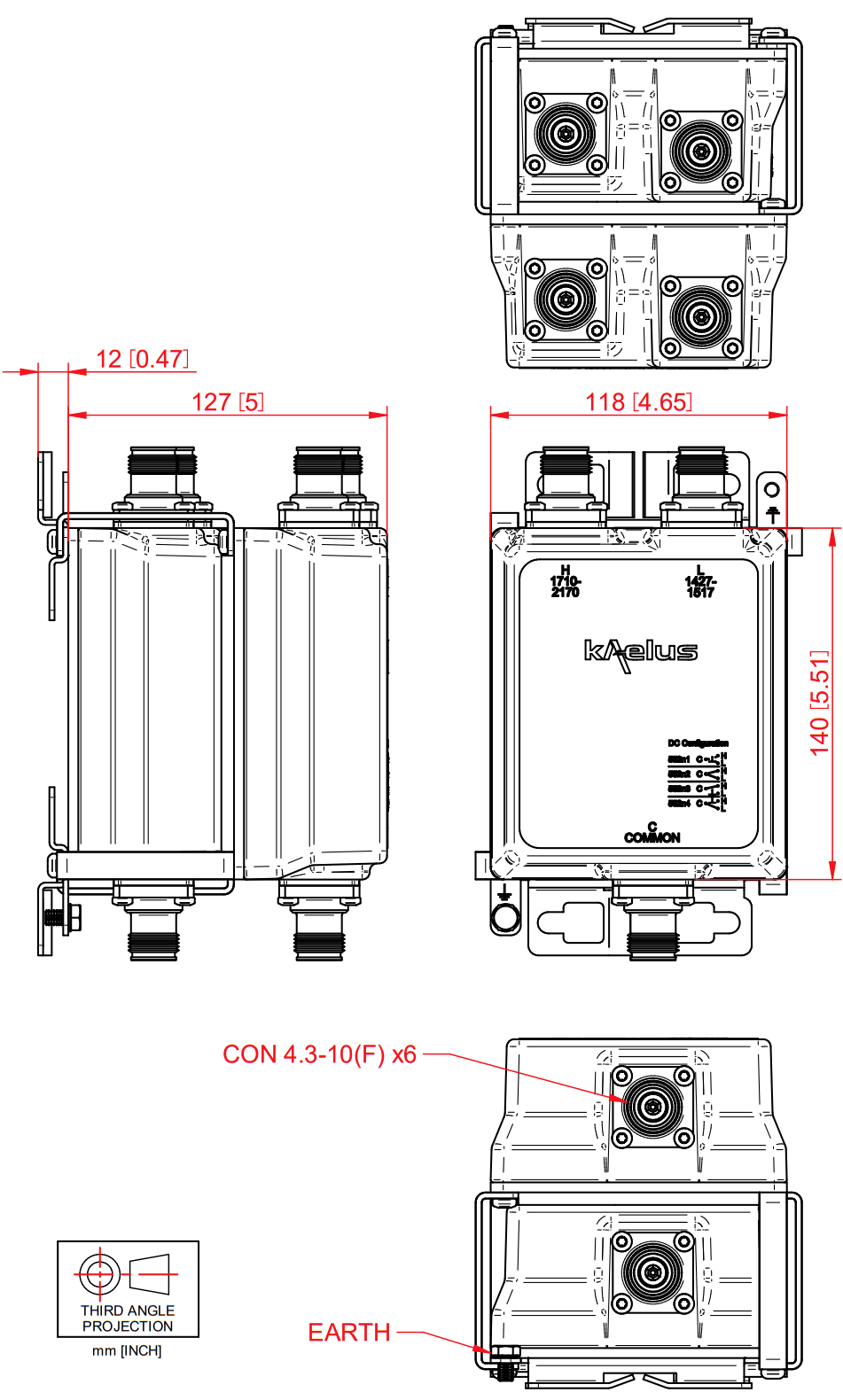

MECHANICAL BLOCK DIAGRAM |
