DIPLEXER 600/700

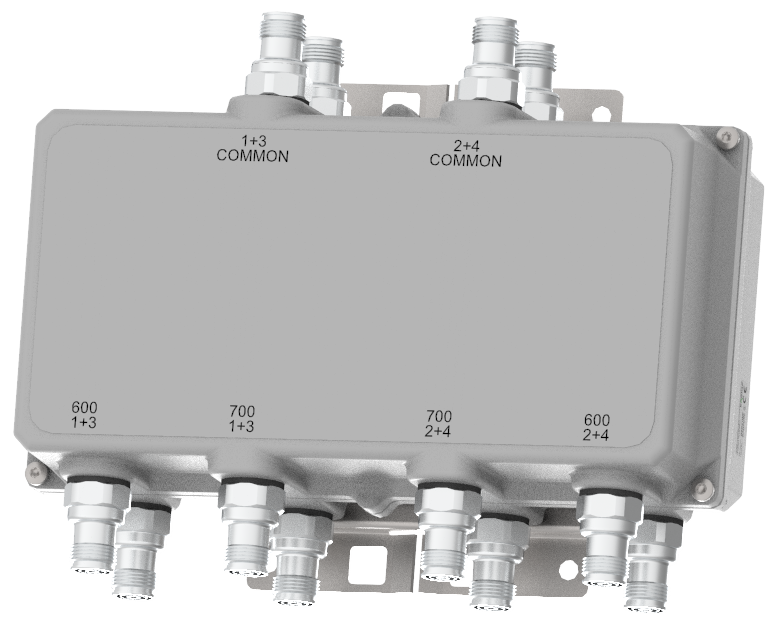

The Kaelus MI-554 is a bi-directional Diplexer, designed to combine or split 617 – 688 MHz and 698 – 746 MHz bands. The MI-554 provides low insertion loss and high return loss with excellent passive inter-modulation performance in an extremely small and lightweight IP67 capable package
FEATURES
- Enables antenna & coax sharing for 617 – 688 MHz and 698 – 746 MHz bands systems.
- Compact & lightweight – perfect for Small Cell applications
- Low insertion loss & high return loss
- High passive IM performance
- Single and dual models available
- 4.3-10 (F) connectors
- Hard Wired and DC Autosense versions available
- Provisions for wall or mast mounting

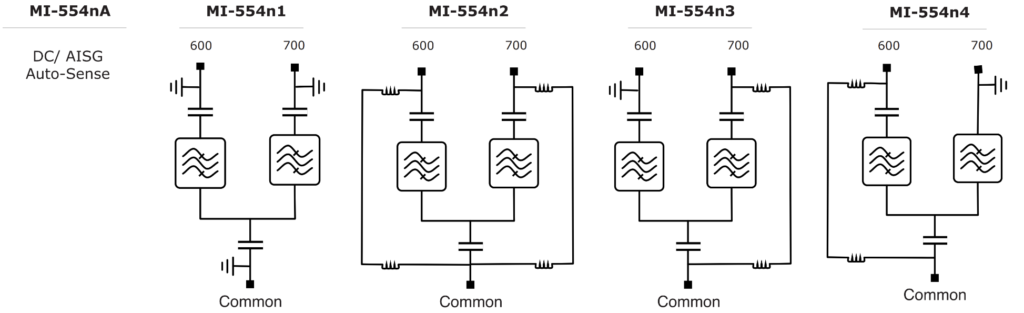

Electrical Block Diagram

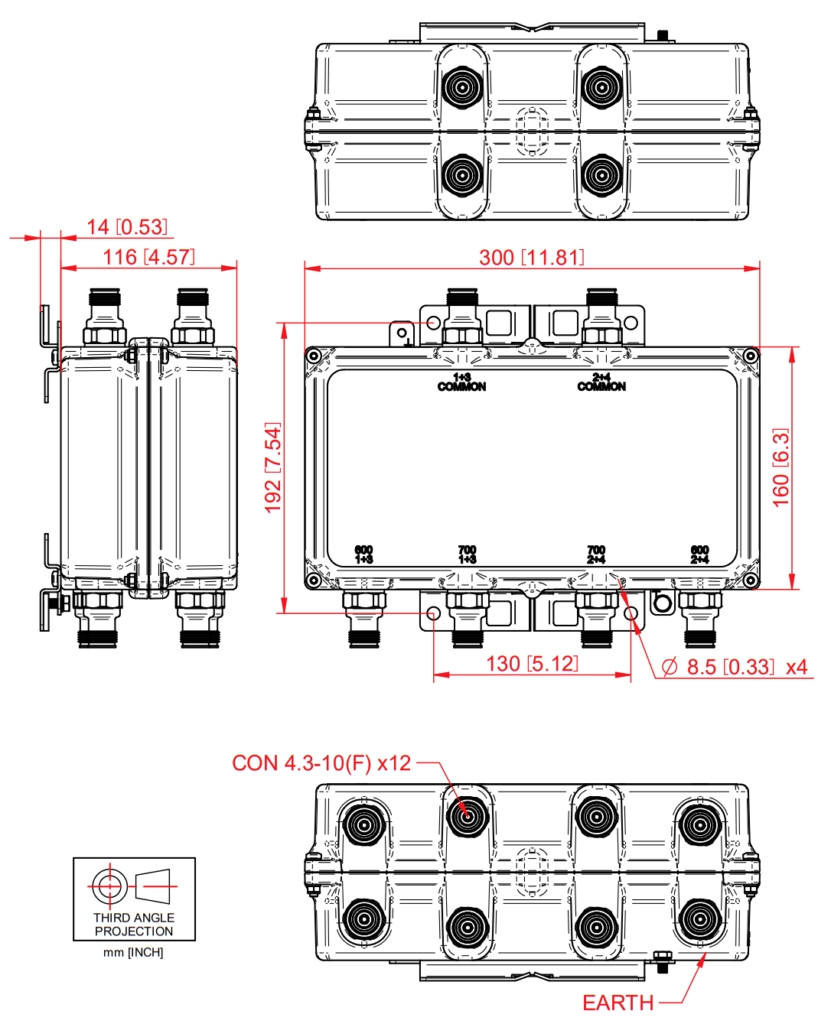

Mechanical Block Diagram
Technical specifications |
|||||||||||||||
| Port Name | 600 MHz | 700 MHz | |||||||||||||
| Passband | 617 – 688 MHz | 698 – 746 MHz | |||||||||||||
| Insertion loss | < 0.3 dB typical < 0.55 dB maximum | < 0.3 dB typical < 0.5 dB maximum | |||||||||||||
| Return loss | >18 dB | >18dB | |||||||||||||
| Maximum input power | 250 W (average) | ||||||||||||||
| Intermodulation products | -160 dBc with 2 x 43 dBm TX Carrier | -160 dBc with 2 x 43 dBm TX Carrier | |||||||||||||
| Rejection | 50 dB minimum in 698 – 746 MHz | 50 dB minimum in 617 – 688 MHz | |||||||||||||
| electrical | |||||||||||||||
| Impedance | 50 Ω | ||||||||||||||
Dc / aisg |
|||||||||||||||
| For hardwired versions, DC/AISG can be fully connected (DC all) or a specific connection can be orderd (DC custom). For DC autosense versions, the DC/AISG path is automatically selected. In bottom of the tower applications (combiner mode), each RF channel port is sequentially checked for the presence of DC voltage. If more than one port has voltage, the port that has the highest (programmed) priority is passed to the common port. If a short circuit is detected on the common port DC/AISG is disabled. In top-of-tower applications (splitter mode), DC/AISG is passed to all ports that do not present a short circuit. If a short circuit is detected, the shorted RF port will be disabled for DC/AISG while other RF ports remain connected. |
|||||||||||||||
| Insertion loss | 1 dB max | ||||||||||||||
| Return loss | 12 dB min | ||||||||||||||
| Input voltage range | 8 – 30 V DC max 0.3 W | ||||||||||||||
| DC current rating | 3 A continuous, Drop max 2.4 V | ||||||||||||||
| Compliance | 3GPP TS 37.461 | ||||||||||||||
Environmental |
|||||||||||||||
| For further details of environmental compliance, please contact Kaelus. | |||||||||||||||
| Temperature range | -40 ºC to +65 ºC | -40 ºF to +149 ºF | ||||||||||||||
| Ingress protection | IP67 | ||||||||||||||
| Lightning protection | 5 kA maximum (8/20 us) | ||||||||||||||
| MTBF | > 1,000,000 Hours | ||||||||||||||
| Compliance | ETSI EN 300 019-1-4 class 4.1E, RoHS | ||||||||||||||
Mechanical |
|||||||||||||||
| Feature | Single Mount | Dual Mount | |||||||||||||
| Dimensions H x D x W | 300 x 160 x 73 mm I 11.81 x 6.30 x 2.87 in | 300 x 160 x 116 mm I 11.81 x 6.30 x 4.57 in | |||||||||||||
| Volume | 3.5 l | 5.6 l | |||||||||||||
| Weight | 3.7 kg I 8.16 lb | 6.7 I 14.77 lb | |||||||||||||
| Finish | Painted, NCS 1502-R | ||||||||||||||
| Mounting | Hose clamps or wall mount ( Supporter pole diameter: 40 – 140 mm ) | ||||||||||||||
| Feature | Single Mount with Auto-sense | Dual Mount with Auto-sense | |||||||||||||
| Dimensions H x D x W | 300 x 160 x 73 mm I 11.81 x 6.30 x 2.87 in | 301 x 160 x 145 mm I 11.85 x 6.34 x 5.71 in | |||||||||||||
| Volume | 3.5 l | 7.0 l | |||||||||||||
| Weight | 3.7 kg I 8.16 lb | 7.2 I 15.87 lb | |||||||||||||
| Finish | Painted, NCS 1502-R | ||||||||||||||
| Mounting | Hose clamps or wall mount ( Supporter pole diameter: 40 – 140 mm ) | ||||||||||||||
Ordering information |
|||||||||||||||
| Part Number | Configuration | Optional Features | Connectors | DC/AISG Configuration | |||||||||||
| MI-5543n | Single Mount | BASE MODEL | 4.3-10 (F) | Refer to DC /AISG table | |||||||||||
| MI-5544n | Dual Mount | BASE MODEL | 4.3-10 (f) | Refer to DC /AISG table | |||||||||||
| DC / ASIG CONFIGURATION | |||||||||||||||
| MI-554nA | Auto-sense | ||||||||||||||
| MI-554n1 | DC Block | ||||||||||||||
| MI-554n2 | DC TO ALL | ||||||||||||||
| MI-554n3 | DC TO 700 | ||||||||||||||
| MI-554n4 | DC TO 600 | ||||||||||||||
| Auto-sense Priority | |||||||||||||||
| MI-514nA.1 | FPO to 600 and 700 | ||||||||||||||
| MI-514nA.2 | XOR to 600 and 700 | ||||||||||||||
| MI-514nA.3 | 700 Priority 1 and 600 Priority 2 | ||||||||||||||
| MI-514nA.4 | 600 Priority 1 and 700 Priority 2 | ||||||||||||||
