DIPLEXER 600/700 UPPER

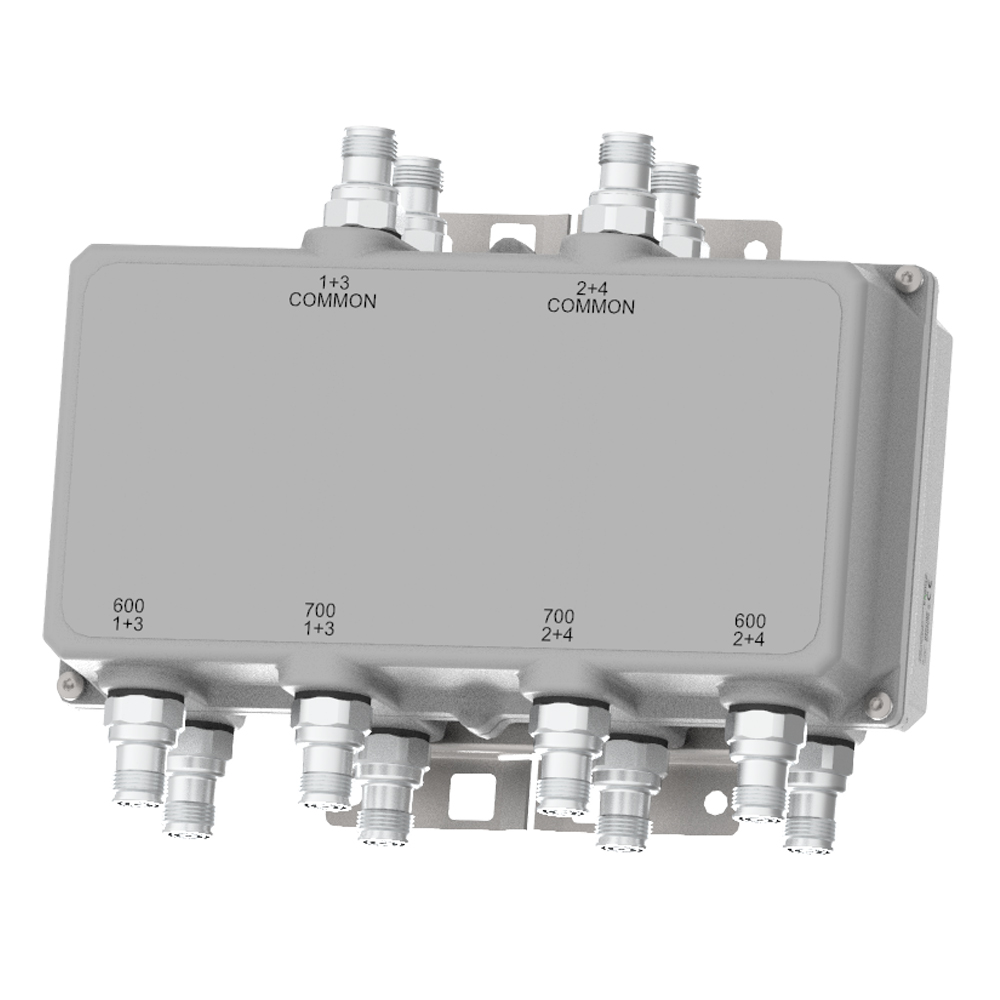

The Kaelus MI-555 is a bi-directional Diplexer, designed to combine or split 617 – 698 MHz and 746 – 798 MHz bands. The MI-555 provides low insertion loss and high return loss with excellent passive inter-modulation performance in an extremely small and lightweight IP67 capable package
FEATURES
- Enables antenna & coax sharing for 617 – 698 MHz and 746 – 798 MHz bands systems.
- Compact & lightweight – perfect for Small Cell applications
- Low insertion loss & high return loss
- High passive IM performance
- Single and dual models available
- 4.3-10 (F) connectors
- Hard Wired and DC Autosense versions available
- Provisions for wall or mast mounting
| PORT NAME |
600 MHZ |
700 MHZ |
| Passband |
617 – 698 MHz |
746 – 798 MHz |
| Insertion loss |
< 0.25 dB |
< 0.3 dB |
| Return loss |
> 20 dB typical > 18 minimum |
> 20 dB typical > 18 minimum |
| Maximum input power |
250 W (average) |
| Intermodulation products |
-160 dBc with 2 x 43 dBm TX Carrier |
-160 dBc with 2 x 43 dBm TX Carrier |
| Rejection |
50 dB minimum in 746 – 798 MHz |
50 dB minimum in 617 – 698 MHz |
| Insertion loss |
1 dB max |
| Return loss |
12 dB min |
| Input voltage range |
8 – 30 V DC max 0.3 W |
| DC current rating |
3 A continuous, Drop max 2.4 V |
| Compliance |
3GPP TS 37.461 |
| Temperature range |
-40 ºC to +65 ºC | -40 ºF to +149 ºF |
| Ingress protection |
IP67 |
| Lightning protection |
5 kA maximum (8/20 us) |
| MTBF |
> 1,000,000 Hours |
| Compliance |
ETSI EN 300 019-1-4 class 4.1E, RoHS |

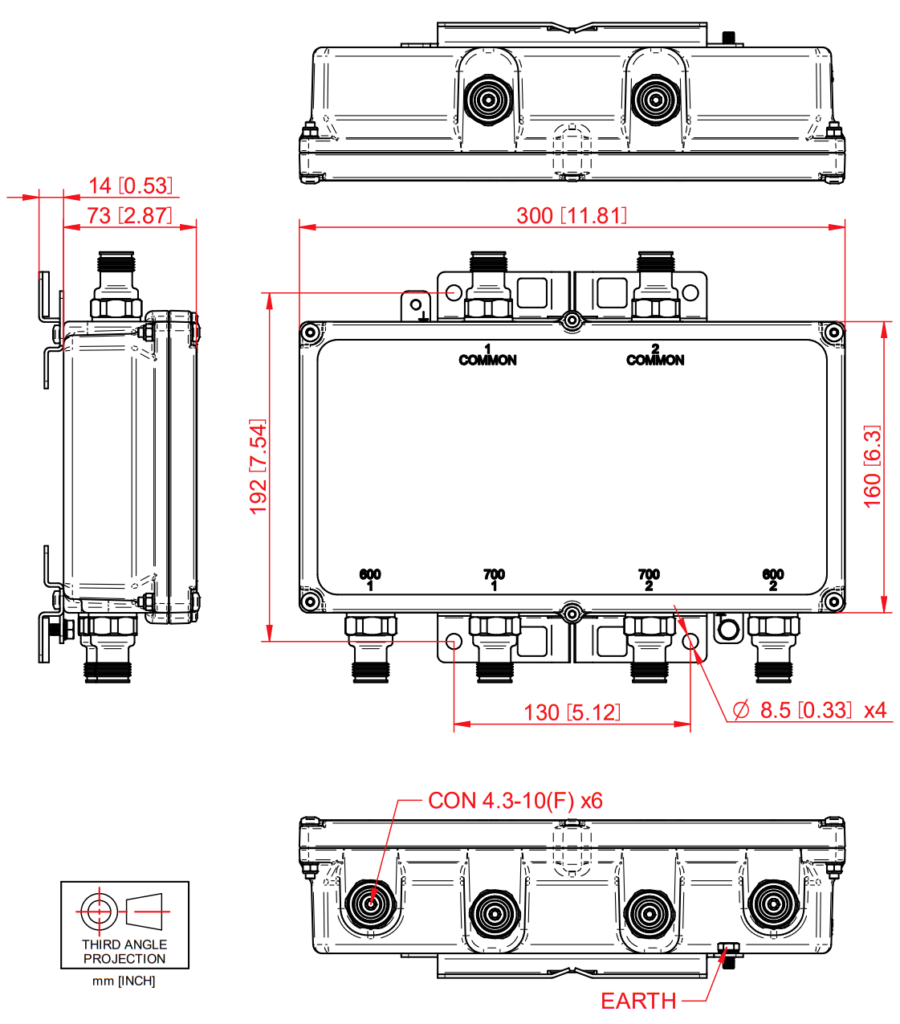

| Feature |
Single Mount |

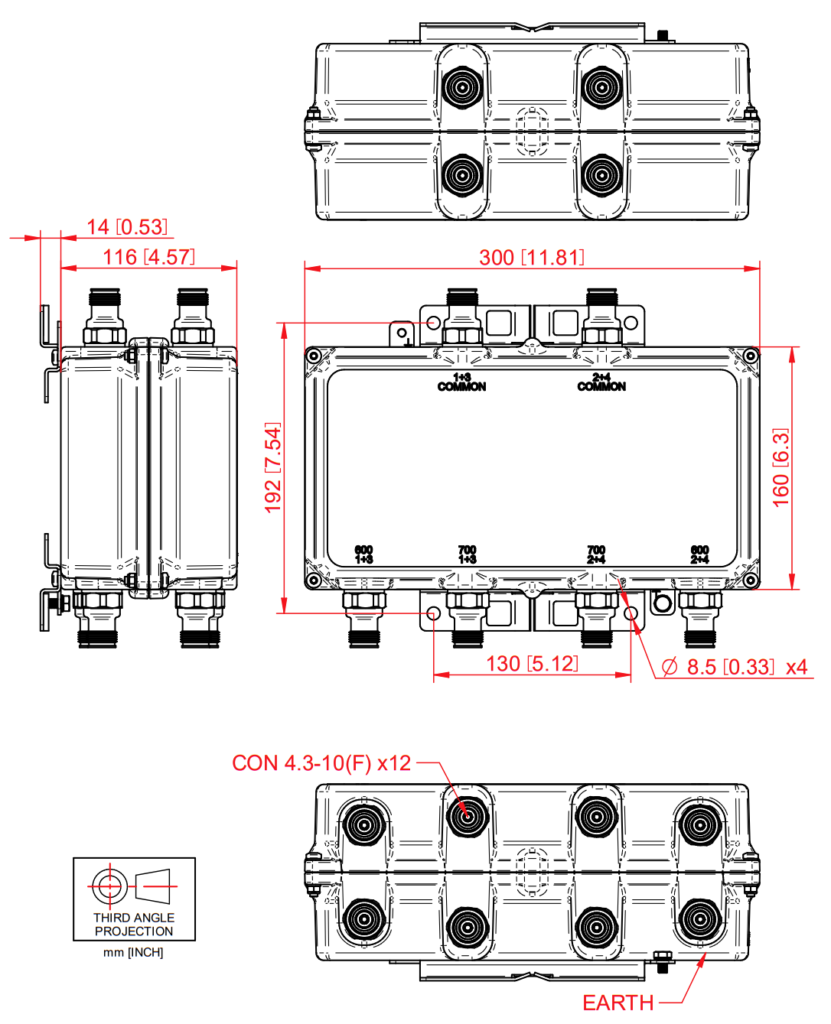

Dual Mount |
| Dimensions H x D x W |
300 x 160 x 73 mm I 11.81 x 6.30 x 2.87 in |
300 x 160 x 116 mm I 11.81 x 6.30 x 4.57 in |
| Volume |
3.5 l |
5.6 l |
| Weight |
3.7 kg I 8.16 lb |
6.7 I 14.77 lb |
| Finish |
Painted, NCS 1502-R |
| Mounting |
Hose clamps or wall mount ( Supporter pole diameter: 40 – 140 mm ) |
| Feature |
Single Mount with Auto-sense |
Dual Mount with Auto-sense |
| Dimensions H x D x W |
300 x 160 x 73 mm I 11.81 x 6.30 x 2.87 in |
300 x 160 x 145 mm I 11.85 x 6.34 x 5.71 in |
| Volume |
3.5 l |
7.0 l |
| Weight |
3.7 kg I 8.16 lb |
7.2 I 15.87 lb |
| Finish |
Painted, NCS 1502-R |
| Mounting |
Hose clamps or wall mount ( Supporter pole diameter: 40 – 140 mm ) |
| PART NUMBER |
CONFIGURATION |
OPTIONAL FEATURES |
CONNECTORS |
DC/AISG CONFIGURATION |
| MI-5553n |
Single Mount |
BASE MODEL |
4.3-10 (F) |
Refer to DC /AISG table |
| MI-5554n |
Dual Mount |
BASE MODEL |
4.3-10 (f) |
Refer to DC /AISG table |

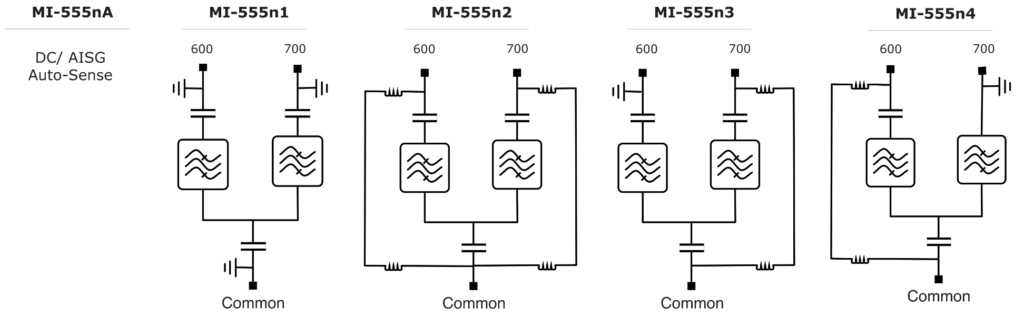

| MI-555nA |
Auto-sense |
| MI-555n1 |
DC Block |
| MI-555n2 |
DC TO ALL |
| MI-555n3 |
DC TO 700 |
| MI-555n4 |
DC TO 600 |
| MI-555nA.1 |
FPO to 600 and 700 |
| MI-555nA.2 |
XOR to 600 and 700 |
| MI-555nA.3 |
700 Priority 1 and 600 Priority 2 |
| MI-555nA.4 |
600 Priority 1 and 700 Priority 2 |
