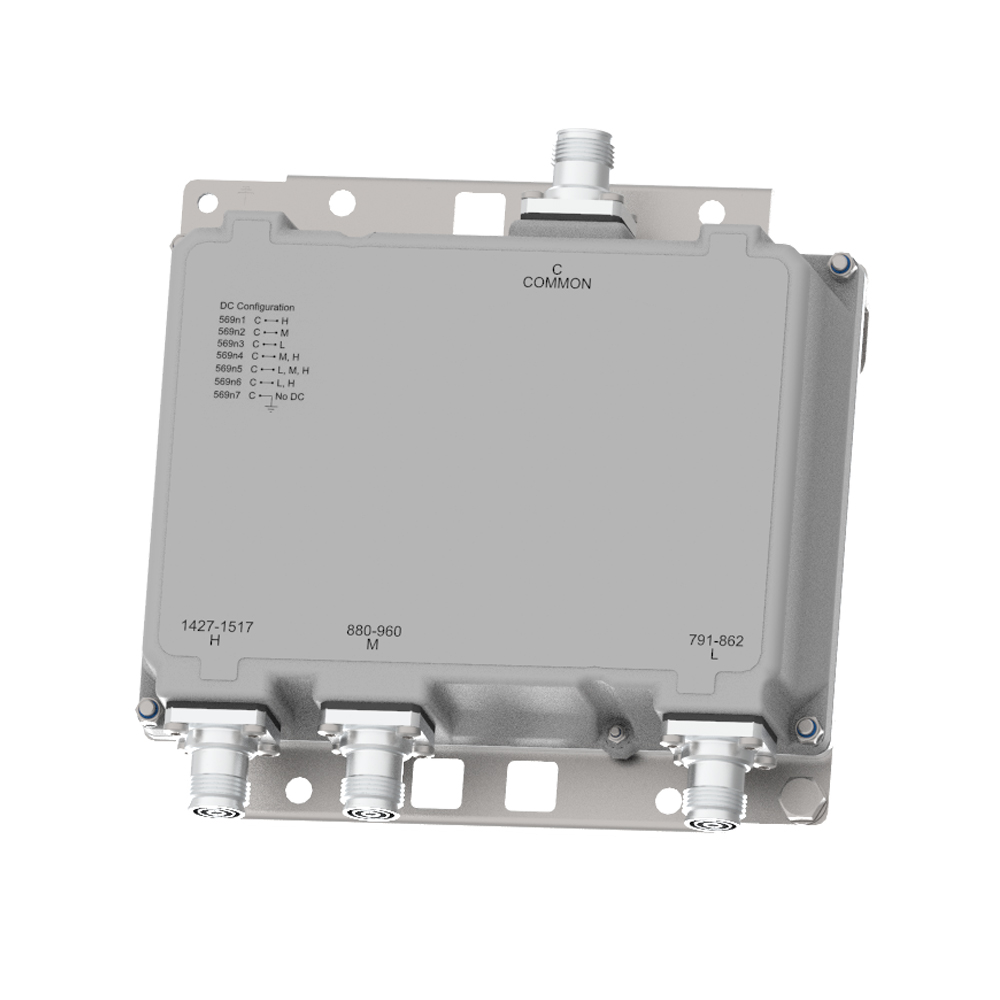

TRIPLEXER 800/900/L-BAND
The Kaelus MI-569 is a bi-directional triplexer, designed to combine or split 800/900/L-bands. The MI-569 provides low insertion loss and high return loss with excellent passive inter-modulation performance in an extremely small and lightweight IP67 capable package
FEATURES
- Enables antenna & coax sharing for 800, 900 and L- band systems.
- Compact & lightweight – perfect for Small Cell applications
- Low insertion loss & high return loss
- High passive IM performance
- Single and dual models available
- 7/16 (F) or 4.3-10 (F) connectors
- Hard Wired and DC Autosense versions available
- Provisions for wall or mast mounting
| BAND NAME |
800 |
900 |
L-BAND |
| Passband |
791 – 862 MHz |
880 – 960 MHz |
1427 – 1517 MHz |
| Insertion loss |
0.2 dB typical, 0.4 dB maximum |
0.2 dB typical, 0.4 dB maximum |
0.2 dB typical, 0.4 dB maximum |
| Return loss |
>18 dB |
>18 dB |
>18 dB |
| Maximum input power |
250W |
| Intermodulation products |
-160 dBc at 2 x 43dBm TX Carrier |
| Rejection |
50 dB minimum in 925 – 960 and 1452 – 1517 MHz |
50 dB minimum in 791 – 821 MHz and 1427 – 1517 MHz |
50 dB minimum in 791 – 862 MHz and 880 – 960 MHz |
| Insertion loss |
1 dB max |
| Return loss |
12 dB min |
| Input voltage range |
8 – 30 V DC max 0.3 W |
| DC current rating |
3 A continuous, Drop max 2.4 V |
| Compliance |
3GPP TS 37.461 |
| Temperature range |
-40 ºC to +65 ºC | -40 ºF to +149 ºF |
| Ingress protection |
IP67 |
| Lightning protection |
5 kA maximum (8/20 us) |
| MTBF |
> 1,000,000 Hours |
| Compliance |
ETSI EN 300 019-1-4 class 4.1E, RoHS |
| Feature |
Single Mount |
Dual Mount |

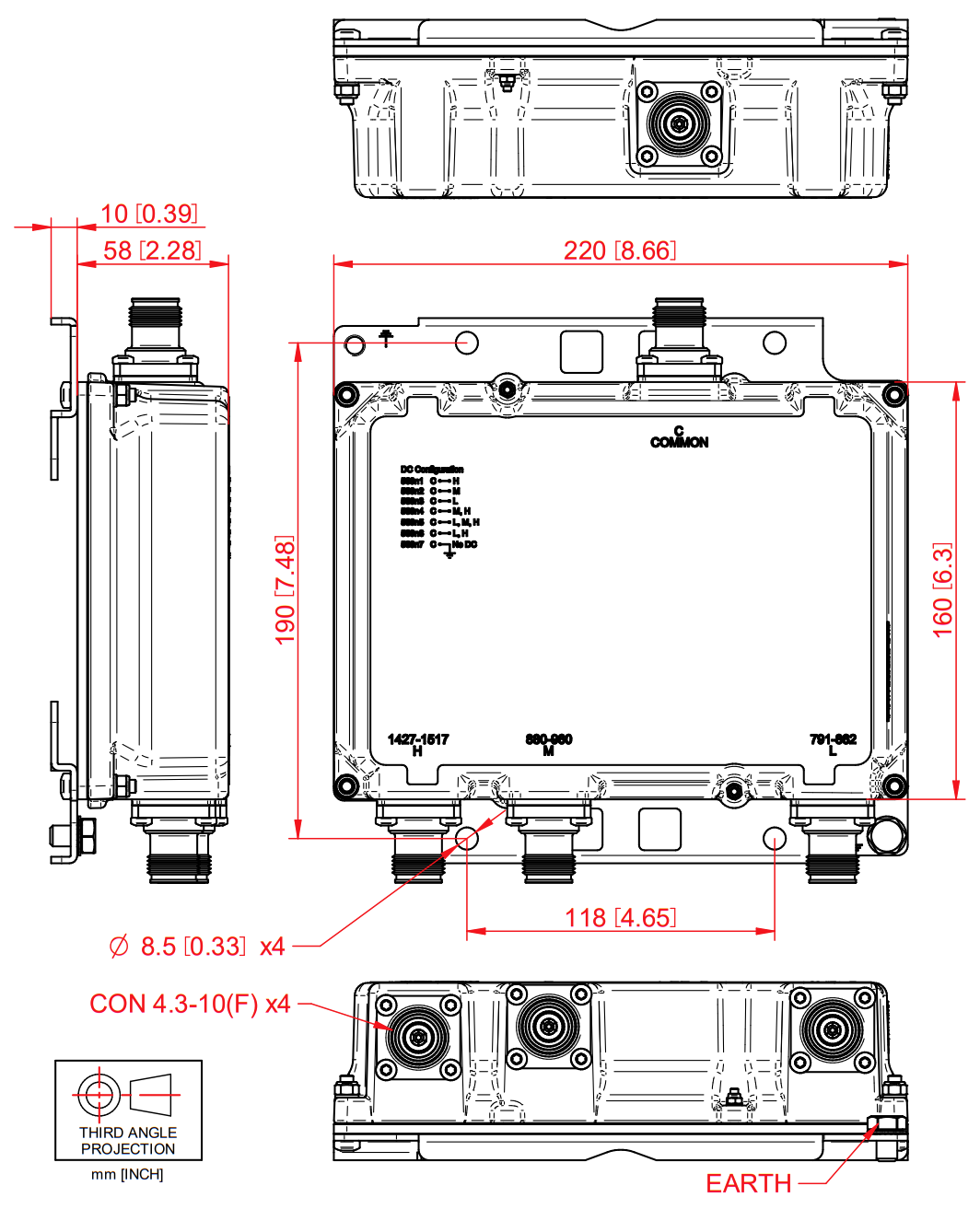

| Dimensions H x D x W |
220 mm x 160 mm x 58 mm I 8.66 x 6.30 x 2.28 in |
To be added |
| Volume |
2.0 l |
| Weight |
3.5 kg I 7.72 lb |
| Finish |
Painted, NCS 1502-R |
| Mounting |
Hose clamps or wall mount ( Supporter pole Diameter: 40 – 140 mm ) |
| PART NUMBER |
CONFIGURATION |
OPTIONAL FEATURES |
CONNECTORS |
DC/AISG CONFIGURATION |
| MI-5690n |
Single Mount |
BASE MODEL |
7/16 (F) |
Refer to DC /AISG table |
| MI-5691n |
Dual Mount |
BASE MODEL |
7/16 (F) |
Refer to DC /AISG table |
| MI-5693n |
Single Mount |
BASE MODEL |
4.3-10 (F) |
Refer to DC /AISG table |
| MI-5694n |
Dual Mount |
BASE MODEL |
4.3-10 (F) |
Refer to DC /AISG table |

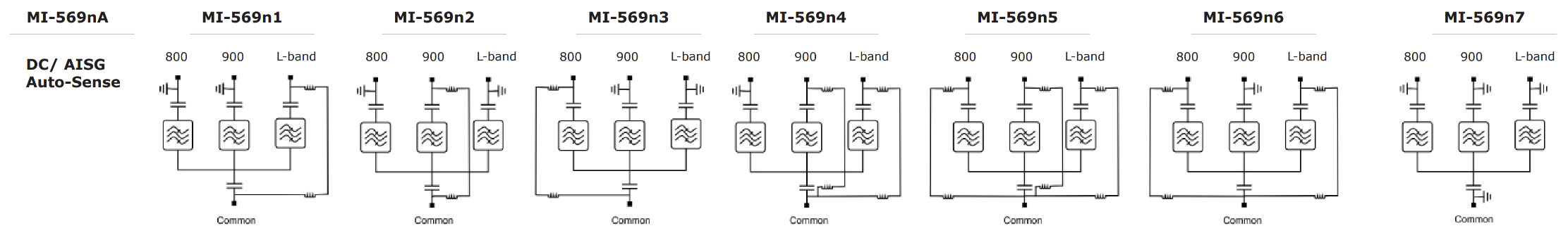

| MI-569nA |
Auto-sense |
| MI-569n1 |
DC TO L-band |
| MI-569n2 |
DC TO 900 |
| MI-569n3 |
DC TO 800 and L-band |
| MI-569n4 |
DC TO 900 and L-band |
| MI-569n5 |
DC TO ALL |
| MI-569n6 |
DC TO 800 |
| MI-569n7 |
DC Block |
| MI-569nA.1 |
FPO to 800, 900 and L – band |
| MI-569nA.2 |
XOR to 800, 900 and L – band |
| MI-569nA.3 |
L-band Priority 1, 900 and 800 prority 2 |
| MI-569nA.4 |
800 Priority 1, 900 and L- band priority 2 |
\
