TRIPLEXER 617 – 960/1695 – 1780, 2110 – 2200/1850 – 1990 MHZ

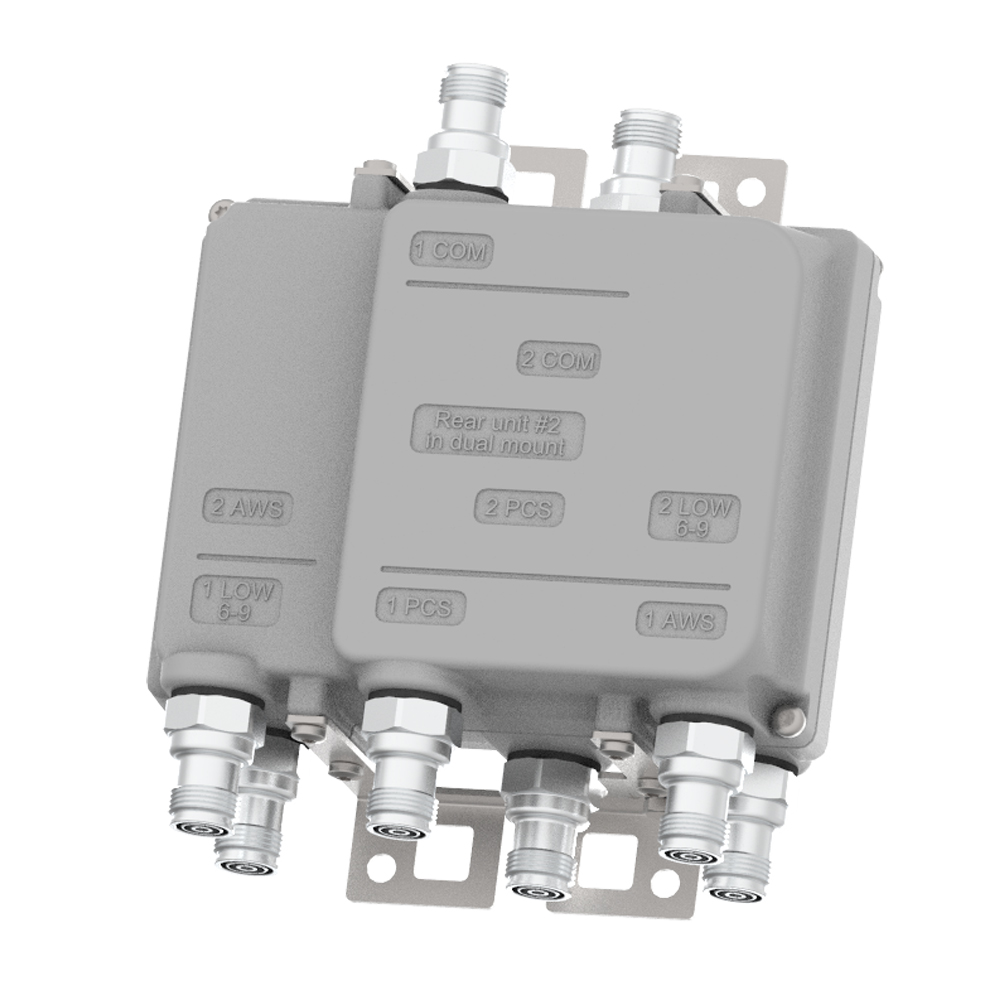

The Kaelus MI-572 is a bi-directional triplexer, designed to combine or split 600 – 900 MHz/AWS/PCS. The MI-572 provides low insertion loss and high return loss with excellent passive inter-modulation performance in an extremely small and lightweight IP67 capable package
FEATURES
- Enables antenna & coax sharing for 600 – 900 MHz, AWS, PCS MHz bands systems.
- Compact & lightweight – perfect for Small Cell applications
- Low insertion loss & high return loss
- High passive IM performance
- Single and dual models available
- 4.3-10 (F) connectors
- Hard Wired and DC Autosense versions available
- Provisions for wall or mast mounting
| BAND NAME |
600 – 900 |
AWS |
PCS |
| Passband |
617 – 960 MHz |
1695 – 1780 and 2110 – 2200 MHz |
1850 – 1990 MHz |
| Bandwidth |
|
| Insertion loss |
< 0.2 dB typical |
< 0.2 dB typical |
< 0.2 dB typical |
| Return loss |
>20 dB |
>20 dB |
>20 dB |
| Maximum input power |
250W |
| Intermodulation products |
-160 dBc at 2 x 43 dBm TX Carrier |
| Rejection |
50 dB minimum in 1695 – 2200 MHz |
50 dB minimum in 617 – 960 and 1850 – 1990 MHz |
50 dB minimum in 617 – 960 and 1695 – 1780, 2110 – 2200 MHz |
| Insertion loss |
1 dB max |
| Return loss |
12 dB min |
| Input voltage range |
8 – 30 V DC max 0.3 W |
| DC current rating |
3 A continuous, Drop max 2.4 V |
| Compliance |
3GPP TS 37.461 |
| Temperature range |
-40 ºC to +65 ºC | -40 ºF to +149 ºF |
| Ingress protection |
IP67 |
| Lightning protection |
5 kA maximum (8/20 us) |
| MTBF |
> 1,000,000 Hours |
| Compliance |
ETSI EN 300 019-1-4 class 4.1E, RoHS |
| Feature |
Single Mount |
Dual Mount |

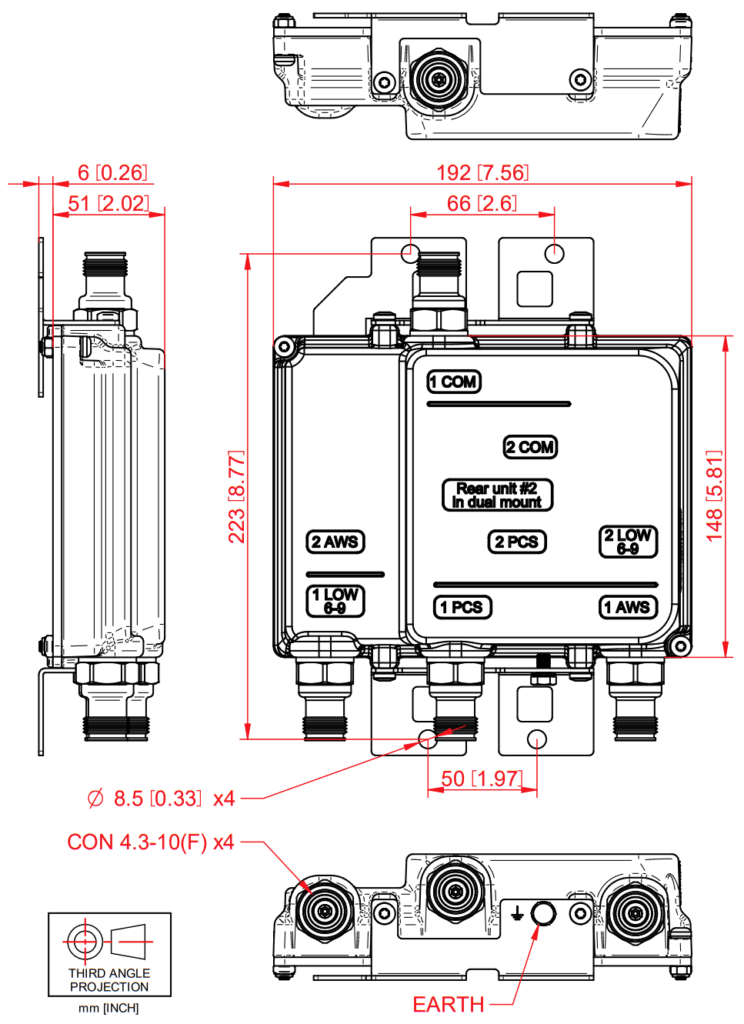

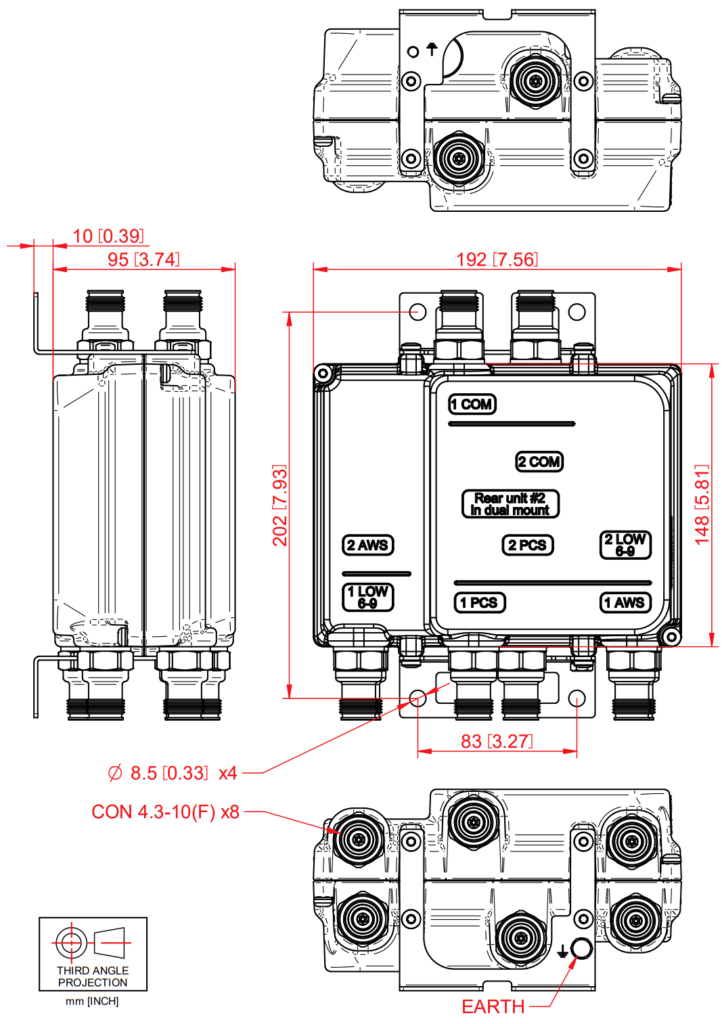

| Dimensions H x D x W |
192 mm x 148 x 51 mm I 7.56 x 5.82 x 2.02 in |
192 mm x 148 x 95 mm I 7.56 x 5.82 x 3.74 in |
| Volume |
1.5 l |
2.7 l |
| Weight |
3 kg l 6.61 lb |
5.4 kg I 11.9 lb |
| Finish |
Painted, NCS 1502-R ( Light Grey ) |
| Mounting |
Hose clamps or wall mount ( Supporter pole Diameter: 40 – 140 mm ) |
| Feature |
Single Mount with Auto-Sense |
Dual Mount with Auto-Sense |
| Dimensions H x D x W |
192 mm x 148 x 63 mm I 7.56 x 5.82 x 2.48 in |
192 mm x 148 x 124 mm I 7.56 x 5.82 x 4.88 in |
| Volume |
1.8 l |
3.5 l |
| Weight |
3.6 kg I 7.94 lb |
7 kg I 15.43 lb |
| Finish |
Painted, NCS 1502-R ( Light Grey ) |
| Mounting |
Hose clamps or wall mount ( Supporter pole Diameter: 40 – 140 mm ) |
| PART NUMBER |
CONFIGURATION |
OPTIONAL FEATURES |
CONNECTORS |
DC/AISG CONFIGURATION |
| MI-5723n |
Single Mount |
BASE MODEL |
4.3-10 (F) |
Refer to DC /AISG table |
| MI-5724n |
Dual Mount |
BASE MODEL |
4.3-10 (F) |
Refer to DC /AISG table |

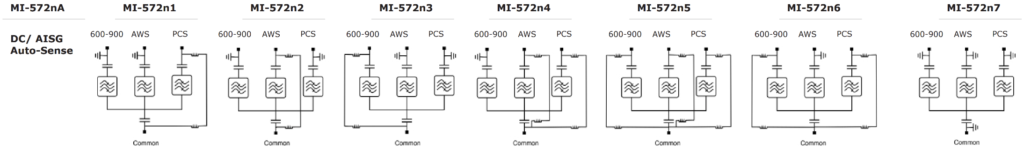

| MI-572nA |
Auto-sense |
| MI-572n1 |
DC TO PCS |
| MI-572n2 |
DC TO AWS |
| MI-572n3 |
DC TO 600 – 900 |
| MI-572n4 |
DC TO AWS, PCS |
| MI-572n5 |
DC TO ALL |
| MI-572n6 |
DC TO 600 – 900 and PCS |
| MI-572n7 |
DC Block |
| MI-572nA.1 |
FPO to 617 – 960 and 1695 – 1780, 2110 – 2200 and 1850-1990 MHz |
| MI-572nA.2 |
XOR to 617 – 960 and 1695 – 1780, 2110 – 2200 and 1850-1995 MHz |
| MI-572nA.3 |
1850 – 1995 Priority 1, 1695 – 1780, 2110 – 2200 and 617 – 960 Priority 2 |
| MI-572nA.4 |
617 – 960 Priority 1, 1695 – 1780, 2110 – 2200 and 1850 – 1995 Priority 2 |
