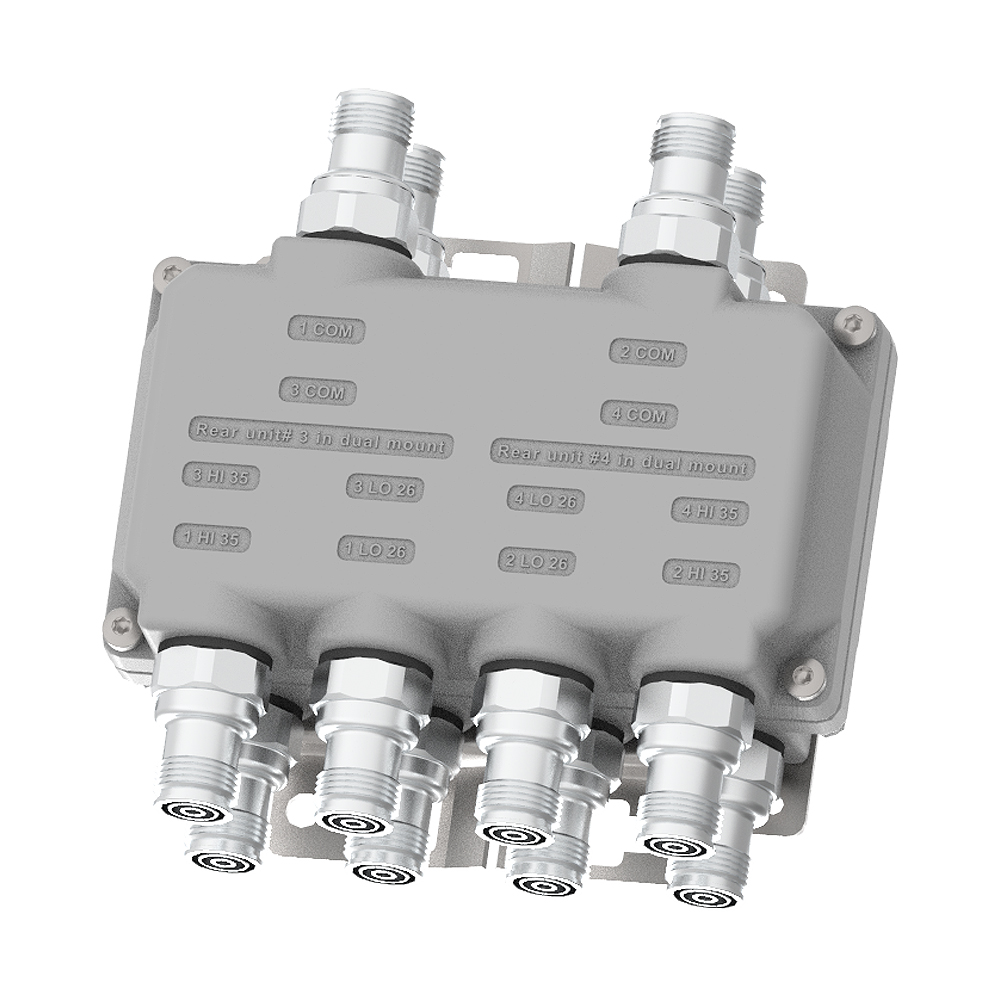

Diplexer 2300-2690/3400-3800 MHz
The Kaelus MI-707 is a bi-directional Diplexer, designed to combine or split 2300-2690 MHz and 3400-3800 MHz bands. The MI-707 provides low insertion loss and high return loss with excellent passive inter-modulation performance in an extremely small and lightweight IP67 capable package
FEATURES
- Enables antenna & coax sharing for 2300-2690 MHz and 3400-3800 MHz bands systems
- Compact & lightweight – perfect for Small Cell applications
- Low insertion loss & high return loss
- Low passive IM performance
- Single twin and dual twin models available
- 4.3-10 (F) connectors
- Hard Wired and DC Autosense versions available
- Provisions for wall or mast mounting
| PORT NAME |
2300-2690 MHZ |
3400-3800 MHZ |
| Passband |
2300-2690 MHz |
3400-3800 MHz |
| Insertion loss |
< 0.15 dB typical, < 0.2 dB maximum |
< 0.15 dB typical,< 0.2 dB maximum |
| Return loss |
18 dB minimum |
| Maximum input power |
100 W (average) |
| Intermodulation products |
-160 dBc with 2 x 20 W carriers |
| Rejection |
50 dB minimum in 3400-3800 MHz |
50 dB minimum 2300-2690 MHz |
| Insertion loss |
1 dB max |
| Return loss |
12 dB min |
| Input voltage range |
8 – 30 V DC max 0.3 W |
| DC current rating |
2 A continuous, Drop max 2.4 V |
| Compliance |
3GPP TS 37.461 |
| Temperature range |
-40 ºC to +65 ºC | -40 ºF to +149 ºF |
| Ingress protection |
IP67 |
| Lightning protection |
5 kA maximum (8/20 us) |
| MTBF |
> 1,000,000 Hours |
| Compliance |
ETSI EN 300 019-1-4 class 4.1E, RoHS |
| Feature |
Single Mount |
Dual Mount |

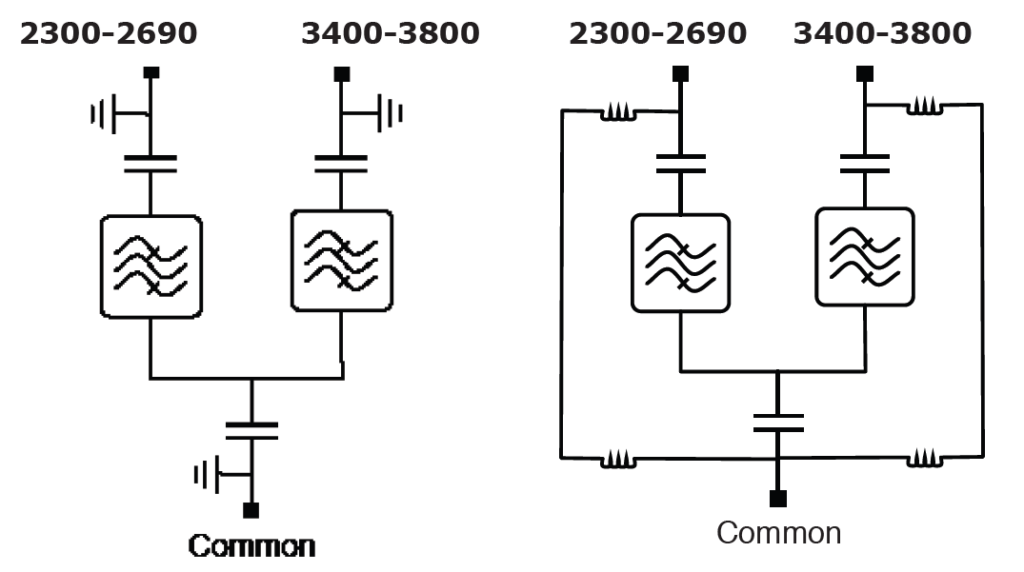

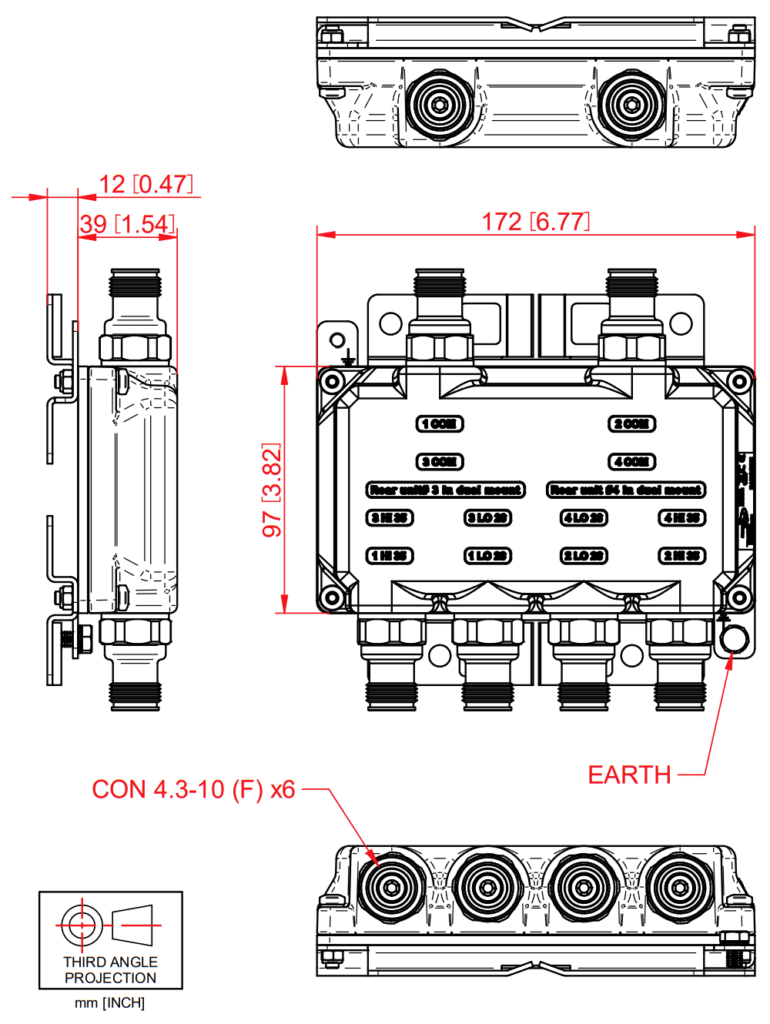

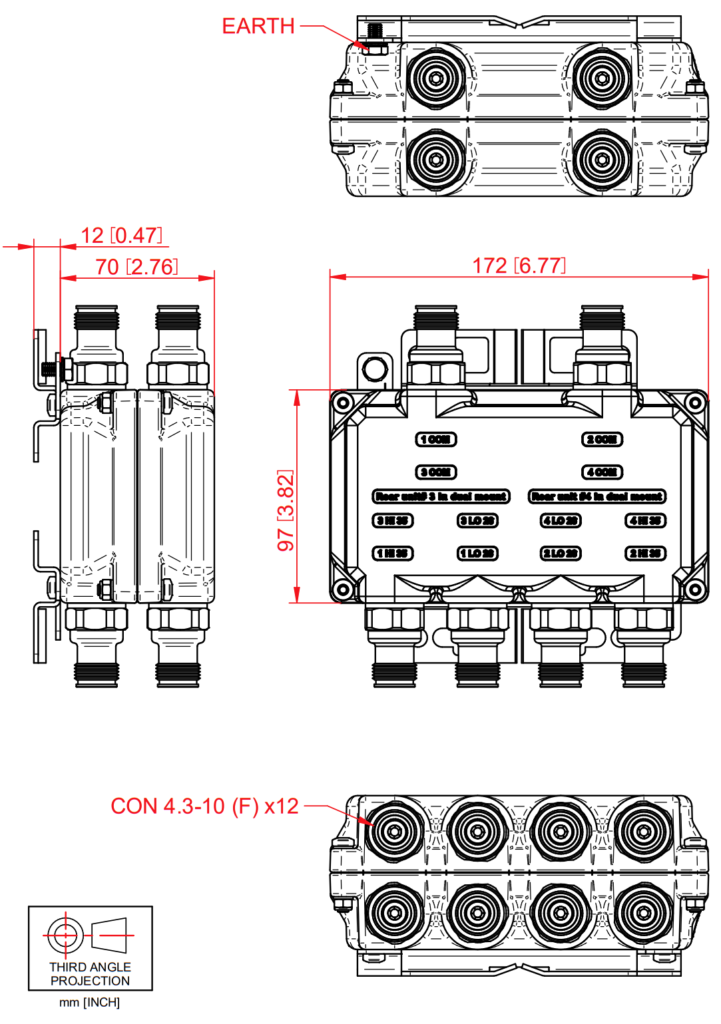

| Dimensions H x D x W |
172 x 97 x 39 mm | 6.77 x 3.82 x 1.57 in |
172 x 97 x 70 mm | 6.77 x 3.82 x 2.76 in |
| Volume |
0.65 l |
1.17 l |
| Weight |
1.3 kg | 2.87 lb |
2.3 kg I 5.07 |
| Finish |
Painted, NCS 1502-R |
| Mounting |
Hose clamps or wall mount, supporter pole diameterr 40-140mm |
| PART NUMBER |
CONFIGURATION |
OPTIONAL FEATURES |
CONNECTORS |
DC/AISG CONFIGURATION |
| MI-70731 |
Single twin |
BASE MODEL |
4.3-10 (F) |
DC BLOCK |
| MI-70732 |
Single twin |
BASE MODEL |
4.3-10 (F) |
DC TO ALL |
| MI-70741 |
Dual twin |
BASE MODEL |
4.3-10 (F) |
DC BLOCK |
| MI-70742 |
Dual twin |
BASE MODEL |
4.3-10 (F) |
DC TO ALL |
