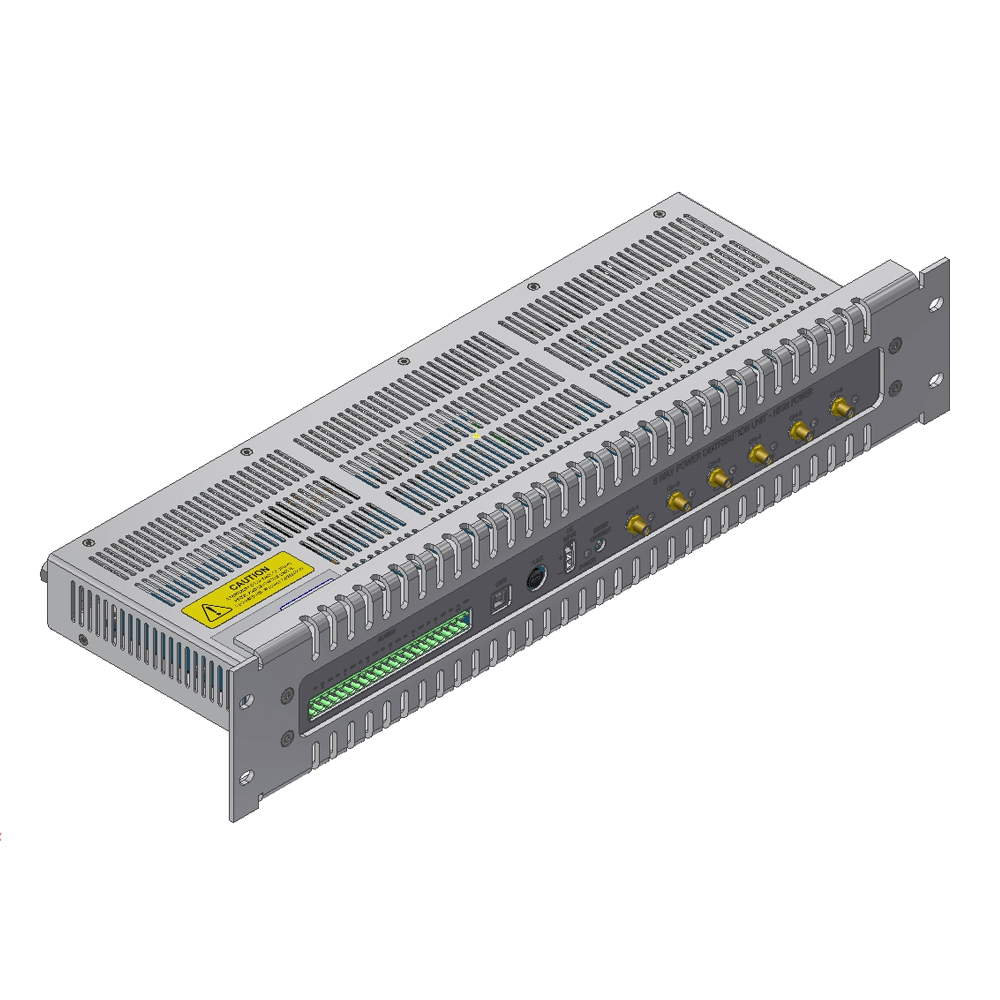

6-WAY POWER DISTRIBUTION UNIT
The PDU0009 power distribution unit has been designed to allow multiple TMAs to be fed from a single feeder and operate in a CWA mode configuration. This application is especially suited to multi-band, high current applications.
FEATURES
- 22V through 60 V DC input range
- Up to six +12V DC LNA output ports
- LED status indicators for each individual TMA
- 80mA ~ 1A per output
- 19 inch rack mounting
- Summary relay alarm
TECHNICAL SPECIFICATIONS |
| ELECTRICAL | |||||||||||||||
| Voltage requirement | Any polarity, 22 – 60V | ||||||||||||||
| Maximum input current | 5A | ||||||||||||||
| Input protection | 10A fuse (slow blow) | ||||||||||||||
| Output voltage | 12V nominal | ||||||||||||||
| Output voltage tolerance | 11.2V minimum, 12.7V maximum | ||||||||||||||
| Operating current window | 80mA~1A per output (customer settable) | ||||||||||||||
| Number of outputs | 6 | ||||||||||||||
| Surge protection | 24V clamp per output | ||||||||||||||
| Input-output isolation | 500V DC | ||||||||||||||
| Alarm sense | Relay is de-energised on alarm or power off. See alarm cable wiring detail below, R18-0526 | ||||||||||||||
| Alarm relay contact rating | 0.5A @ 60V DC | ||||||||||||||
| ALARM AND LED INDICATORS | |||||||||||||||
| TMA Status (6x) | |||||||||||||||
| Green | Output is ON and TMA current is in the valid operating range | ||||||||||||||
| Red | See alarm window table | ||||||||||||||
| Off | No TMA connected | ||||||||||||||
| Power status green | OK | ||||||||||||||
| Power status red/orange | Internal voltage error (red: DC-DC#1 failed; orange: DC-DC#2 failed); alarm; corresponding outputs are switched off | ||||||||||||||
| ALARM WINDOW TABLE | |||||||||||||||
| Upon pressing of the front panel switch (RESET / STORE), a current consumption at any / all load port of between 80mA and 1A causes the port to be permanently powered. Some parameter settings such as min/max learnable current and operating current tolerance (40mA) can be altered through the USB PC interface. | |||||||||||||||
| TMA current (mA) | Status LNA | Indicator LED (per channel) | Output voltage (CH1 ~ CH6) | ||||||||||||
| <30mA on RESET | No TMA connected | Off | 0V | ||||||||||||
| Learned current | Valid operational range. No alarm | Green | 12V | ||||||||||||
| Learned current < – offset1 | TMA fault | Orange | 12V | ||||||||||||
| >Learned current +offset1 | TMA fault | Orange | 12V | ||||||||||||
| > 1.1A | Short circuit or installation fault, alarm | Red | 0V | ||||||||||||
| MECHANICAL | |||||||||||||||
| Dimensions H x D x W | 483 x 153 x 88mm | 19 x 6.02 x 3.46in | ||||||||||||||
| Weight | 1.5kg | 3.31lbs estimated | ||||||||||||||
| DC IN connector | Molex mini-fit junior 2-way (x1) | ||||||||||||||
| DC OUT connector | SMA-female (x6) | ||||||||||||||
| Alarm connector | D25 (F) | ||||||||||||||
| ENVIRONMENTAL | |||||||||||||||
| Temperature range | -20ºC to +55ºC | +4°F to +131°F | ||||||||||||||
| MTBF | >500,000 hours at 22ºC | 71.6ºF | ||||||||||||||
ORDERING INFORMATION |
|||||||||||||||
| PART NUMBER | DESCRIPTION | ||||||||||||||
| PDU0009F1V3-9 | 6-Way PDU, 1A per port includes DC input cable, connector terminal block plug, earth cable and mounting hardware | ||||||||||||||
| STANDARD ACCESSORIES SUPPLIED | |||||||||||||||
| R18-0398 | Power cable, 6 meters, molex to open tail | ||||||||||||||
| R18-0492 | Earth cable, 1meter | ||||||||||||||
| R79-0392 | 7 x three way connector terminal block plug | ||||||||||||||
OPTIONAL ACCESSORIES |
|||||||||||||||
| PART NUMBER | DESCRIPTION | ||||||||||||||
| R90-DCI0010F1V1 | DC Inserter/Bias T outdoor no cable | ||||||||||||||
| R90-DCI0010F1Vx | DC Inserter/Bias T indoor kit, x meter cable included | ||||||||||||||
| R18-0731 | Cable assembly PDU to Bias T, SMA TO SMA 5m | ||||||||||||||
| R18-0732 | Cable assembly PDU to Bias T, SMA TO SMA 10m | ||||||||||||||

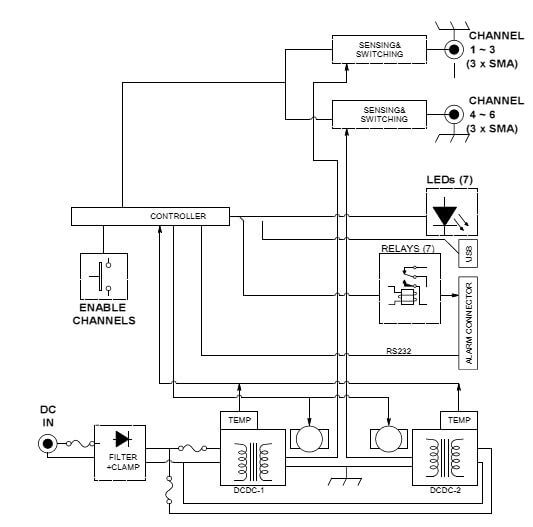

ELECTRICAL BLOCK DIAGRAM |

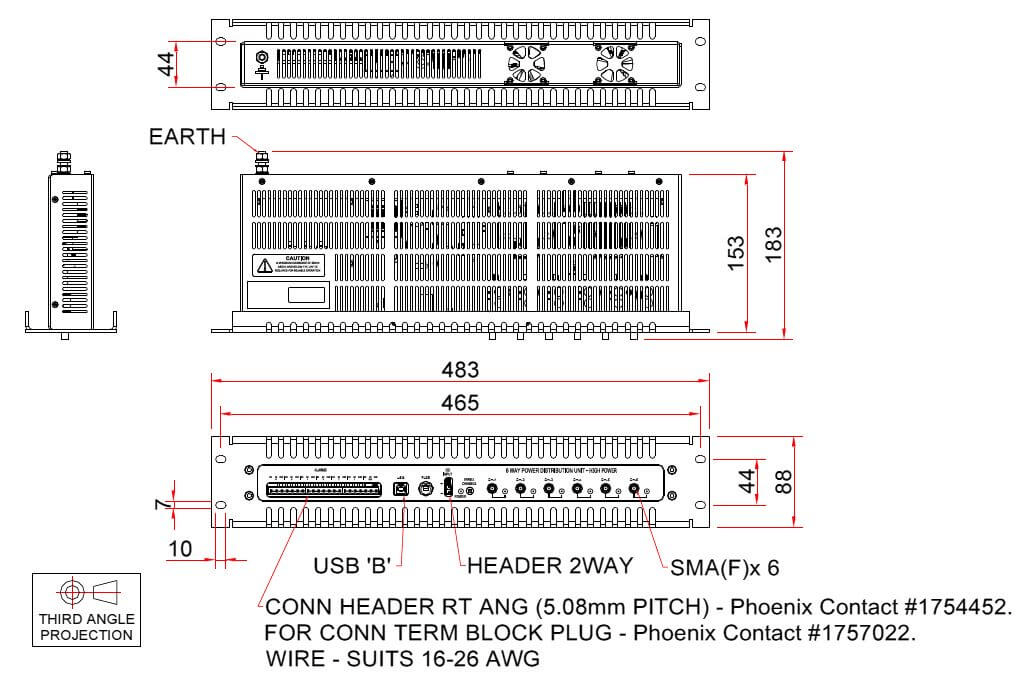

MECHANICAL BLOCK DIAGRAM |
