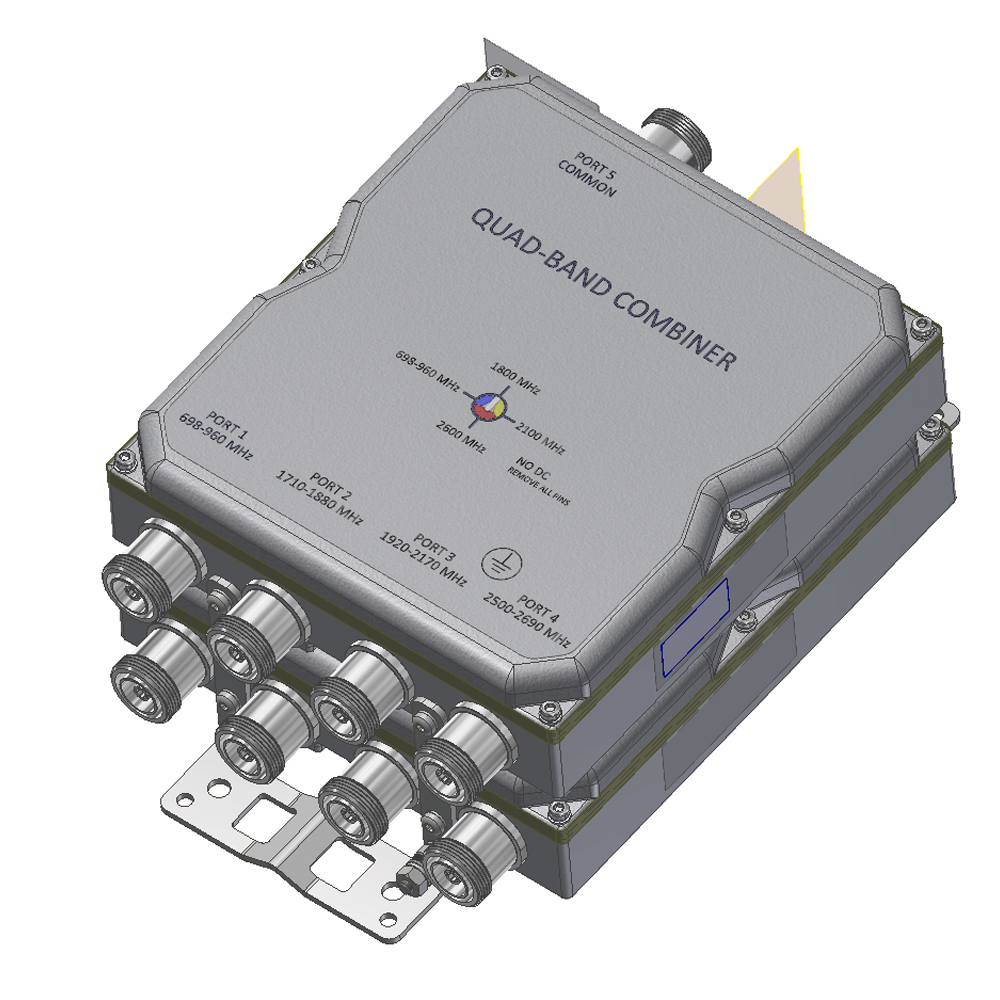

QUADRUPLEXER 700-900/1800/2100/2600
Designed to combine 700-850-900, 1800, 2100 and 2600 technologies, the Kaelus QBC0003 saves significant capital and operational expenses by limiting feeder runs and components needed on the tower.
FEATURES
- Combines 700-1900, 1800, 2100 and 2600 Bands
- DC/AISG bypass field settable
- Very low insertion loss
- Wall or pole mounting
- Designed for low Passive intermodulation
- High power handling
| BAND NAME |
700 – 900 |
1800 |
2100 |
2600 |
| Passband |
698 – 960MHz |
1710 – 1880MHz |
1920 – 2170MHz |
2500 – 2690MHz |
| Insertion loss |
0.2dB typical |
0.3dB typical |
0.3dB typical |
0.3dB typical |
| Return loss |
18dB minimum |
| Group delay variation |
<15 / 10MHz maximum |
| Absolute group delay |
2.5ns typical, 5ns maximum |
8ns typical, 12ns maximum |
9ns typical, 20ns maximum |
6ns typical, 10ns maximum |
| Maximum input power |
300W (average) / 2.5kW (PEP) |
300W (average) / 2.5kW (PEP) |
300W (average) / 2.5kW (PEP) |
300W (average) / 2.5kW (PEP) |
| Isolation at 700 – 900 |
N/A |
50dB minimum |
50dB minimum |
50dB minimum |
| Isolation at 1800 |
50dB minimum |
N/A |
50dB minimum |
50dB minimum |
| Isolation at 2100 |
50dB minimum |
50dB minimum |
N/A |
50dB minimum |
| Isolation at 2600 |
50dB minimum |
50dB minimum |
50dB minimum |
N/A |
| Intermodulation products |
-153dBc maximum all ports with 2 x 43dBm carriers |
| Passband |
0 – 3MHz |
| Insertion loss, single DC/AISG pass |
1dB maximum |
| Return loss, single DC/AISG pass |
12dB maximum |
| Insertion loss, two DC/AISG pass |
4.5dB typical |
| Return loss, two DC/AISG pass |
9dB typical |
| Input voltage range |
31V DC maximum |
| DC current rating |
2.5A continuous, 4A peak |
| Port 1 DC to COM plug color |
Blue |
| Port 2 DC to COM plug color |
White |
| Port 3 DC to COM plug color |
Yellow |
| Port 4 DC to COM plug color |
Red |
| Temperature range |
-20ºC to +65ºC | -4ºF to +149ºF |
| Ingress protection |
IP67 |
| Altitude |
2,000m | 6,560ft maximum |
| Lightning protection |
±5kA maximum (8/20us) |
| MTBF |
>1,000,000 hours |
| Compliance |
EMC:EN301 489, ETSI EN 300 019 class 4.1, RoHS |
| Dimensions H x D x W (single unit) |
239 x 58.5 x 217mm | 9.4 x 2.3 x 8.5in |
| Dimensions H x D x W (twin unit) |
239 x 117 x 217mm | 9.4 x 4.6 x 8.5in |
| Weight |
5.3kg | 11.7lb (single unit)
10.6kg | 23.4lb (twin unit) |
| Connectors |
DIN 7-16 (F) x 5 long neck (single unit)
DIN 7-16 (F) x 10 long neck (twin unit) |
| Mounting |
Pole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles |
| PART NUMBER |
CONFIGURATION |
OPTIONAL FEATURES |
CONNECTORS |
DC/AISG CONFIGURATION |
| QBC0003F1V51-1 |
SINGLE 1 in / 4 out |
DC SWITCH |
7/16 (F) |
FIELD CONFIGURABLE |
| QBC0003F1V51-2 |
TWIN 2 in / 8 out |
DC SWITCH |
7/16 (F) |
FIELD CONFIGURABLE |
