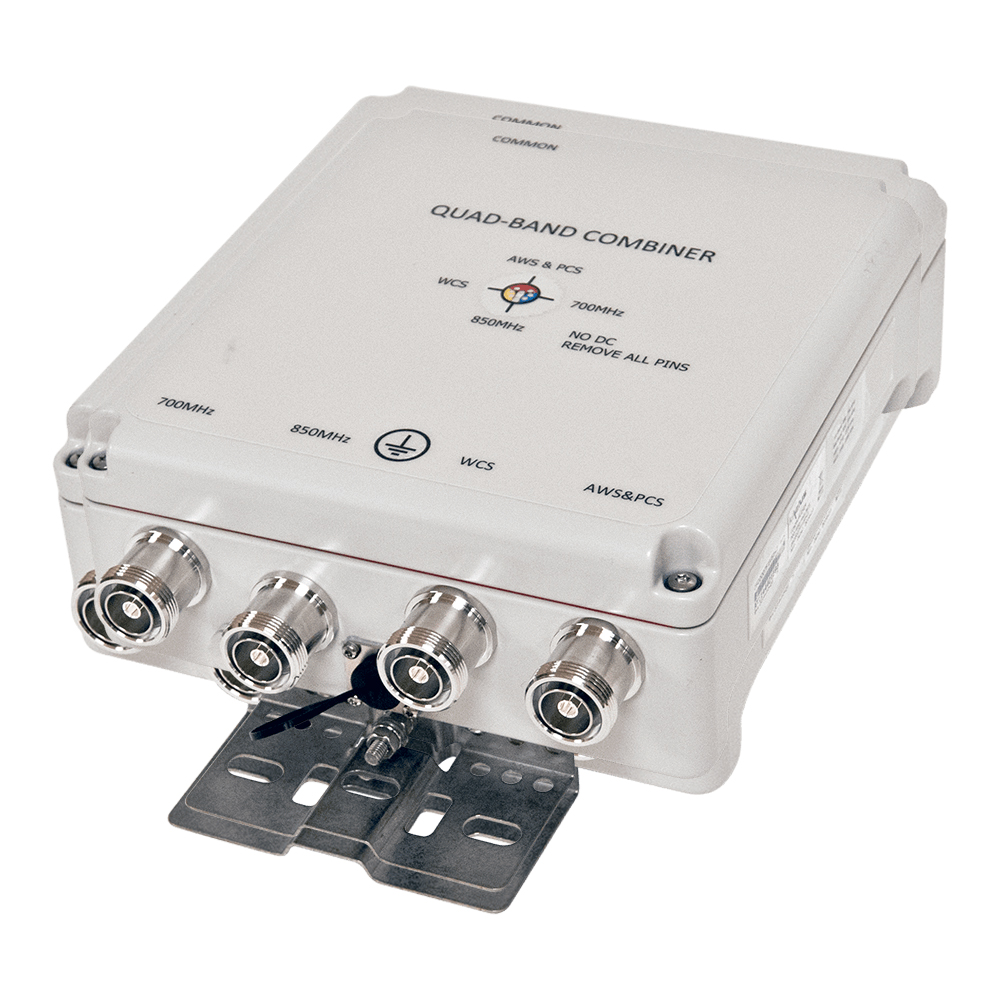

QUADRUPLEXER 700/850/1900-AWS/WCS
Designed to combine 700, 850, 1900-AWS and WCS bands, the Kaelus QBC0007 saves significant capital and operational expenses by limiting feeder runs, and components needed on the tower. Available in an outdoor package the QBC0007 has the following features:
FEATURES
- Combines 700, 850, 1900-AWS and WCS bands
- Very low insertion loss
- Designed for low passive intermodulation
- DC/AISG bypass field settable
- Wall or pole mounting
- High power handling
- Single and twin configurations available
| BAND NAME |
700 |
850 |
1900-AWS |
WCS |
| Passband |
698 – 798MHz |
824 – 906MHz |
1695- 2200MHz |
2305 – 2360MHz |
| Insertion loss |
0.3dB typical |
0.3dB typical |
0.25dB typical |
0.4dB typical |
| Return loss |
24dB typical |
| Maximum input power |
150W (average) / 1.5kW (PEP) |
500W (average) / 5kW (PEP) |
250W (average) / 2.5kW (PEP) |
150W (average) / 1.5kW (PEP) |
| Rejection in 700 |
N/A |
50dB typical |
80dB typical |
80dB typical |
| Rejection in 850 |
50dB typical |
N/A |
80dB typical |
80dB typical |
| Rejection in 1900-AWS |
80dB typical |
80dB typical |
N/A |
50dB typical |
| Rejection in WCS |
80dB typical |
80dB typical |
50dB typical |
N/A |
| Impedance |
50Ohms |
| Intermodulation products |
-153dBc typical (2x 20 W carriers, in receive band) |
| Phase linearity variation over any 10MHz |
< 10º |
| Group delay variation over any 10MHz |
< 20ns |
| Passband |
0 – 3MHz |
| Insertion loss, single DC/AISG pass |
1dB maximum |
| Return loss, single DC/AISG pass |
12dB minimum |
| Insertion loss, two DC/AISG pass |
4.5dB typical |
| Return loss, two DC/AISG pass |
9dB typical |
| Input voltage range |
± 31V |
| DC current rating |
2A continuous, 4A peak |
| Compliance |
AISG 1.1/2.0 |
| Temperature range |
-40ºC to +65ºC | -40ºF to +149ºF |
| Ingress protection |
IP67 |
| Lightning protection |
IEC61312-1
±5kA maximum (8/20us) |
| MTBF |
>1,000,000 hours |
| Compliance |
ETSI EN 300 019 class 4.1, RoHS |

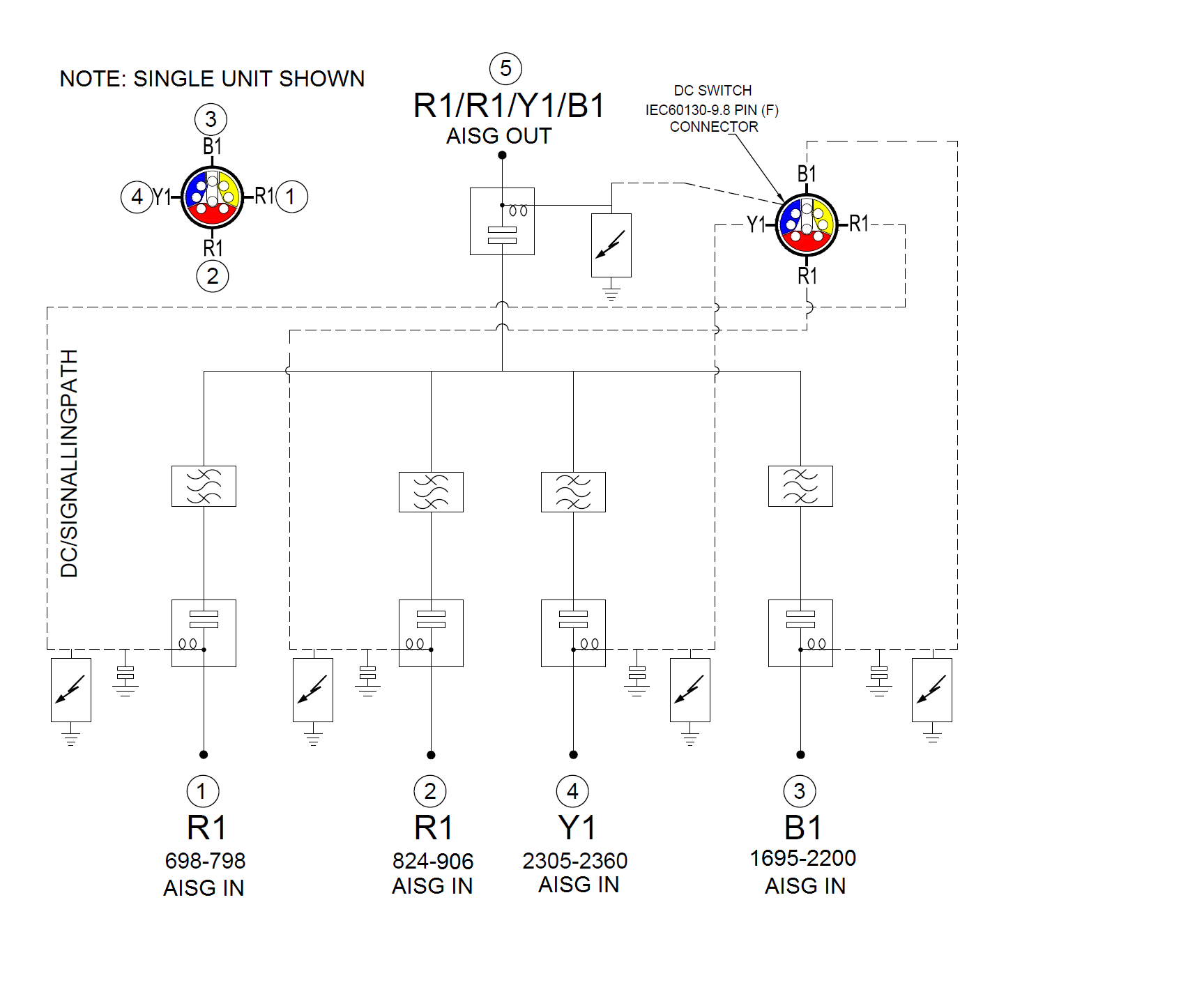

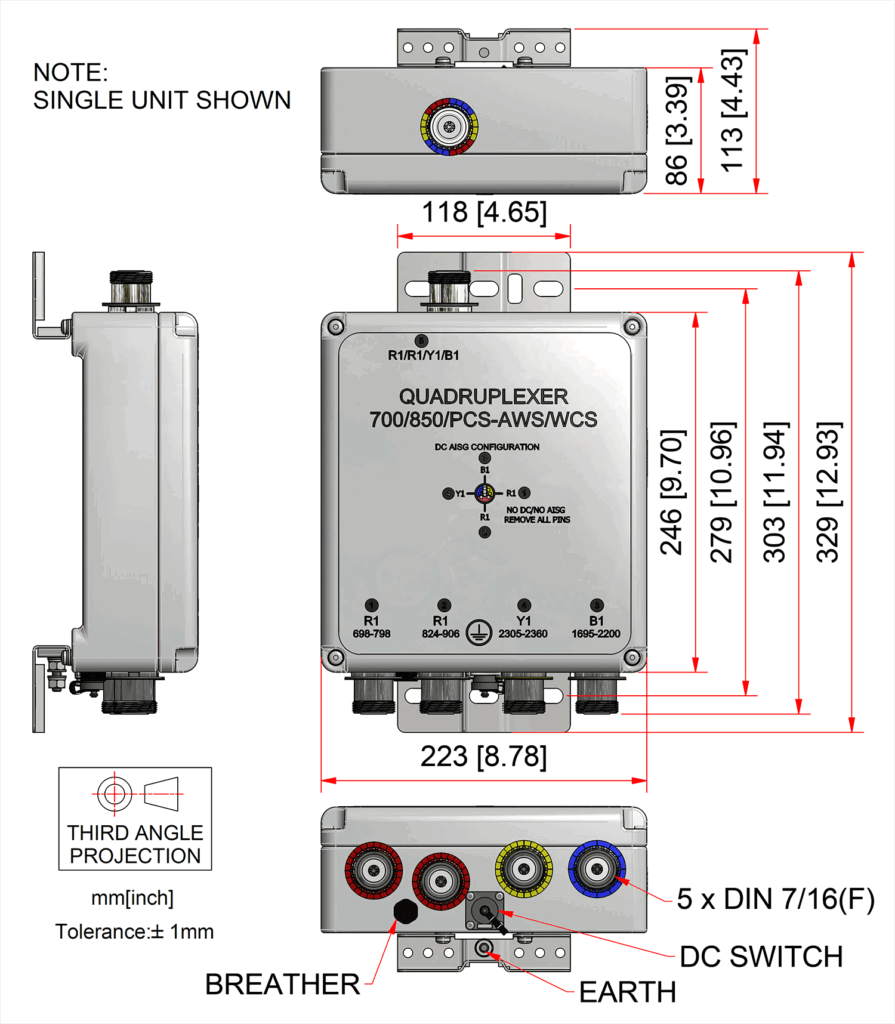

| Dimensions H x D x W (single unit) |
246 x 223 x 86mm | 9.73 x 8.78 x 3.39in (excluding brackets & connectors) |
| Dimensions H x D x W (twin unit) |
246 x 223 x 205mm | 9.73 x 8.78 x 8.06in (excluding brackets & connectors) |
| Weight |
7.6kg | 16.7lb (single unit)
15.2kg | 33.4lb (twin unit) |
| Finish |
Painted, light grey (RAL7035) |
| Connectors |
DIN 7-16 (F) x 5 long neck(single unit)
DIN 7-16 (F) x 10 long neck(twin unit) |
| Mounting |
Pole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles |
| PART NUMBER |
CONFIGURATION |
OPTIONAL FEATURES |
CONNECTORS |
DC/AISG CONFIGURATION |
| QBC0007F2V51-1 |
SINGLE 1 in / 4 out |
DC SWITCH |
7/16 (F) |
FIELD CONFIGURABLE |
| QBC0007F2V51-2 |
TWIN 2 in / 8 out |
DC SWITCH |
7/16 (F) |
FIELD CONFIGURABLE |
