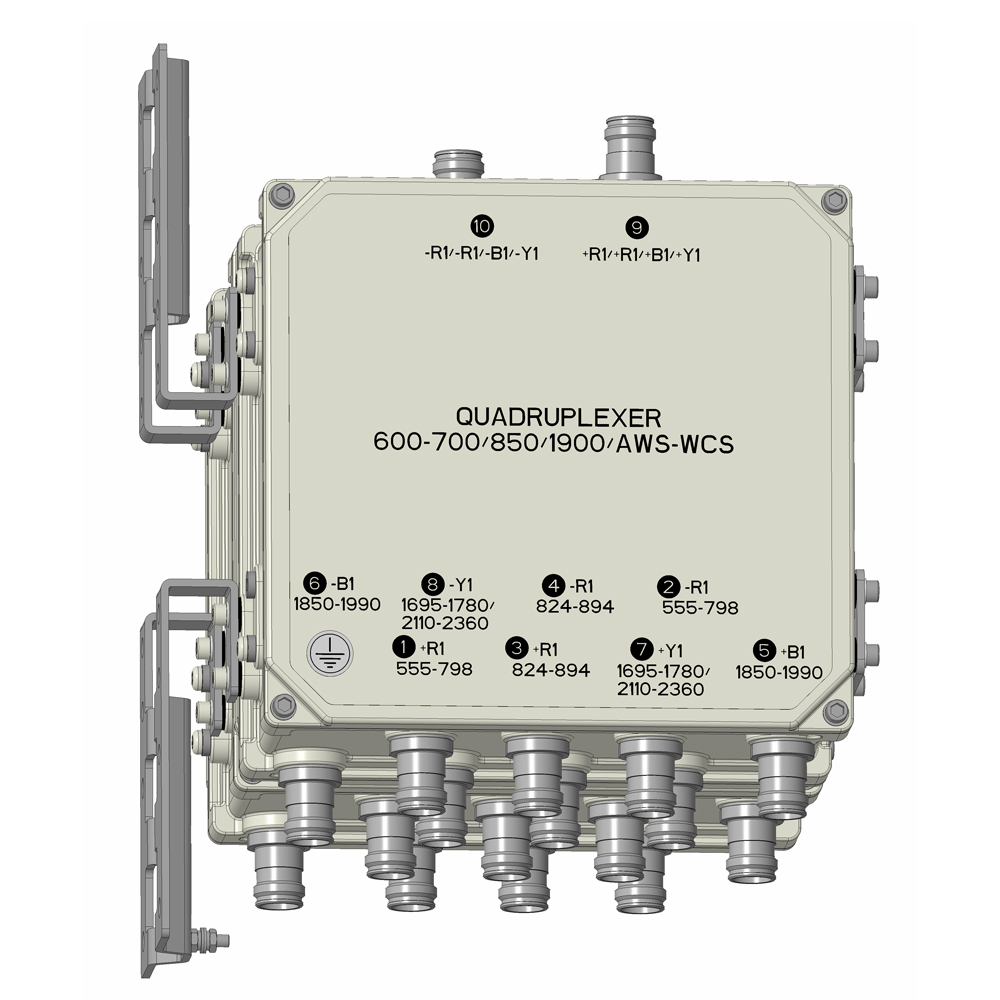

QUADRUPLEXER 600-700/850/1900/AWS-WCS
The Kaelus QBC0010 is a bi-directional Quadruplexer designed to combine 600 & 700 with 850, 1900 and AWS-WCS technologies, the QBC0010 provides excellent insertion loss and passive intermodulation performance. Bidirectional passage of DC/AISG is provided in this outdoor product.
FEATURES
- Enables antenna/feeder sharing for 600-700, 850, 1900 and AWS-WCS networks
- Compact & lightweight – perfect for Small Cell applications
- Low insertion loss & high return loss
- Low passive IM performance
- Twin (-1) and Quad (-2) models available
- 4.3-10 (F) long neck connectors standard
- Hard Wired and DC Autosense versions available
- Provisions for wall or mast mounting
- AWS3 and 4 ready
TECHNICAL SPECIFICATIONS |
|||||||||||||||
| BAND NAME | 600-700 | 850 | 1900 | AWS-WCS | |||||||||||
| RF PERFORMANCE | |||||||||||||||
| Passband | 555 – 798MHz | 824 – 894MHz | 1850 – 1990MHz | 1695 – 1780MHz / 2110 – 2360MHz | |||||||||||
| Insertion loss | 0.15dB typical | 0.20dB typical | 0.25dB typical | 0.30dB typical | |||||||||||
| Return loss | 23dB typical, 22dB maximum @ 25dgrC 20dB maximum over full temperature range |
||||||||||||||
| Maximum input power | 120W (average) / 1.2kW (PEP) | ||||||||||||||
| Rejection in 700 | N/A | 50dB typical | 65dB typical | 65dB typical | |||||||||||
| Rejection in 850 | 50dB typical | N/A | 65dB typical | 65dB typical | |||||||||||
| Rejection in 1900 | 65dB typical | 65dB typical | N/A | 50dB typical | |||||||||||
| Rejection in AWS | 65dB typical | 65dB typical | 50dB typical | N/A | |||||||||||
| ELECTRICAL | |||||||||||||||
| Impedance | 50Ohms | ||||||||||||||
| Intermodulation products | -161dBc maximum all ports with 2 x 43dBm carriers | ||||||||||||||
| Group delay over any 10MHz | 15ns typical | 15ns typical | 7.5ns typical | 7.5ns typical | |||||||||||
| Absolute group delay | 35ns typical | 35ns typical | 15ns typical | 1695 -1780MHz 20ns typical 2110 – 2360MHz 15ns typical |
|||||||||||
| EVM 10MHz BW | 0.05% typical. 2% maximum | ||||||||||||||
| ENVIRONMENTAL | |||||||||||||||
| For further details of environmental compliance, please contact Kaelus. | |||||||||||||||
| Temperature range | -40ºC to +65ºC | -40ºF to +149ºF | ||||||||||||||
| Ingress protection | IP67 | ||||||||||||||
| Altitude | 3000m/10,000ft maximum | ||||||||||||||
| Lightning protection | IEC61312-1, RF: ±5kA maximum (8/20us) | ||||||||||||||
| MTBF | >1,000,000 hours | ||||||||||||||
| MECHANICAL | |||||||||||||||
| Dimensions H x D x W (single twin unit) | 214 x 228 x 146 mm | 8.4 x 9 x 5.7 in | ||||||||||||||
| Dimensions H x D x W (dual twin unit) | 214 x 228 x 296 mm | 8.4 x 9 x 11.6 in | ||||||||||||||
| Weight | 8.7kg / 19.1bs (twin) 17.4kg / 38.4lbs (quad) |
||||||||||||||
| Finish | Painted, light grey (RAL7035) | ||||||||||||||
| Connectors | 4.3-10 (F) x 10 long neck (twin) 4.3-10 (F) x 20 long neck (quad) |
||||||||||||||
| Mounting | Pole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles | ||||||||||||||
ORDERING INFORMATION |
|||||||||||||||
| PART NUMBER | CONFIGURATION | OPTIONAL FEATURES | CONNECTORS | DC/AISG CONFIGURATION | |||||||||||
| QBC0010F1V75-1 | TWIN, 2 in / 8 out | DC AUTOSENSING WITHOUT LED | 4.3-10 (F) | AWS-WCS/600-700/1900/850 | |||||||||||
| QBC0010F1V75-2 | QUAD, 4 in / 16 out | DC AUTOSENSING WITHOUT LED | 4.3-10 (F) | AWS-WCS/600-700/1900/850 | |||||||||||

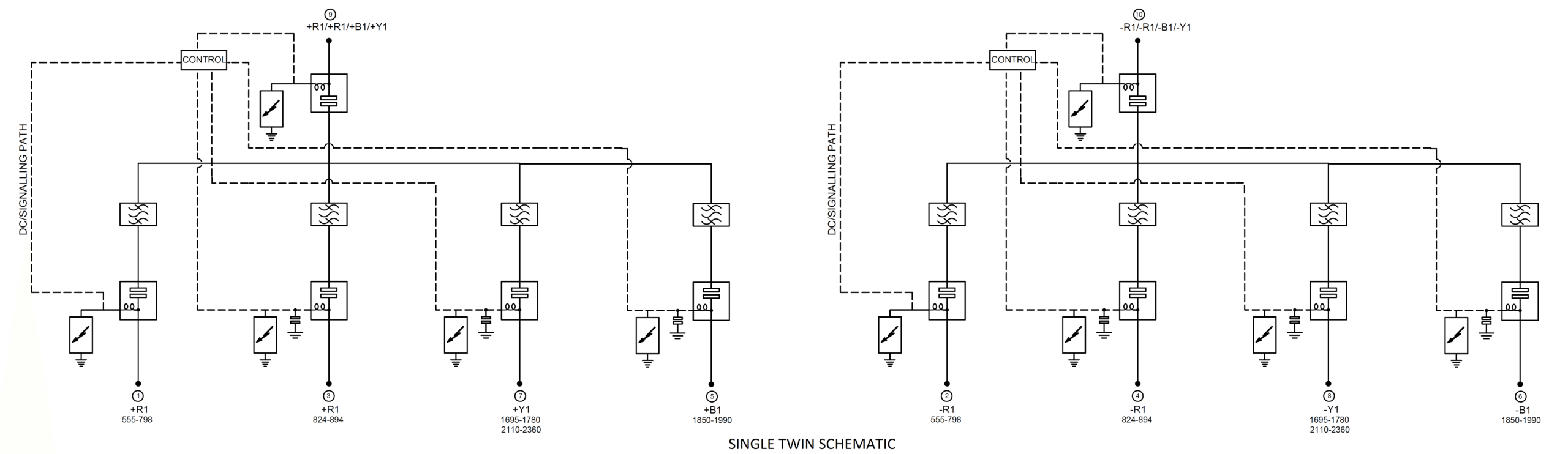

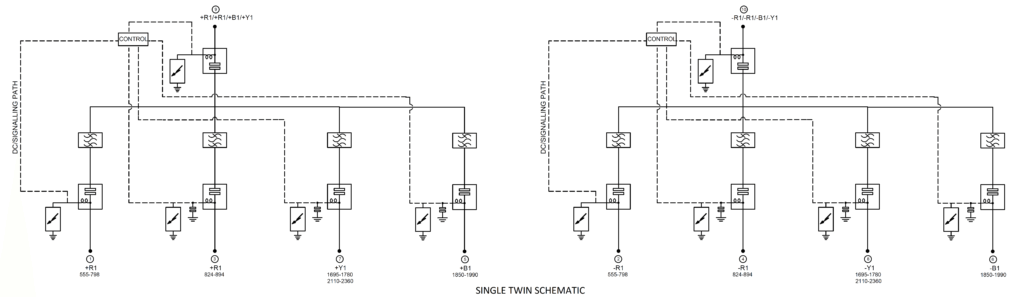

ELECTRICAL BLOCK DIAGRAM |

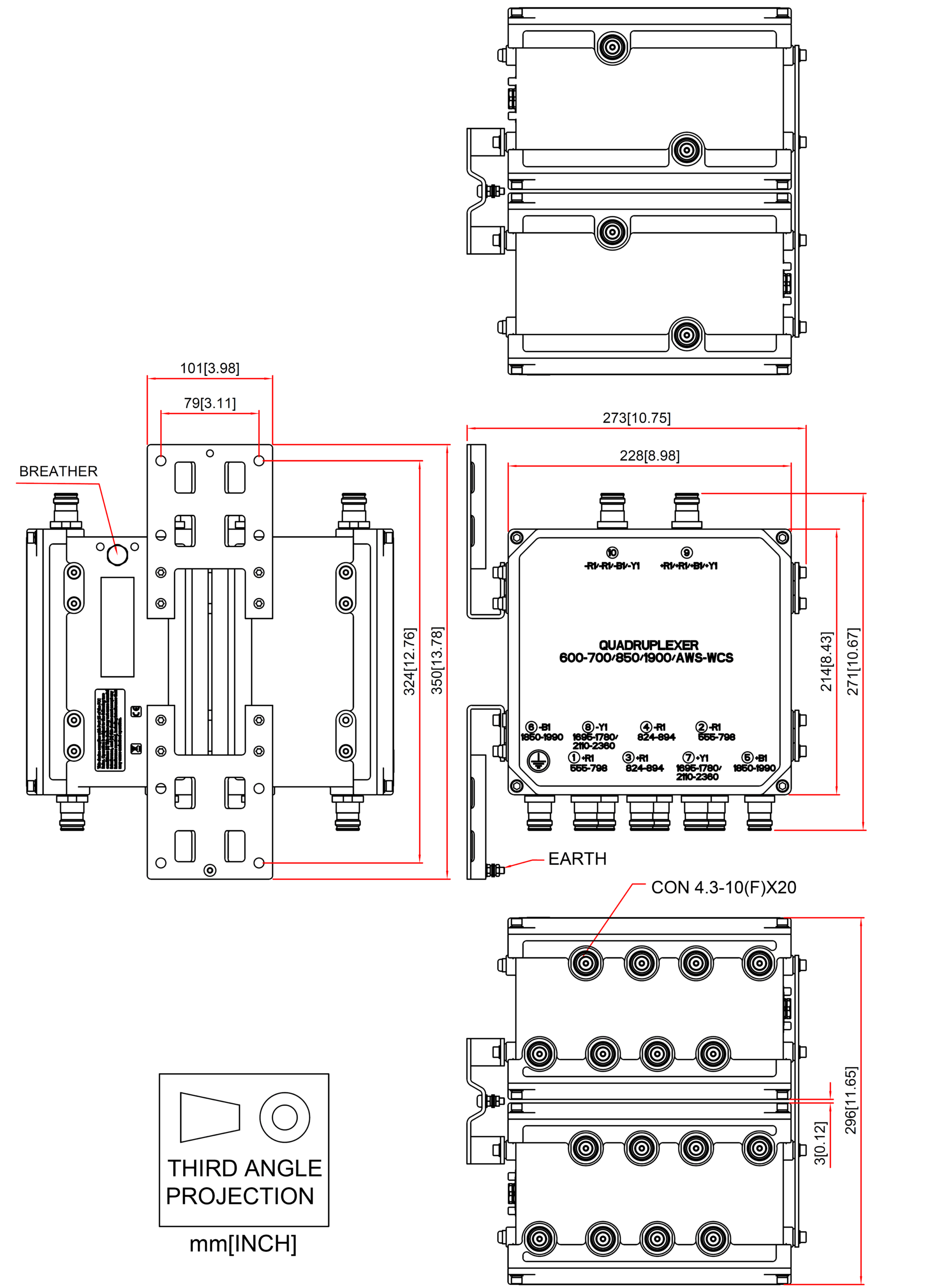

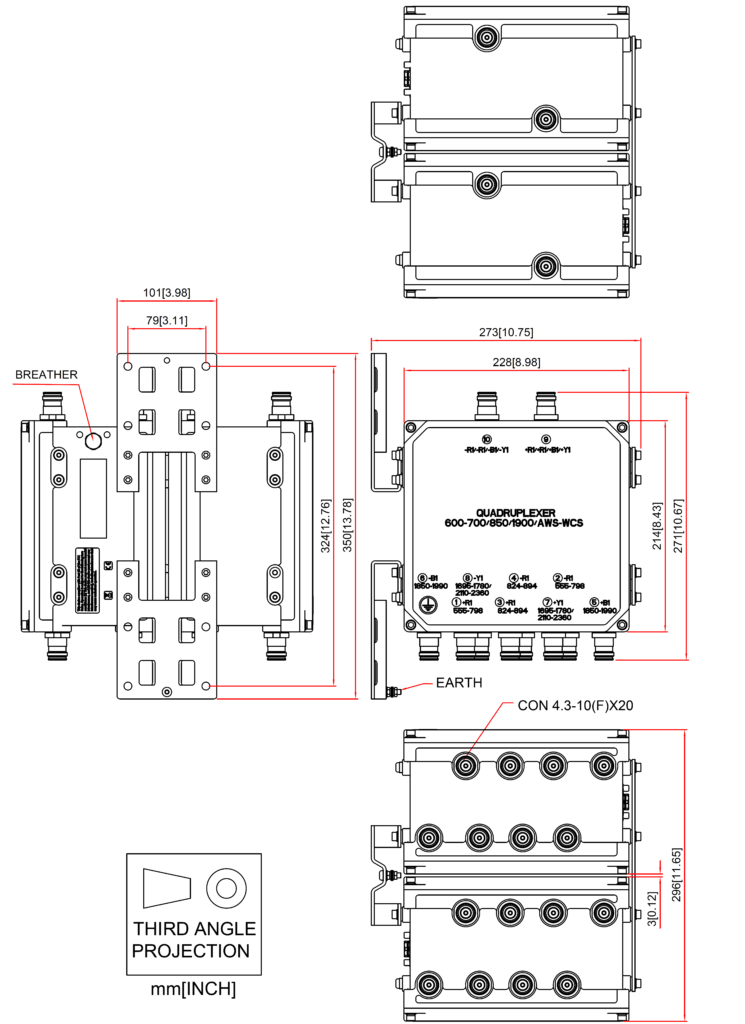

MECHANICAL BLOCK DIAGRAM |
