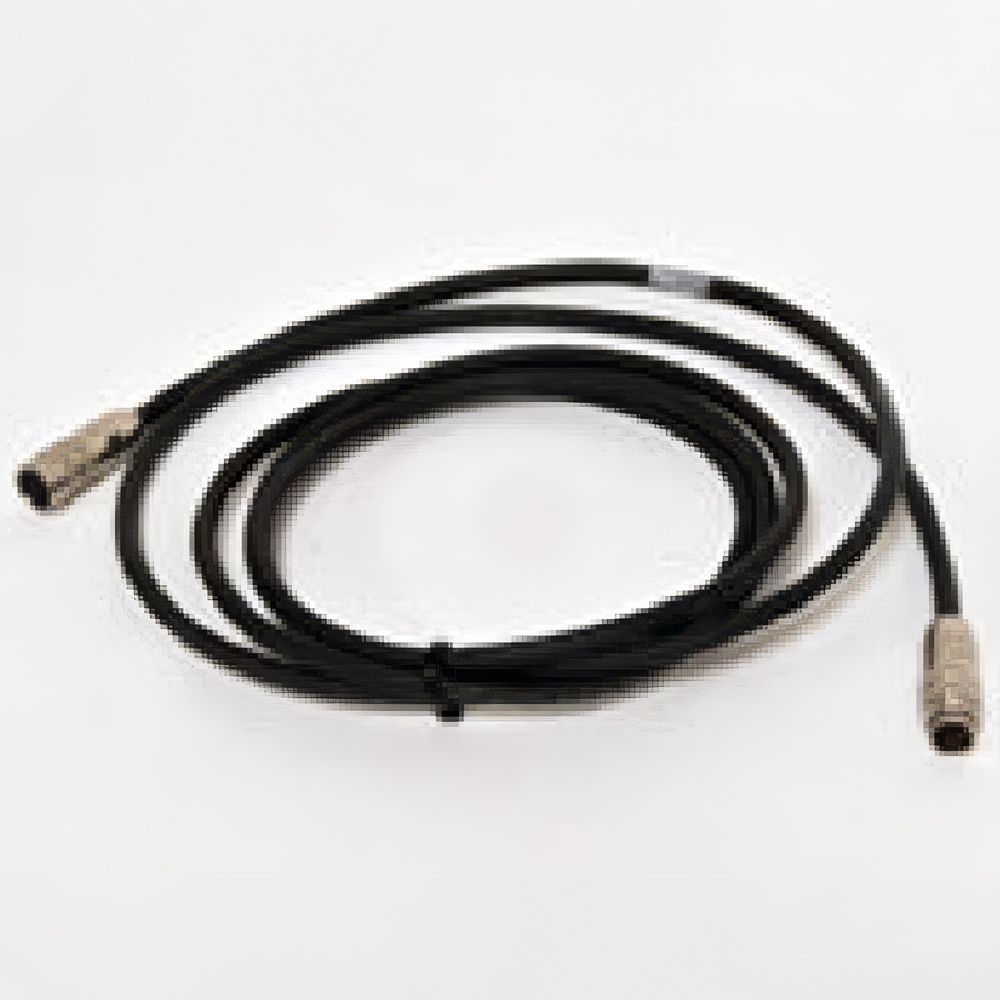

EXTREME WEATHER RET CABLE ASSEMBLY
The Extreme Weather RET assembly is an integrated design where the connector and the cable are fused into one assembly, making this solution highly resistant to moisture, contamination, and corrosion.
FEATURES
- The ONLY IP 68 rated RET connector available today!
- A fused gasket sealed body will eliminate the chance of moisture running down the cable and seeping into the connector.
- Gasket encapsulated contacts and gasket sealed mating face will eliminate the chance of moisture seeping into the connector.
The Extreme Weather RET assembly is an integrated design where the connector and the cable are fused into one assembly, making this solution highly resistant to moisture, contamination, and corrosion.
| Rated current |
4A (power supply) (at 50°C) |
| AISG compatible |
V1.1 or V2.0 |
| Temperature range |
-40ºC to 80ºC | -40°F to 176°F |
| Ingress protection |
IP68 |
| Flammability |
VL 1581 VW-1 CSA FT-1 |
| Cable length |
See order information |

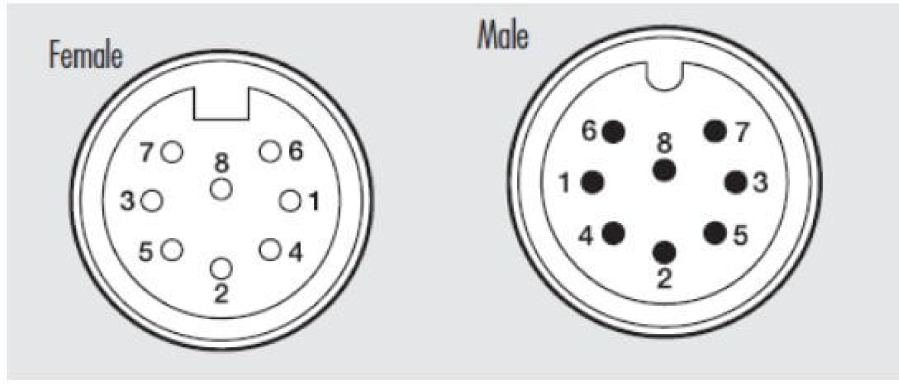

| Connector 1 |
8 Pin – IEC 60130-9 (f) |
| Connector 2 |
8 Pin – IEC 60130-9 (m) |
| Tightening torque |
0.5–1Nm (0.36lb | 0.73ft) |
| PART NUMBER |
DESCRIPTION |
| R18‐0749‐05 |
Extreme weather RET cable assembly – 0.5m | 1.6ft |
| R18‐0749‐1 |
Extreme weather RET cable assembly – 1m | 3.3ft |
| R18‐0749‐2 |
Extreme weather RET cable assembly – 2m | 6.5ft |
| R18‐0749‐3 |
Extreme weather RET cable assembly – 3m | 9.8ft |
| R18‐0749‐4 |
Extreme weather RET cable assembly – 4m | 13.1ft |
| R18‐0749‐5 |
Extreme weather RET cable assembly – 5m | 16.4ft |
| R18-0749-6 |
Extreme weather RET cable assembly – 6m | 19.7ft |
| R18‐0749‐10 |
Extreme weather RET cable assembly – 10m | 32.8ft |
| R18‐0749‐15 |
Extreme weather RET cable assembly – 15m | 49.2ft |
| R18‐0749‐20 |
Extreme weather RET cable assembly – 20m | 65.6ft |
| R18‐0749‐25 |
Extreme weather RET cable assembly – 25m | 82ft |
| R18‐0749‐30 |
Extreme weather RET cable assembly – 30m | 98.4ft |
| R18‐0749‐40 |
Extreme weather RET cable assembly – 40m | 131ft |
| R18‐0749‐50 |
Extreme weather RET cable assembly – 50m | 164ft |
| R18‐0749‐60 |
Extreme weather RET cable assembly – 60m | 196ft |
| R18‐0749‐70 |
Extreme weather RET cable assembly – 70m | 229ft |
| R18‐0749‐80 |
Extreme weather RET cable assembly – 80m | 262ft |
| R18‐0749‐90 |
Extreme weather RET cable assembly – 90m | 295ft |
| R18‐0749‐100 |
Extreme weather RET cable assembly – 100m | 328ft |
