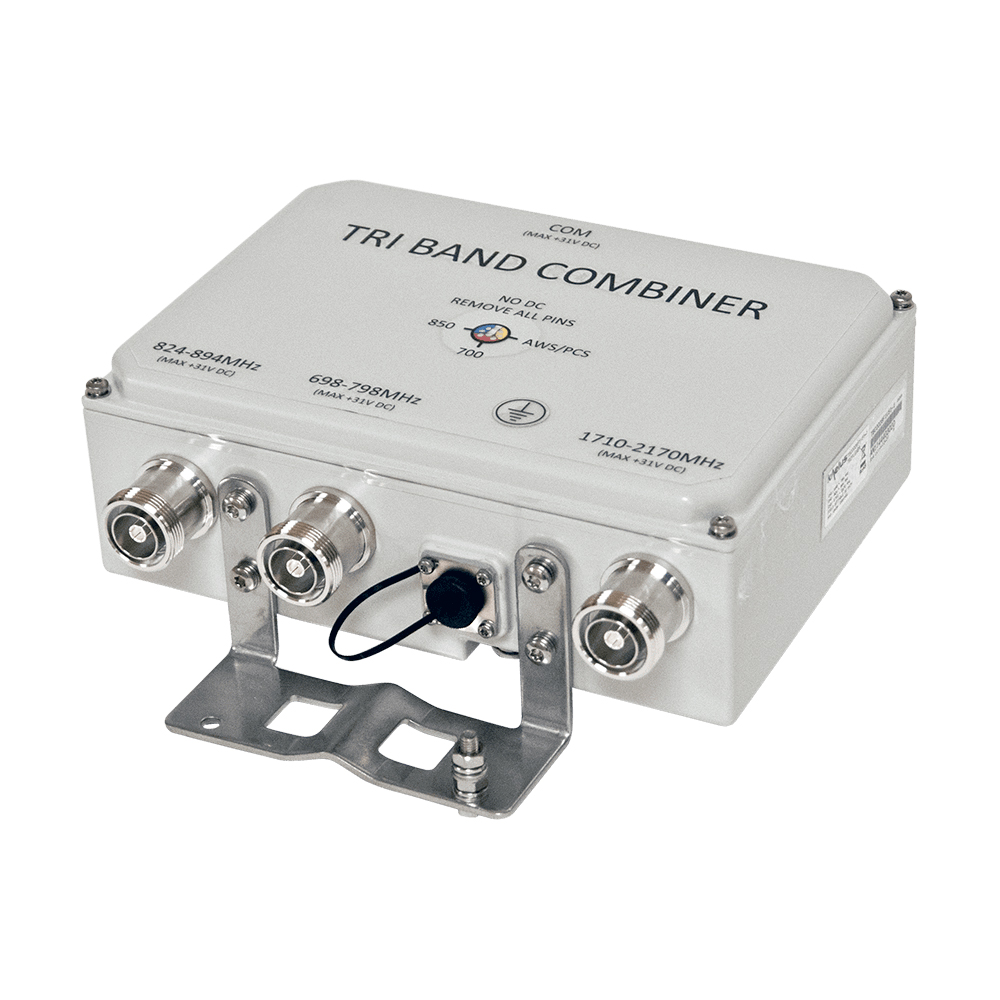

TRIPLEXER 700/850/1900-AWS
Designed to combine 700, 850 and 1900/AWS technologies the Kaelus TBC0026 provides a low loss combiner with excellent insertion loss and passive inter-modulation performance. The TBC0026 is AWS 3 / AWS 3U and AWS 4 ready.
FEATURES
- AWS 3 / AWS 3U and AWS4 ready, combines 700, 850 and high band BTS onto a single feeder
- Designed for low passive inter-modulation

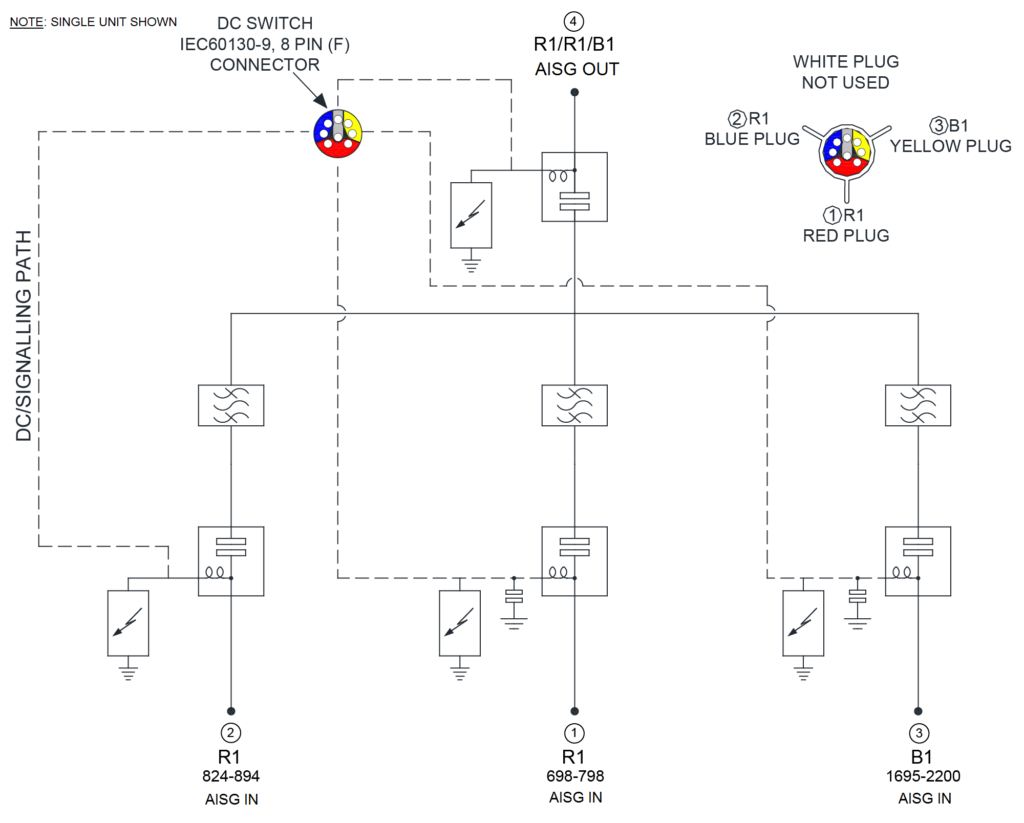

- DC/AISG bypass field settable
- Very low insertion loss
| BAND NAME |
700 |
850 |
1900/AWS |
| Passband |
698-798MHz |
824-894MHz |
1695-2200MHz |
| Insertion loss |
0.25dB maximum @ 698-793MHz / 0.35dB maximum @ 793-798MHz |
0.25dB maximum |
0.2dB maximum |
| Impedance |
50Ohms |
| Return loss |
21dB minimum, 24dB typical |
| Intermodulation products |
-161dBc typical / -153dBc maximum all ports with 2 x 20W carriers |
| Maximum input power |
300W (average) / 3kW (PEP) |
| Isolation from port to port |
50dB minimum, 698-793MHz & 824-894MHz & 1695-2200MHz |
| Isolation from port to port |
35dB minimum, 793-798MHz |
| Phase linearity variation over any 10MHz |
10º maximum |
| Group delay variation over any 10MHz |
15ns maximum |
| Passband |
0 – 3MHz |
| Insertion loss, single DC/AISG pass |
1dB maximum |
| Return loss, single DC/AISG pass |
12dB minimum |
| Insertion loss, two DC/AISG pass |
4.5dB typical |
| Return loss, two DC/AISG pass |
9dB typical |
| Input voltage range |
± 31V |
| DC current rating |
2A continuous, 4A peak |
| Compliance |
AISG 1.1/2.0 |
| Temperature range |
-40ºC to +65ºC | -40ºF to +149ºF |
| Ingress protection |
IP67 |
| Lightning protection |
IEC61000-4-5, RF: ±5kA maximum (8/20us) |
| MTBF |
>1,000,000 hours |
| Compliance |
ETSI EN 300 019 class 4.1, RoHS |

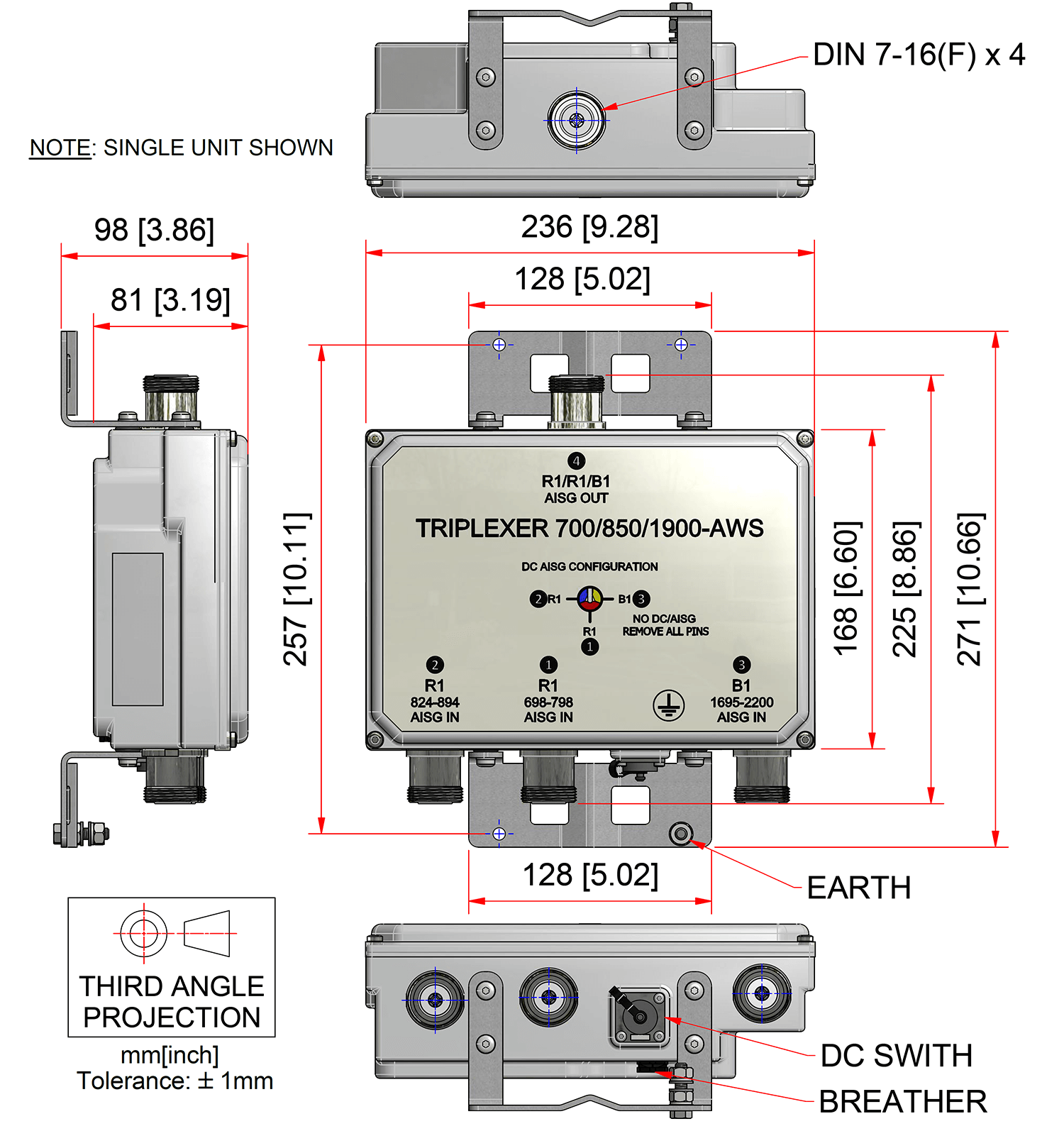

| Dimensions H x D x W (single unit) |
236 x 168 x 81mm | 9.3 x 6.6 x 3.2in |
| Dimensions H x D x W (twin unit) |
236 x 168 x 165mm | 9.3 x 6.6 x 6.5in |
| Weight |
5.2kg | 11.5lbs (single unit)
11.6kg | 25.6lbs(twin unit) |
| Finish |
Painted, light grey (RAL7035) |
| Connectors |
DIN 7-16 (F) x 4 long neck(single unit)
DIN 7-16 (F) x 8 long neck(twin unit) |
| Mounting |
Pole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles |
| PART NUMBER |
CONFIGURATION |
OPTIONAL FEATURES |
CONNECTORS |
DC/AISG CONFIGURATION |
| TBC0026F2V51-1 |
SINGLE 1 in / 3 out |
DC SWITCH |
7/16 (F) |
FIELD CONFIGURABLE |
| TBC0026F2V51-2 |
TWIN 2 in / 6 out |
DC SWITCH |
7/16 (F) |
FIELD CONFIGURABLE |
| TBC0026F2V51-6R |
RACK 6 in / 18 out |
DC SWITCH |
7/16 (F) |
FIELD CONFIGURABLE |
