TRIPLEXER 700/850/1900-AWS
Designed to combine 700, 850 and 1900/AWS technologies the Kaelus TBC0026 provides a low loss combiner with excellent insertion loss and passive inter-modulation performance. The TBC0026 is AWS 3 / AWS 3U and AWS 4 ready.
FEATURES
- AWS 3 / AWS 3U and AWS4 ready, combines 700, 850 and high band BTS onto a single feeder
- Designed for low passive inter-modulation
- DC/AISG bypass field settable
- Very low insertion loss

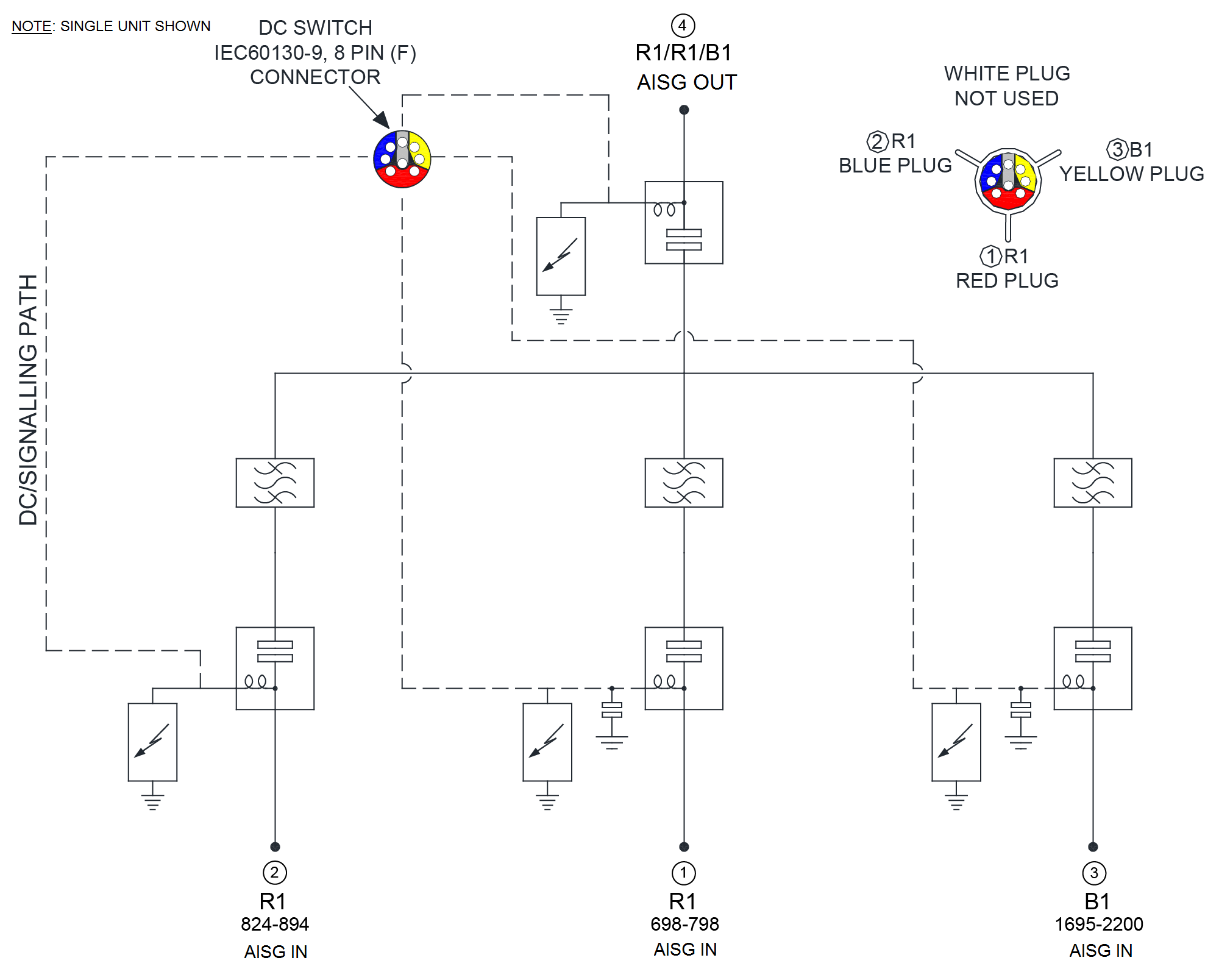

Electrical block diagram

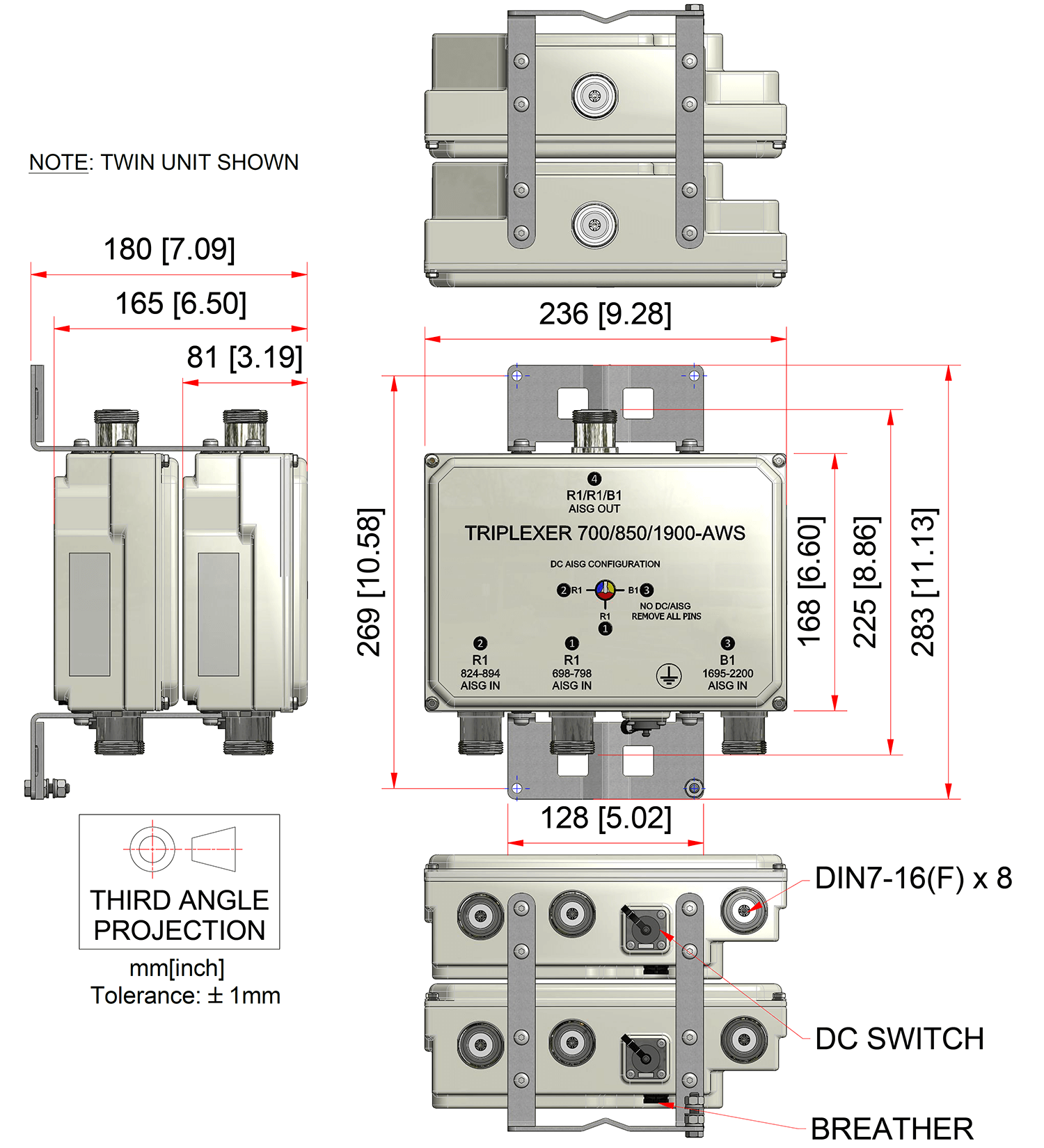

Mechanical block diagram
Technical specifications |
|||||||||||||||
| Band Name | 700 | 850 | 1900/AWS | ||||||||||||
| Passband | 698-798MHz | 824-894MHz | 1695-2200MHz | ||||||||||||
| Insertion loss | 0.25dB maximum @ 698-793MHz / 0.35dB maximum @ 793-798MHz | 0.25dB maximum | 0.2dB maximum | ||||||||||||
Electrical |
|||||||||||||||
| Impedance | 50Ohms | ||||||||||||||
| Return loss | 21dB minimum, 24dB typical | ||||||||||||||
| Intermodulation products | -161dBc typical / -153dBc maximum all ports with 2 x 20W carriers | ||||||||||||||
| Maximum input power | 300W (average) / 3kW (PEP) | ||||||||||||||
| Isolation from port to port | 50dB minimum, 698-793MHz & 824-894MHz & 1695-2200MHz | ||||||||||||||
| Isolation from port to port | 35dB minimum, 793-798MHz | ||||||||||||||
| Phase linearity variation over any 10MHz | 10º maximum | ||||||||||||||
| Group delay variation over any 10MHz | 15ns maximum | ||||||||||||||
DC / aisg |
|||||||||||||||
| A field selectable DC/AISG path is achieved via mechanical links on a IEC60130-9, 8-pin female connector (see electrical block diagram). It is Kaelus’s recommendation that due to AISG link budget reasons that a maximum of 2 DC/AISG paths are activated simultaneously without active repeating of the AISG signal | |||||||||||||||
| Passband | 0 – 3MHz | ||||||||||||||
| Insertion loss, single DC/AISG pass | 1dB maximum | ||||||||||||||
| Return loss, single DC/AISG pass | 12dB minimum | ||||||||||||||
| Insertion loss, two DC/AISG pass | 4.5dB typical | ||||||||||||||
| Return loss, two DC/AISG pass | 9dB typical | ||||||||||||||
| Input voltage range | ± 31V | ||||||||||||||
| DC current rating | 2A continuous, 4A peak | ||||||||||||||
| Compliance | AISG 1.1/2.0 | ||||||||||||||
Environmental |
|||||||||||||||
| For further details of environmental compliance, please contact Kaelus. | |||||||||||||||
| Temperature range | -40ºC to +65ºC | -40ºF to +149ºF | ||||||||||||||
| Ingress protection | IP67 | ||||||||||||||
| Lightning protection | IEC61000-4-5, RF: ±5kA maximum (8/20us) | ||||||||||||||
| MTBF | >1,000,000 hours | ||||||||||||||
| Compliance | ETSI EN 300 019 class 4.1, RoHS | ||||||||||||||
Mechanical |
|||||||||||||||
| Dimensions H x D x W (single unit) | 236 x 168 x 81mm | 9.3 x 6.6 x 3.2in | ||||||||||||||
| Dimensions H x D x W (twin unit) | 236 x 168 x 165mm | 9.3 x 6.6 x 6.5in | ||||||||||||||
| Weight | 5.2kg | 11.5lbs (single unit) 11.6kg | 25.6lbs(twin unit) |
||||||||||||||
| Finish | Painted, light grey (RAL7035) | ||||||||||||||
| Connectors | DIN 7-16 (F) x 4 long neck(single unit) DIN 7-16 (F) x 8 long neck(twin unit) |
||||||||||||||
| Mounting | Pole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles | ||||||||||||||
Ordering information |
|||||||||||||||
| Part Number | Configuration | Optional Features | Connectors | DC/AISG Configuration | |||||||||||
| TBC0026F2V51-1 | SINGLE 1 in / 3 out | DC SWITCH | 7/16 (F) | FIELD CONFIGURABLE | |||||||||||
| TBC0026F2V51-2 | TWIN 2 in / 6 out | DC SWITCH | 7/16 (F) | FIELD CONFIGURABLE | |||||||||||
| TBC0026F2V51-6R | RACK 6 in / 18 out | DC SWITCH | 7/16 (F) | FIELD CONFIGURABLE | |||||||||||
