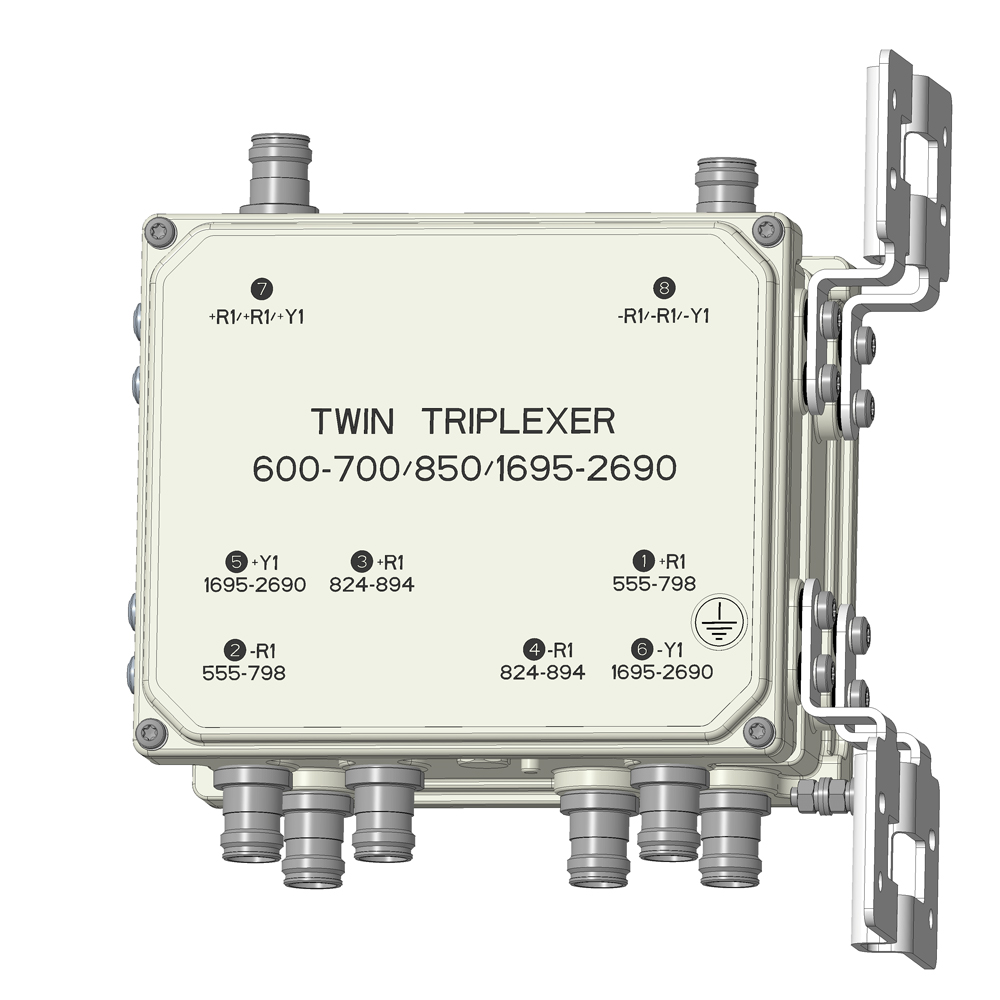

TRIPLEXER 600-700/850/1695-2690
The Kaelus TBC0043 is a bi-directional Triplexer designed to combine 600-700 with 850 and 1695-2690 technologies, the TBC0043 provides excellent insertion loss and passive intermodulation performance.
FEATURES
- Enables antenna/feeder sharing for 600-700, 850 and 1695-2690 networks
- Compact & lightweight – perfect for Small Cell applications
- Low insertion loss & high return loss
- Low passive IM performance
- Twin (-1) and Quad (-2) models available
- 4.3-10 (F) long neck connectors standard
- Hard Wired and DC Autosense versions available
- Provisions for wall or mast mounting
- AWS3 and 4 ready
TECHNICAL SPECIFICATIONS |
|||||||||||||||
| BAND NAME | 600-700 | 850 | 1695-2690 | ||||||||||||
| Passband | 555 – 798MHz | 824 – 894MHz | 1695 – 2690MHz | ||||||||||||
| Insertion loss | 0.2dB typical | 0.3dB typical | 0.25dB typical | ||||||||||||
| Return loss | 23dB typical | ||||||||||||||
| Maximum input power | 120W (average) / 1.2kW (PEP) | 120W (average) / 1.2kW (PEP) | 120W (average) / 1.2kW (PEP) | ||||||||||||
| RF PERFORMANCE | |||||||||||||||
| Rejection in 600-700 | N/A | 50dB typical | 50dB typical | ||||||||||||
| Rejection in 850 | 50dB typical | N/A | 50dB typical | ||||||||||||
| Rejection in AWS-WCS | 50dB typical | 50dB typical | N/A | ||||||||||||
| Isolation | 50dB typical, 40dB minimum | ||||||||||||||
| ELECTRICAL | |||||||||||||||
| Impedance | 50Ohms | ||||||||||||||
| Intermodulation products | -161dBc typ, -156dBc maximum with 2 x 43dBm carriers |
||||||||||||||
| Group delay variation over any 10MHz | 14ns maximum | 10ns maximum | 2.5ns typical | ||||||||||||
| Absolute group delay | 35 ns maximum | 30 ns maximum | 5ns typical | ||||||||||||
| ENVIRONMENTAL | |||||||||||||||
| For further details of environmental compliance, please contact Kaelus. | |||||||||||||||
| Temperature range | -40ºC to +65ºC | -40ºF to +149ºF | ||||||||||||||
| Ingress protection | IP67 | ||||||||||||||
| Altitude | 3000m/10,000ft maximum | ||||||||||||||
| Lightning protection | ±5kA maximum (8/20us) | ||||||||||||||
| MTBF | >1,000,000 hours | ||||||||||||||
| MECHANICAL | |||||||||||||||
| Dimensions H x D x W (single twin unit) | 207 x 172 x 151 mm | 8.14 x 6.77 x 5.96 in maximum | ||||||||||||||
| Dimensions H x D x W (dual twin unit) | 207 x 172 x 308.4 mm | 8.14 x 6.77 x 12.14 in maximum | ||||||||||||||
| Weight | 7.0kg / 15.4lbs (Twin) 14.0kg / 30.9lbs (Quad) |
||||||||||||||
| Finish | Painted, light grey (RAL7035) | ||||||||||||||
| Connectors | 4.3-10 (F) x 8 long neck (Twin) 4.3-10 (F) x 16 long neck (Quad) |
||||||||||||||
| Wind Load | Front 132N, Side 257N (Twin) Front 160N, Side 384N (Quad) At 74m/s (AS/NZS 1170-2-2011 Structural design – Wind actions – Cyclone areas) |
||||||||||||||
| Mounting | Pole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles | ||||||||||||||
ORDERING INFORMATION |
|||||||||||||||
| PART NUMBER | CONFIGURATION | OPTIONAL FEATURES | CONNECTORS | DC/AISG CONFIGURATION | |||||||||||
| TBC0043F1V94-1 | TWIN, 2 in / 6 out | DC AUTOSENSING WITHOUT LED | 4.3-10 (F) | PRIORITY 1695-2690 / 600-700 / 850 | |||||||||||
| TBC0043F1V94-2 | QUAD, 4 in / 12 out | DC AUTOSENSING WITHOUT LED | 4.3-10 (F) | PRIORITY 1695-2690 / 600-700 / 850 | |||||||||||

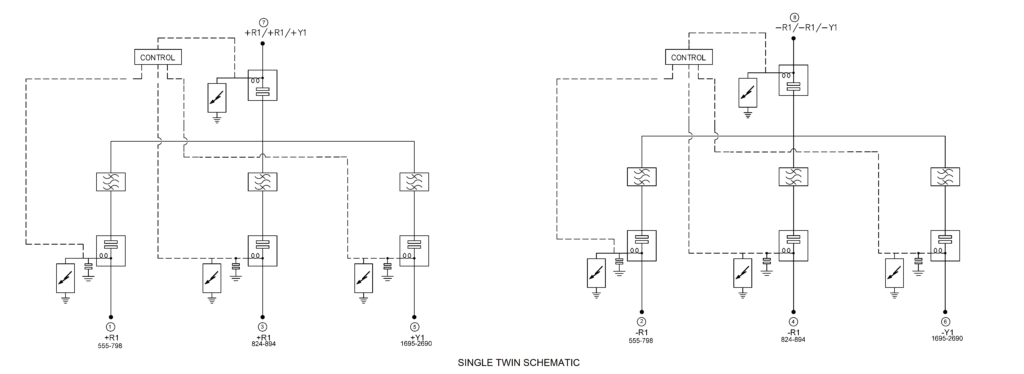

ELECTRICAL BLOCK DIAGRAM |

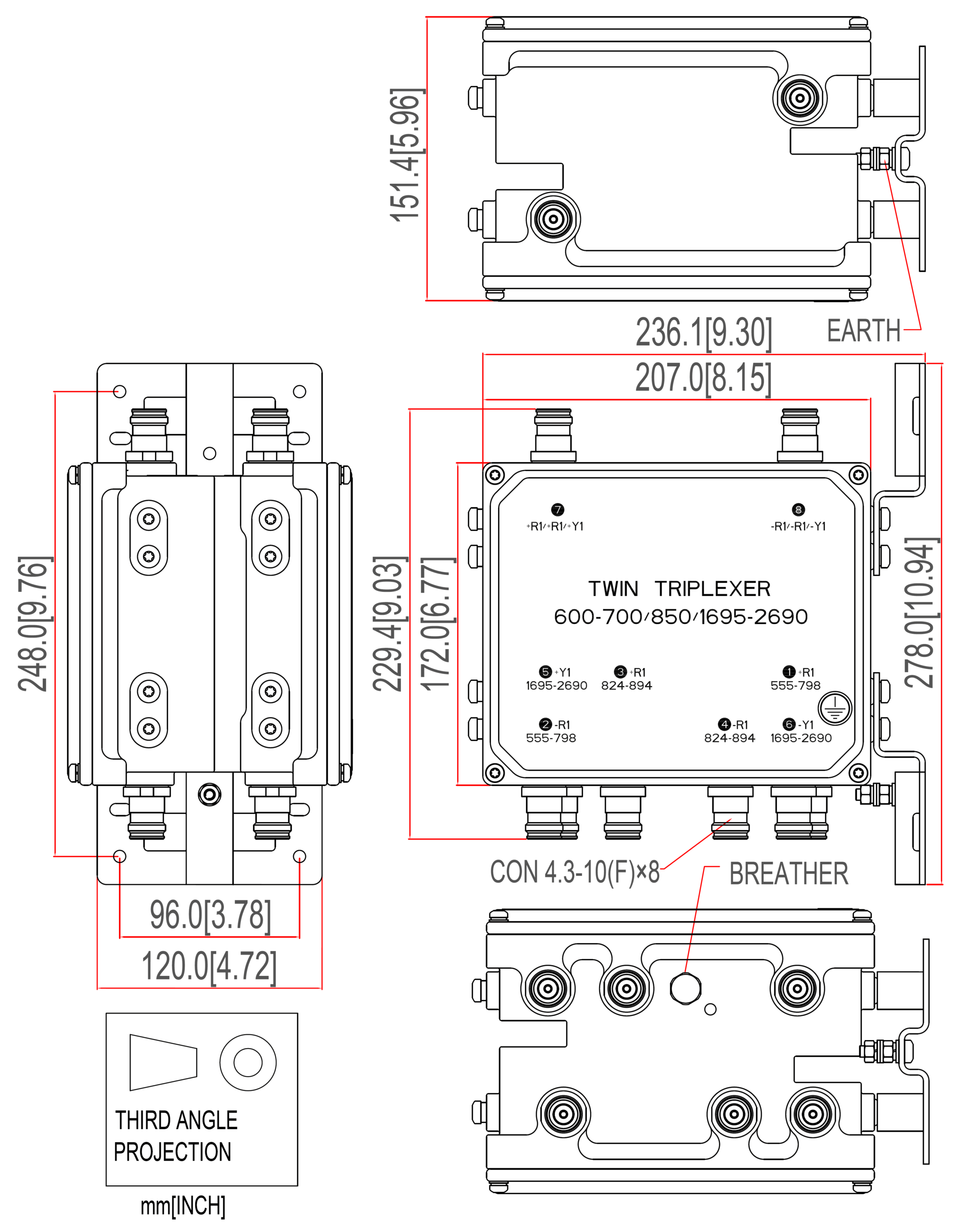

MECHANICAL BLOCK DIAGRAM |
