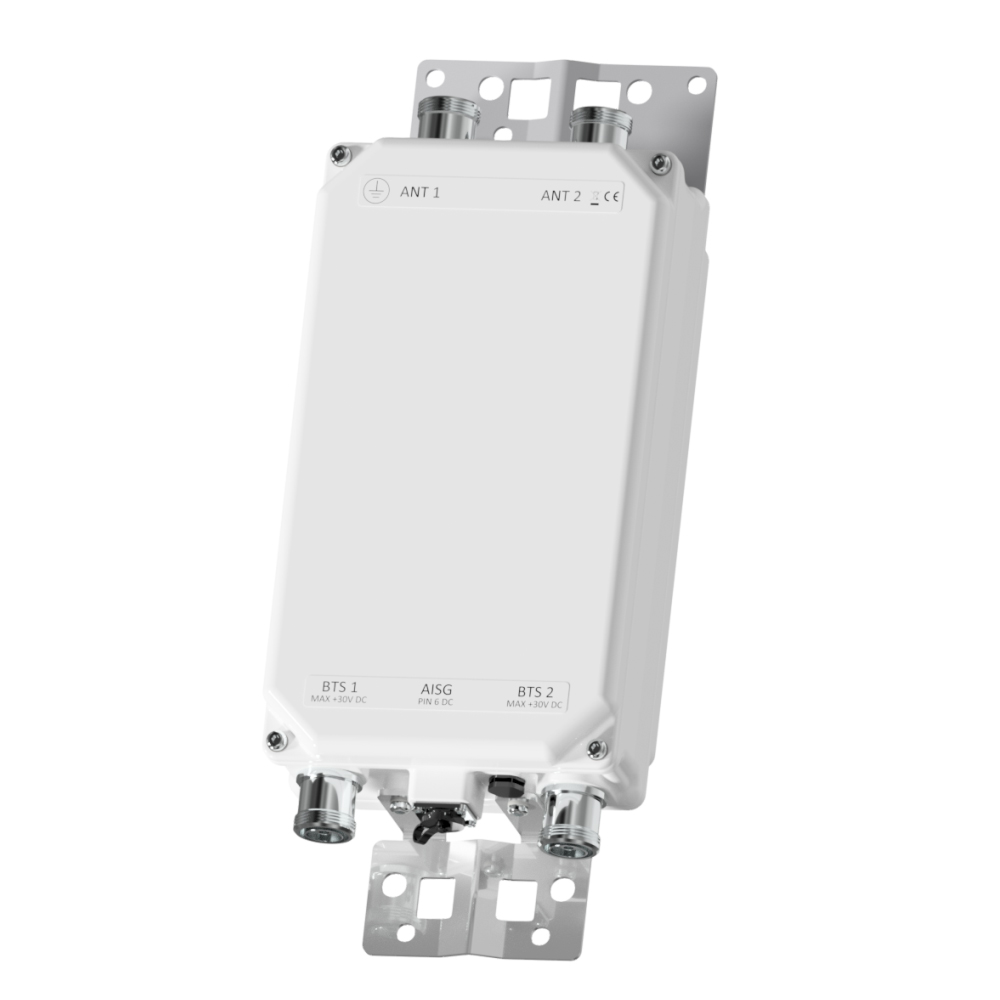

TWIN TMA 1800/2100
Designed to be deployed in co-located 1800 & 2100MHz systems with wideband antennas, the Kaelus TMA2053 provides internal diplexing and gain in both bands, thereby saving hardware costs.
FEATURES
- Improved base station sensitivity through gain in the 1800 and 2100 uplink bands
- Hardware & software configuration using AISG “personality” upload
- Excellent noise figure performance
- Internal diplexing of 1800 and 2100MHz bands
- AISG2.0 compatible
- Compact, low weight
| BAND NAME |
1800 BAND |
2100 BAND |
| Passband |
1805 – 1880MHz |
2110 – 2170MHz |
| Insertion loss |
0.6dB typical |
0.4dB typical |
| Return loss |
18dB minimum (VSWR <1.3:1) |
| Maximum input power |
200W (average) / 2kW (PEP) |
120W (average) / 2kW (PEP) |
| Intermodulation products |
-161dBc typical /-153dBc maximum with 2 x 20W carriers (in RX band) @ antenna port |
-163dBc maximum with 2 x 20W carriers (in RX band) @ antenna port |
| Passband |
1710 – 1785MHz |
1920 – 1980MHz |
| Gain |
12dB |
| Gain variation |
±1dB maximum |
| Return loss |
18dB minimum |
| Bypass return loss |
12dB |
| Bypass loss |
2.5dB typical |
2.9dB typical |
| Noise figure |
1.25dB typical |
1.35dB typical |
| Output IP3 |
+30dBm typical |
| Maximum input power with no damage |
+12dBm |
| DC supply voltage |
7.5V to 30V DC, case is DC ground, via BTS-RF cable |
| DC supply voltage via BTS-RF cable |
F00 Version: each BTS port powered individually (programmable) |
| DC supply current, normal mode |
150 ± 15mA per port (assumes both ports are powered) |
| DC supply current, alarm mode |
220 ± 20mA per port (assumes both ports are powered) |
| DC supply voltage |
7.5V to 30V DC |
| AISG version |
2.0 (1.1 optional) |
| Supply current, AISG mode |
265mA @ 7.5V, 75mA @ 30V typical |
| Voltage drop, BTS to AISG port |
1.5V maximum at 2A |
| AISG connector, current rating |
IEC60130-9, 8-pin female ,< 4A peak, 2A continuous, pin 6 |
| Field firmware upgradable |
Yes |
| Temperature range |
-40ºC to +65ºC | -40°F to +155°F |
| Ingress protection |
IP67 |
| Altitude |
2,600m | 8,530ft |
| Lightning protection |
IEC61312-1, RF: ±5kA maximum (8/20us), AISG: ±2kA maximum (8/20us) |
| MTBF |
>1,000,000 hours |
| Compliance |
EMC:EN301 489, Environment: ETSI EN 300 019 class 4.1, RoHS |

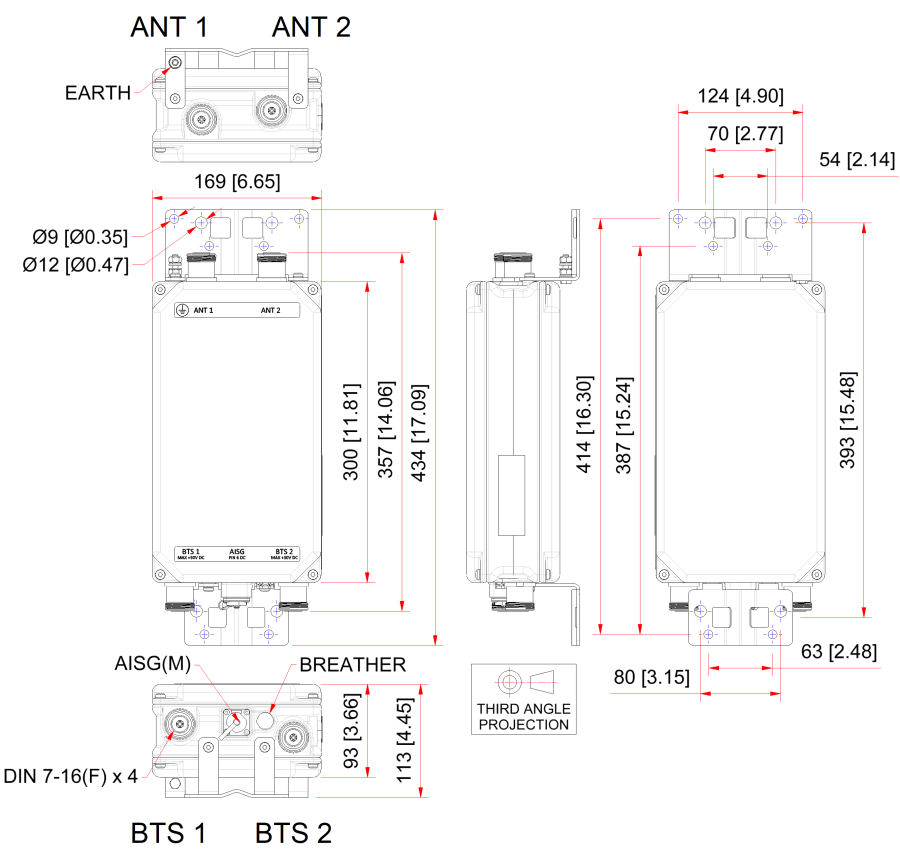

| Dimensions H x D x W |
168 x 300 x 93mm | 6.6 x 11.8 x 3.7in (excluding brackets and connectors) |
| Weight |
7.9kg | 17.4lbs |
| Finish |
Powder coated, light grey (RAL7035) |
| Connectors |
RF: DIN 7-16 (F) (V3) or 4.3-10 (V4) x 4 long neck
AISG: IEC60130-9, 8-pin female |
| Mounting |
Pole/wall bracket supplied with two metal clamps 45-178mm diameter poles |
| PART NUMBER |
CONFIGURATION |
OPTIONAL FEATURES |
CONNECTORS |
| TMA2053F00V1-1 |
TWIN 2 in / 2 out |
Configured with generic personality |
DIN 7-16 (F) |
| TMA2053F03V2-4 |
TWIN 2 in / 2 out |
CUSTOM CWA, BKT |
DIN 7-16 (F) |
| TMA2053F03V3-4C |
TWIN 2 in / 2 out |
CUSTOM CWA, BKT, FW |
DIN 7-16 (F) |
