TWIN TMA 1900
Designed to be used at co-located 700MHz/850MHz and 1900MHz sites, the Kaelus TMA2061 provides gain on the 1900 uplink path while diplexing the 700MHz band to avoid costly external diplexers. Separate feeders are no longer required, resulting in decreased hardware costs, environmental impact and tower licensing fees.
FEATURES
- Full band 1900 TMA with 698-960MHz bypass path
- Provides improved base station sensitivity through low noise figure and good linearity
- High reliability with full lightning protection and a fail-safe bypass mode
- Small twin unit, ideal for X-Pol dual band systems
- AISG 2.0 compatible with current window alarm backup mode
- High power handling
| Passband |
1930 – 1990MHz |
| Return loss |
18dB minimum (VSWR <1.3:1) |
| Insertion loss |
0.6dB typical |
| Maximum input power with no damage |
300W (average) / 3kW (PEP) |
| Passband |
1850 – 1910MHz |
| Nominal gain |
12dB |
| Gain variation over frequency, temperature |
± 1dB maximum |
| Noise figure |
1.3dB typical |
| Return loss |
18dB minimum operating, 14dB minimum in bypass mode |
| Bypass loss |
2.5dB typical |
| Output IP3 |
+25dBm minimum |
| Maximum input power with no damage |
12dBm maximum |
| Passband |
698 – 960MHz |
| Return loss |
18dB minimum (VSWR <1.3:1) |
| Insertion loss |
0.2dB typical |
| Maximum input power with no damage |
500W (average) / 5kW (PEP) |
| Rejection to 1900MHz TMA bands |
80dB typical |
| Impedance |
50ohms |
| Intermodulation products |
-153dBc maximum in RX band with 2 x 20W carriers |
| DC supply voltage via BTS-RF cable |
+8V to +30V DC, case is DC ground
Each BTS port powered individually (programmable) |
| DC supply current, normal mode |
100mA typical, 120mA maximum |
| DC supply current, alarm mode |
200mA typical per LNA |
| DC supply voltage |
+8V to +30V DC, negative ground |
| AISG version |
2.0 (1.1 optional) |
| Supply current, AISG mode |
55mA at 30V, 135mA at 12V |
| AISG connector, current rating |
IEC60130-9, 8-pin female, < 4A peak, 2A continuous, pin 6 |
| Field firmware upgradable |
Yes |
| Temperature range |
-40º to +65ºC | -40º to +149ºF |
| Ingress protection |
IP67 |
| Lightning protection |
IEC61312-1, RF: ±5kA maximum (8/20us), AISG: ±2kA maximum (8/20us) |
| MTBF |
>1,000,000 (hours) |
| Compliance |
FCC part 15, ETSI EN 300 019 class 4.1, RoHS |

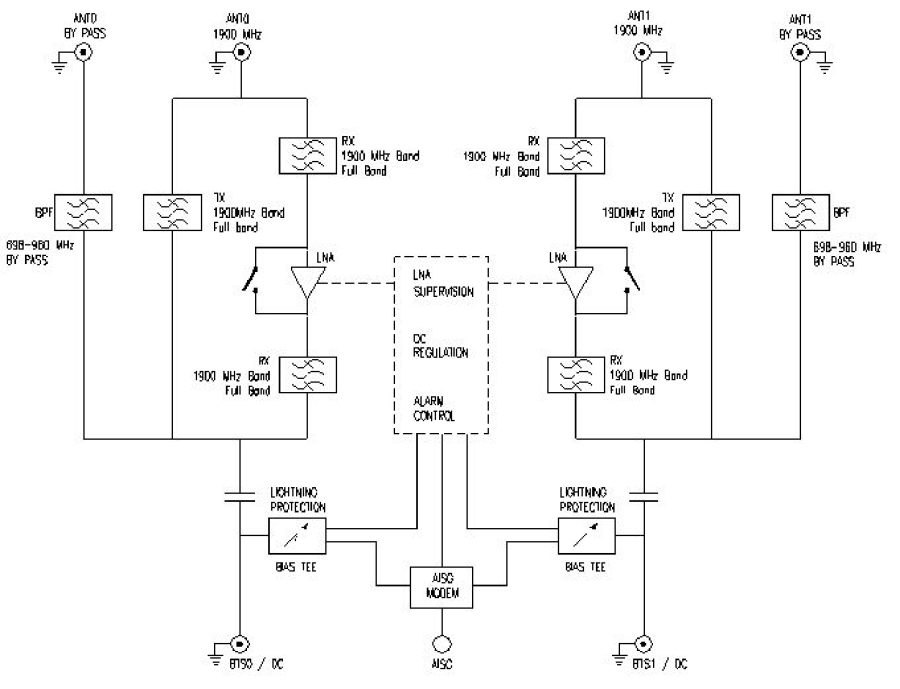

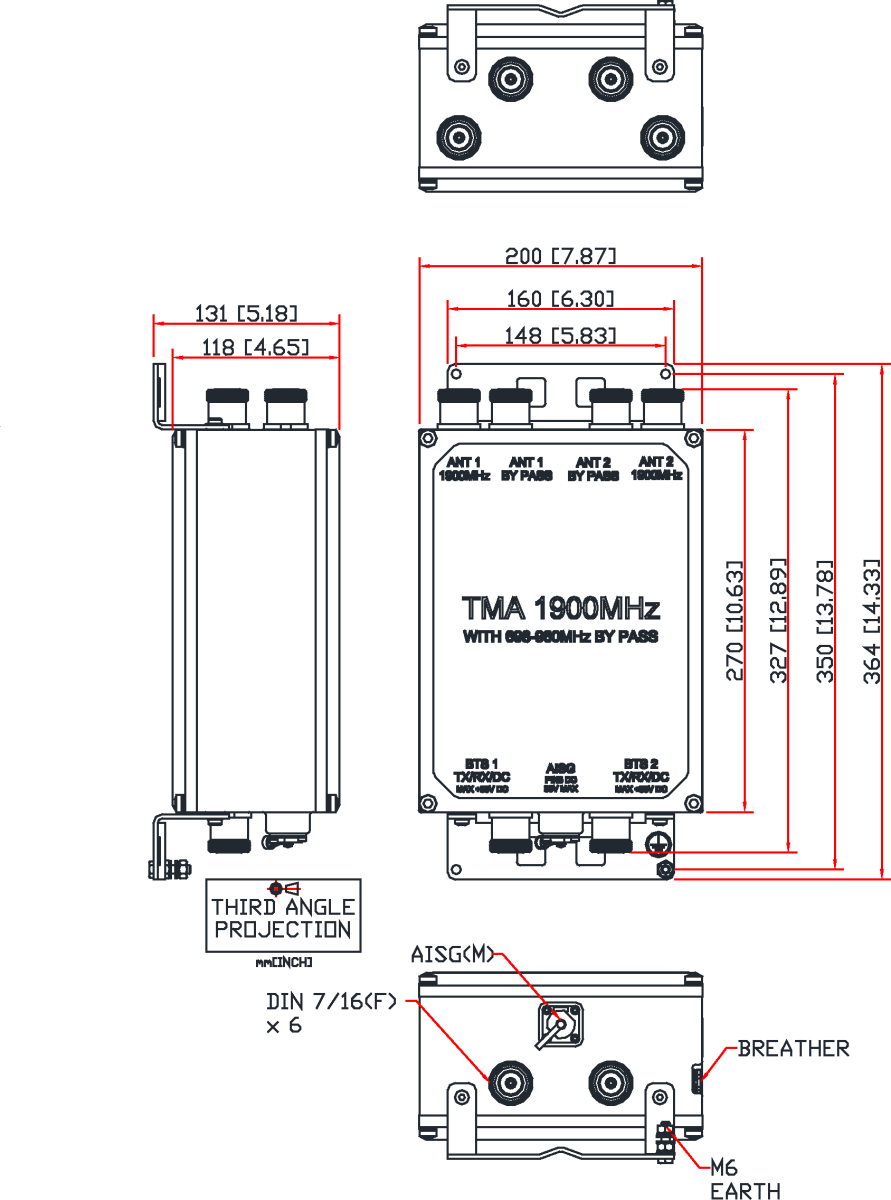

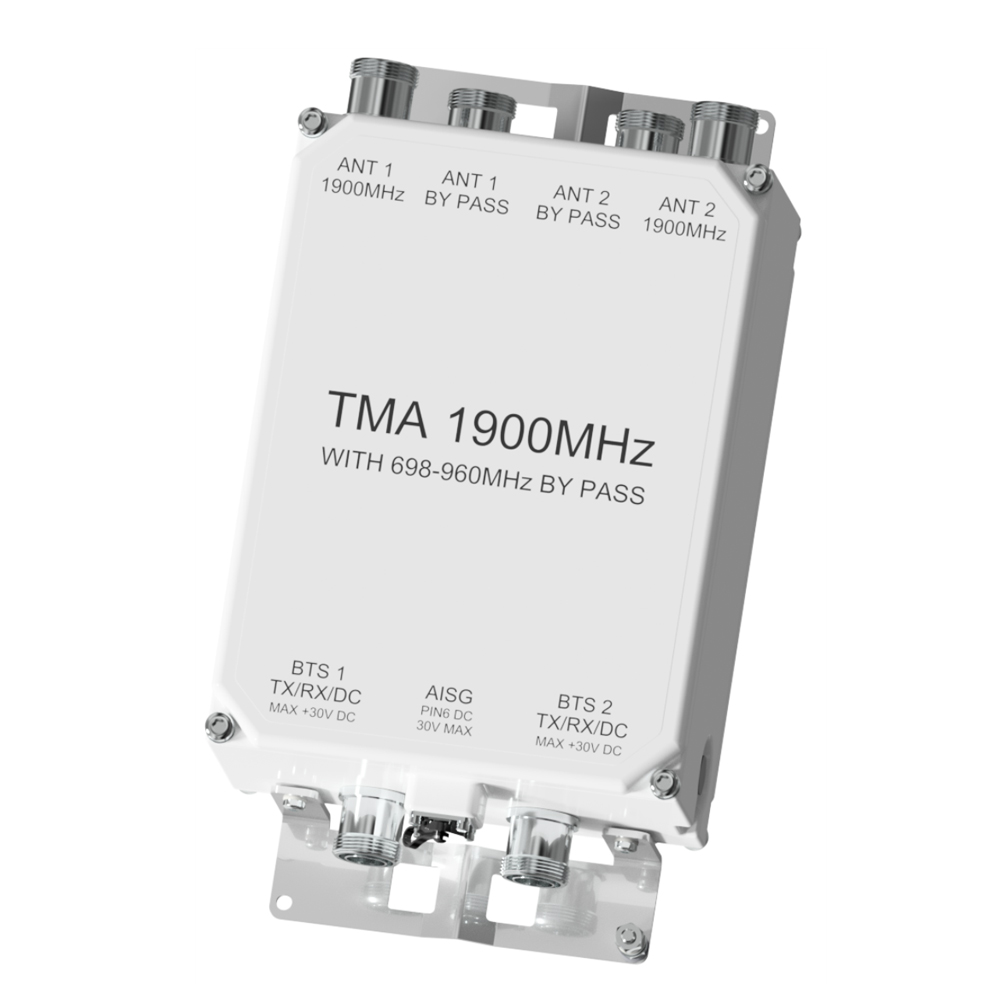

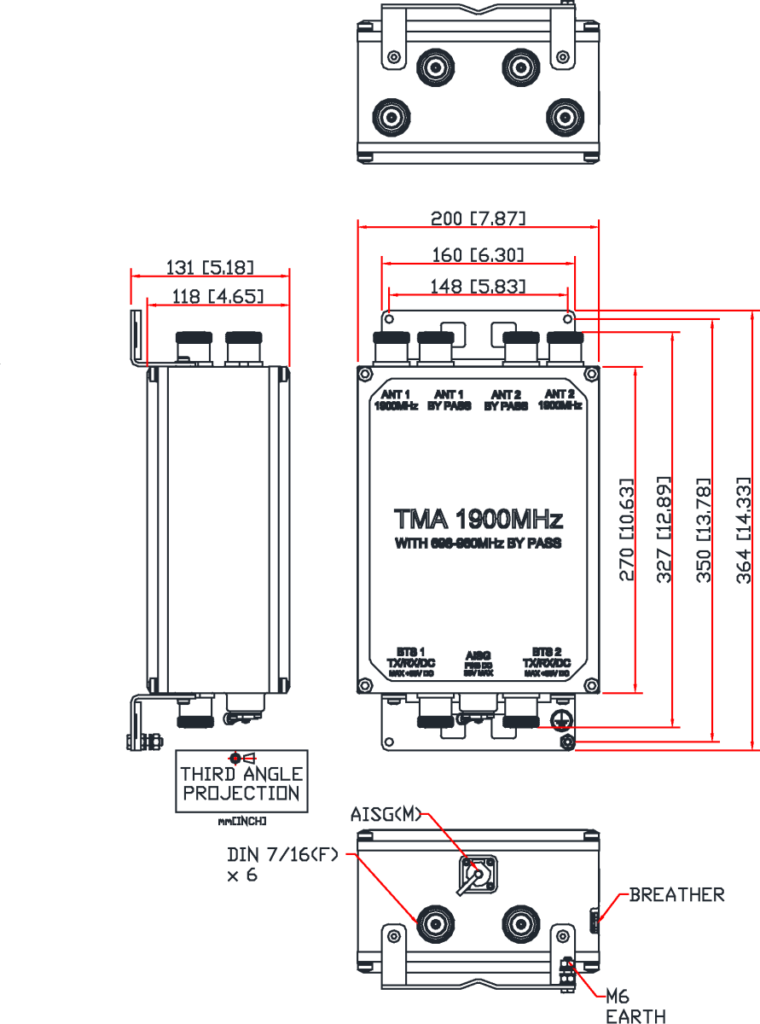

| Dimensions H x D x W |
270 x 200 x 118mm | 10.62 x 7.87 x 4.64in (excluding brackets and connectors) |
| Weight |
9kg | 19.8lbs |
| Finish |
Painted, light grey (RAL7035) |
| Connectors |
DIN 7-16 (F) x 6 long shank, AISG (F) x 1 |
| Mounting |
Pole/wall bracket supplied with two metal clamps 45-178mm diameter poles |
| PART NUMBER |
DESCRIPTION |
| TMA2061F1V1-1 |
Twin TMA, 1900 full band, 700-900 bypass |
