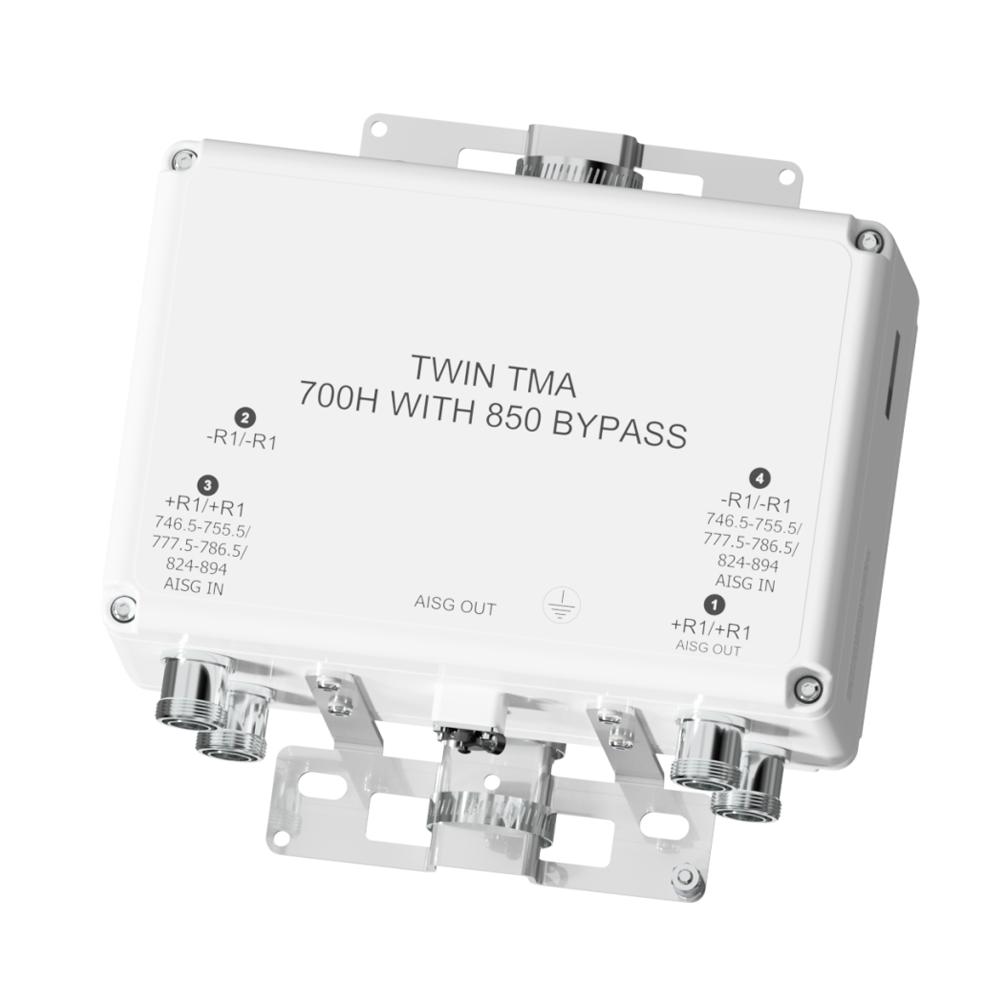

TWIN TMA 700H, LOWPASS
END OF LIFE ANNOUNCEMENT: Last time buy date 30th of April 2023.
Designed to be deployed in co-located 700 and 850MHz networks the Kaelus TMA2092 provides gain in the 700MHz uplink plus a low loss 850MHz bypass. Internal duplexing of the two bands minimizes hardware costs and the number of components at the top of the tower.
FEATURES
- Improved base station sensitivity through excellent noise figure performance and linearity
- Suitable for 10MHz LTE signal centered on 751/782MHz
- AISG 2.0 compatible, fully software upgradable using AISG “personality” upload
- Rejection of the North American public safety band rejection allows co-location
TECHNICAL SPECIFICATIONS |
| DOWNLINK (TX) PATH | |||||||||||||||
| Passband | 746.5 – 755.5MHz (10MHz LTE signal centered on 751MHz) | ||||||||||||||
| Return loss | 24dB typical | ||||||||||||||
| Insertion loss | 0.25dB typical | ||||||||||||||
| Group delay variation | 10ns typical in C block | ||||||||||||||
| Absolute group delay | 25ns maximum, 5ns minimum in C block | ||||||||||||||
| Maximum input power with no damage | 200W (average) / 2kW (PEP) | ||||||||||||||
| Intermodulation @ antenna ports | -161dBc typical / <-155dBc maximum in RX band with 2 x 20W carriers -161dBc typical / <-153dBc 3rd order |
||||||||||||||
| UPLINK (RX) PATH | |||||||||||||||
| Passband | 777.5 – 786.5MHz (10MHz LTE signal centered on 782MHz) | ||||||||||||||
| Nominal gain | 13dB, adjustment 3dB to 13dB in 1dB steps (controlled by AISG commands) | ||||||||||||||
| Gain variation over frequency, temperature | ± 1dB maximum | ||||||||||||||
| Noise figure | 1.4dB typical @ 13dB gain | ||||||||||||||
| Return loss | 24dB typical @ 13dB gain 22dB typical @ 8dB gain 20dB typical @ 6dB gain 20dB typical @ 4dB gain 14dB typical in bypass |
||||||||||||||
| Bypass loss | 3dB typical | ||||||||||||||
| Group delay variation | 300ns typical in C block | ||||||||||||||
| Absolute group delay | 500ns maximum, 100ns minimum in C block | ||||||||||||||
| Output IP3 | +30dBm typical | ||||||||||||||
| Maximum input power with no damage | +12dBm maximum | ||||||||||||||
| RX in filter rejection 763 – 775MHz | 50dB minimum | ||||||||||||||
| 850MHZ BYPASS PATH | |||||||||||||||
| Passband | 824 – 894MHz | ||||||||||||||
| Return loss | 24dB typical | ||||||||||||||
| Insertion loss | 0.2dB typical | ||||||||||||||
| Group delay variation | 1ns typical in U/L and D/L | ||||||||||||||
| Absolute group delay | 10ns maximum, 2ns minimum in U/L and D/L | ||||||||||||||
| Maximum input power with no damage | 300W (average) / 3kW (PEP) | ||||||||||||||
| Intermodulation @ antenna ports | -161dBc typical / <-153dBc with 2 x 20W Carriers, 3rd Order | ||||||||||||||
| ELECTRICAL | |||||||||||||||
| Impedance | 50ohms | ||||||||||||||
| POWER SUPPLY AND ALARM (CURRENT WINDOW ALARM MODE, DEFAULT) | |||||||||||||||
| Current window alarm mode (CWA) is the default operating mode and can be configured to specific customer requirements. The generic personality (F00Vx) is configured so that both channels are independently powered and monitored via their respective BTS port. The BTS port sinks additional current to indicate an alarm state in its uplink path. The autosensing switch is open in CWA mode and no DC is passed to ANT1. Normal operating and alarm current values are configured independently via a field-loadable personality file. Please contact Kaelus for more information. | |||||||||||||||
| DC supply voltage | 8.5 to 30V DC, case is DC ground | ||||||||||||||
| DC supply | Each BTS port powered individually (programmable) | ||||||||||||||
| DC supply current, normal mode | 185mA maximum. 150mA per port typical | ||||||||||||||
| DC supply current, alarm mode programmable range | 220 ± 20mA per port | ||||||||||||||
| AISG MODE OF OPERATION (AUTO SELECTED ON VALID AISG 2.0 FRAMES) | |||||||||||||||
| AISG signals can be applied to either BTS1 or BTS2 ports. The TMA unit switches to AISG mode when valid frames are detected on one of the BTS ports, both LNA’s take DC power from the port with the AISG frames or, if DC is present on both ports power will be supplied equally between the ports. | |||||||||||||||
| DC supply voltage | +8.5V to +30V DC | ||||||||||||||
| AISG version | 2.0 (1.1 optional) | ||||||||||||||
| Supply current, AISG mode | 300mA @ 8.5V, 100mA @ 30V typical | ||||||||||||||
| AISG connector, current rating | IEC60130-9, 8-pin female, < 4A peak, 2A continuous, pin 6 | ||||||||||||||
| Field firmware upgradable | Yes | ||||||||||||||
| AISG pass through to antenna port | Yes | ||||||||||||||
| AUTOSENSING FUNCTION ON ANT 1 PORT | |||||||||||||||
| When a valid AISG signal is applied to either of its BTS ports, the TMA enters AISG mode and applies DC/AISG to the ANT1 AISGOUT port. If a low resistance is detected, DC/AISG is subsequently disconnected from the ANT1 AISGOUT port. In CWA mode, the autosensing switch is open and no DC is passed to the ANT1 AISGOUT port. | |||||||||||||||
| Mode of operation | Current draw on ANT1 AISGOUT port | Assumption | “Autosense + Protection” switch status | Comment | |||||||||||
| CWA mode | Any | Unit in CWA mode | Open | No DC will be passed on to ANT1 AISGOUT | |||||||||||
| AISG mode | Current<4A | Device present or open circuit on ANT1 AISGOUT, Unit in AISG Mode | Close | AISG signal (sub-carrier) will be supplied thru to ANT1 AISGOUT | |||||||||||
| AISG mode | Current >4A | DC short circuit or low DC resistance present on ANT1 AISGOUT port | Open | Attempts are made periodically to re-connect. The TMA will operate in AISG mode. | |||||||||||
| ENVIRONMENTAL | |||||||||||||||
| For further details of environmental compliance, please contact Kaelus. | |||||||||||||||
| Temperature range | -40º to +65ºC | -40º to +149ºF | ||||||||||||||
| Ingress protection | IP67 | ||||||||||||||
| Altitude | 3,000m | 10,000ft | ||||||||||||||
| Lightning protection | IEC61312-1, RF: ±5kA maximum (8/20us), AISG: ±2kA maximum (8/20us) | ||||||||||||||
| MTBF | >1,000,000 (hours) | ||||||||||||||
| Compliance | EMC:EN301 489, ETSI EN 300 019 class 4.1, RoHS | ||||||||||||||
| MECHANICAL | |||||||||||||||
| Feature | TWIN | QUAD | |||||||||||||
| Dimensions H x D x W | 300 x 205 x 161mm | 11.81 x 8.07 x 6.34in (excluding brackets and connectors) | 300 x 205 x 335mm | 11.81 x 8.07 x 13.19in (excluding brackets and connectors) | |||||||||||||
| Weight | 12.5kg | 26.7lbs | 31.5Kg | 69.45lbs | |||||||||||||
| Finish | Painted, light grey (RAL7035) | ||||||||||||||
| Connectors | DIN 7-16 (F) long neck, AISG (F) | ||||||||||||||
| Mounting | Pole/wall bracket supplied with two metal clamps 45-178mm diameter poles | ||||||||||||||
ORDERING INFORMATION |
|||||||||||||||
| PART NUMBER | CONFIGURATION | OPTIONAL FEATURES | CONNECTORS | ||||||||||||
| TMA2092F02V3-1 | TWIN 2 in / 2 out | Configured with generic personality | DIN 7-16 (F) | ||||||||||||
| TMA2092F02V3-2 | QUAD 4 in / 4 out | Configured with generic personality | DIN 7-16 (F) | ||||||||||||
| TMA2092FxxV1-1 | TWIN 2 in / 2 out | xx denotes different AISG personality | DIN 7-16 (F) | ||||||||||||

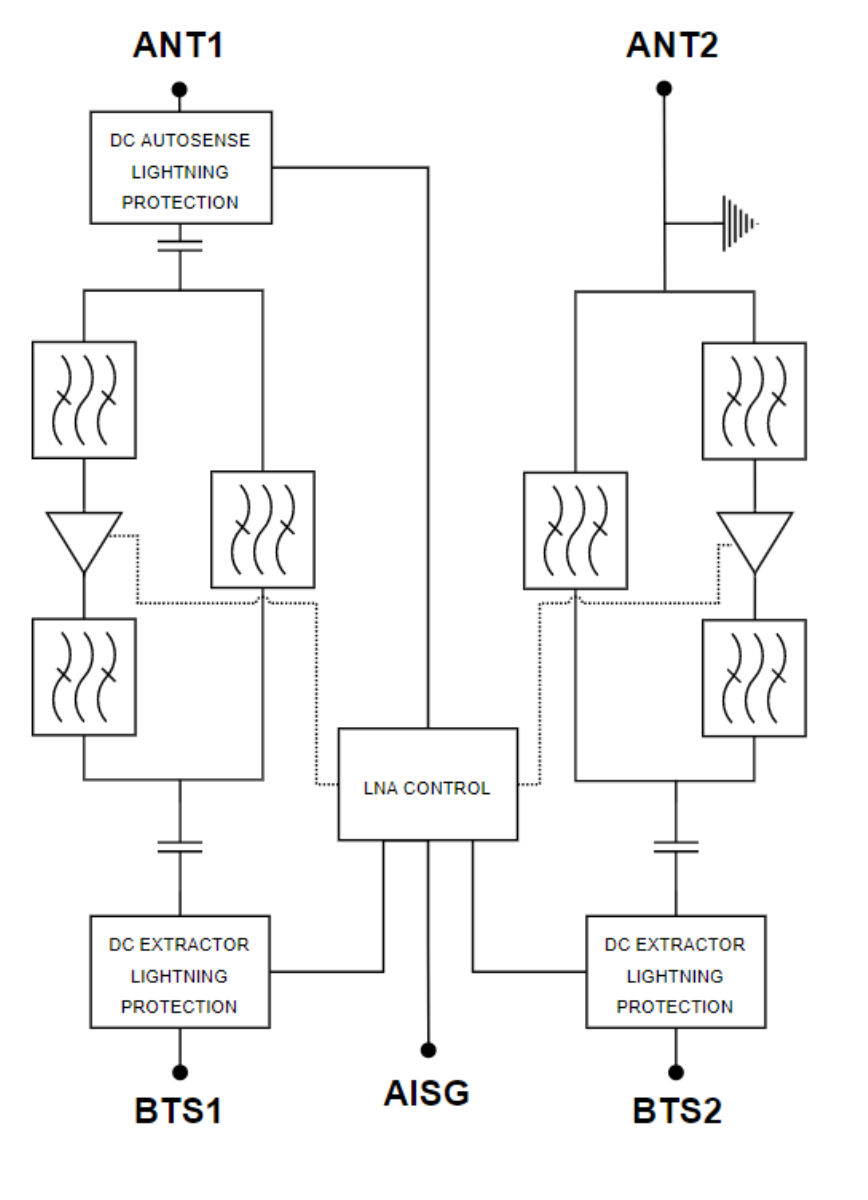

ELECTRICAL BLOCK DIAGRAM |

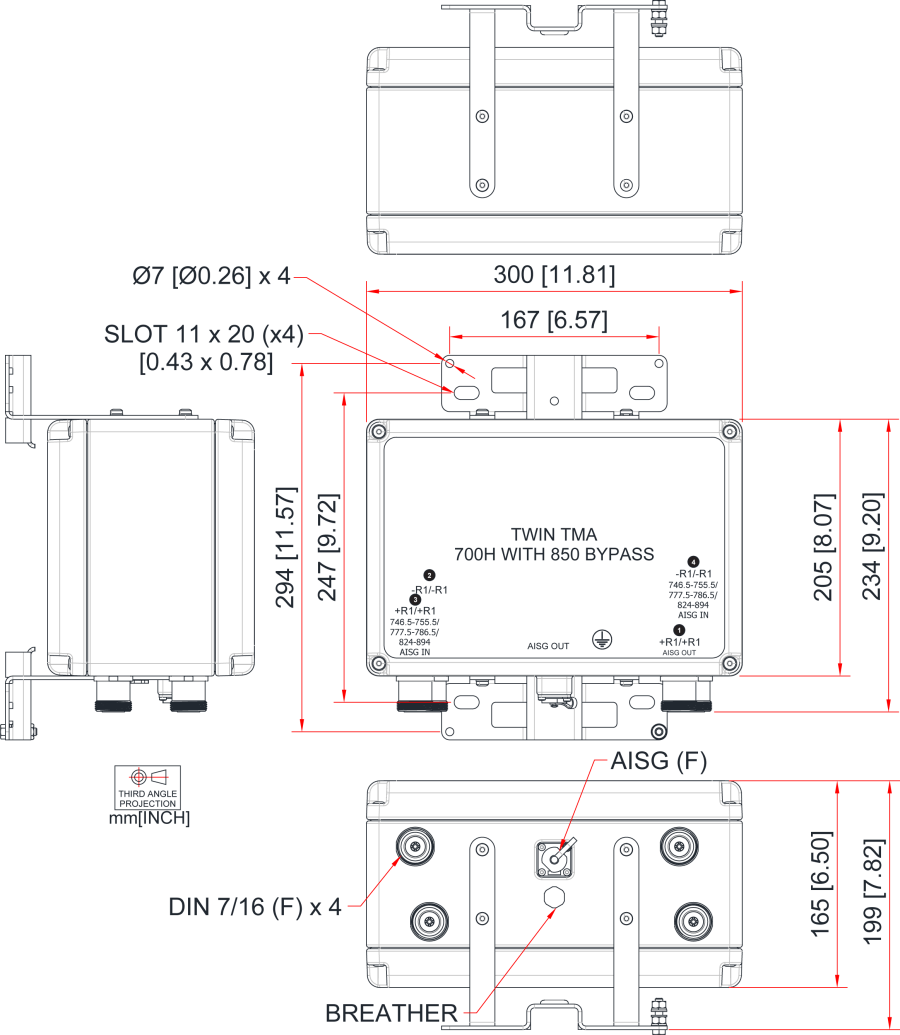

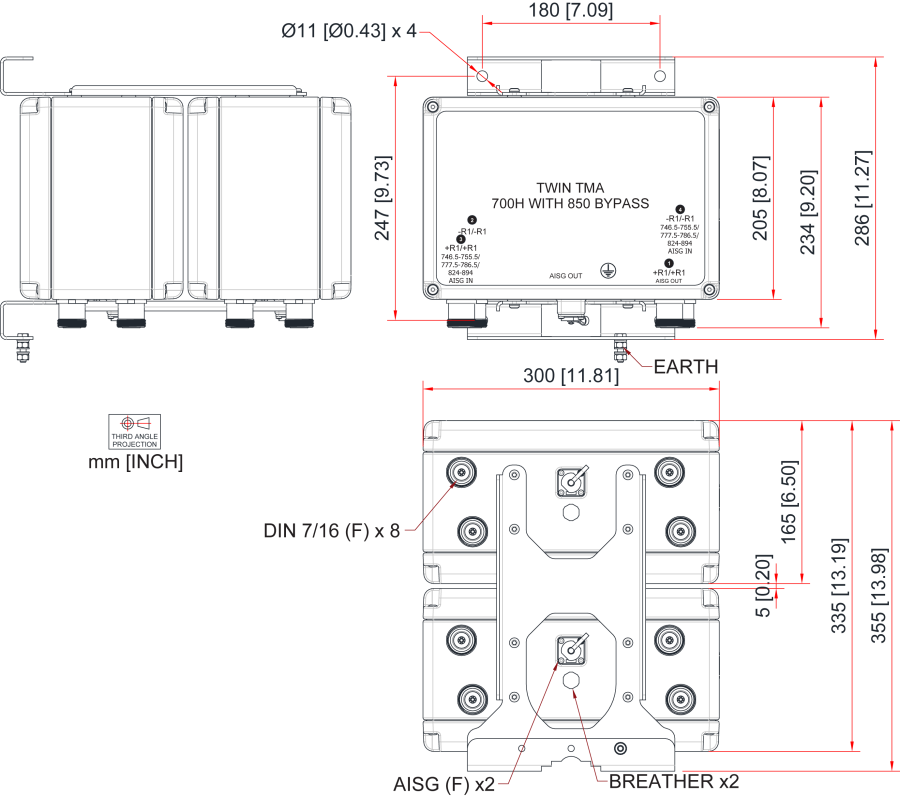

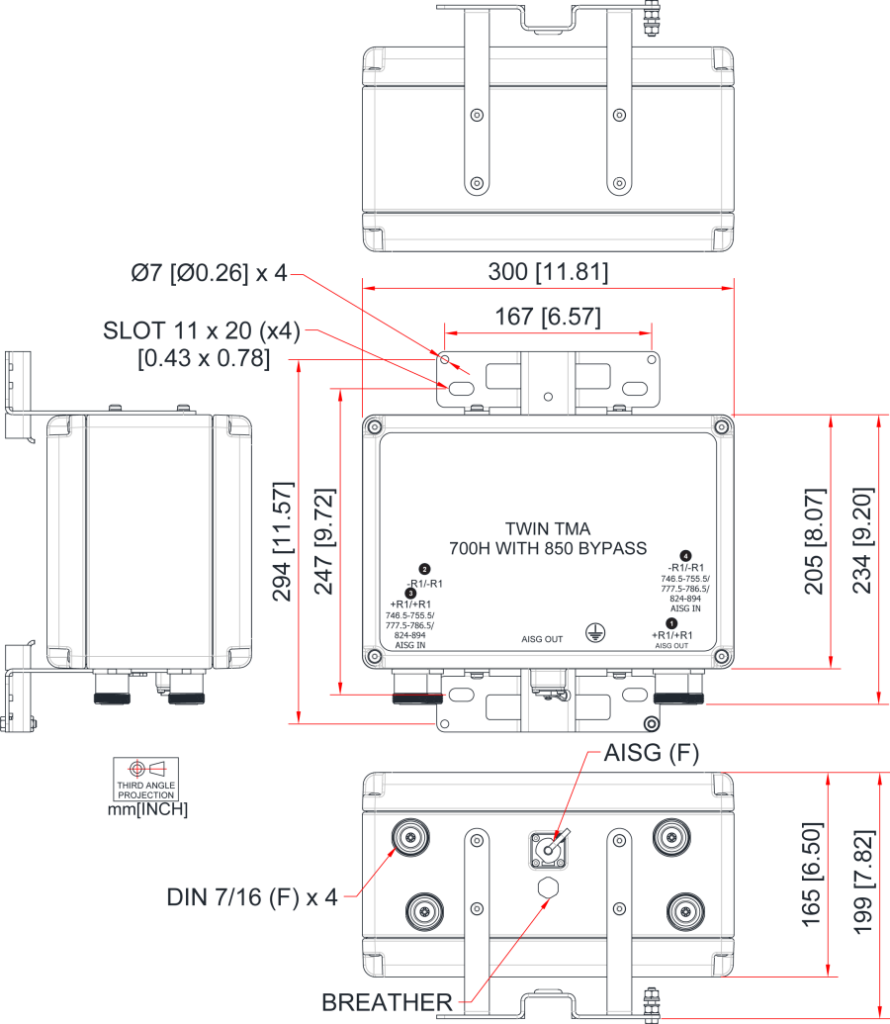

MECHANICAL BLOCK DIAGRAM |
