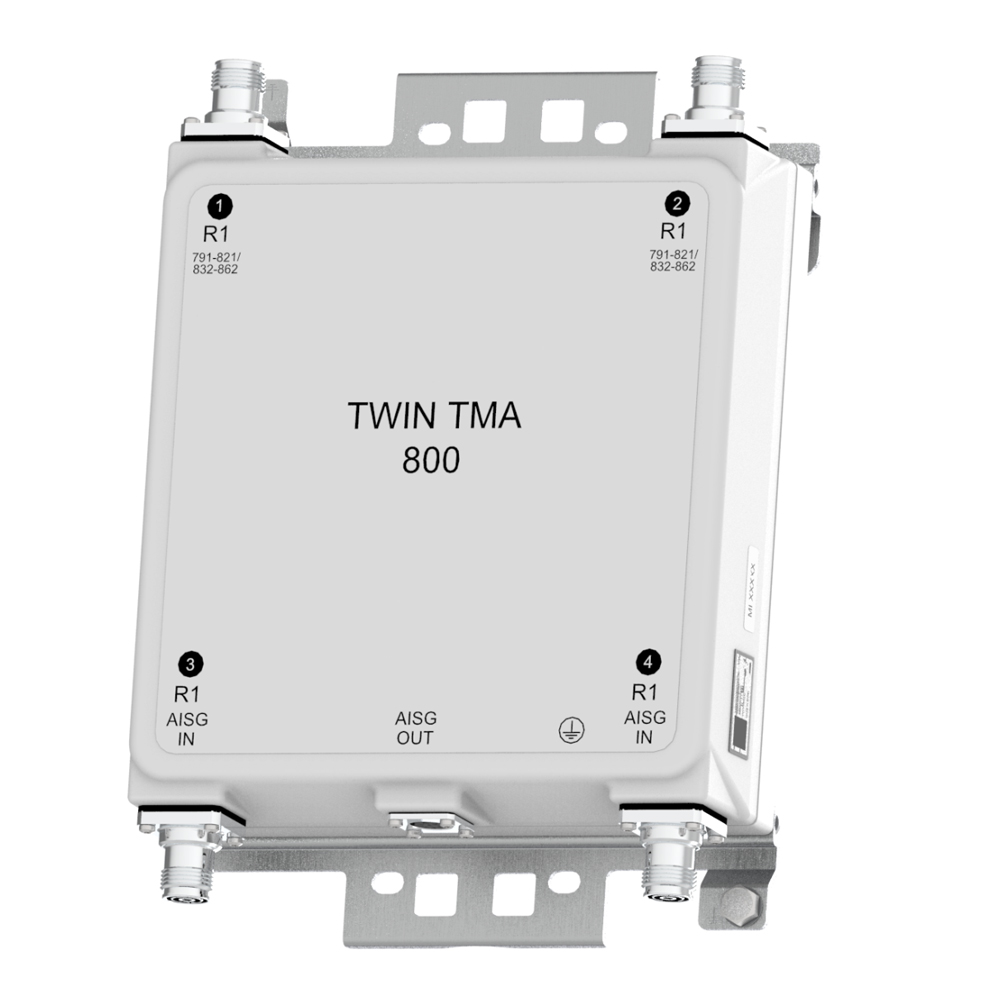

TWIN TMA 800
Designed to be deployed with 800MHz systems, this Tower Mounted Amplifier provides gain in the 800MHz band and improves system noise figure, thereby saving operational and capital expenditure.

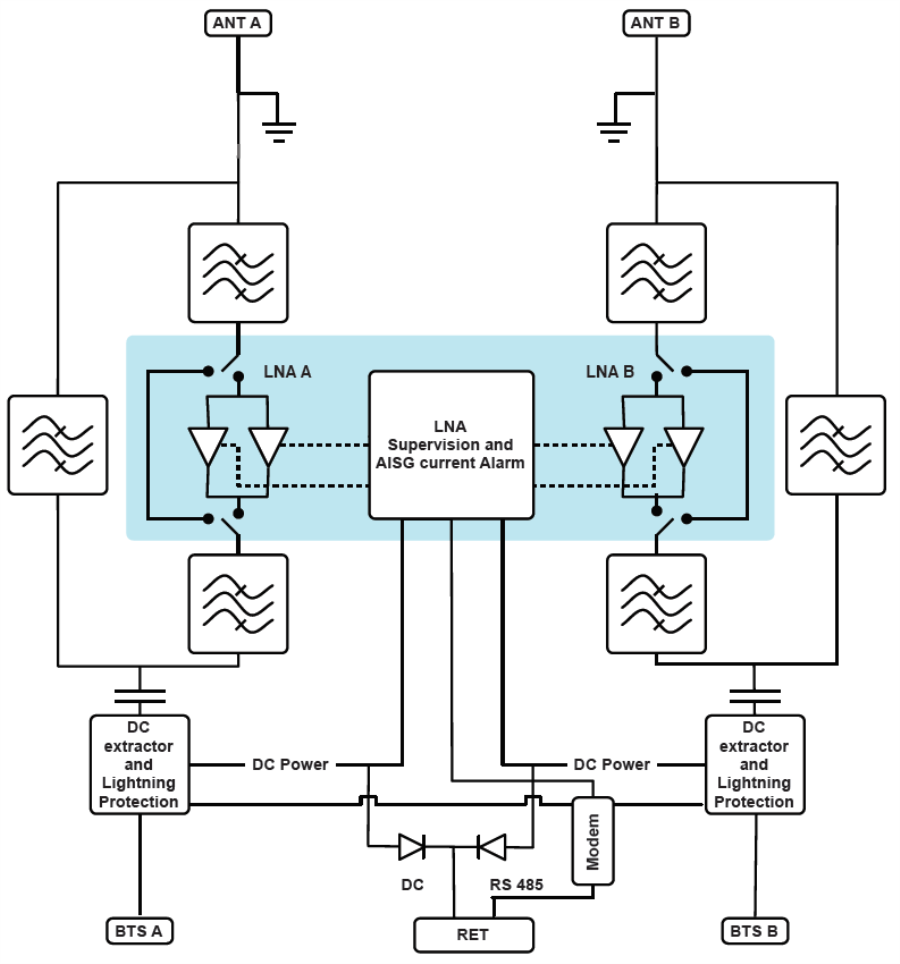

FEATURES
- Improved base station sensitivity through gain in the 800MHz band
- Fail safe bypass mode with lightning protection
- High linearity and low noise performance
- Small light weight and easy to install
| Passband |
791 – 821MHz |
| Insertion loss |
0.5dB typical |
| Return loss |
20dB typical, 18dB minimum |
| Maximum input power |
200W |
| Intermodulation products |
-160dBc maximum with 2 x 43dBm carriers in RX band at ANT |
| Passband |
832 – 862MHz |
| Gain |
12dB nominal |
| Return loss |
16dB minimum |
| Bypass return loss |
12dB minimum |
| Bypass loss |
1.7dB typical |
| Noise figure |
1.3dB typical |
| Output IP3 |
+25dBm typical |
| Maximum input power with no damage |
+12dBm |
| DC supply voltage |
+9.0V to +30V DC |
| AISG version |
2.0 |
| Power consumption, AISG mode |
<2W |
| AISG connector, current rating |
IEC60130-9, 8-pin female |
| Temperature range |
-40ºC to +65ºC | +40°F to +149°F |
| Ingress protection |
IP67 |
| Lightning protection |
RF: ±5kA maximum (8/20us), AISG: ±2kA maximum (8/20us) |
| MTBF |
>1,400,000 hours |
| Compliance |
EMC: EN 301 489-50
Safety: EN 62368-1
Operation: ETSI EN 300 019 class 4.1E
Storage: ETS 300 019-1-1 class 1.3E
Transport: ETS 300 019-1-2 class 2.3
RoHS |

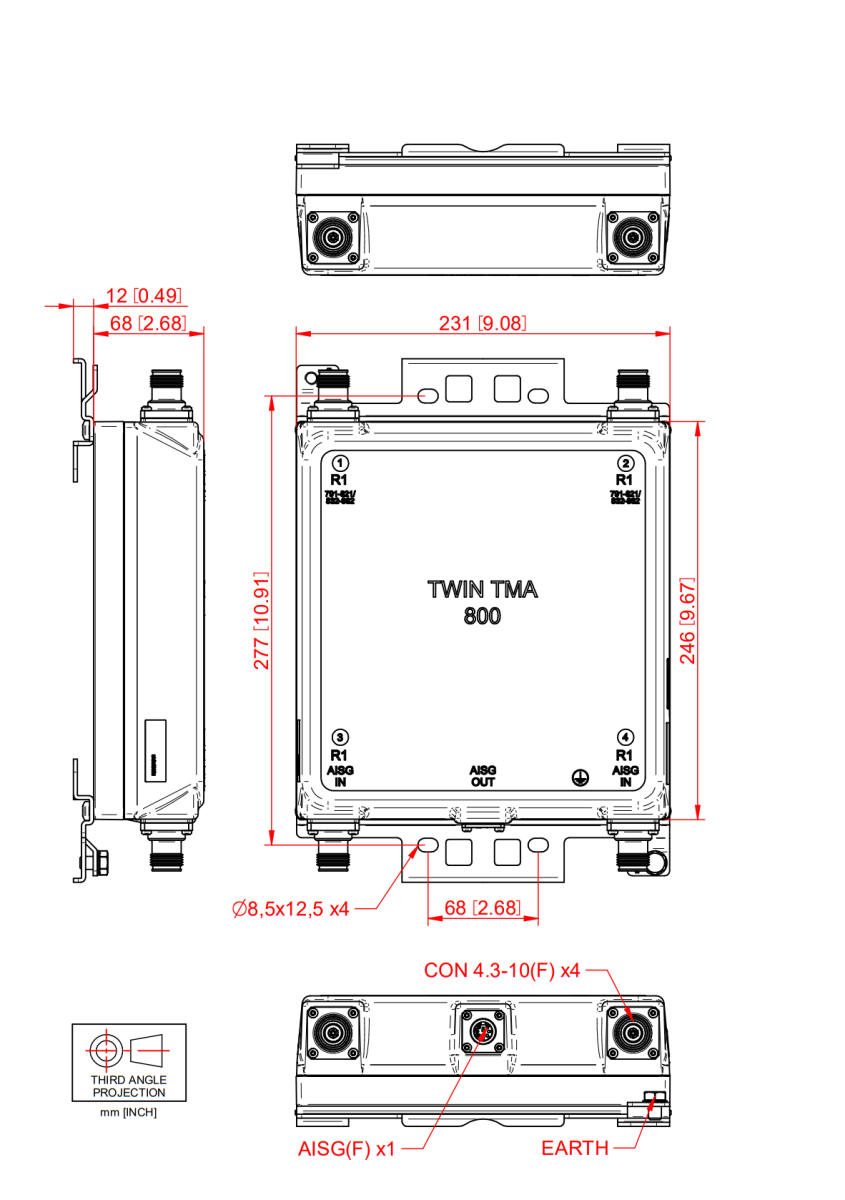

| Dimensions H x D x W |
230 x 245 x 68 mm | 9.05 x 9.65 x 2.68 in |
| Weight |
5.7 kg | 12.57 lbs |
| Finish |
Powder coated, NCS 1502-R |
| Connectors |
DIN 7-16 (F) long neck or 4.3-10 (F) long neck (see ordering information)
AISG (F) |
| Mounting |
Poll/wall bracket supplied with two metal clamps 40-140mm diameter poles |
| Carton size |
380 x 300 x 160 mm |
| Gross weight (including packaging) |
5.0kg |
| Carton Qty / Pallet |
48 |
| PART NUMBER |
CONFIGURATION |
OPTIONAL FEATURES |
CONNECTORS |
AISG MODE |
| TMA2146F01V1-1 |
TWIN, 2 in / 2 out |
BASE MODEL – KAELUS BRAND |
4.3-10 (F) |
Refer to AISG MODE OF OPERATION section |
| TMA2146F01V2-1 |
TWIN, 2 in / 2 out |
BASE MODEL – KAELUS BRAND |
7-16 (F) |
Refer to AISG MODE OF OPERATION section |
| MI-13731 |
TWIN, 2 in / 2 out |
BASE MODEL – MICRODATA BRAND |
4.3-10 (F) |
Refer to AISG MODE OF OPERATION section |
| MI-13701 |
TWIN, 2 in / 2 out |
BASE MODEL – MICRODATA BRAND |
7-16 (F) |
Refer to AISG MODE OF OPERATION section |
