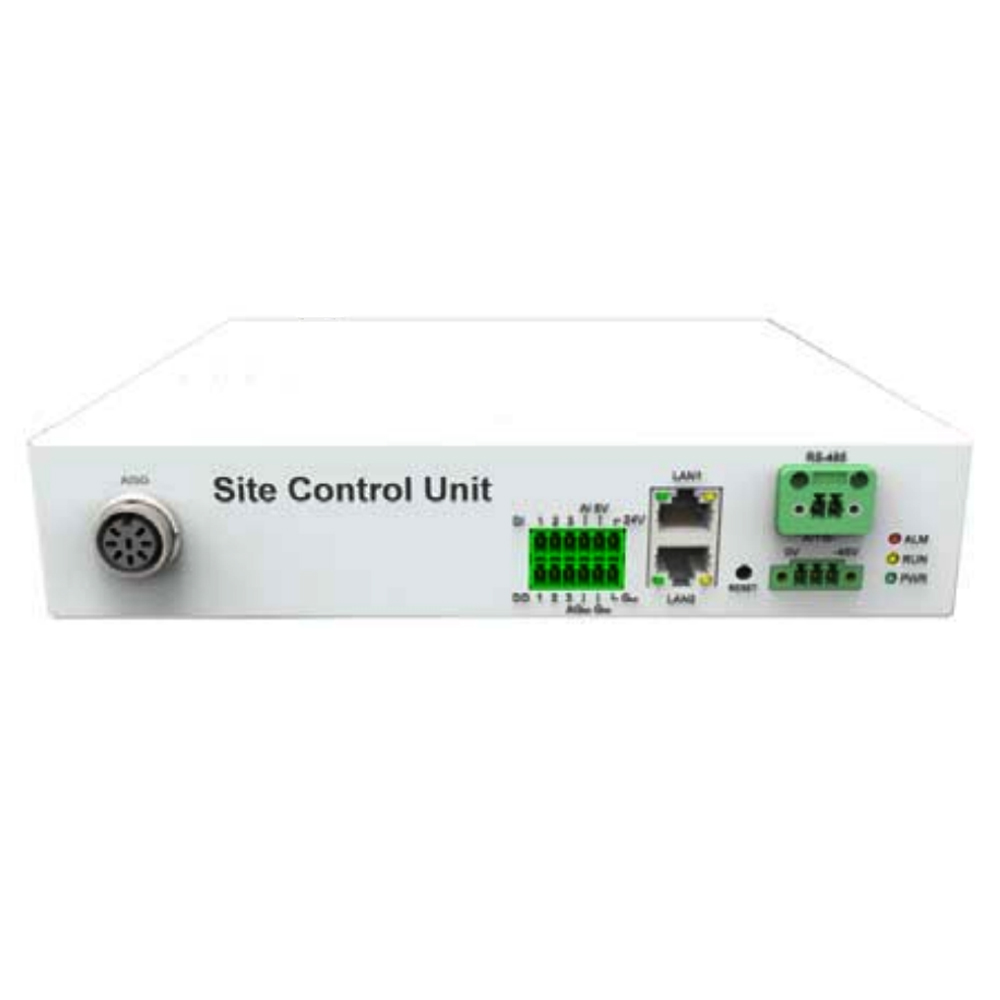

ACU0002
The Kaelus Antenna Control Unit (ACU) is used to provide remote monitoring and RET control for TMA devices installed at a cell site. The ACU0002 is able to communicate with AISGv1.1 or AISGv2.0 devices via a local Ethernet connection or remotely through a Ethernet connection.
FEATURES
- Controls and monitors RET and TMA devices via AISG protocol
- Open collector contacts provides alarm report output to BTS
- Provides remote software download capability
- Remote or local control via Ethernet interface
- Able to store local site data such as GPS coordinates, site contact information, etc.
- Supports -48V DC power input
PRODUCT RESOURCES |
TECHNICAL SPECIFICATIONS |
| ELECTRICAL | |||||||||||||||
| Input voltage/current | -48VDC / maximum 1.5A | ||||||||||||||
| Input protection | Fuse (slow blow) | ||||||||||||||
| Output voltage/current | +28VDC @ 1.7A | ||||||||||||||
| Maximum output to AISG devices | 50W | ||||||||||||||
| MONITORING / CONTROL | |||||||||||||||
| Max number of AISG devices | Up to 24 RET and 6 TMA devices (dependent on device power consumption and cable length) | ||||||||||||||
| Comunication ports | 1 x RS485 | ||||||||||||||
| Network interface | 2xEthernet 10/100/1000Mbps | ||||||||||||||
| Network protocol | TCP/IP, HTTP/HTML | ||||||||||||||
| Alarm interface outputs | 3 external outputs wired open collector | ||||||||||||||
| ENVIRONMENTAL | |||||||||||||||
| Temperature range | 0ºC to +55ºC | 32°F to 131°F, indoor | ||||||||||||||
| Lightning protection | Yes | ||||||||||||||
| MTBF | >400,000 hours at 22ºC / 71.6ºF | ||||||||||||||
| MECHANICAL | |||||||||||||||
| Dimensions H x D x W | 220 x 185 x 44mm | 8.66 x 7.28 x 1.73in (excluding mounting hardware) | ||||||||||||||
| Weight | 1.5kg | 3.3lbs | ||||||||||||||
| Mounting | 1U 19 inch rack and wall mounting brackets supplied | ||||||||||||||
| DC input connector | HDR PLUG(F) SCR P3.81 GRN 3P R/A LF supplied | ||||||||||||||
| Alarm connector | HDR PLUG(F) P3.81 GRN 5P R/A LF supplied | ||||||||||||||
| AISG connectors | 1 x 8-pin circular AISG female | ||||||||||||||
| Compliance | FCC | ||||||||||||||
ORDERING INFORMATION |
|||||||||||||||
| PART NUMBER | DESCRIPTION | ||||||||||||||
| ACU0002F1V1-1 | AISG controller-1 way | ||||||||||||||
| OPTIONAL ACCESSORIES | |||||||||||||||
| PART NUMBER | DESCRIPTION | ||||||||||||||
| KA-9003-1000 | Smart BIAS T, 7/16M BTS 7/16F ANTENNA AISGM STD bottom of the tower | ||||||||||||||
| KA-9003-1001 | Smart BIAS T, 7/16F BTS 7/16M ANTENNA AISGF STD top of the tower | ||||||||||||||
| KA-9003-1002 | Smart BIAS T, 7/16F BTS 7/16M ANTENNA AISGM STD bottom of the tower | ||||||||||||||
| KA-9003-1003 | Smart BIAS T, 7/16M BTS 7/16F ANTENNA AISGF STD top of the tower | ||||||||||||||
| KA-9006-1000 | Smart BIAS T, 4.3-10M BTS 4.3-10F ANTENNA AISGM STD bottom of the tower | ||||||||||||||
| KA-9006-1001 | Smart BIAS T, 4.3-10F BTS 4.3-10M ANTENNA AISGF STD top of the tower | ||||||||||||||
| KA-9006-1002 | Smart BIAS T, 4.3-10F BTS 4.3-10M ANTENNA AISGM STD bottom of the tower | ||||||||||||||
| KA-9006-1003 | Smart BIAS T, 4.3-10M BTS 4.3-10F ANTENNA AISGF STD top of the tower | ||||||||||||||
| R18-0749-1 | Cable assembly, AISG outdoor cable – male to female – 1 meter | ||||||||||||||
| R18-0749-3 | Cable assembly, AISG outdoor cable – male to female – 3 meter | ||||||||||||||
| R18-0749-5 | Cable assembly, AISG outdoor cable – male to female – 5 meter | ||||||||||||||
| R18-0749-10 | Cable assembly, AISG outdoor cable – male to female – 10 meter | ||||||||||||||
| R18-0749-15 | Cable assembly, AISG outdoor cable – male to female – 15 meter | ||||||||||||||

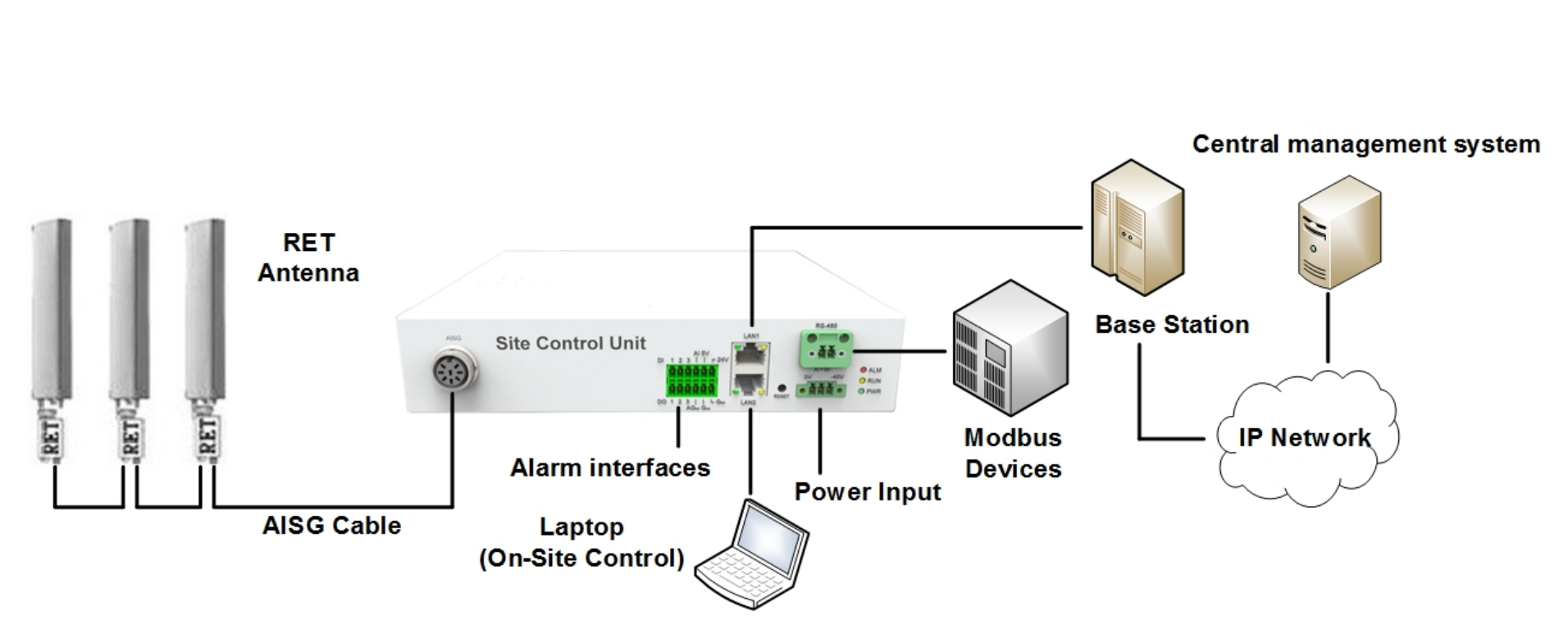

SYSTEM BLOCK DIAGRAM |
