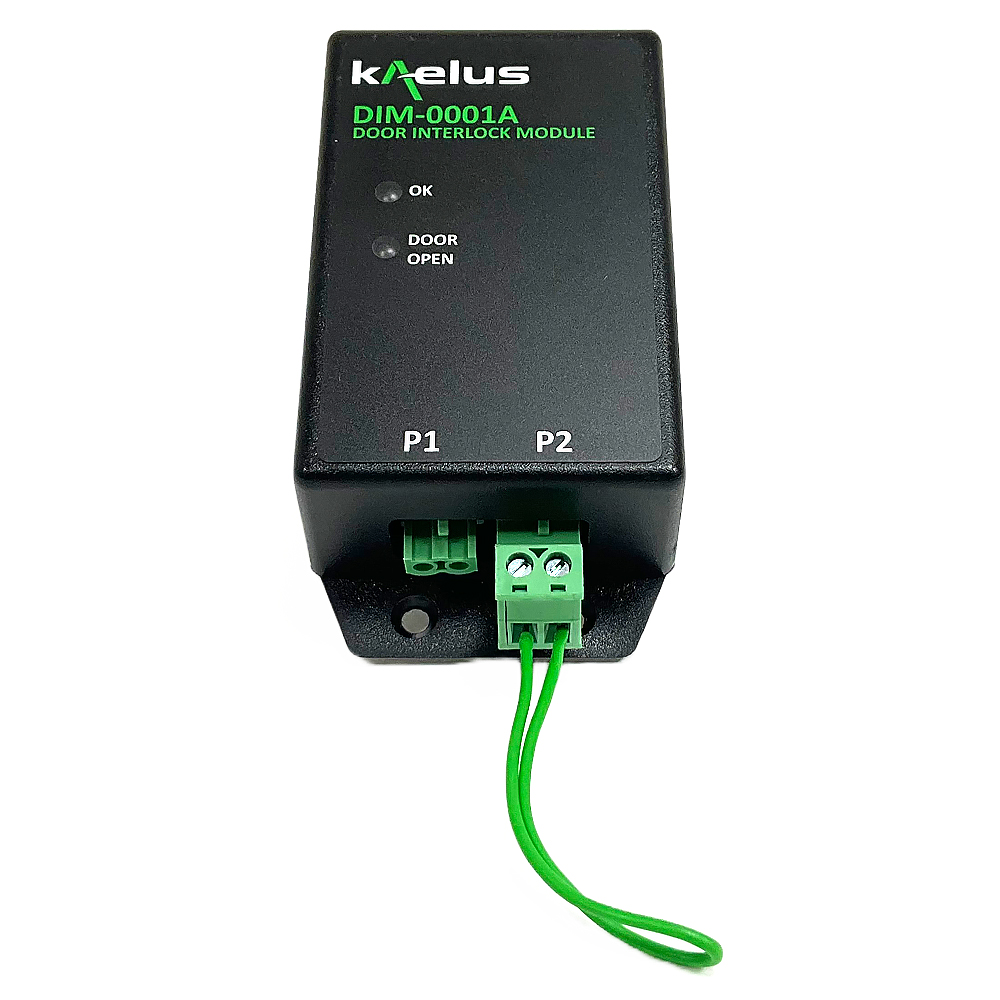

DIM-0001A
DOOR INTERLOCK MODULE

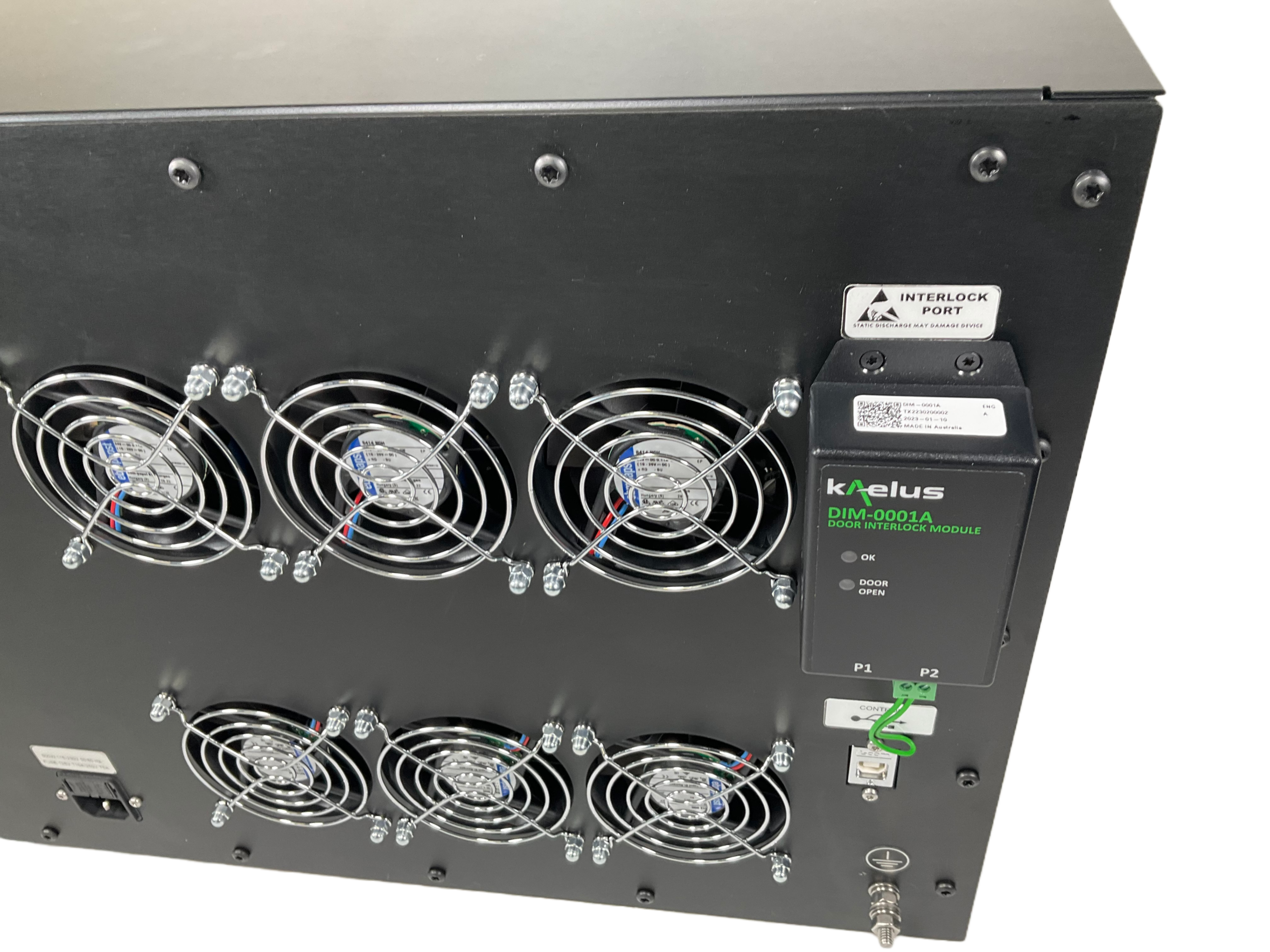

Introducing the Kaelus Door Interlock Module. Perform PIM testing safely by adding a RF interupt function to your iBA. Connect the Anechoic chamber’s door to the Door Interlock Module (DIM) on the iBA. When opening the anechoic chamber’s door, the DIM module prevents the iBA to turn on the RF power, the inspection of the Device Under Test can then be performed safely.
FEATURES
- Daisy chain multiple Door interlock module to control several IBAs and chamber’s locks
SPECIFICATIONS |
| TECHNICAL | |||||||||||||||
| Total Cable Lenght – DIM module to Chamber’s lock | 50 meters max | ||||||||||||||
| TECHNICAL SPECIFICATIONS |
| MECHANICAL | |||||||||||||||
| Dimensions H x D x W | 109 x 54 x 30mm | 4.27 x 2.13 x 1.19in | ||||||||||||||
| Weight | 50g | 0.1lbs | ||||||||||||||
| ENVIRONMENTAL | |||||||||||||||
| Temperature range | +10ºC to +40ºC | +50°F to +104°F (operating) | ||||||||||||||
| Operational humidity | 5% to 90% non-condensing | ||||||||||||||
| Storage temperature range | -20°C to +60°C | -4°F to +140°F | ||||||||||||||
ORDERING INFORMATION |
|||||||||||||||
| PART NUMBER | DESCRIPTION | ||||||||||||||
| DIM-0001A | Door interlock Module | ||||||||||||||
PRODUCT COMPATIBILITY |
|||||||||||||||
| Compatible with iBAs purchased with Interlock function. | |||||||||||||||
| Your iBA was purchased without the interlock function? Contact Kaelus for an upgrade. |

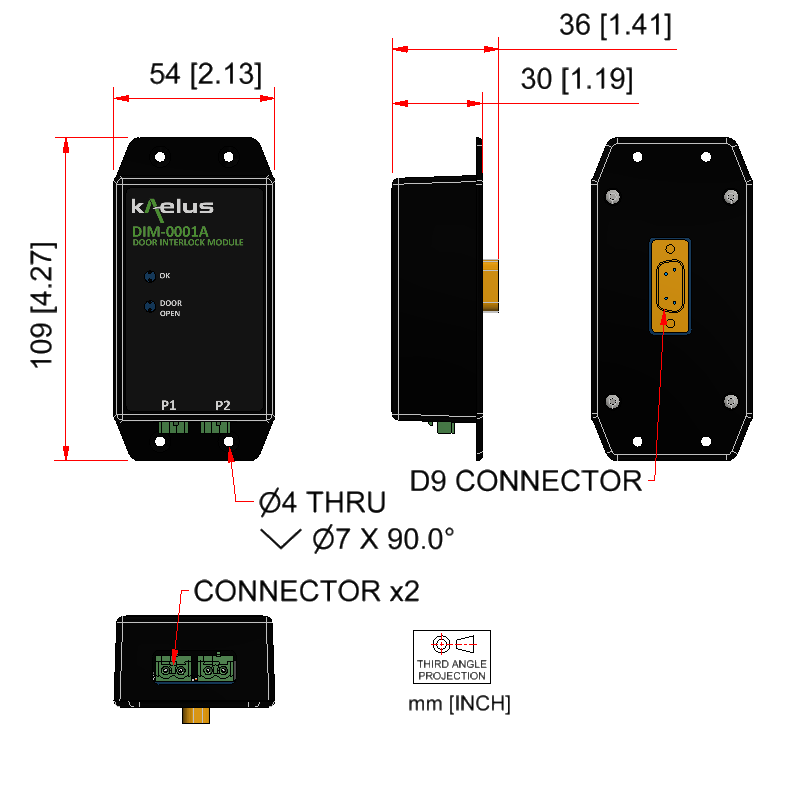

MECHANICAL BLOCK DIAGRAM |

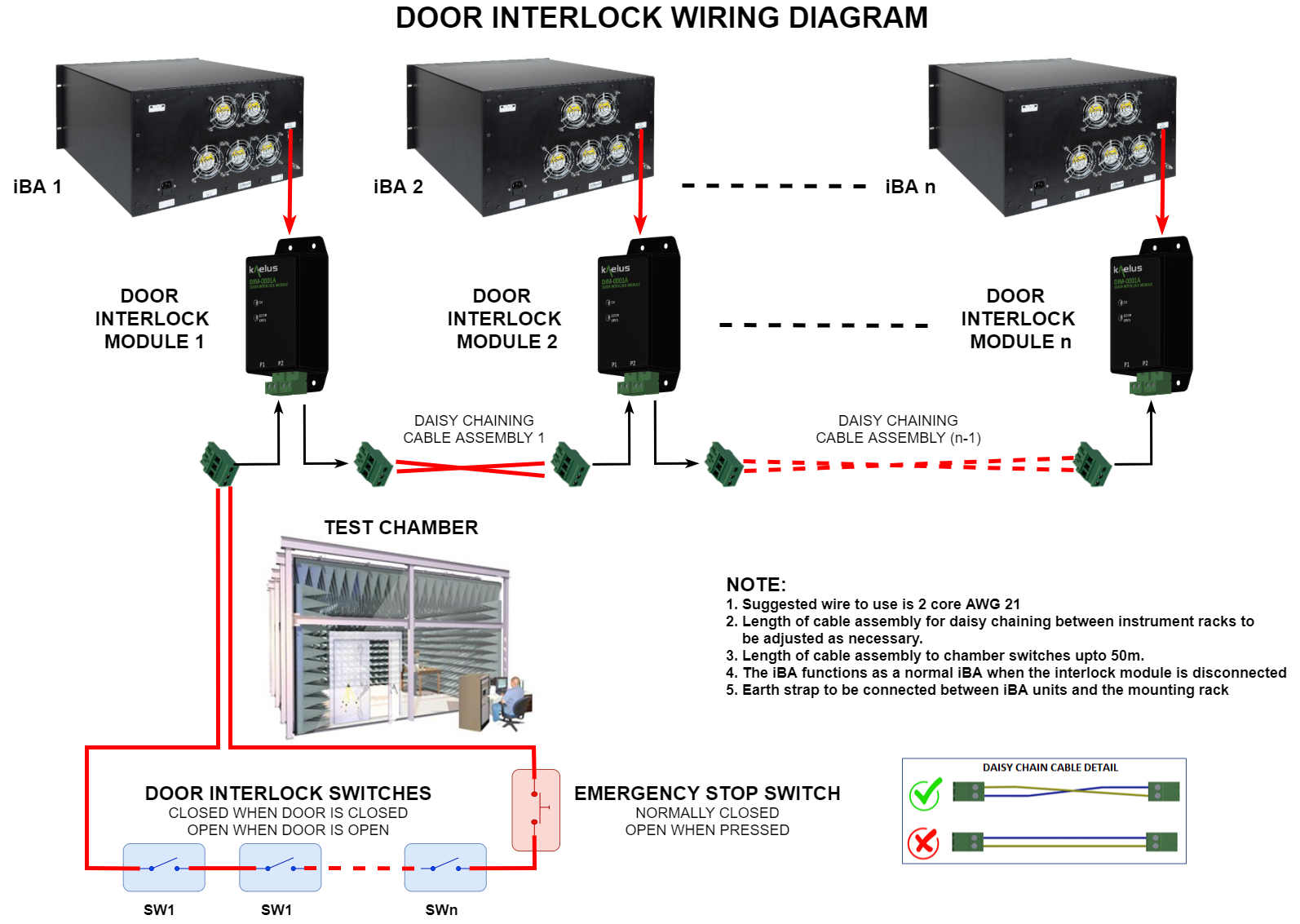

WIRING DIAGRAM |
