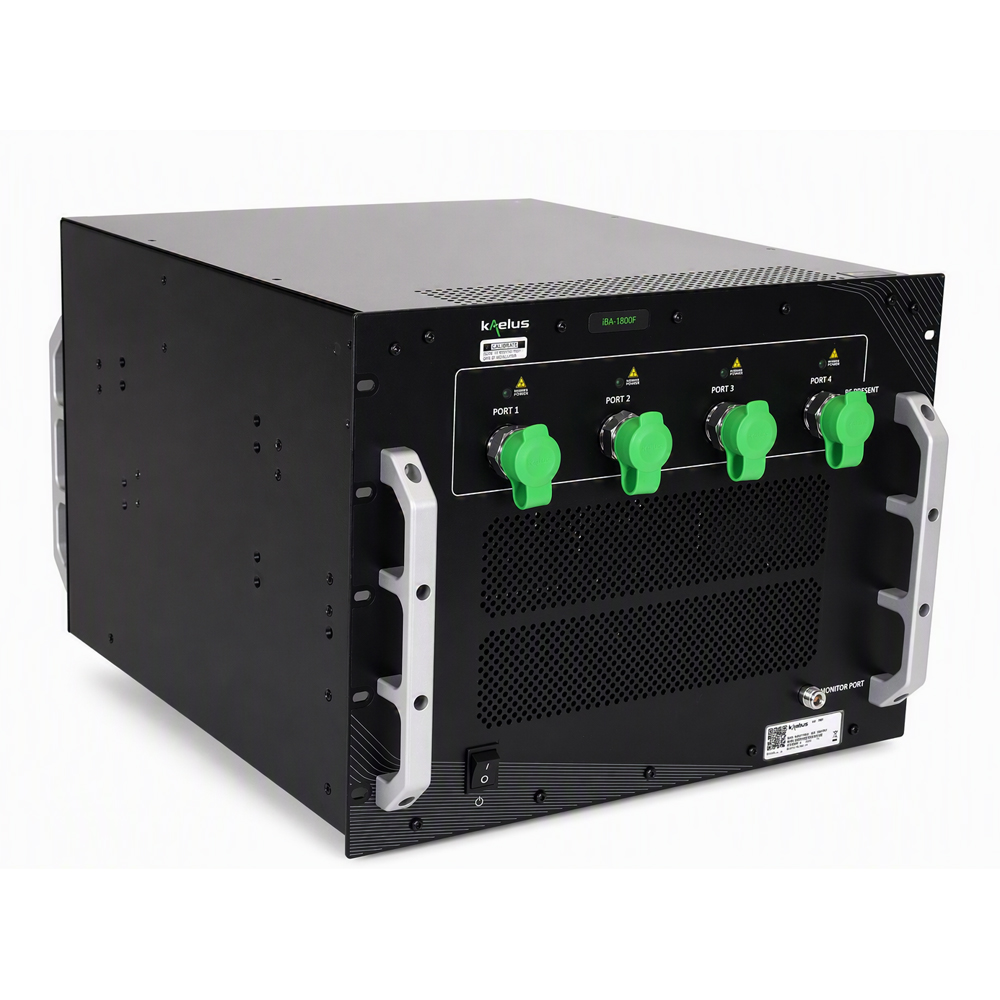

BENCH TOP PIM ANALYZERS
The iBA 4 Port Series PIM Analyzer is a complete bench top and rack mounting PIM test solution used with a system controller and intuitive user software. This economical solution comes in model variations that cover all major commercial wireless bands.
FEATURES
- 4 port integrated system in compact size
- Fully configurable frequencies, power and IM products
- USB control interface
- Frequency sweep and time trace modes
- +46dBm Ouptut Power (Max)
- Compatible with ACE calibration tool
TECHNICAL SPECIFICATIONS |
| SYSTEM | |||||||||||||||

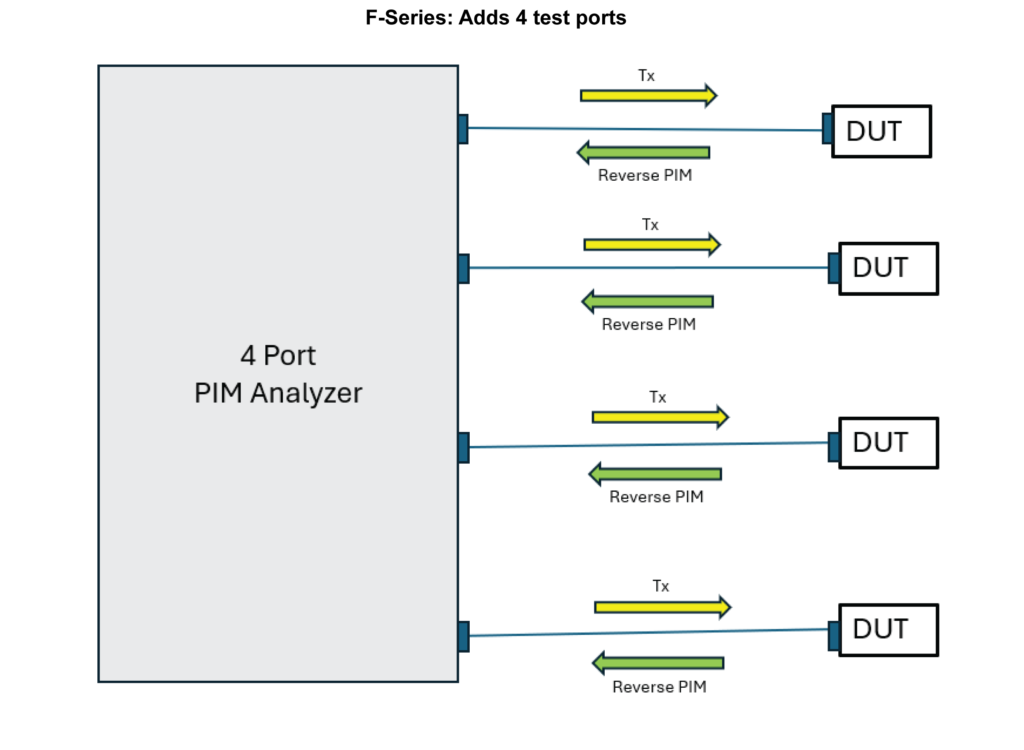

| Measurement method | Non-Simultaneous Reverse (Reflected) PIM on Port 1 or Port 2 or Port 3 or Port 4 | ||||||||||||||
| Residual PIM | < -125dBm (@2x43dBm) | ||||||||||||||
| IM order | 3rd, 5th, and 7th Order | ||||||||||||||
| User interface ports | 1 x USB Type B, 1x Monitor Port (N Female). | ||||||||||||||
| Test ports | 4 x RF Output (7-16 DIN Female) | ||||||||||||||
| TRANSMITTER | |||||||||||||||
| Transmit frequencies | Refer Model table | ||||||||||||||
| Frequency increment | 100kHz | ||||||||||||||
| Frequency accuracy | ± 5ppm maximum, aging ± 1ppm maximum after first year | ||||||||||||||
| Power per tone (adjustable) | +30 to +46dBm | 1W to 40W | ||||||||||||||
| Power accuracy (per tone) | ± 0.35dB | ||||||||||||||
| RECEIVER | |||||||||||||||
| Receive band (100kHz steps) | Refer Model Table | ||||||||||||||
| Measurement noise floor | < -130 dBm (-135 dBm, typical) | ||||||||||||||
| Measurement range | -55dBm to -130dBm | ||||||||||||||
| ELECTRICAL | |||||||||||||||
| Mains power | 100 – 240V, 50/60Hz AC | ||||||||||||||
| Power consumption | 800W (Maximum) | ||||||||||||||
| MECHANICAL | |||||||||||||||
| Dimensions H x D x W | 355.3.5 x 508 x 482.6mm | 14 x 20 x 19in | ||||||||||||||
| Weight | ~ 40kg | 88lbs | ||||||||||||||
| Cooling | Forced air (100mm gap to be maintained at the rear when rack mounted, 1U spacing recommended between units) | ||||||||||||||
| ENVIRONMENTAL | |||||||||||||||
| Temperature range | +10ºC to +40ºC | +50°F to +104°F (operating) | ||||||||||||||
| Ingress protection | Indoor use (or similar protected outdoor environment) | ||||||||||||||
| Operational humidity | 5% to 90% non-condensing | ||||||||||||||
| Storage temperature range | -20°C to +60°C | -4°F to +140°F | ||||||||||||||
| IBA F-SERIES MODELS | |||||||||||||||
| F-SERIES(Quad port) Reverse IM | |||||||||||||||
| MODEL | TX RANGE | RX RANGE (PIM) | IM ORDER | ||||||||||||
| iBA-0703F | TX1 758-768MHz TX2 778-803MHz |
703-748MHZ | IM3, IM5, IM7 | ||||||||||||
| iBA-0850F | TX1 869MHz TX2 879-894MHz |
824-849MHz | IM3, IM5, IM7 | ||||||||||||
| iBA-0901F | TX1 925-935MHz TX2 945-960MHz |
880-915MHz | IM3, IM5, IM7 | ||||||||||||
| iBA-1800F | TX1 1805-1812MHz TX2 1825-1880MHz |
1710-1785MHz | IM3, IM5, IM7 | ||||||||||||
| iBA-2101F | TX1 2110-2130MHz TX2 2150-2170MHz |
1920-2080MHz | IM3. IM5, IM7 | ||||||||||||
| iBA-2600F | TX1 2620-2630MHz TX2 2650-2690MHz |
2500-2570MHz | IM3. IM5, IM7 | ||||||||||||

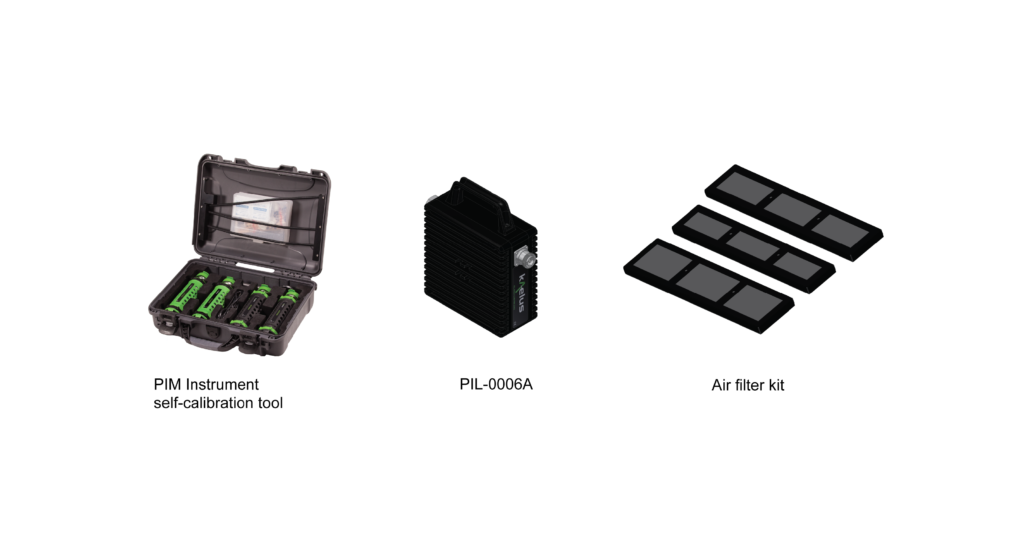

ACCESSORIES |
|||||||||||||||
 |
