Outdoor case for 3500MHz PIM Testers

CA123506

Turn your iBA-350xC into a portable PIM tester for field use! Equipped with internal shock absorbers, this outdoor case will protect your iBA-350xC from shocks up to 50G. Rated to IP54 ingress protection, the iBA350xC is well protected from the weather. It is equipped with castor wheels and allows you to transport your iBA-350xC with ease. With this case, you can confidently transport your iBA-350xC to any remote location and quickly set up the equipment: simply remove the front and back cover, connect it to AC power, and perform PIM measurements. Purchase separately or with an IBA-350xC, we will fit it for you!

FEATURES

  • Easy set up
  • Equipped with castor wheels and handles
  • Convenient storage of the AC and RF cables in the back cover.
  • Internal shock absorber protects the iBA-350xC
  • Ingress Protection IP54

technical specifications
mechanical
Dimensions H x D x W 378 x 574 x 790mm | 14.9 x 22.6 x 31.1in
Weight 40kg | 88lbs (Includes iBA)
Cooling Forced air
Front and Back panel to be removed during use
environmental
Temperature range +10ºC to +40ºC | +50°F to +104°F (operating)
Ingress protection IP54 with cover fitted
Operational humidity 5% to 90% non-condensing
Storage temperature range -20°C to +60°C | -4°F to +140°F
product
ordering information
CA123506 Outdoor Case
iBA-350xC Bench PIM tester for 3400-3980MHz

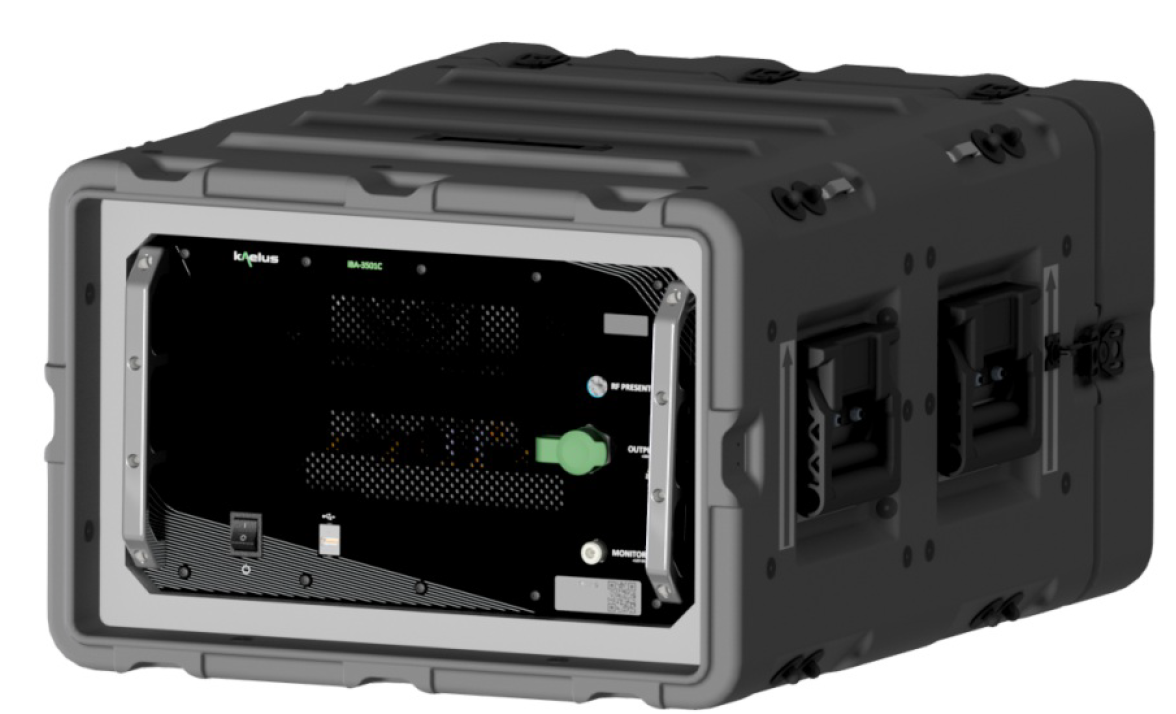

Front view of the iBA-350xC fitted to the Outdoor case

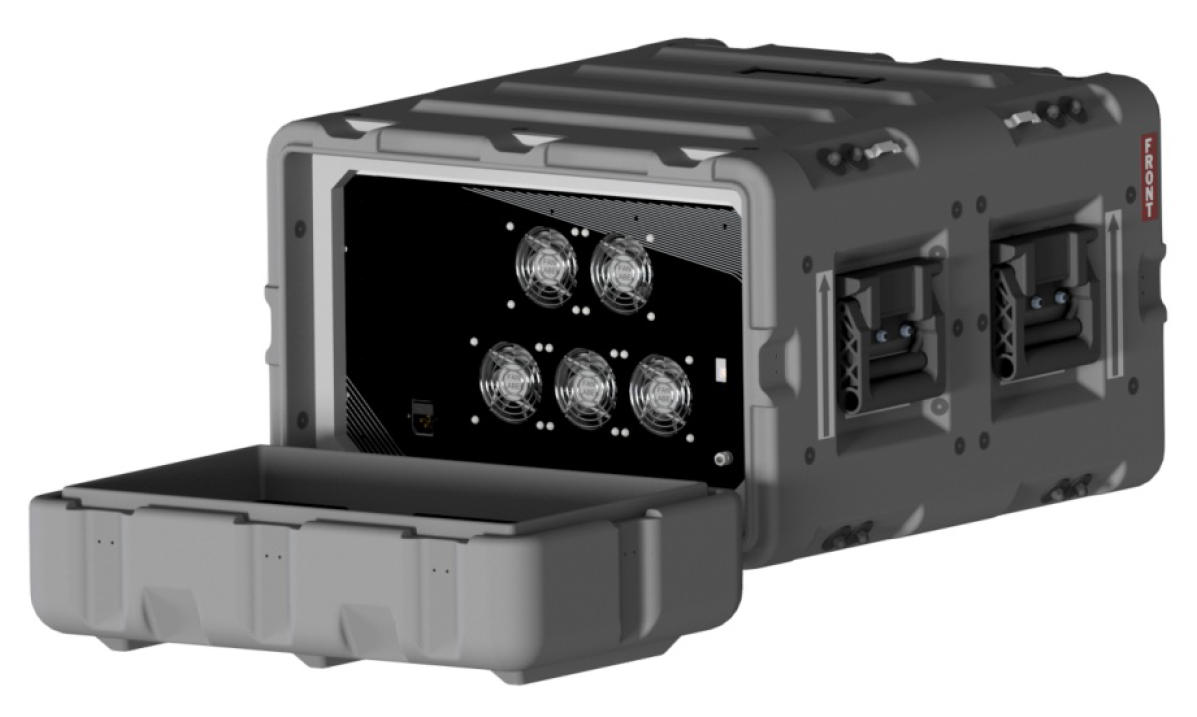

Back view of the iBA-350xC fitted to the Outdoor case
