IAK-0140A

IAK-0140A

iXA Soft Case Accessory Kit

Reach maximum efficiency and safety in your test environment by using the Kaelus iXA* 2-port PIM Test Analyser with integrated Range to Fault (RTF) Technology. This accessory kit includes all necessary components required to perform a system check of the iXA and perform PIM testing.

The iAK soft case accessory kit completes your Kaelus PIM testing solution for use in any test environment from the top of the tower, the base of the tower, rooftop, in-building for DAS systems. In addition, the backpack is rugged enough for complete protection of the iXA components during transport or on-site testing.

*iXA sold separately.

FEATURES

  • High Capacity Battery
  • PIM source and Low PIM Load
  • Rugged and portable
Download PDF
GET A QUOTE
Download PDF
GET A QUOTE

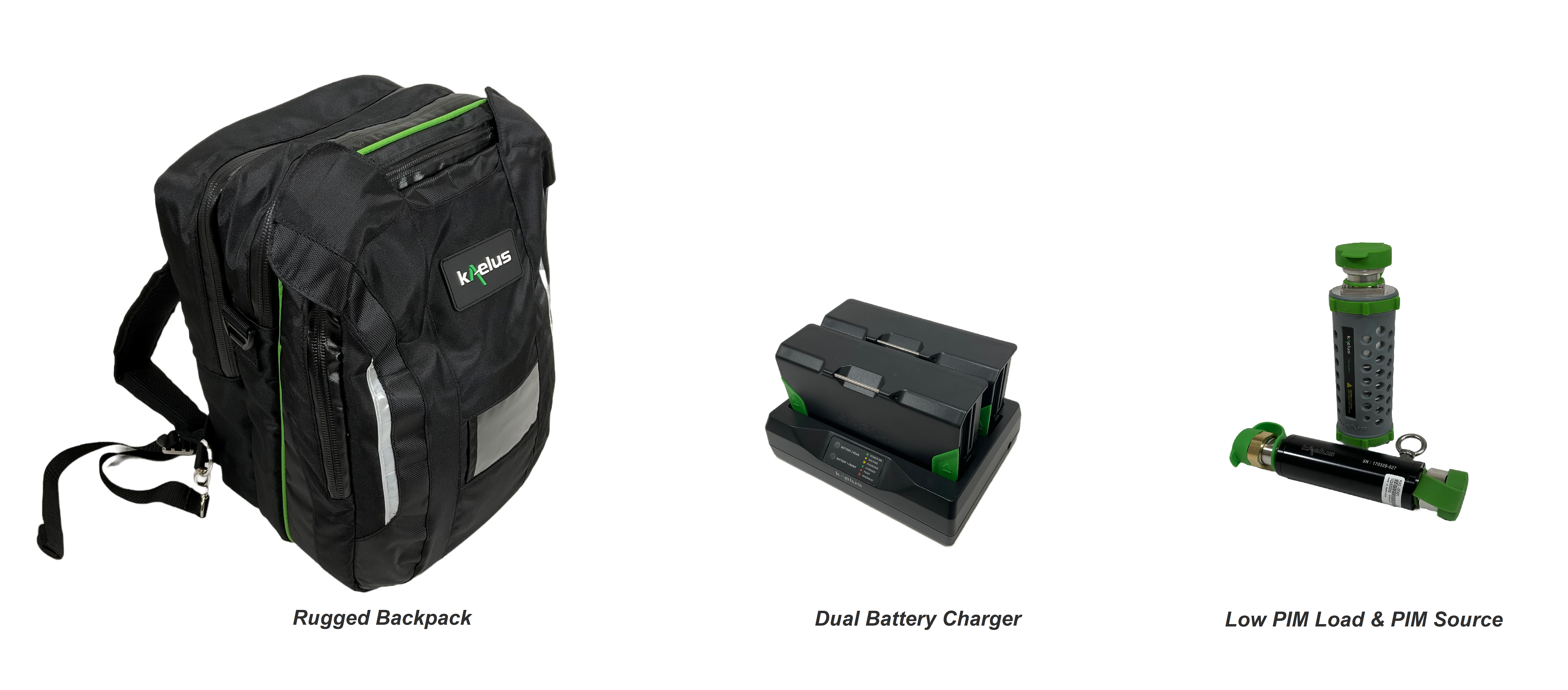

kit content
QUANTITY
 PART NUMBER DESCRIPTION
1
 R29-1486 Tough Accessory Backpack
1
 CIS-0001A PIM Source
1
 PIL-0005A Low PIM Load
2
 ASSY123721 3m test cable, 7/16 (M) to 4.3-10 (M)
1
 R29-4858 Torque wrench, 22mm, 5Nm
for torquing down 4.3-10 connectors
1
 R29-1851 Torque wrench, 32mm, 25Nm
for torquing down 7/16 connectors
1
 ASSY108321 High Capacity Battery
1
 R92-0443 Dual battery charging cradle
1
 R92-0459 Connector cleaning kit
1
 KIT121960 Adaptor kit
Notes: Kit content is subject to change
Weight when fully loaded: 6kg | 13.2lbs
adaptor kit
QUANTITY
 PART NUMBER DESCRIPTION
2
 R40-10100 Adaptor 7/16 (M) - 4.3-10 (F)
2
 R40-10101 Adaptor 7/16 (F) - 4.3-10 (F)
1
 R40-10102 Adaptor 4.3-10 (F) - 4.3-10 (F)
1
 R40-10106 Adaptor 4.3-10 (M) - 4.3-10 (M)
1
 R79-10093 Adaptor 7/16 (F) - 7/16 (F)
1
 R40-10054 Adaptor 7/16 (M) - 7/16 (M)
Check out iAK-0160A (transit case) and iAK-0150A (Premium accessory kit) for alternative handling of the iXA and its accessories.
