IAK-0150A

IAK-0150A

iXA Premium Accessory Kit

Reach maximum efficiency and safety in your test environment by using the Kaelus iXA* 2-port PIM Test Analyser with integrated Range to Fault (RTF) Technology. This accessory kit includes all necessary components required to perform a system check of the iXA and perform PIM testing.

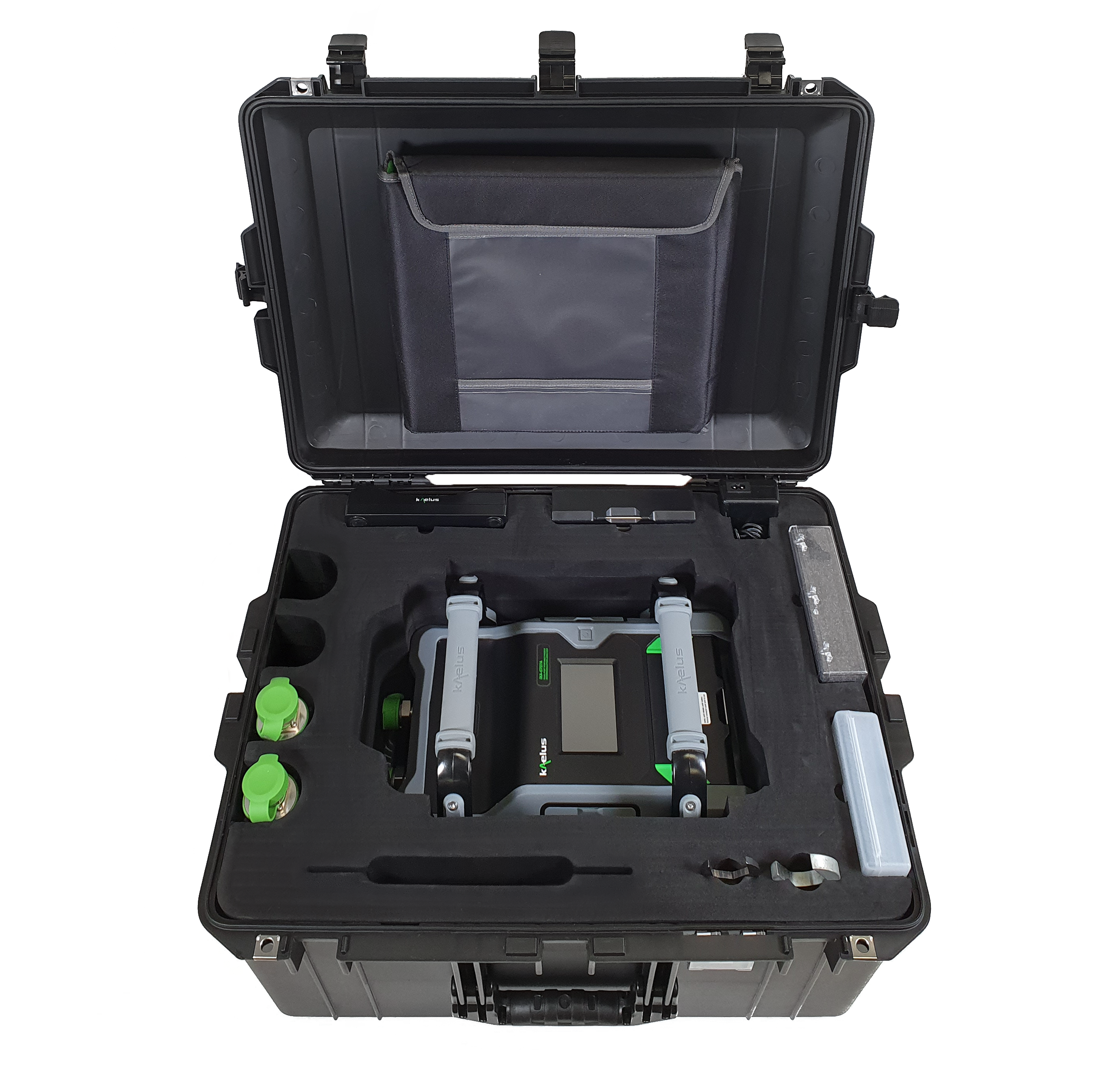

The iAK Premium Accessory kit completes your Kaelus PIM testing solution for use in any test environment from the top of the tower, the base of the tower, rooftop, in-building for DAS systems. In addition, the carrying hard-case has customized storage and is rugged enough for complete protection of the iXA and components during transport or on-site testing.

*iXA sold separately.

FEATURES

  • High Capacity Battery
  • PIM source and Low PIM Load
  • Rugged and portable
  • All accessories and iXA in one case!
Download PDF
GET A QUOTE
Download PDF
GET A QUOTE

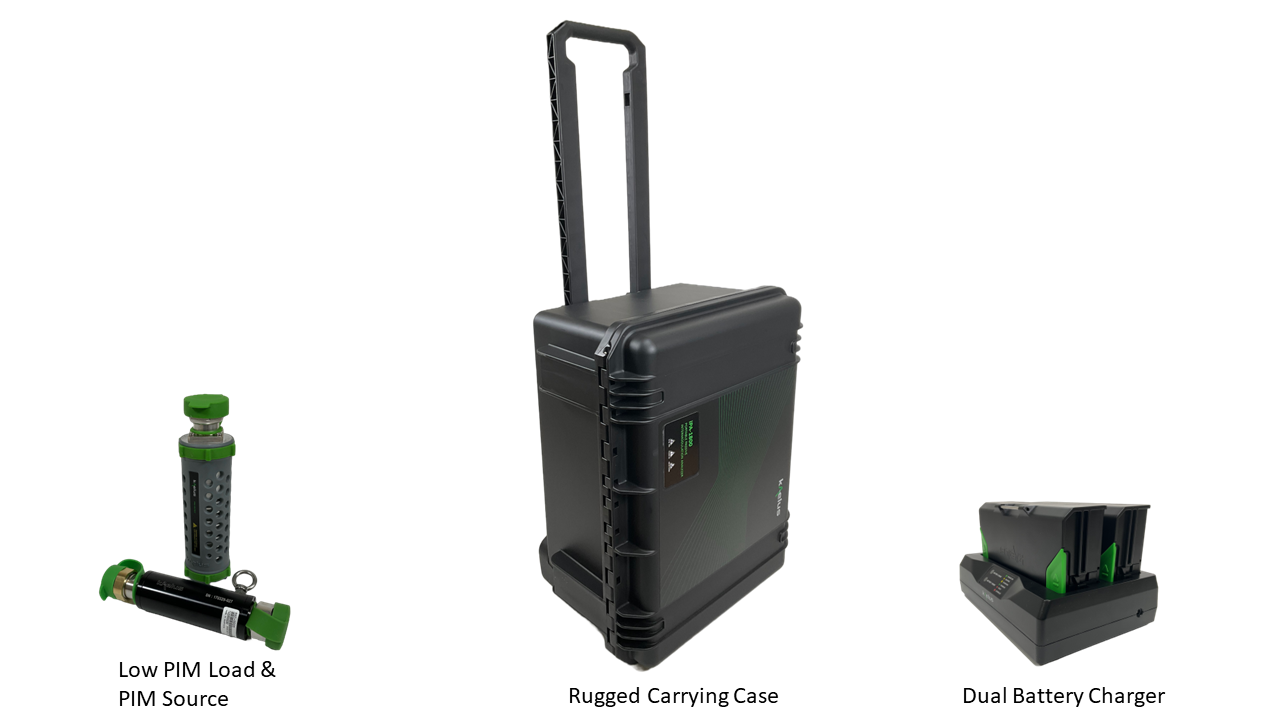

kit content
QUANTITY
 PART NUMBER DESCRIPTION
1
 ASSY122056 iXA transit and accessory case
1
 CIS-0001A PIM Source
1
 PIL-0005A Low PIM Load
2
 ASSY123721 3m test cable, 7/16 (M) to 4.3-10 (M)
1
 R29-4858 Torque wrench, 22mm, 5Nm
for torquing down 4.3-10 connectors
1
 R29-1851 Torque wrench, 32mm, 25Nm
for torquing down 7/16 connectors
1
 ASSY108321 High Capacity Battery
1
 R92-0443 Dual battery charging cradle
1
 R92-0459 Connector cleaning kit
1
 KIT121960 Adaptor kit
Note: Kit content is subject to change
Heavy weight when fully loaded: 33kg | 72.7lbs
adaptor kit
QUANTITY
 PART NUMBER DESCRIPTION
2
 R40-10100 Adaptor 7/16 (M) - 4.3-10 (F)
2
 R40-10101 Adaptor 7/16 (F) - 4.3-10 (F)
1
 R40-10102 Adaptor 4.3-10 (F) - 4.3-10 (F)
1
 R40-10106 Adaptor 4.3-10 (M) - 4.3-10 (M)
1
 R79-10093 Adaptor 7/16 (F) - 7/16 (F)
1
 R40-10054 Adaptor 7/16 (M) - 7/16 (M)
Check out iAK-0160A (transit case) and iAK-0140A (Soft Case Accessory Kit) for alternative handling of the iXA and its accessories.
