IPA SOFT CASE ACCESSORY KIT
Reach maximum efficiency and safety in your test environment through the Kaelus *iPA Portable PIM Analyzer and Range-to-Fault (RTF) technology, together with the Kaelus iAK Accessory Kit series. This kit includes all necessary accessories required to perform a system check of your Kaelus iPA PIM analyzer as well as all required PIM testing.

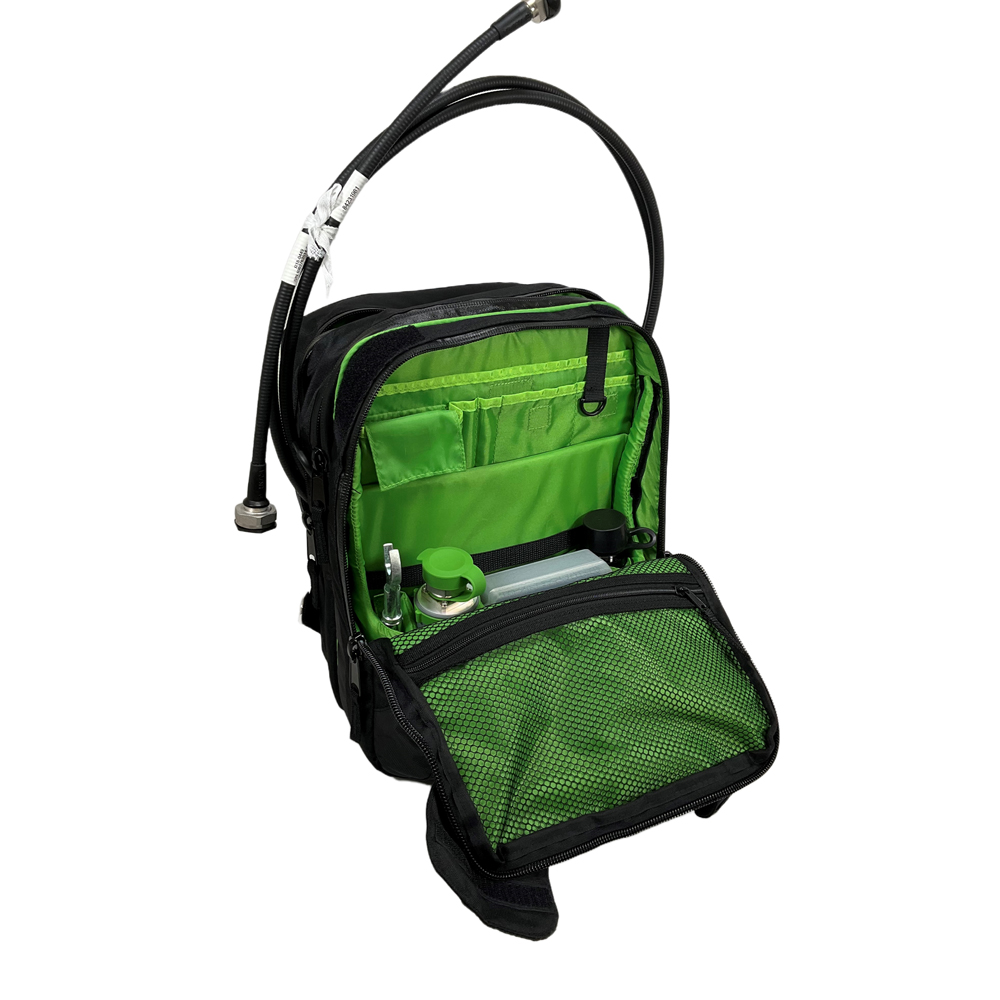

The iAK-0090A soft case accessory kit completes your Kaelus PIM testing solution for use in any test environment from the top of the tower, the base of the tower, rooftop, in-building for DAS systems. In addition, the backpack is rugged enough for complete protection of the iPA components during transport or on-site testing.
*iPA and RTF sold separately.
Features:
- High Capacity Battery
- PIM source and low PIM load
- Light weight
KIT CONTENTS |
|||||||||||||||
| QUANTITY | PART NUMBER | DESCRIPTION | |||||||||||||

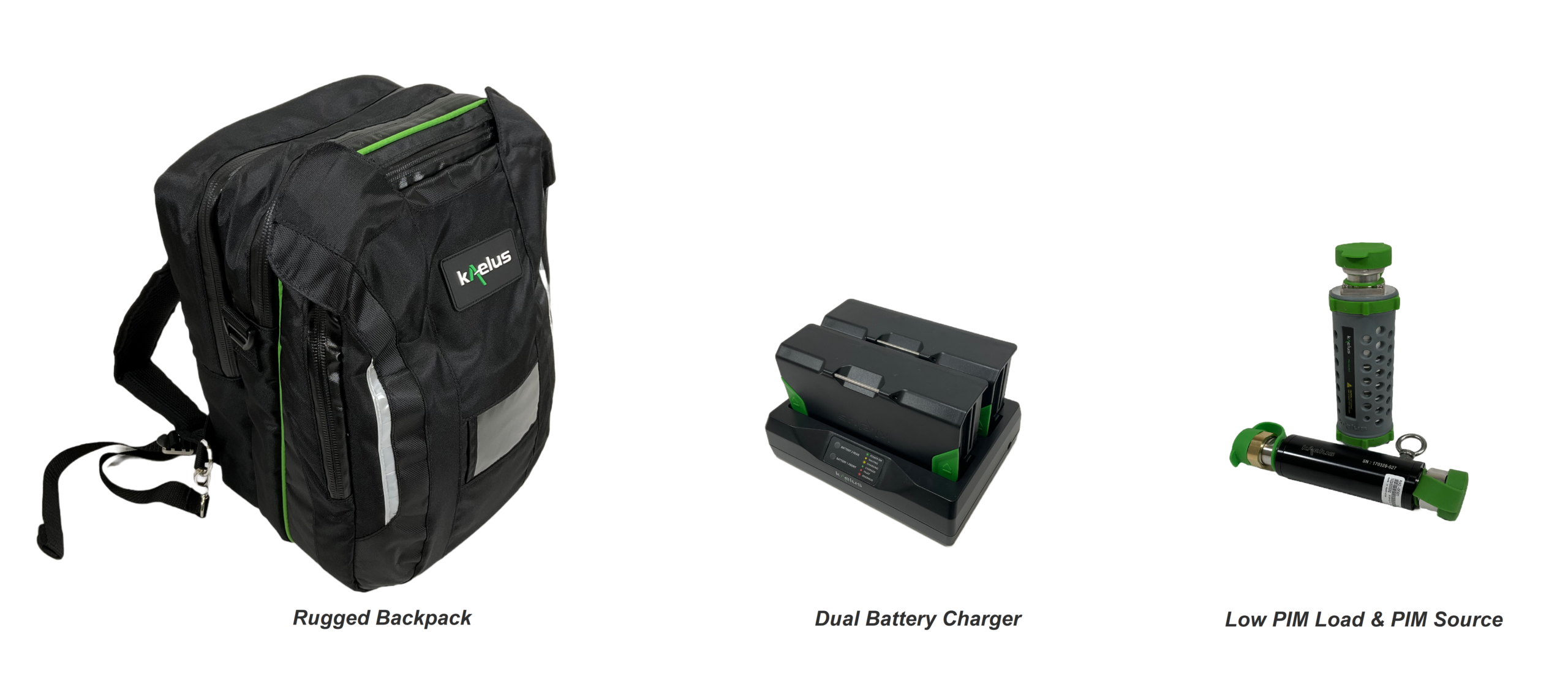

| 1 | R29-1486 | Soft transit case | |||||||||||||
| 1 | CIS-0001A | PIM source | |||||||||||||
| 1 | PIL-0005A | Low PIM load | |||||||||||||
| 1 | ASSY123721 | 3m test cable, 7/16 (M) to 4.3-10 (M) | |||||||||||||
| 1 | R29-4858 | Torque wrench, 22mm, 5Nm for torquing down 4.3-10 connectors |
|||||||||||||
| 1 | R29-1851 | Torque wrench, 32mm, 25Nm for torquing down 7/16 connectors |
|||||||||||||
| 1 | ASSY108321 | High Capacity Battery | |||||||||||||
| 1 | R92-0443 | Dual battery charging cradle | |||||||||||||
| 1 | R92-0459 | Connector cleaning kit | |||||||||||||
| 1 | R92-0460 | Adaptor kit | |||||||||||||
| Note | Kit contents is subject to change | ||||||||||||||
| ADAPTOR KIT R92-0460 CONTENTS | |||||||||||||||
| QUANTITY | PART NUMBER | DESCRIPTION | |||||||||||||
| 1 | R40-10100 | Adaptor 7/16 D (M) – 4.3-10 (F) | |||||||||||||
| 1 | R40-10101 | Adaptor 7/16 (F) – 4.3-10 (F) | |||||||||||||
| 1 | R40-10114 | Adaptor 7/16 (M) – 4.3-10 (M) | |||||||||||||
| 1 | R40-10111 | Adaptor 7/16 (F) – 4.3-10 (M) | |||||||||||||
| 1 | R40-10102 | Adaptor 4.3-10 (F) to 4.3-10 (F) | |||||||||||||
| 1 | R79-10093 | Adaptor 7/16 (F) – 7/16 (F) | |||||||||||||
| Check out iAK-0060A (Premium accessory kit with hardcase) for alternative handling of the iPA and its accessories. |
