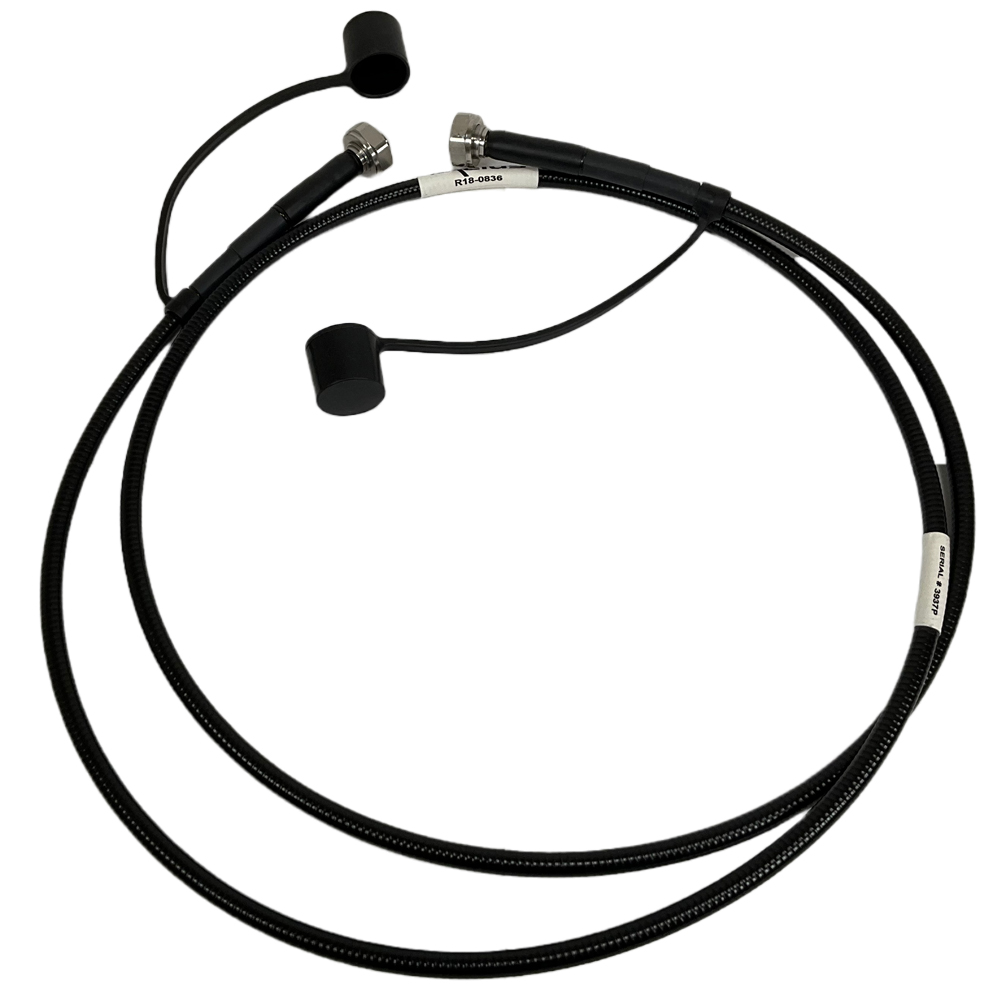

Rugged, Low PIM Cable Assembly
Features:
- Much easier to handle than corrugated cable
- Better than -122dBm with 2x20W (-165dBc) Performance
- Low attenuation
- Rugged, durable, steel armored design
- Water resistant
- RoHS compliant
TECHNICAL SPECIFICATIONS |
| RF SPECIFICATIONS | |||||||||||||||
| Passband | DC – 4GHz | ||||||||||||||
| Return loss | 16dB | ||||||||||||||
| Return loss | 16dB | ||||||||||||||
| Intermodulation products | -165dBc with 2x20W | ||||||||||||||
| Velocity factor | 0.83 | ||||||||||||||
| MECHANICAL | |||||||||||||||
| Weight | 0.5kg | 1.0lb | ||||||||||||||
| Connectors | See ordering information | ||||||||||||||
| Cable length | 2.7m | 8ft10in | ||||||||||||||
| Mating life cycle | 1000 | ||||||||||||||
| Mating torque | Install slightly more than hand tight to the RF output port of the PIM Analyzer. Tightening with a torque wrench is not recommended. | ||||||||||||||
| ENVIRONMENTAL | |||||||||||||||
| Temperature range | -10ºC to +50ºC | +14°F to +122°F (operational) | ||||||||||||||
ORDERING INFORMATION |
|||||||||||||||
| PART NUMBER | DESCRIPTION | ||||||||||||||
| R18-0836 | RUGGED, LOW PIM CABLE ASSEMBLY, 7/16 (M) TO 7/16 (M) | ||||||||||||||
| R18-0903 | RUGGED, LOW PIM CABLE ASSEMBLY, 7/16 (M) TO 4.3-10 (M) | ||||||||||||||
OPTIONAL ACCESSORIES – SOLD SEPARATELY |
|||||||||||||||
| PART NUMBER | DESCRIPTION | ||||||||||||||
| R92-0459 | Connector Cleaning Kit | ||||||||||||||
