BPA-0707A

Protection Filter/Band Pass Amplifier

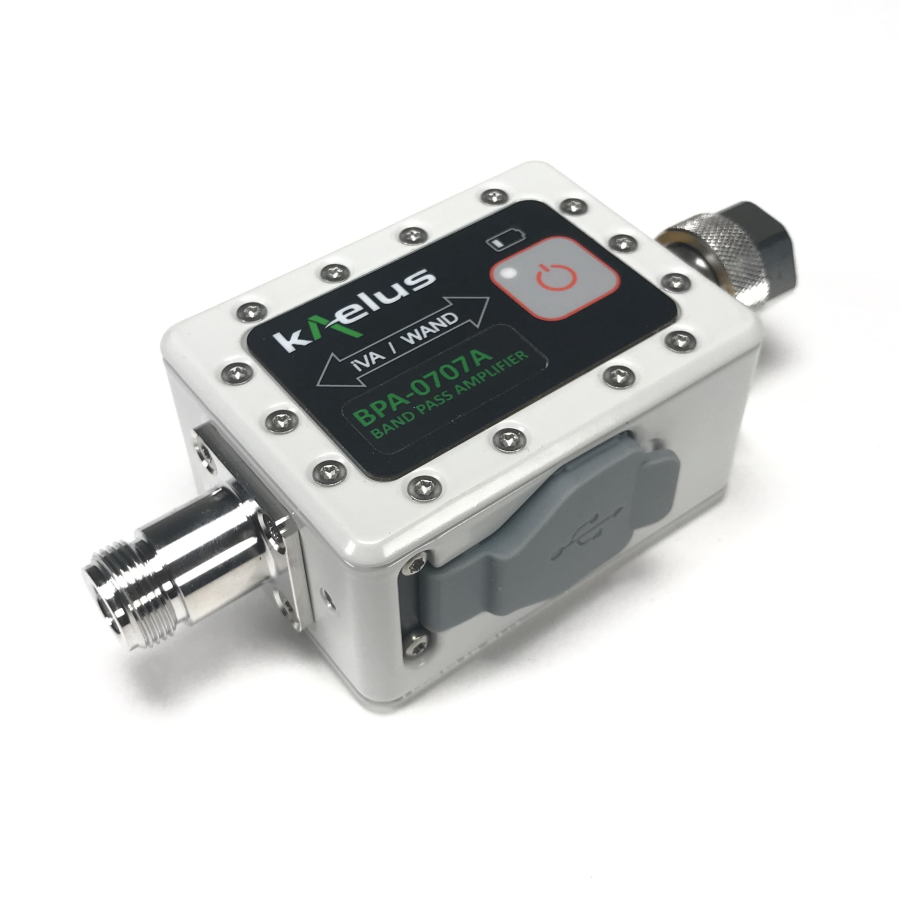

The BPA is a battery powered band pass filtered LNA. With greater than 60dB of rejection to the D/L tones in front of the LNA, the BPA-0707A and the antenna probe combine with the iVA to display external PIM products right where they are generated. It makes it easy to detect third order Passive Intermodulation (PIM) Products causing interference in a hostile multi tone test environment. This particular solution helps the Cellular, First Net and Public Safety networks in the 700MHz Band to coexist without interference. With a resultant low noise floor and large dynamic range, the user can walk around and find the offending external PIM source.

FEATURES

  • High rejection dual band filter
  • High IP3 LNA
  • iVA compatible
  • Standalone battery powered
  • Low battery indicator
  • USB Mini-B charging port

technical specifications
Frequency Bands Low Band High Band
rf specifications
Passband 698-716MHz 776-802MHz
Noise Figure 3.5dB 5.9dB
Gain 24dB Typ 20dB Typ
Gain variation ±2.0dB Typ
OIP3 +35dBm Typ
Input return loss 10dB Typ
Output return loss 15dB Typ
Rejection in the downlink band 728-757MHz 60dB
Rejection in the downlink band 757-764MHz 40dB Typ
Maximum input Power on RF port +10dBm, DC voltage ±30V
electrical
Battery Lithium-Ion 3.6V, 2350 mAh, 8.5Wh
Battery charging method USB-compatible power source connected to USB Mini-B port of BPA
Battery operating time 8 Hours at typical usage factor
interface ports
RF input connector Type N male, 50 Ohms
RF output connector Type N female, 50 Ohms
Battery charging port USB Mini-B receptacle
mechanical
Dimensions H x D x W 76 x 56 x 39 mm | 2.97 x 2.20 x 1.54 in
Weight 0.4 kg | 0.88 lbs
environmental
Temperature range -10°C to +55°C | +14°F to +131°F (operational)
Ingress protection IP54
Operational humidity 5% to 95% RH non-condensing
Storage temperature range -20°C to +60°C | -4°F to +140°F
ordering information
Part Number Description
BPA-0707A Band Pass Amplifier 700MHz Low /High Bands
Contact Kaelus at 1.303.768.8080 or +1.800.498.1352 to obtain addtional information, request a quote or receive unit pricing on the Kaelus Band Pass Amplifiers.
