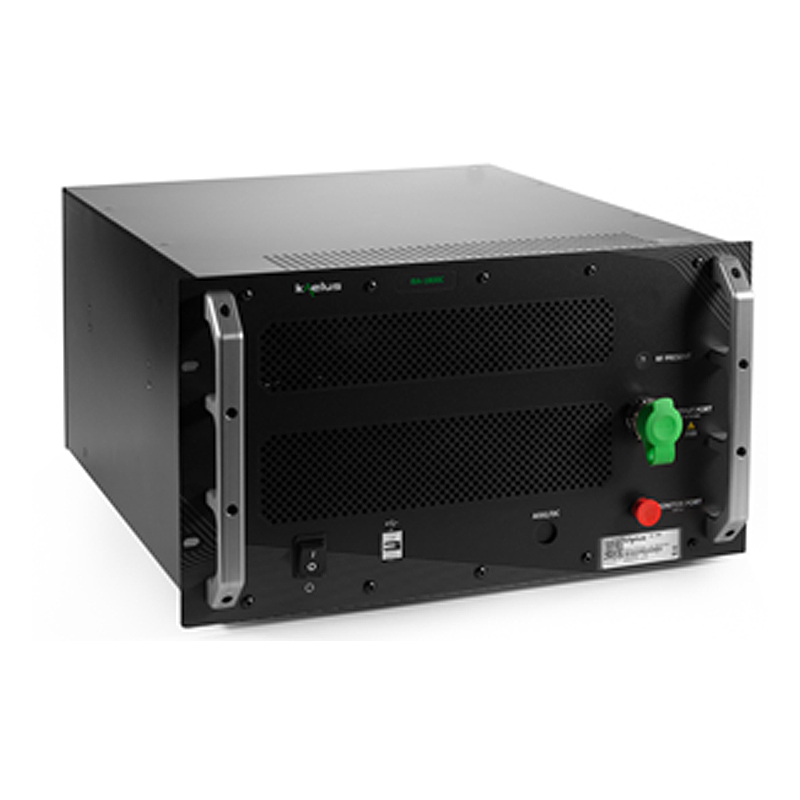

BENCH TOP PIM ANALYZER

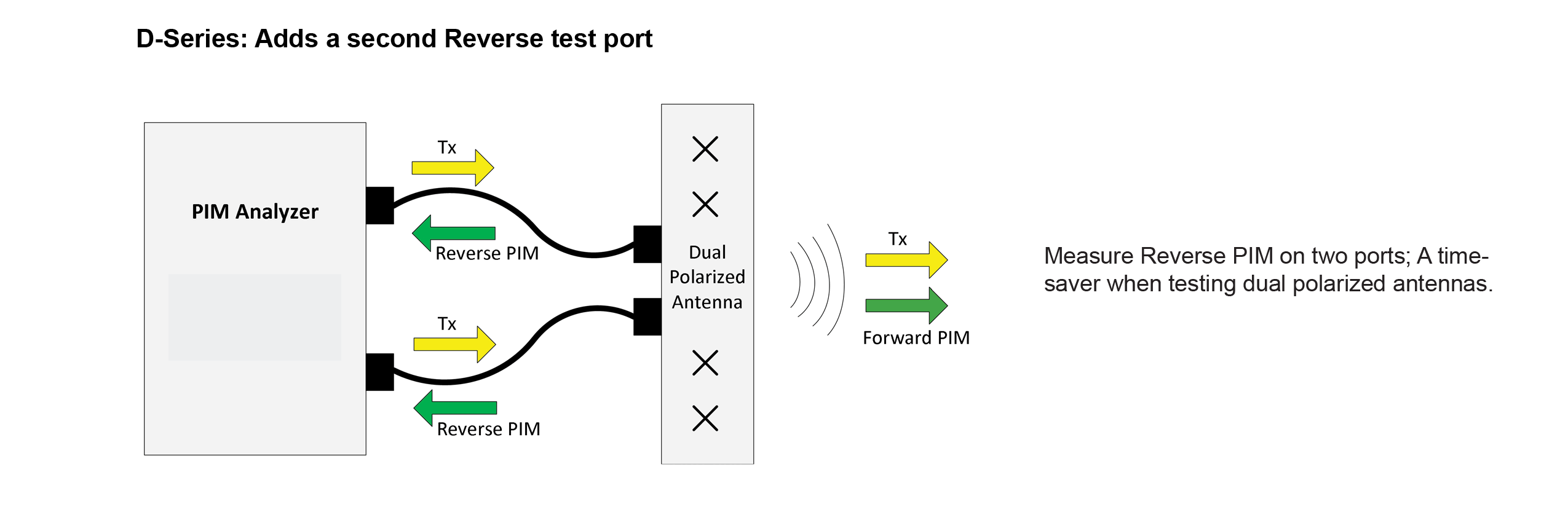

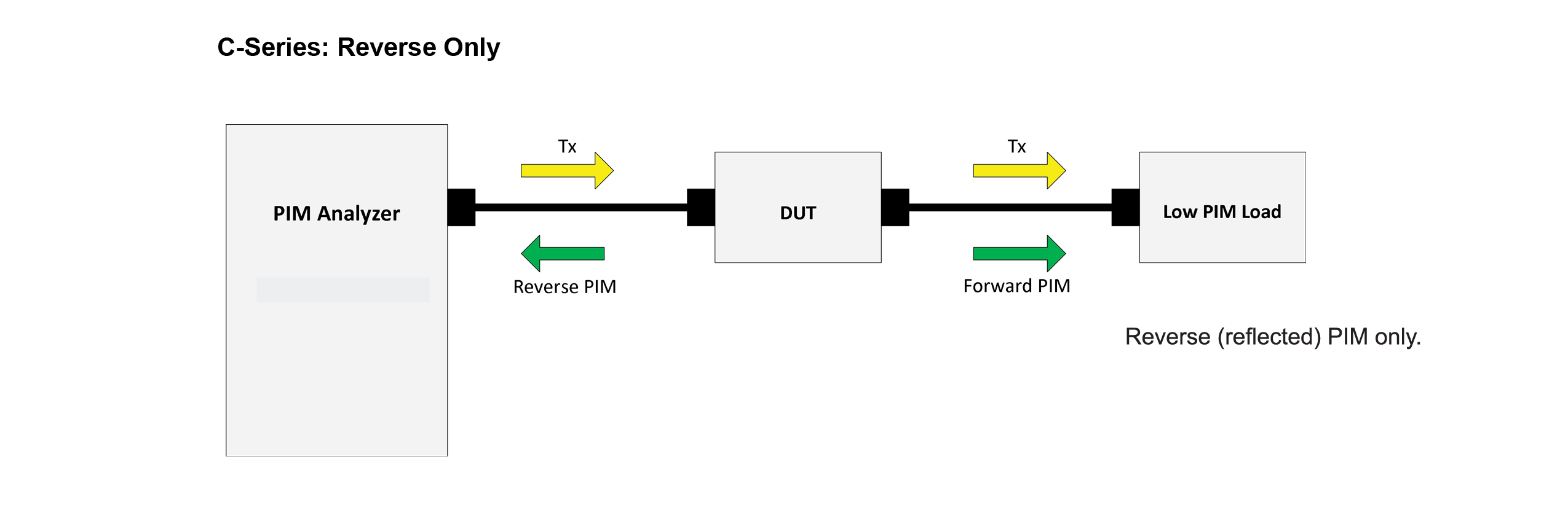

The C Band iBA 40W PIM Analyzers are a complete bench top and rack mounting PIM test solution used with a system controller and intuitive user software. The iBA base model (C-Series) measures Reverse/reflected IM only. The D-Series adds a second test port to support a Reverse IM measurement on either port and a forward IM measurement port-to-port.
FEATURES
- C-Series: Single port unit for reflected PIM testing
- D-Series: Dual port unit for reflected and foward PIM measurements
- Fully configurable frequencies, power and IM products
- Up to 2 x 46dBm power output
- Frequency sweep and time trace modes
- Open circuit protection up to 1 hour with power turned on
- Kaelus API for easy integration with ATE systems
- Kaelus PIM server software offers the Engineering and Production modes for flexible user interface.
PRODUCT RESOURCES |
TECHNICAL SPECIFICATIONS |
| SYSTEM | |||||||||||||||
| Residual PIM (2 x 40W) | min< -168 dBc(-122dBm), typical < -171 dBc(-125dBm) | ||||||||||||||
| IM order | 3rd, 5th, 7th and 9th order | ||||||||||||||
| User interface ports | 1 x USB Type A | ||||||||||||||
| Test ports | C-Series: 1 x RF Output (7-16 DIN Female); D-Series: 2 x RF Output (7-16 DIN Female) | ||||||||||||||
TRANSMITTER |
|||||||||||||||
| Transmit frequencies | iBA-3500 TX1: 3520 – 3540MHz TX2: 3560 – 3600MHz |
iBA-3501 TX1: 3660 – 3700MHz TX2: 3730 – 3800MHz |
|||||||||||||
| Frequency increment | 100kHz | ||||||||||||||
| Frequency accuracy | ± 5ppm maximum, aging ± 1ppm maximum after first year | ||||||||||||||
| Power per tone (adjustable) | +30 to +46dBm | 1W to 40W | ||||||||||||||
| Power accuracy (per tone) | ± 0.35dB | ||||||||||||||
RECEIVER |
|||||||||||||||
| Receive band (100kHz steps) | iBA-3500 Low Side Reciever 3400-3480MHz |
iBA-3501 Low Side Receiver 3500-3600 MHz High Side Receiver 3850 – 3980MHz |
|||||||||||||
| Measurement noise floor | < -130 dBm (-135 dBm typical) | ||||||||||||||
| Measurement range | -48 to -130dBm | ||||||||||||||
ELECTRICAL |
|||||||||||||||
| Mains power | 100 – 240V, 50 – 60Hz AC | ||||||||||||||
| Power consumption | 1050W (Maximum) | ||||||||||||||
MECHANICAL |
|||||||||||||||
| Dimensions H x D x W | C-Series- 264.2 x 508 x 482.6mm | 10.4 x 20 x 19in D-Series- 355.3 x 508 x 482.6mm | 14 x 20 x 19in |
||||||||||||||
| Weight | C-Series- 22.7kg | 50lbs D-Series- 31.3kg | 69lbs |
||||||||||||||
| Cooling | Forced air (100mm gap to be maintained at the rear when rack mounted, 1U spacing recommended between units) | ||||||||||||||
ENVIRONMENTAL |
|||||||||||||||
| Temperature range | +10ºC to +40ºC | +50°F to +104°F (operating) | ||||||||||||||
| Ingress protection | Indoor use (or similar protected outdoor environment) | ||||||||||||||
| Operational humidity | 5% to 90% non-condensing | ||||||||||||||
| Storage temperature range | -20°C to +60°C | -4°F to +140°F | ||||||||||||||
PRODUCT |
| ORDERING INFORMATION | |||||||||||||||
| iBA-3500 | TX1: 3520 -3540MHz TX2: 3560-3600MHz. | RX: 3400 – 3480MHz | |||||||||||||
| iBA-3501 | TX1: 3660 – 3700MHz TX2: 3730 – 3800MHz | RX1: 3500 – 3600MHz RX2 3850 – 3980MHz | |||||||||||||

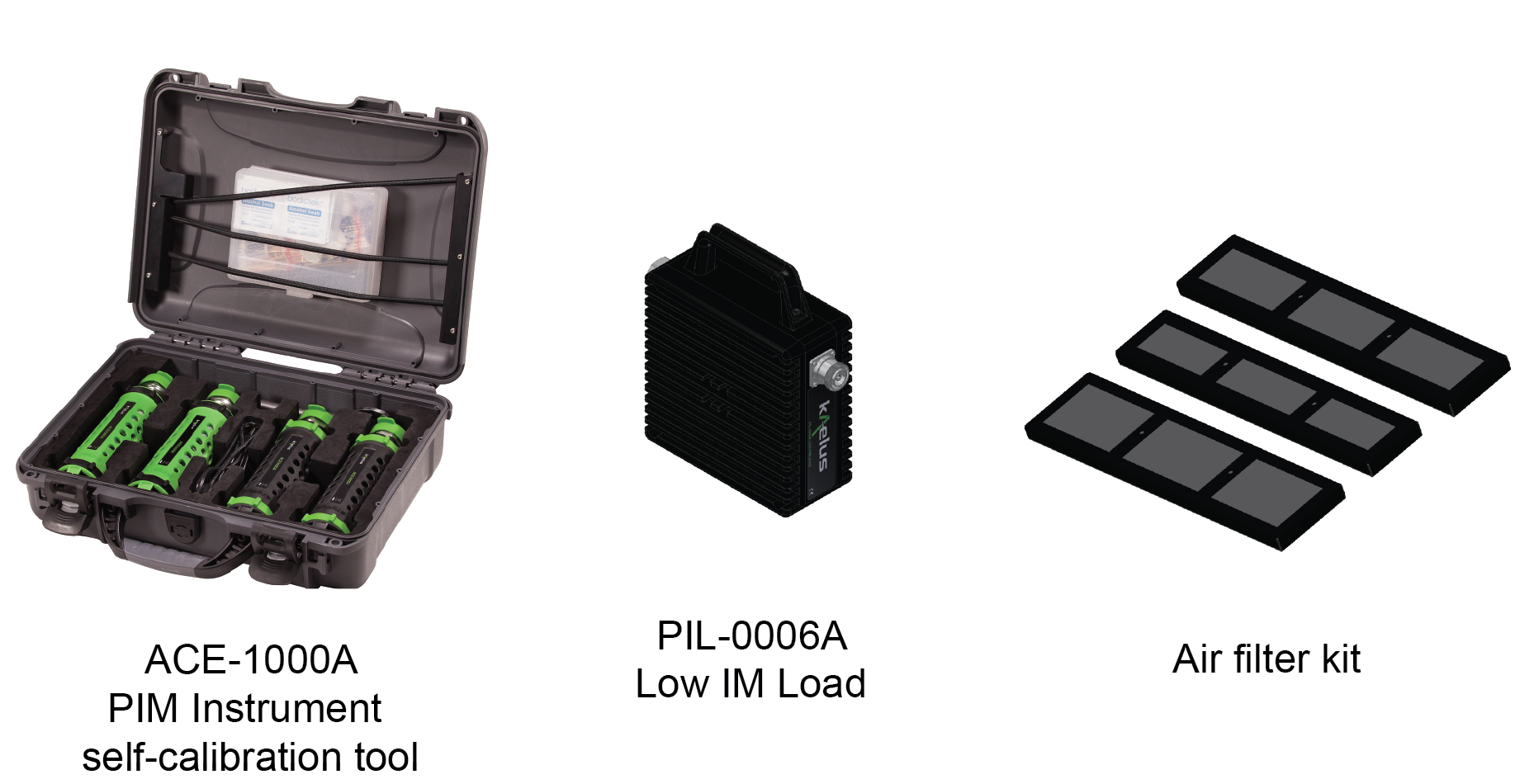

| PIL-0006 | Low IM Load | ||||||||||||||
| R92-0725 | Air filter kit – iBA C Series | ||||||||||||||
| R92-0726 | Air filter kit – iBA D Series | ||||||||||||||
| CA123506 | Outdoor case for C Band(3500MHz) iBAs | ||||||||||||||
| ACE-1000A | PIM Instrument self-calibration tool | Highly recommended accessory | |||||||||||||
