BENCH TOP PIM ANALYZERS

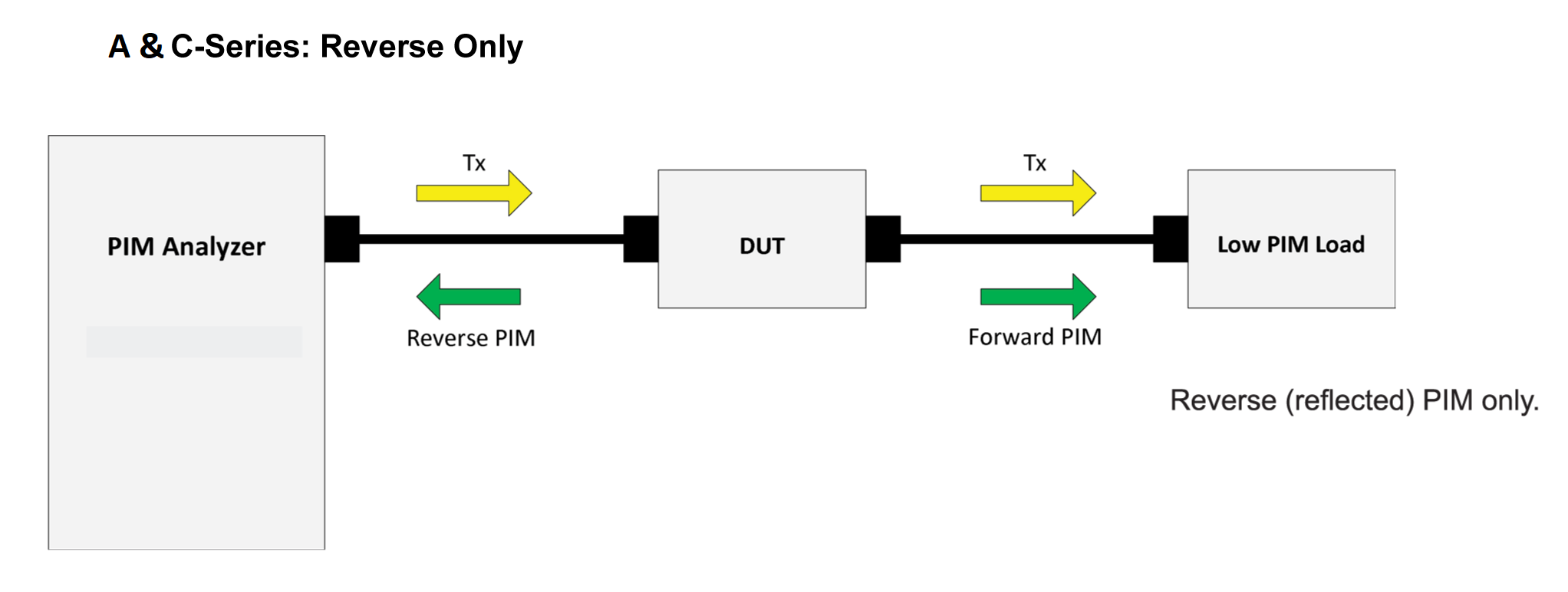

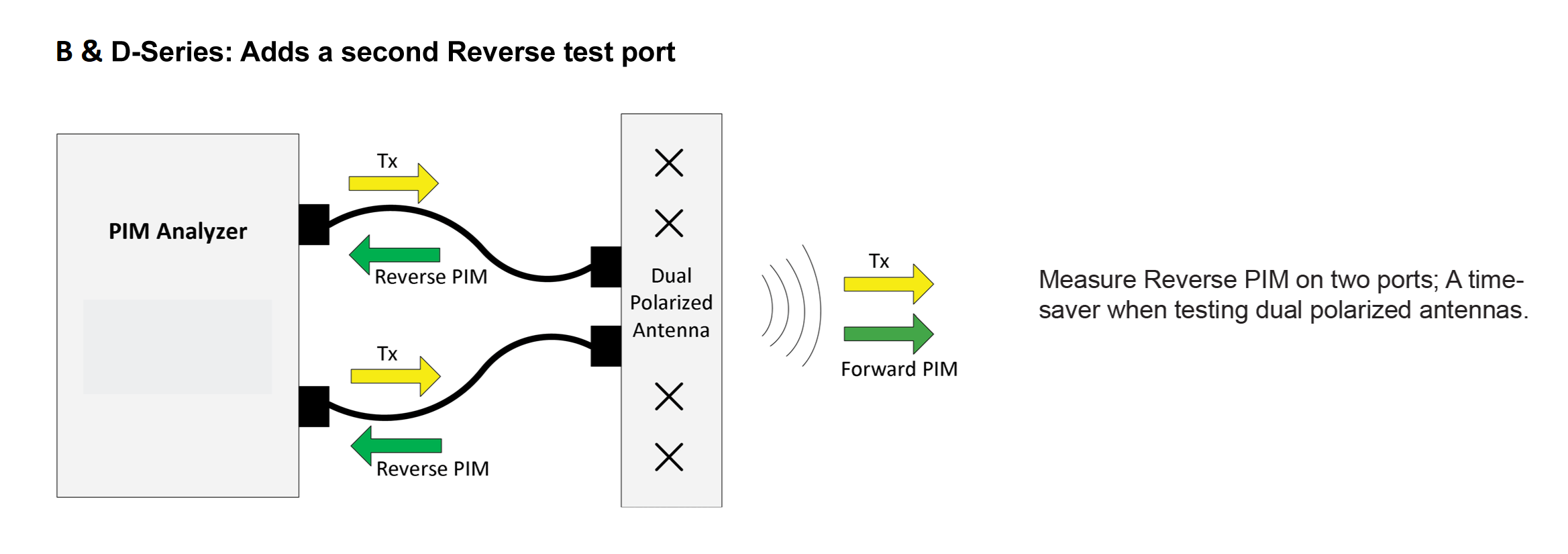

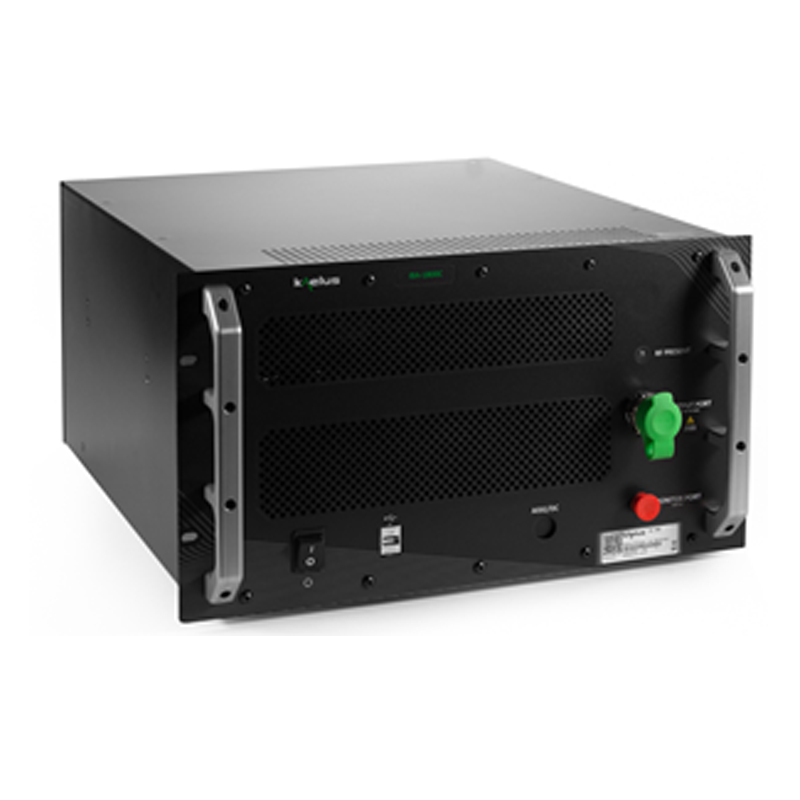

The iBA Series PIM Analyzer is a complete bench top and rack mounting PIM test solution used with a system controller* and intuitive user software. This economical solution comes in model variations that cover all major commercial wireless bands. The iBA base model (A-Series) measures Reverse/reflected IM only. The B-Series adds a second test port to support a Reverse IM measurement on either port and a forward IM measurement port-to-port. Both the A & B Series can be fitted with optional internal DC/AISG Bias Tee.
FEATURES
- Fully integrated system in compact size
- Fully configurable frequencies, power and IM products
- USB control interface
- Frequency sweep and time trace modes
- Range to Fault (RTF) optional accessory, allows users to measure distance to Return Loss and PIM Fault
- Optional internal DC / AISG Bias-Tee
- Compatible with ACE calibration tool
PRODUCT RESOURCES |
TECHNICAL SPECIFICATIONS |
| SYSTEM | |||||||||||||||
| Measurement method | A-Series: Reverse (Reflected) PIM | B-Series: Port 1 Reverse; Port 2 Reverse; Port-to-Port Forward PIM | ||||||||||||||
| Residual PIM | < -125dBm (@2x43dBm) iBA-2600A & B < -125dBm / over 90% of the band (@2x43dBm) |
||||||||||||||
| IM order | 3rd, 5th, 7th, 9th and 11th order | ||||||||||||||
| User interface ports | 1 x USB Type B, 1 x USB Type A, 1x Monitor Port (N Female). Bias-Tee Option: 1 x AISG / DC on 8 Pin DIN Female |
||||||||||||||
| Test ports | A-Series: 1 x RF Output (7-16 DIN Female); B-Series: 2 x RF Output (7-16 DIN Female) | ||||||||||||||
TRANSMITTER |
|||||||||||||||
| Transmit frequencies | Refer to iBA series model table | ||||||||||||||
| Frequency increment | 100kHz | ||||||||||||||
| Frequency accuracy | ± 5ppm maximum, aging ± 1ppm maximum after first year | ||||||||||||||
| Power per tone (adjustable) | +20 to +44dBm | 0.1W to 25W (Effective June 28, 2018) +30 to +44dBm | 1W to 25W (Units manufactured before June 28, 2018) |
||||||||||||||
| Power accuracy (per tone) | ± 0.35dB | ||||||||||||||
RECEIVER |
|||||||||||||||
| Receive band (100kHz steps) | Refer to iBA Series Model Table | ||||||||||||||
| Measurement noise floor | < -130 dBm (-135 dBm, typical) | ||||||||||||||
| Measurement range | -55dBm to -130dBm | ||||||||||||||
ELECTRICAL |
|||||||||||||||
| Mains power | 115 – 230V, 50 – 60Hz AC | ||||||||||||||
| Power consumption | 800W | ||||||||||||||
MECHANICAL |
|||||||||||||||
| Dimensions H x D x W | A series- 175.3 x 508 x 482.6mm | 6.9 x 20 x 19in B series- 264.2 x 508 x 482.6mm | 10.4 x 20 x 19in |
||||||||||||||
| Weight | A series- 22.7kg | 50lbs B series- 30kg | 66lbs |
||||||||||||||
| Cooling | Forced air (100mm gap to be maintained at the rear when rack mounted, 1U spacing recommended between units) | ||||||||||||||
ENVIRONMENTAL |
|||||||||||||||
| Temperature range | +10ºC to +40ºC | +50°F to +104°F (operating) | ||||||||||||||
| Ingress protection | Indoor use (or similar protected outdoor environment) | ||||||||||||||
| Operational humidity | 5% to 90% non-condensing | ||||||||||||||
| Storage temperature range | -20°C to +60°C | -4°F to +140°F | ||||||||||||||
IBA A-SERIES MODELS |
|||||||||||||||
| Reverse IM only | |||||||||||||||
| MODEL | TX RANGE | RX RANGE (PIM) | IM ORDER | RTF MODULE | |||||||||||
| iBA-0700LA | 728-746MHz | 698-716MHz | 3rd, 5th, 7th, 9th, 11th | RTF-1000 | |||||||||||
| iBA-0700HA | 728-757MHz | 776-787MHz | 3rd, 5th, 7th, 9th, 11th | RTF-1000 | |||||||||||
| iBA-0703A | 758-803MHz | 703-748MHz | 3rd, 5th, 7th, 9th, 11th | RTF-1000 | |||||||||||
| iBA-0790A | 791-821MHz | 832-862MHz | 3rd, 5th, 7th, 9th, 11th | RTF-1000 | |||||||||||
| iBA-0850A | 869-894MHz | 824-849MHz | 3rd, 5th, 7th, 9th, 11th | RTF-1000 | |||||||||||
| iBA-0901A | 925-960MHz | 880-915MHz | 3rd, 5th, 7th, 9th, 11th | RTF-1000 | |||||||||||
| iBA-1800A | 1805-1880MHz | 1710-1785MHz | 3rd, 5th, 7th, 9th, 11th | RTF-2000 | |||||||||||
| iBA-1921A | 1930-1990MHz / 2110-2155MHz | 1710-1755MHz / 1850-1910MHz | 3rd, 5th, 7th, 9th, 11th | RTF-2000 | |||||||||||
| iBA-2101A | 2110-2170MHz | 1920-2080MHz | 3rd, 5th, 7th, 9th, 11th | RTF-2000 | |||||||||||
| iBA-2600A | 2620-2690MHz | 2500-2570MHz | 3rd, 5th, 7th, 9th, 11th | RTF-2600 | |||||||||||
IBA B-SERIES MODELS |
|||||||||||||||
| Reverse IM on port 1 and port 2, Forward IM on port 1 to port 2 | |||||||||||||||
| MODEL | TX RANGE | RX RANGE (PIM) | IM ORDER | RTF MODULE | |||||||||||
| iBA-0700LB | 728-746MHz | 698-716MHz | 3rd, 5th, 7th, 9th, 11th | RTF-1000 | |||||||||||
| iBA-0700HB | 728-757MHz | 776-787MHz | 3rd, 5th, 7th, 9th, 11th | RTF-1000 | |||||||||||
| iBA-0703B | 758-803MHz | 703-748MHz | 3rd, 5th, 7th, 9th, 11th | RTF-1000 | |||||||||||
| iBA-0790B | 791-821MHz | 832-862MHz | 3rd, 5th, 7th, 9th, 11th | RTF-1000 | |||||||||||
| iBA-0850B | 869-894MHz | 824-849MHz | 3rd, 5th, 7th, 9th, 11th | RTF-1000 | |||||||||||
| iBA-0901B | 925-960MHz | 880-915MHz | 3rd, 5th, 7th, 9th, 11th | RTF-1000 | |||||||||||
| iBA-1800B | 1805-1880MHz | 1710-1785MHz | 3rd, 5th, 7th, 9th, 11th | RTF-2000 | |||||||||||
| iBA-1921B | 1930-1990MHz / 2110-2155MHz | 1710-1755MHz / 1850-1910MHz | 3rd, 5th, 7th, 9th, 11th | RTF-2000 | |||||||||||
| iBA-2101B | 2110-2170MHz | 1920-2080MHz | 3rd, 5th, 7th, 9th, 11th | RTF-2000 | |||||||||||
| iBA-2600B | 2620-2690MHz | 2500-2570MHz | 3rd, 5th, 7th, 9th, 11th | RTF-2600 | |||||||||||

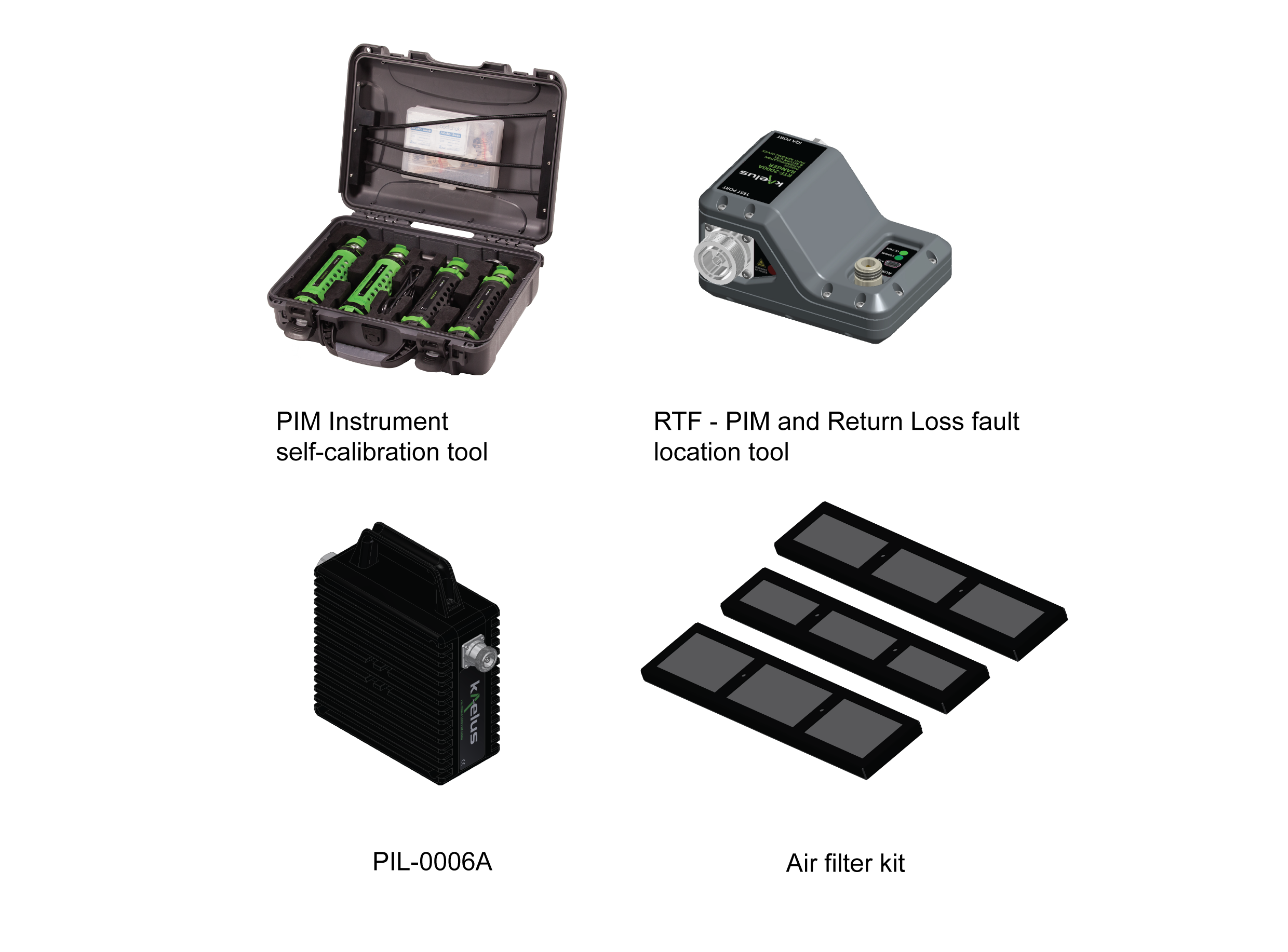

ORDERING INFORMATION |
|||||||||||||||
| ACE-1000A | PIM Instrument self-calibration tool Highly recommended accessory |
||||||||||||||
| RTF | Range To Fault PIM and Return Loss fault location tool |
||||||||||||||
| PIL-0006 | Low Passive Intermodulation Termination 610MHz – 4000MHz |
||||||||||||||
| R92-0724 | Air filter kit – iBA A Series | ||||||||||||||
| R92-0725 | Air filter kit – iBA B Series | ||||||||||||||
