BENCH TOP PIM ANALYZERS

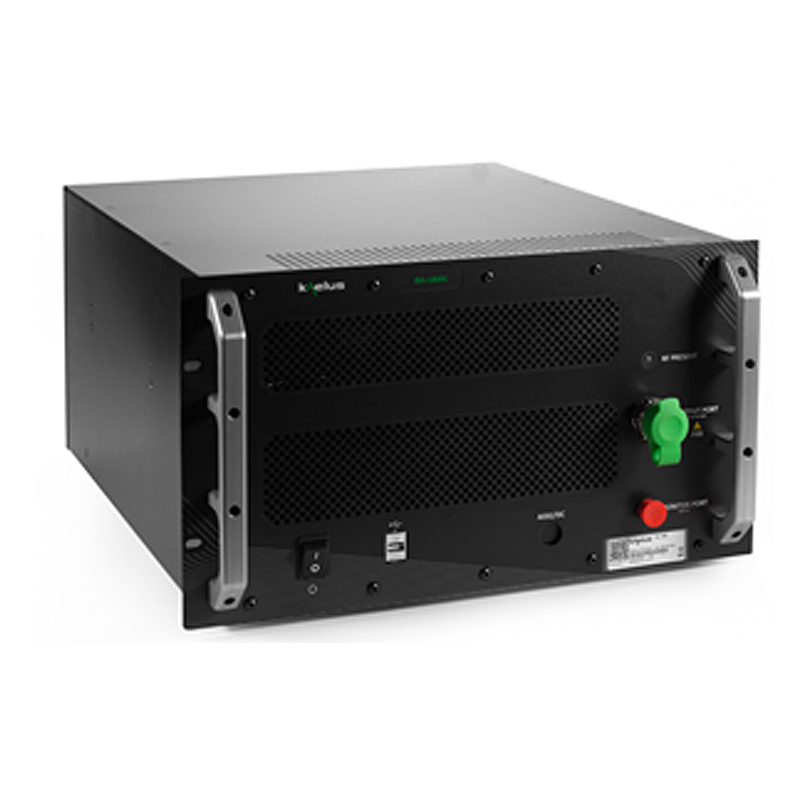

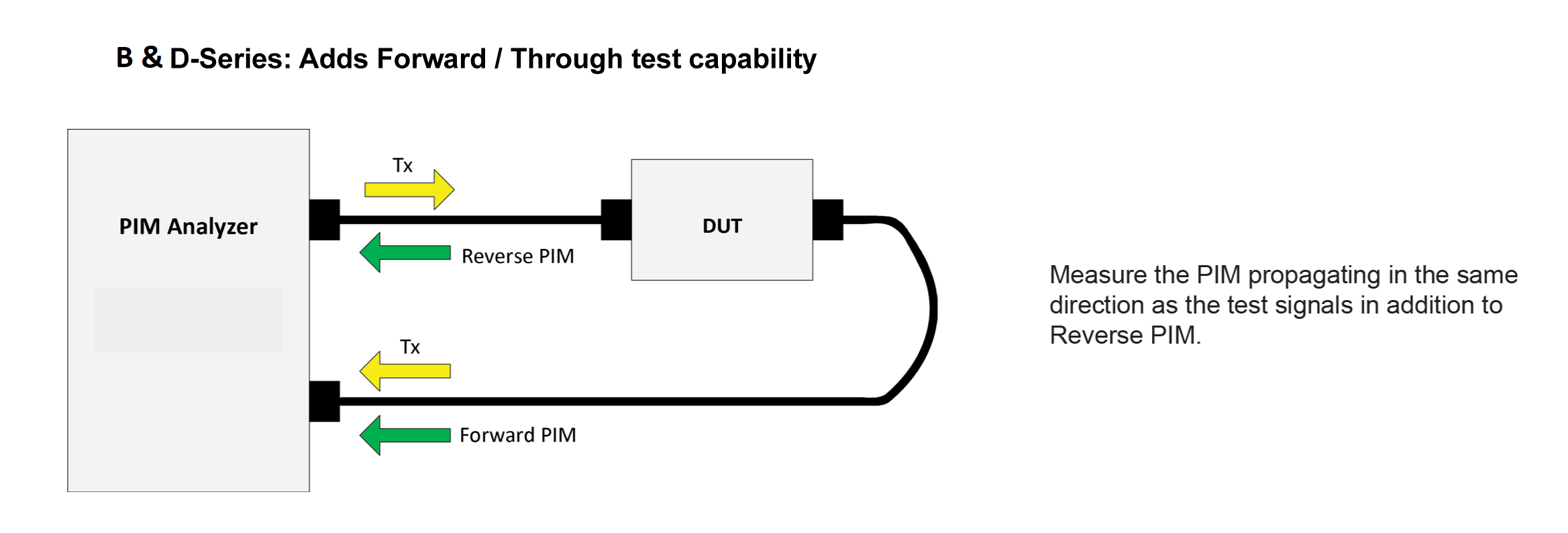

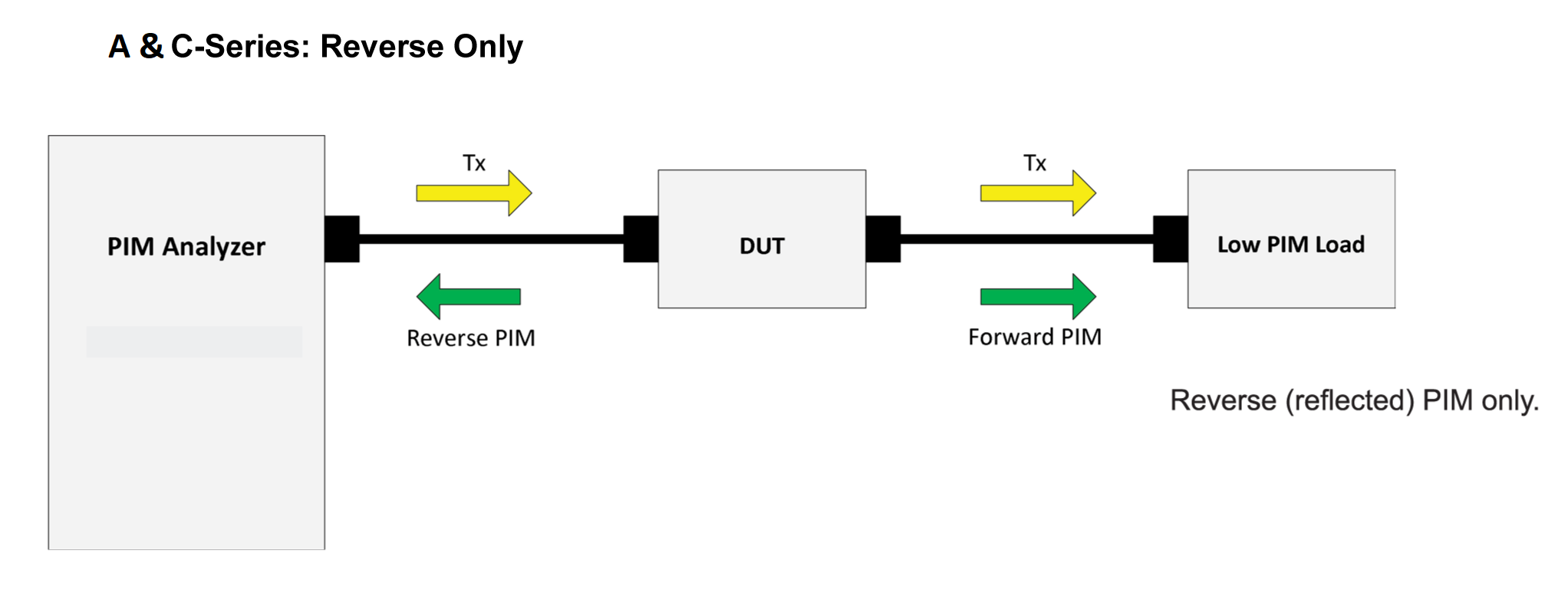

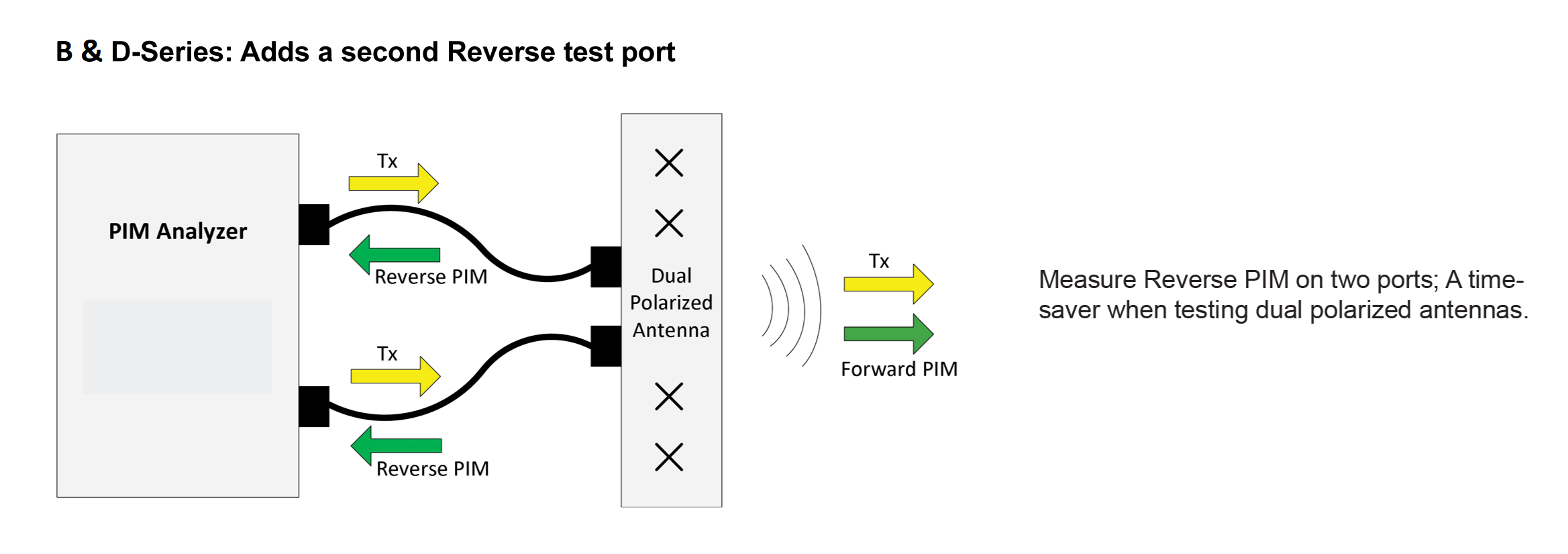

The iBA Series 40W PIM Analyzer is a complete bench top and rack mounting PIM test solution used with a system controller and intuitive user software. This economical solution comes in model variations that cover all major commercial wireless bands. The iBA base model (C-Series) measures Reverse/reflected IM only. The D-Series adds a second test port to support a Reverse IM measurement on either port and a forward IM measurement port-to-port. Both the C & D Series can be fitted with optional internal DC/AISG Bias Tee.
FEATURES
- Fully integrated system in compact size
- Fully configurable frequencies, power and IM products
- USB control interface
- Frequency sweep and time trace modes
- Range to Fault (RTF) optional accessory, allows users to measure distance to Return Loss and PIM Fault
- Optional internal DC / AISG Bias-Tee
- +46dBm Ouptut Power (Max)
- Compatible with ACE calibration tool
- NEW! iBA-1400 added for LTE Band 74
PRODUCT RESOURCES |
TECHNICAL SPECIFICATIONS |
| SYSTEM | |||||||||||||||
| Measurement method | C-Series: Reverse (Reflected) PIM | D-Series: Port 1 Reverse; Port 2 Reverse; Port-to-Port Forward PIM | ||||||||||||||
| Residual PIM | < -125dBm (@2x43dBm) | ||||||||||||||
| IM order | 3rd, 5th and 7th Order | ||||||||||||||
| User interface ports | 1 x USB Type B, 1 x USB Type A, 1x Monitor Port (N Female). Bias-Tee Option: 1 x AISG / DC on 8 Pin DIN Female |
||||||||||||||
| Test ports | C-Series: 1 x RF Output (7-16 DIN Female); D-Series: 2 x RF Output (7-16 DIN Female) | ||||||||||||||
TRANSMITTER |
|||||||||||||||
| Transmit frequencies | Refer to iBA series 40W model table | ||||||||||||||
| Frequency increment | 100kHz | ||||||||||||||
| Frequency accuracy | ± 5ppm maximum, aging ± 1ppm maximum after first year | ||||||||||||||
| Power per tone (adjustable) | +30 to +46dBm | 1W to 40W | ||||||||||||||
| Power accuracy (per tone) | ± 0.35dB | ||||||||||||||
RECEIVER |
|||||||||||||||
| Receive band (100kHz steps) | Refer to iBA Series Model Table | ||||||||||||||
| Measurement noise floor | < -130 dBm (-135 dBm, typical) | ||||||||||||||
| Measurement range | -55dBm to -130dBm | ||||||||||||||
ELECTRICAL |
|||||||||||||||
| Mains power | 100 – 240V, 50/60Hz AC | ||||||||||||||
| Power consumption | 700W (Maximum) | ||||||||||||||
MECHANICAL |
|||||||||||||||
| Dimensions H x D x W | C series- 264.2 x 508 x 482.6mm | 10.4 x 20 x 19in D series- 355.3 x 508 x 482.6mm | 14 x 20 x 19in |
||||||||||||||
| Weight | C series- 27.5kg | 60.5lbs D series- 38kg | 84lbs |
||||||||||||||
| Cooling | Forced air (100mm gap to be maintained at the rear when rack mounted, 1U spacing recommended between units) | ||||||||||||||
ENVIRONMENTAL |
|||||||||||||||
| Temperature range | +10ºC to +40ºC | +50°F to +104°F (operating) | ||||||||||||||
| Ingress protection | Indoor use (or similar protected outdoor environment) | ||||||||||||||
| Operational humidity | 5% to 90% non-condensing | ||||||||||||||
| Storage temperature range | -20°C to +60°C | -4°F to +140°F | ||||||||||||||
IBA C-SERIES MODELS |
|||||||||||||||
| C-SERIES(Single port) Reverse IM | |||||||||||||||
| MODEL | TX RANGE | RX RANGE (PIM) | IM ORDER | RTF MODULE | |||||||||||
| iBA-0600C | TX1 617-630MHz TX2 640-652MHz |
663-698MHz | IM3, IM5, IM7 | RTF-1000 | |||||||||||
| iBA-0703C | TX1 758-768MHz TX2 778-803MHz |
703-748MHZ | IM3, IM5, IM7 | RTF-1000 | |||||||||||
| iBA-0707C | TX1 728-731.5MHz TX2 741-764MHz |
Rx Low 698-716MHz Rx High 776-802MHz |
IM3, IM5, IM7 | RTF-1000 | |||||||||||
| iBA-0790C | TX1 791-796MHz TX2 808-821MHz |
832-862MHz | IM3, IM5, IM7, IM9 | Contact Kaelus | |||||||||||
| iBA-0850C | TX1 869MHz TX2 879-894MHz |
824-849MHz | IM3, IM5, IM7 | RTF-1000 | |||||||||||
| iBA-0852C | TX1 859-869MHz TX2 879-894MHz |
814-849MHz | IM3, IM5, IM7 | Contact Kaelus | |||||||||||
| iBA-0901C | TX1 925-935MHz TX2 945-960MHz |
880-915MHz | IM3, IM5, IM7 | RTF-1000 | |||||||||||
| iBA-1400C | TX1 1475-1491MHz TX2 1500-1517MHz |
1427-1465MHz | IM3, IM5, IM7, IM9 | Contact Kaelus | |||||||||||
| iBA-1800C | TX1 1805-1812MHz TX2 1825-1880MHz |
1710-1785MHz | IM3, IM5, IM7 | RTF-2000 | |||||||||||
| iBA-1921C | PCS TX1 1930-1950MHz TX2 1970-1990MHz AWS TX1 1930-1950MHz TX2 2110-2155MHz |
PCS 1850-1910MHz AWS |
IM3. IM5, IM7 | RTF-2000 | |||||||||||
| iBA-2101C | TX1 2110-2130MHz TX2 2150-2170MHz |
1920-2080MHz | IM3. IM5, IM7 | RTF-2000 | |||||||||||
| iBA-2600C | TX1 2620-2630MHz TX2 2650-2690MHz |
2500-2570MHz | IM3. IM5, IM7 | RTF-2600 | |||||||||||
IBA D-SERIES MODELS |
|||||||||||||||
| D-SERIES(Dual Port) Forward and Reverse IM on ports 1 and 2 | |||||||||||||||
| MODEL | TX RANGE | RX RANGE (PIM) | IM ORDER | RTF MODULE | |||||||||||
| iBA-0600D | TX1 617-630MHz TX2 640-652MHz |
663-698MHz | IM3, IM5, IM7 | RTF-1000 | |||||||||||
| iBA-0703D | TX1 758-768MHz TX2 778-803MHz |
703-748MHz | IM3, IM5, IM7 | RTF-1000 | |||||||||||
| iBA-0707D | TX1 728-731.5MHz TX2 741-764MHz |
Rx Low 698-716MHz Rx High 776-802MHz |
IM3, IM5, IM7 | RTF-1000 | |||||||||||
| iBA-0790D | TX1 791-796MHz TX2 808-821MHz |
832-862MHz | IM3, IM5, IM7, IM9 | Contact Kaelus | |||||||||||
| iBA-0850D | TX1 869MHz TX2 879-894MHz |
824-849MHz | IM3, IM5, IM7 | RTF-1000 | |||||||||||
| iBA-0852D | TX1 859-869MHz TX2 879-894MHz |
814-849MHz | IM3, IM5, IM7, IM9 | Contact Kaelus | |||||||||||
| iBA-0901D | TX1 925-935MHz TX2 945-960MHz |
880-915MHz | IM3, IM5, IM7 | RTF-1000 | |||||||||||
| iBA-1400D | TX1 1475-1491MHz TX2 1500-1517MHz |
1427-1465MHz | IM3, IM5, IM7, IM9 | Contact Kaelus | |||||||||||
| iBA-1800D | TX1 1805-1812MHz TX2 1825-1880MHz |
1710-1785MHz | IM3, IM5, IM7 | RTF-2000 | |||||||||||
| iBA-1921D | PCS TX1 1930-1950MHz TX2 1970-1990MHz AWS TX1 1930-1950MHz TX2 2110-2155MHz |
PCS 1850-1910MHz AWS |
IM3. IM5, IM7 | RTF-2000 | |||||||||||
| iBA-2101D | TX1 2110-2130MHz TX2 2150-2170MHz |
1920-2080MHz | IM3. IM5, IM7 | RTF-2000 | |||||||||||
| iBA-2600D | TX1 2620-2630MHz TX2 2650-2690MHz |
2500-2570MHz | IM3. IM5, IM7 | RTF-2600 | |||||||||||

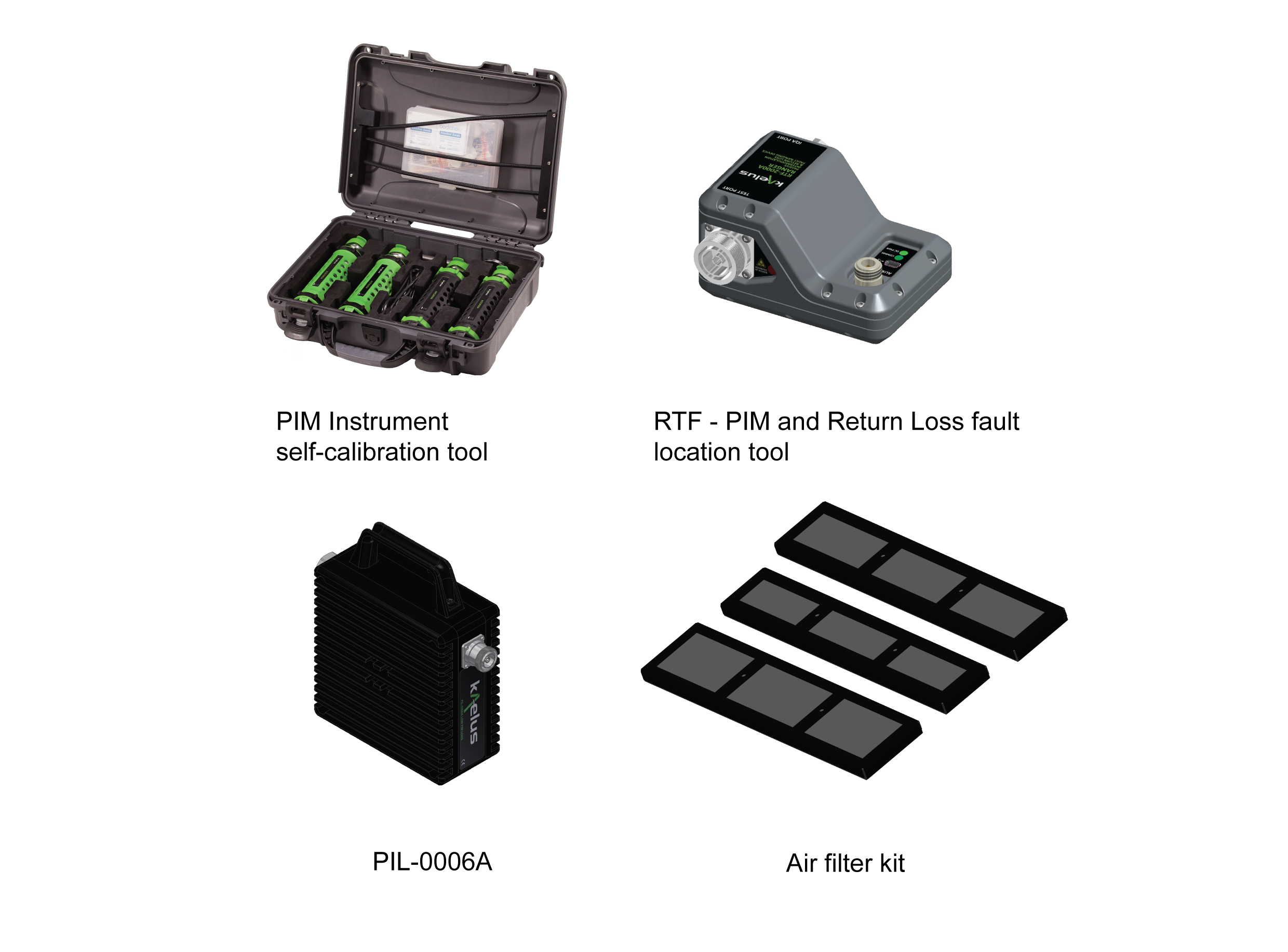

ORDERING INFORMATION |
|||||||||||||||
| ACE-1000A | PIM Instrument self-calibration tool Highly recommended accessory |
Note: Existing ACE kits will need to be re-charactirsied by Kaelus for the iBA-1400 | |||||||||||||
| RTF | Range To Fault PIM and Return Loss fault location tool |
||||||||||||||
| PIL-0006 | Low Passive Intermodulation Termination 610MHz – 4000MHz |
||||||||||||||
| R92-0725 | Air filter kit – iBA C Series | ||||||||||||||
| R92-0726 | Air filter kit – iBA D Series | ||||||||||||||
