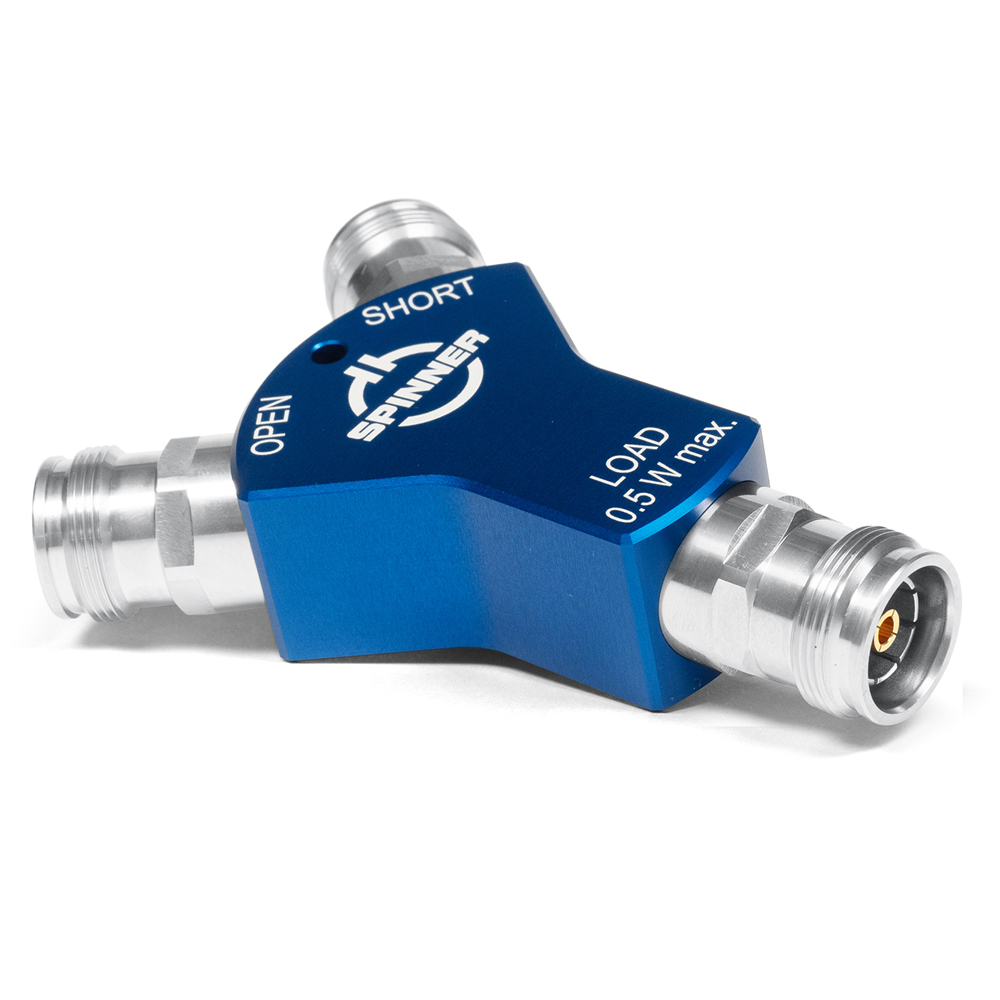

Introducing the Spinner OSL Compact Calibration Kits, precision tools engineered to ensure accurate and reliable calibration for your iVA cable and antenna analyzer. These calibration kits are meticulously designed to meet the highest industry standards, guaranteeing optimal performance in RF testing and measurements.
The calibration kits feature advanced Open-Short-Load (OSL) technology, enabling quick and straightforward calibration procedures. With their compact and portable design, these kits offer unparalleled convenience for field and laboratory applications.
Crafted with precision and built to last, these calibration kits are the perfect companions for your iVA cable and antenna analyzer, delivering consistently accurate results and minimizing measurement uncertainties.
Features:
- Wide frequency range: DC to 7.5GHz
- Compact Open Short Load standards in one handy unit
| Frequency range |
DC to 7.5GHz |
| Phase Deviation |
2deg max @DC to 4GHz
3deg max @4GHz to 7.5GHz |
| Phase Deviation |
1.5deg max @DC to 4GHz
2.5deg max @4GHz to 7.5GHz |
| DC – Resistance |
50Ohms +/- 0.5Ohms |
| Return Loss |
40dB min @DC to 6GHz
35dB min @6 to 7.5GHz |
| Power rating |
0.5W max |
| Calibration Kit part number |
R29-4455 |
CA123899 |
| Calibration Kit Connector |
N type female |
4.3-10 female |
| OSL Kit selection in Kaelus Unify app |
Spinner BN-533863 N(f) |
Spinner BN-533336 4.30 (f) |
| Temperature range |
-10°C to +55°C | +14°F to +131°F (operational) |
| Weight |
0.2kg | 0.44lb approx. |
| Connectors |
See ordering information |
| PART NUMBER |
DESCRIPTION |
| R29-4455 |

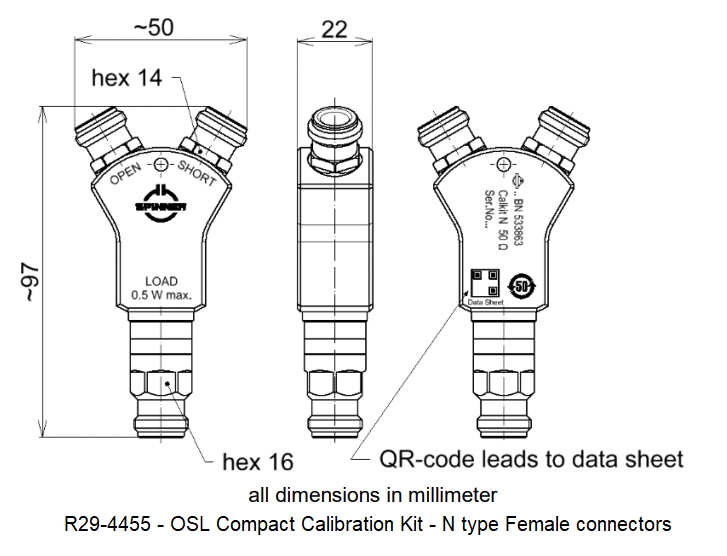

Compact OSL calibration Kit – N Female |
| CA123899 |

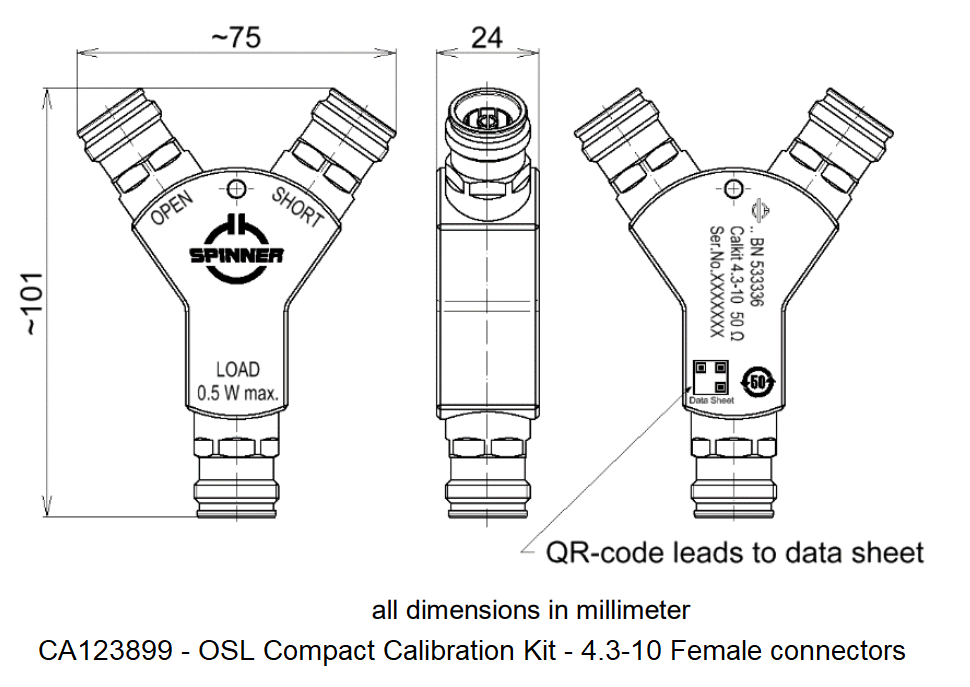

Compact OSL calibration Kit – 4.3-10 Female |
