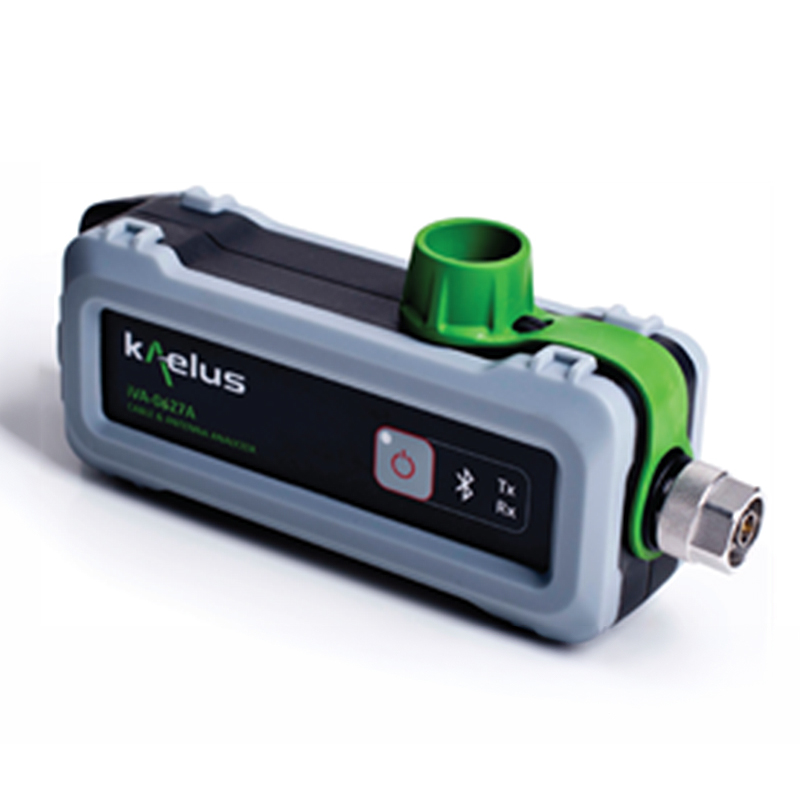

CABLE AND ANTENNA ANALYZER WITH TRANSMISSION MODE
The iVA-TMA is a software option that adds Transmission Mode measurement capability to the iVA Cable and Antenna Analyzer. The iVA-TMA includes all of the existing features of the base iVA model, plus a suite of multi-port Transmission testing options.

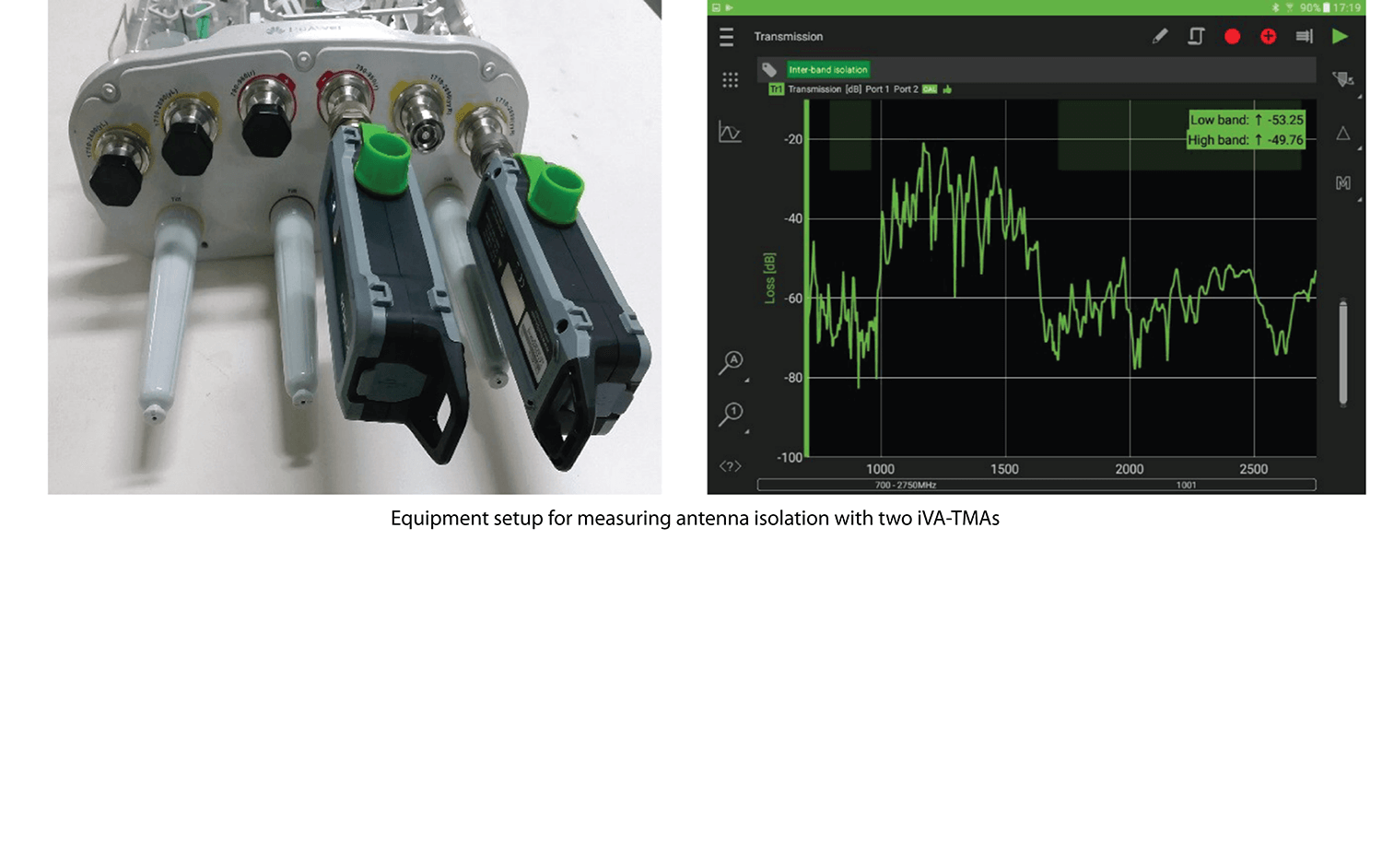

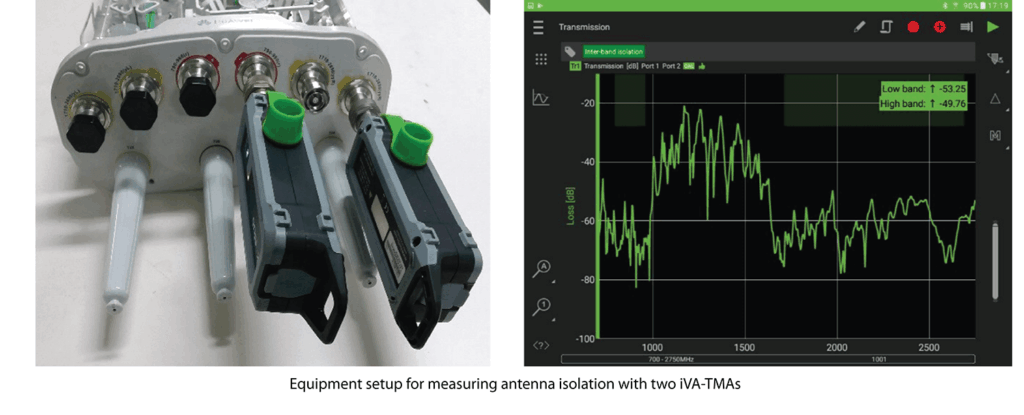

Transmission mode enables two or more iVAs to operate in a coordinated fashion to perform accurate swept insertion loss, antenna isolation and antenna radiation pattern measurements.
Sample Testing Scenario:
6 iVAs with Transmission mode can be used to perform measurements on a multi-port antenna. This configuration covers all 36 transmission pathways (6×6), including return loss at each port (6 measurements) and the transmission loss between each possible pair of ports (30 measurements).
Transmission mode requires 2 or more iVA-TMAs.
FEATURES
- Directly measure insertion loss and isolation
- Up to 7 units can be connected together via Bluetooth
- Accurately measure transmission loss (Magnitude only)
- 90 dB dynamic range
- Comes with all features of base iVA
IVA-TMA TECHNICAL SPECIFICATIONS |
| IVA ANALYSIS MODE – MULTI-PORT TRANSMISSION | |||||||||||||||
| Sweep speed | 10 ms per frequency point | ||||||||||||||
| RF output power | 0 dBm ±3 dB | ||||||||||||||
| Dynamic range | 90 dB | ||||||||||||||
| Transmission loss measurement accuracy |
Accuracy specifications only applicable where return loss of DUT is greater than 10 dB. | ||||||||||||||
| 0 – 10 dB | ± 1 dB | ||||||||||||||
| 10 – 60 dB | ± 2 dB | ||||||||||||||
| 60 – 90 dB | ± 3 dB | ||||||||||||||
| Interference immunity | |||||||||||||||
| 0 – 60 dB | -5 dBm at 500 KHz offet from stimulus frequency | ||||||||||||||
| 60 – 100 dB | -25 dBm at 500 KHz offset from stimulus frequency | ||||||||||||||
BASE IVA SPECIFICATIONS |
| KEY SPECIFICATION – REFER TO BASE IVA DATASHEET FOR FULL SPECIFICATIONS | |||||||||||||||
| iVA analysis modes | Return Loss, VSWR, Cable Loss, Distance to Fault (DTF), Isolation, Spectrum Monitor | ||||||||||||||
| Frequency range | 560 – 2750MHz | ||||||||||||||
| Minimum frequency increment | 1kHz all modes | ||||||||||||||
| Number of measurement points | 1 to 2191 | ||||||||||||||
ELECTRICAL |
|||||||||||||||
| DC power consumption | |||||||||||||||
| Return loss mode | 4.7W | ||||||||||||||
| Transmission mode | 4.7W | ||||||||||||||
| Spectrum monitor mode | 3.7W | ||||||||||||||
| Standby (Idle) | 0.6W | ||||||||||||||
| Battery | Lithium-Ion 3.6V, 2350 mAh, 8.5Wh | ||||||||||||||
| Battery charging method | USB-compatible power source connected to USB port of iVA | ||||||||||||||
| Battery operating time | 8 Hours at typical usage factor | ||||||||||||||
INSTRUMENT CONTROL |
|||||||||||||||
| User interface | USB or Bluetooth supported user device with iVA application software installed | ||||||||||||||
| Supported devices | iPA Portable PIM Analyzer Tablet computer (iOS & Android) Smartphone (iOS & Android) PC, Windows 7,8 & 10 running .NET verson 4 or later |
||||||||||||||
| Communications interface to iVA | Bluetooth and USB 2.0 | ||||||||||||||
| Bluetooth antenna | Integrated into housing | ||||||||||||||
| Maximum input power on RF port | +23dBm maximum, DC voltage ±30V | ||||||||||||||
TECHNICAL SPECIFICATIONS |
| MECHANICAL | |||||||||||||||
| Dimensions H x D x W | 52 x 69.5 x 216mm | 2.06 x 2.73 x 8.51in | ||||||||||||||
| Weight | 0.68kg | 1.5 lbs | ||||||||||||||
| Connector 1 | RF test port iVA-0627A: Type N male, 50 ohms iVA-0627B: 4.3-10 male, 50 ohms |
||||||||||||||
| Connector 2 | USB 2.0 Mini-B (for charging and connection to iPA or PC) | ||||||||||||||
| Mechanical shock & vibration | MIL-PRF-28800F Class 2, ETS 300 019-2-1, -2, -7 | ||||||||||||||
ENVIRONMENTAL |
|||||||||||||||
| Temperature range | -10°C to +55°C | +14°F to +131°F (operational) | ||||||||||||||
| Ingress protection | IP54 | ||||||||||||||
| Altitude | 4600m | 15,000ft maximum | ||||||||||||||
| Compliance | EMC- EN 61326-1:2013, EN 61326-2-1:2013, EN 55022:2010 “Class A” EN 61000-4-2, 4-3, 4-4, 4-5, 4-6, 4-11 Safety- EN 61010-1:2012, EN 61010-030:2012 |
||||||||||||||
| Operational humidity | 5% to 95% RH non-condensing | ||||||||||||||
| Storage temperature range | -20°C to +60°C | -4°F to +140°F | ||||||||||||||
ORDERING INFORMATION |
| 1. CHOOSE BASE IVA WITH DESIRED ACCESSORIES |
| PART NUMBER | DESCRIPTION | ||||||||||||||
| iVA-0627A-NC | iVA Cable & Antenna Analyzer System, Type N male connector with Neoprene Soft Case | ||||||||||||||
| iVA-0627A-HC | iVA Cable and Antenna Analyzer System, Type N male connector with Hard Case | ||||||||||||||
| iVA-0627A-BK | iVA Cable & Antenna Analyzer System,Type N male connector with Basic Accessory Kit | ||||||||||||||
| iVA-0627A-SK-02 | iVA Cable & Antenna Analyzer System, Type N male connector with Standard Accessory Kit | ||||||||||||||
| iVA-0627A-PK-02 | iVA Cable & Antenna Analyzer System, Type N male connector with Premium Accessory Kit | ||||||||||||||
| 2. ADD IVA TRANSMISSION MODE |
| PART NUMBER | DESCRIPTION | ||||||||||||||
| iVA-SW-TMA | Base iVA + Transmission Mode | ||||||||||||||
| Contact Kaelus at 1.303.768.8080 or +1.800.498.1352 to obtain addtional information, request a quote or receive unit pricing on the Kaelus iVA-TMA analyzers. |

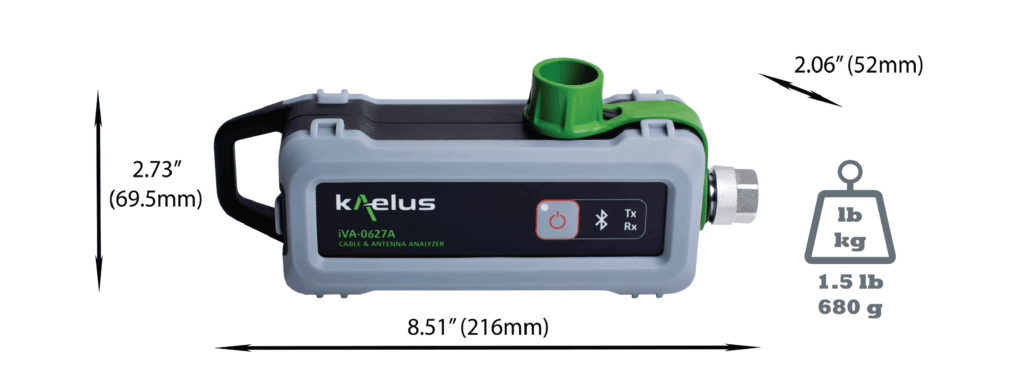

MECHANICAL INTERFACE |
