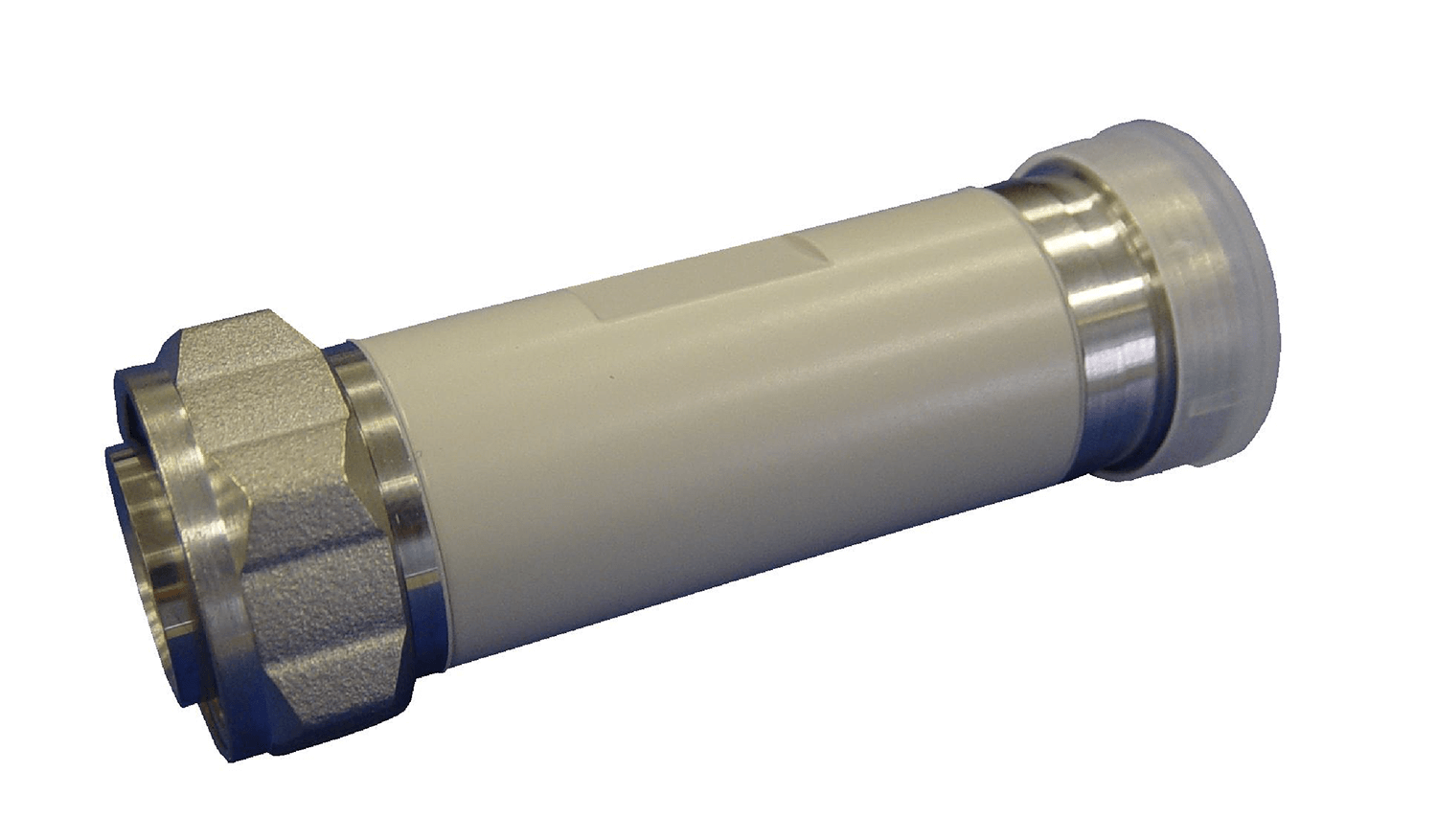

BROADBAND DC BLOCK

DCB0003F1V1

The Kaelus DCB0003F1V1 provides blocking of DC and AISG signals and allows RF to pass.

FEATURES

  • Broad frequency range
  • Low insertion loss
  • Excellent passive intermodulation performance

technical specifications
rf performance
Passband 698 - 2700MHz
Insertion loss 0.1dB maximum
Return loss 18dB minimum
Maximum input power 500W average / 2kW peak
Intermodulation products -161dBc typical / -158dBc maximum all ports with 2 x 20W carriers
general specifications
DC voltage ± 60V maximum
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range -40ºC to +65ºC | -40°F to 149°F maximum
Ingress protection IP67
Lightning protection ±10 kA, 8/20μs maximum shield to body, to IEC61000-4-5
±8 kA, 8/20μs maximum centre pin to body, to IEC61000-4-5
Connector sealing For outdoor use Kaelus recommends that sealant tape be used to cover all connectors and body of the DC block. For details on how to seal connectors refer to the Kaelus TMA installation manual
mechanical
Finish Painted, light grey (RAL7035)
Connectors 7-16 Male , 7-16 Female
ordering information
Part Number Description
DCB0003F1V1 BROADBAND DC BLOCK

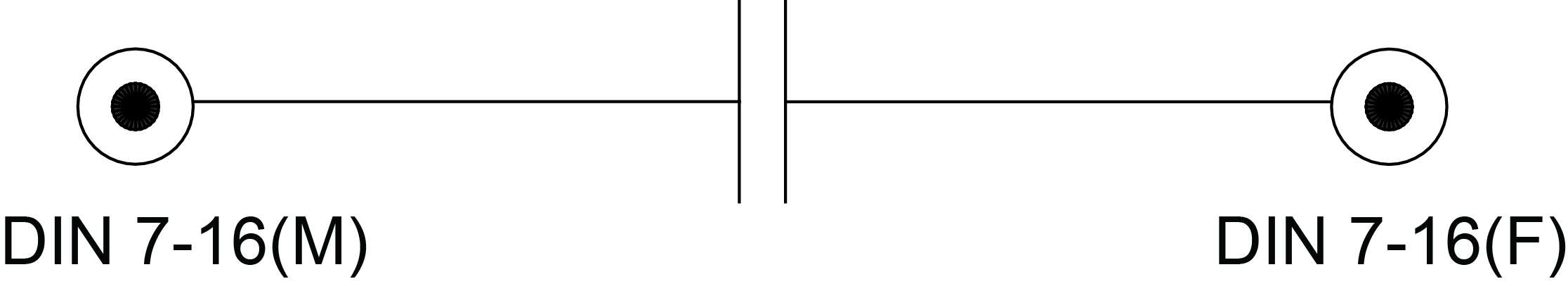

electrical block diagram
ELECTRICAL BLOCK DIAGRAM
mechanical block diagram
MECHANICAL BLOCK DIAGRAM
