Channel Power mode

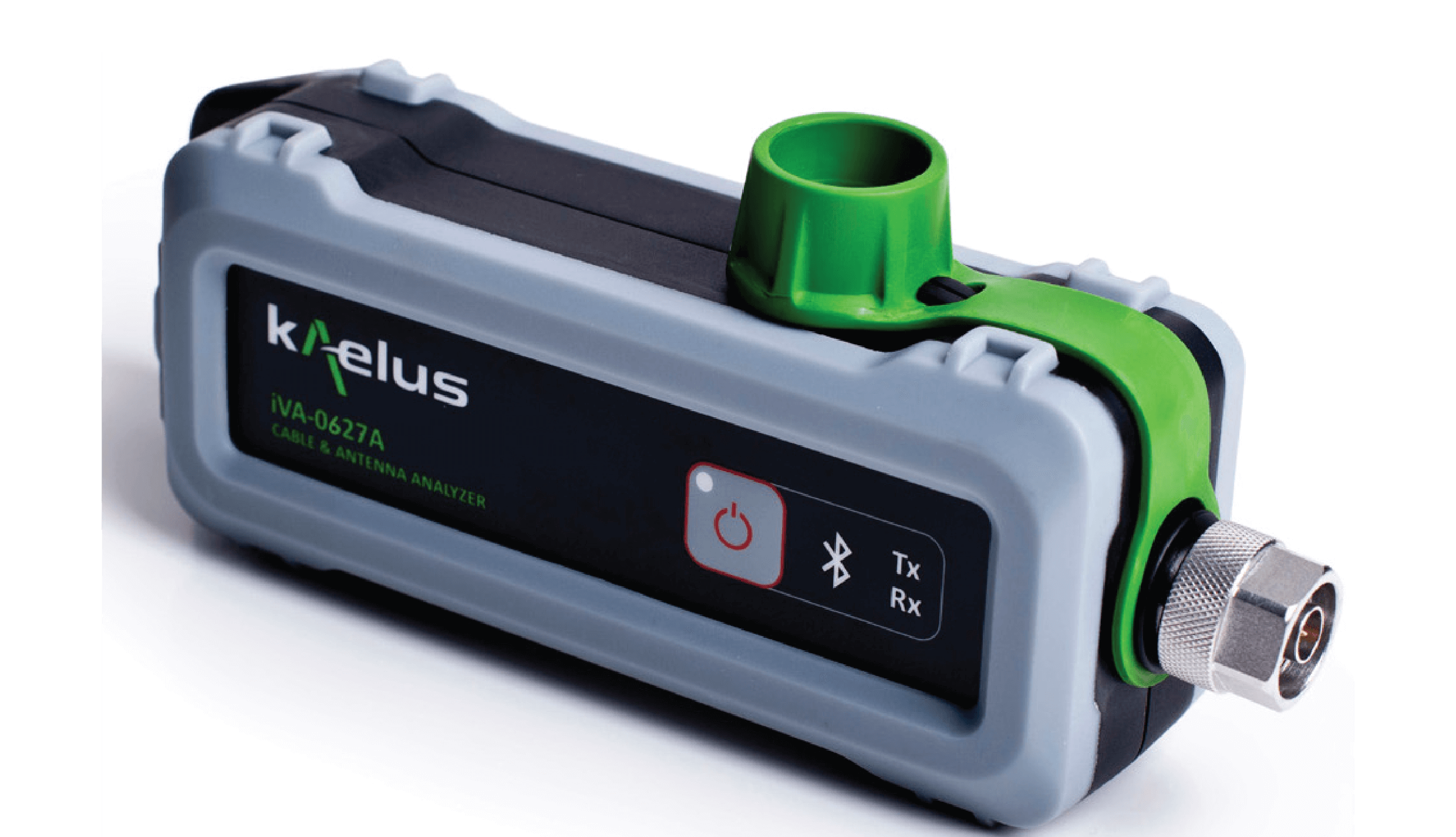

Cable and Antenna Analyzer with Channel Power Analysis Mode

The iVA-CPA is a new solution that adds Channel Power measurement capability to the existing base iVA analyzer. The iVA-CPA comes with all the features of the base iVA analyzer and includes Channel Power mode for additional functionality.

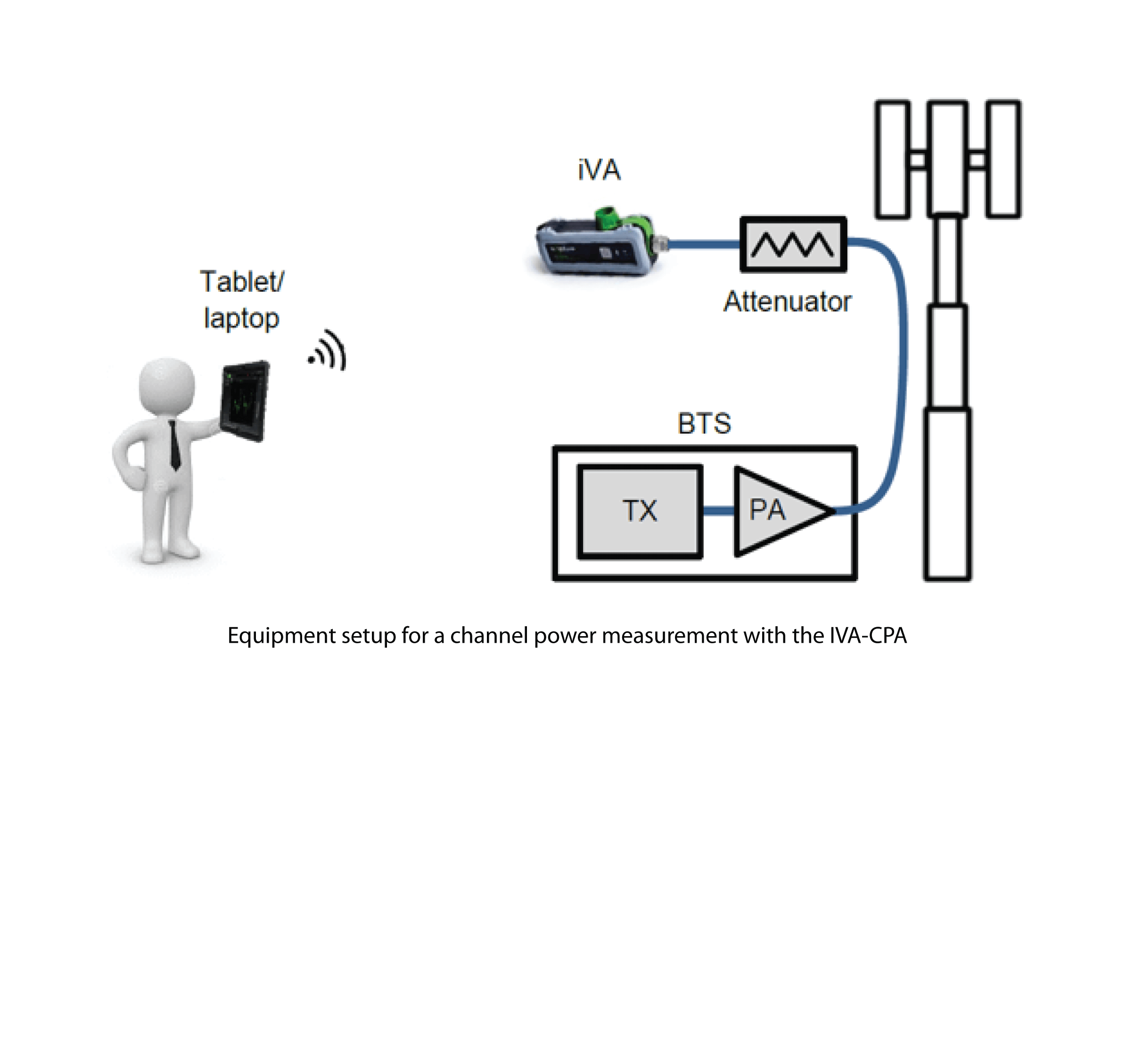

Channel Power mode enables the user to determine the total RF power between any two frequencies in a spectrum monitor trace. Measurement modes include CW signal and modulated signal.


  • Measurement bandwidths of up to 75 MHz allowed
  • Levels ranging from -100 to +15 dBm
  • Both modulated and continuous wave signals supported
  • Comes with all features of base iVA Cable and Antenna Analyzer

iva-cpa technical specifications
iva analysis mode - channel power mode
Measurement modes CW Signal Mode
Modulated Signal Mode
Dyanamic range in CW mode
Low power range -100 to -35 dBm
High power range -45 to +15dBm
Minimum detectable signal in modulated mode
Low power range 10 log(B) -87 dBm
High power range 10 log(B) -32 dBm
Maximum detectable signal in modulated mode
Low power range Min(-0.5, 10 log(B) - 14) dBm
High power range +15 dBm
Power measurement accuracy ± 1.5 dB typ
± 3 dB max
Measurement channel bandwidth
CW mode 1 kHz to 20 MHz
Modulated mode 1 kHz to 2190 MHz
Max number of measurement channels 1
Sweep speed 2ms per frequency point
Maximum input power without damage +23 dBm
1 Occupied bandwidth and Adjacent Channel Power Ratio features to be included in future release of application software.
2 B is the occupied bandwidth of the measured signal in MHz.
3 Accuracy specification assumes that the measured signal is the only signal present during a measurement. The iVA's accuracy may be degraded if other signals are present during a Channel Power measurement, especially if the aggregate RF power at the test port exceeds the iVA's compression point.
4 Future releases of Unify will allow the user to define up to 10 simultaneous measurement channels across the frequency range of interest.
base iva technical specifications
key specification - iva (see iva datasheet for full specifications)
iVA analysis modes Return Loss, VSWR, Cable Loss, Distance to Fault (DTF), Isolation, Spectrum Monitor
Minimum frequency increment 1kHz all modes
Number of measurement points 1 to 2191
DC power consumption
Return loss mode 4.7W
Transmission mode 4.7W
Spectrum monitor mode 3.7W
Standby (Idle) 0.6W
Battery Lithium-Ion 3.6V, 2350 mAh, 8.5Wh
Battery charging method USB-compatible power source connected to USB port of iVA
Battery operating time 8 Hours at typical usage factor
instrument control
User interface USB or Bluetooth supported user device with iVA application software installed
Supported devices iPA Portable PIM Analyzer
Tablet computer (iOS & Android)
Smartphone (iOS & Android)
PC, Windows 7,8 & 10 running .NET verson 4 or later
Communications interface to iVA Bluetooth and USB 2.0
Bluetooth antenna Integrated into housing
Maximum input power on RF port +23dBm maximum, DC voltage ±30V

technical specifications
Dimensions H x D x W 52 x 69.5 x 216mm | 2.06 x 2.73 x 8.51in
Weight 0.68kg | 1.5 lbs
Connector 1 RF test port
iVA-0627A: Type N male, 50 ohms
iVA-0627B: 4.3-10 male, 50 ohms
Connector 2 USB 2.0 Mini-B (for charging and connection to iPA or PC)
Mechanical Shock & Vibration MIL-PRF-28800F Class 2, ETS 300 019-2-1, -2, -7
Temperature range -10°C to +55°C | +14°F to +131°F (operational)
Ingress protection IP54
Altitude 4600m | 15,000ft maximum
Compliance EMC- EN 61326-1:2013, EN 61326-2-1:2013, EN 55022:2010 “Class A”
EN 61000-4-2, 4-3, 4-4, 4-5, 4-6, 4-11
Safety- EN 61010-1:2012, EN 61010-030:2012
Operational humidity 5% to 95% RH non-condensing
Storage temperature range -20°C to +60°C | -4°F to +140°F
ordering information
1. choose base iva with desired accessories
Part Number Description
iVA-0627A-NC iVA Cable & Antenna Analyzer System, Type N male connector with Neoprene Soft Case
iVA-0627A-HC iVA Cable and Antenna Analyzer System, Type N male connector with Hard Case
iVA-0627A-BK iVA Cable & Antenna Analyzer System,Type N male connector with Basic Accessory Kit
iVA-0627A-SK-02 iVA Cable & Antenna Analyzer System, Type N male connector with Standard Accessory Kit
iVA-0627A-PK-02 iVA Cable & Antenna Analyzer System, Type N male connector with Premium Accessory Kit
2. add iva channel power mode
Part Number Description
iVA-SW-CPA Base iVA + Channel Power Mode
Contact Kaelus at 1.303.768.8080 or +1.800.498.1352 to obtain addtional information, request a quote or receive unit pricing on the Kaelus iVA - CPA analyzers.
