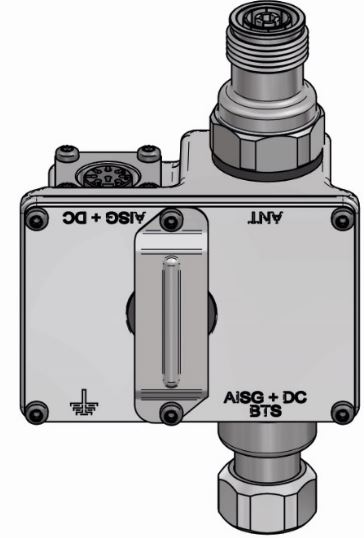

MI-31804

Smart Bias Tee/ANT

The Kaelus MI-318 provides a flexible Smart Bias Tee solution allowing for AISG and DC to be placed onto a feeder at the bottom of the tower or extracted from the feeder at the top. Operating across 555-3800MHz the MI-318 provides the following additional benefits:

DOWNLOAD PDF

GET A QUOTE

Primary surge protection limits the voltage let-through from the feeder to the DC port
Available in top of the tower or bottom of the tower applications
Variable connector configurations to allow for different installation techniques and scenarios
IP67 for continuous outdoor operation
Connectors: BTS-Side - 4.3-10 M (DC+AISG) ANT-Side - 4.3-10 F AISG 8-pin circular F (IEC 60130-9)
