BPF0017F2V10-1

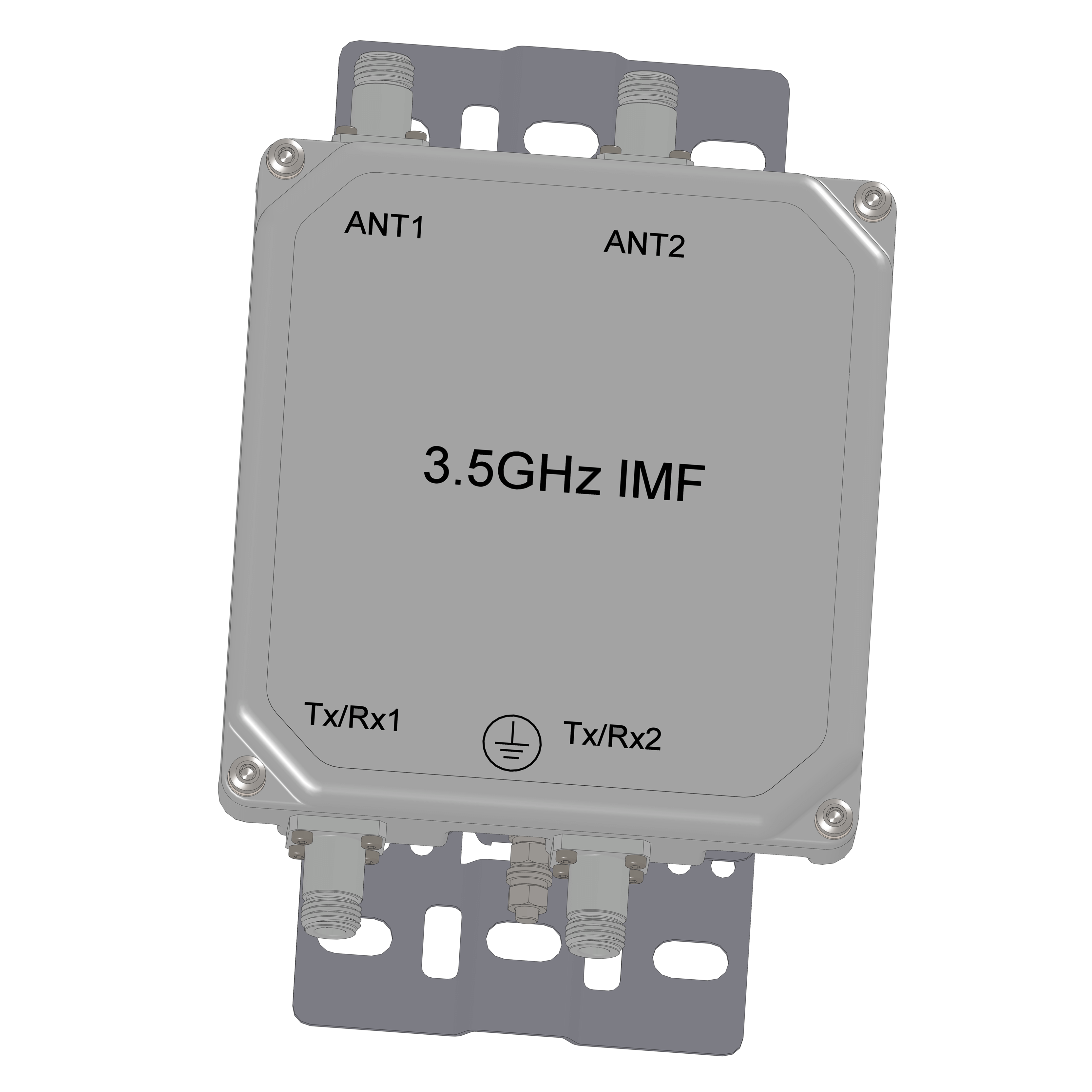

3.5GHz INTERFERENCE MITIGATION FILTER

Ideal for co-located 3.5GHz systems. BPF0017 is a 3.5GHz interference mitigation filter. Capable of being used in an outdoor environment

FEATURES

  • Designed for 3.5GHz interference mitigation
  • Passband frequency can be retuned easily as customer site needs
  • High Interference Rejection
  • Excellent insertion loss
  • Twin filter structure

technical specifications
Band Name F1 F2 F3
Passband 3575-3600MHz 3600-3630MHz 3640-3670MHz
Insertion loss 1.0dB typical
2.5dB maximum
0.8dB typical
2.2dB maximum
0.9dB typical
2.3dB maximum
Return loss 25dB typical
20dB minimum
Maximum input power 5W (average) / 50W (PEP)
Rejection 60dB minimum
@ 3500 - 3567MHz
60dB minimum
@ 3500 - 3567MHz
60dB minimum
@ 3500 - 3630MHz
electrical
Impedance 50ohms
Intermodulation products -140dBc maximum (with 2x20W)
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range -20°C to +60°C | -4°F to +140°F
Ingress protection IP67, Outdoor unit
Altitude 2600 meters
MTBF >1,000,000 hours
mechanical
Dimensions H x D x W (single twin unit) 181 x 167 x 40mm | 7.1 x 6.6 x 1.6in maximum
Weight 2.5kg | 5.5lbs
Finish Painted, light grey (RAL7035)
Connectors N (F) x 4 long neck
Mounting Pole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles
ordering information
Part Number Description
BPF0017F1V10-1 3.5GHz Interference Mitigation Filter, 3575-3600MHz
BPF0017F2V10-1 3.5GHz Interference Mitigation Filter, 3600-3630MHz
BPF0017F3V10-1 3.5GHz Interference Mitigation Filter, 3640-3670MHz
electrical block diagram

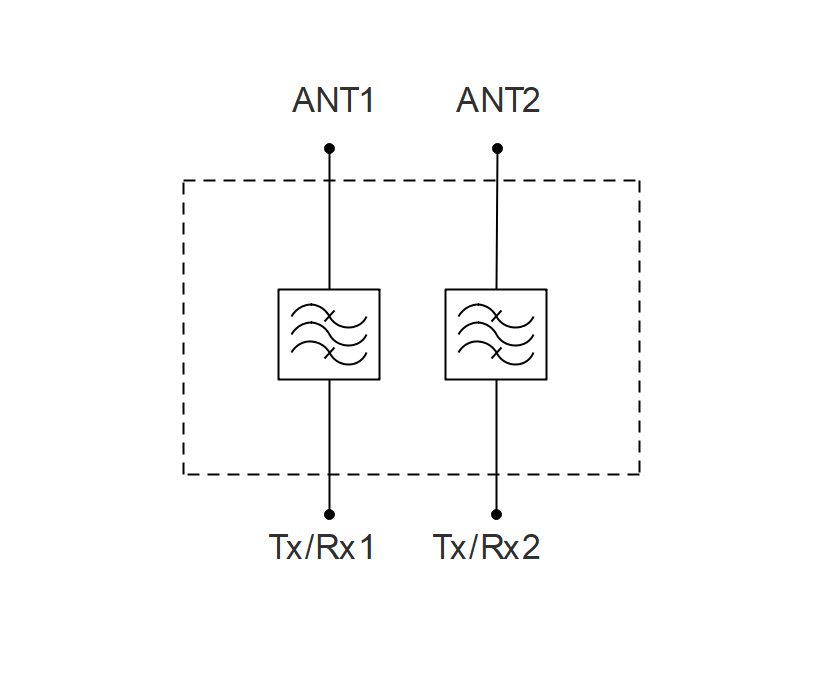

ELECTRICAL BLOCK DIAGRAM
mechanical block diagram

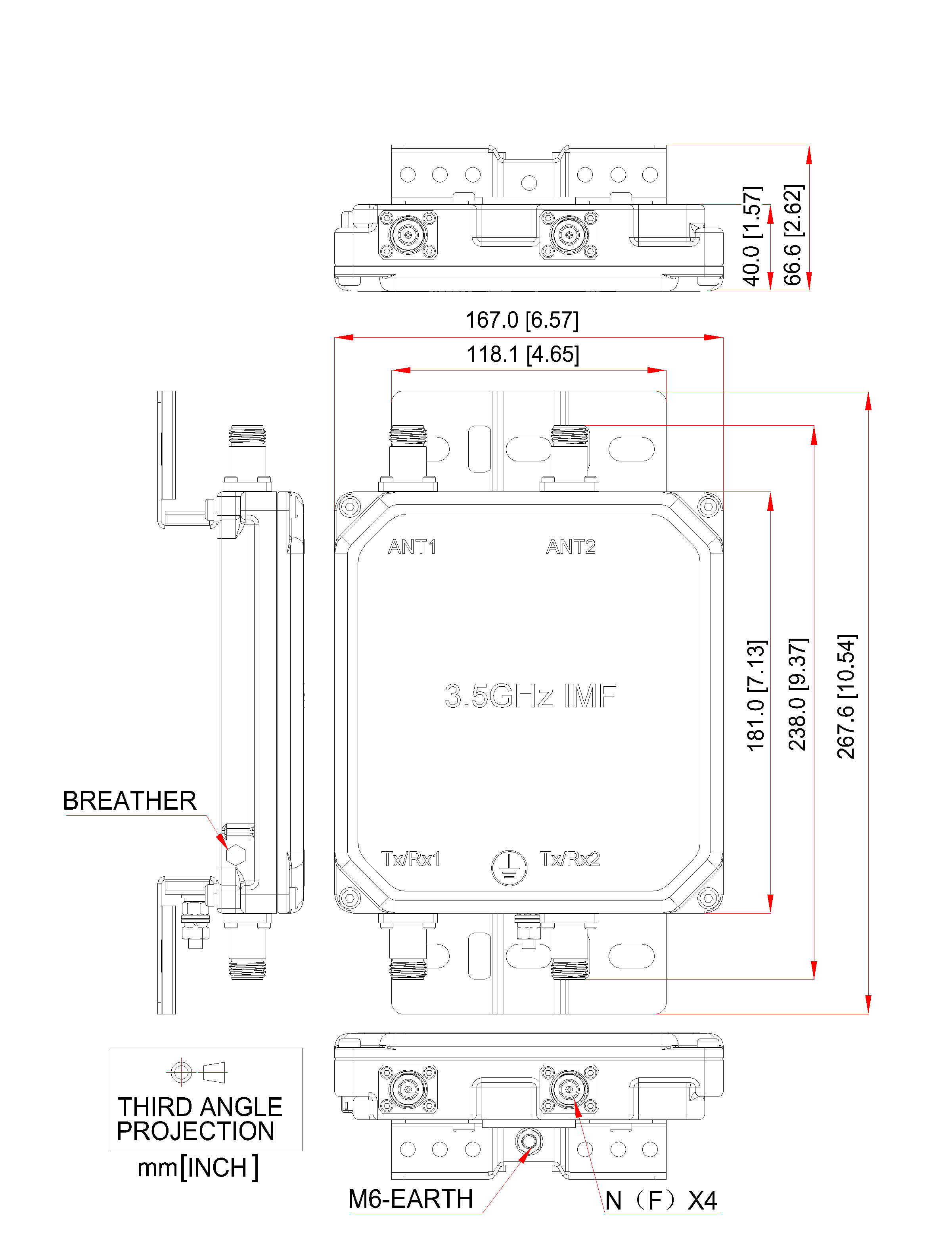

MECHANICAL BLOCK DIAGRAM
