TWIN DIPLEXER 1695-2200/2305-2600

Kaelus world-proven outdoor solutions provide strong RF performance coupled with rugged operation. The DBC0062 combines AWS, 1900, WCS and 2600 bands onto a single feeder and provided the following features:


  • AWS 3 and AWS 4 ready
  • Enables feeder sharing of various technologies
  • Low insertion loss and high isolation
  • Field configurable DC switch.
  • Low passive IM performance

technical specifications
Band Name 1900-AWS WCS-2600
Passband 1695 - 2200MHz 2305 - 2690MHz
Insertion loss 0.15dB typical
Return loss 20dB minimum, 22dB typical.
Maximum input power 200W (average) / 2kW (PEP) 200W (average) / 2kW (PEP)
Isolation 50dB minimum
Impedance 50Ohms
Intermodulation products -153dBc maximum all ports with 2 x 20W carriers
dc / aisg
A field selectable DC/AISG path is achieved via mechanical links on a IEC60130-9, 8-pin female connector (see electrical block diagram).
Passband 0 - 3MHz
Insertion loss, single DC/AISG pass 1dB maximum
Return loss, single DC/AISG pass 12dB minimum
Insertion loss, two DC/AISG pass 4.5dB typical
Return loss, two DC/AISG pass 9dB typical
Input voltage range ±31V
DC current rating 2A continuous, 4A peak
Compliance AISG 1.1/2.0
For further details of environmental compliance, please contact Kaelus.
Temperature range -20ºC to +65ºC | -4ºF to +149ºF
Ingress protection IP67
Lightning protection IEC61312-1, RF: ±5kA maximum (8/20us)
MTBF >1,000,000 hours
Compliance ETSI EN 300 019 class 4.1, RoHS
Dimensions H x D x W 246 x 223 x 66mm | 9.7 x 8.8 x 2.6in
Weight 6.2kg | 13.2lbs
Finish Painted, light grey (RAL7035)
Connectors RF: DIN 7-16 (F) x 6 long neck
Wind Load Front 338N, Side 48N
At 74m/s (AS/NZS 1170-2-2011 Structural design - Wind actions - Cyclone areas)
Mounting Pole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles
ordering information
Part Number Configuration Optional Features Connectors DC/AISG Configuration
DBC0062F3V52-1 TWIN 2 in / 4 out DC SWITCH 7/16 (F) FIELD CONFIGURABLE

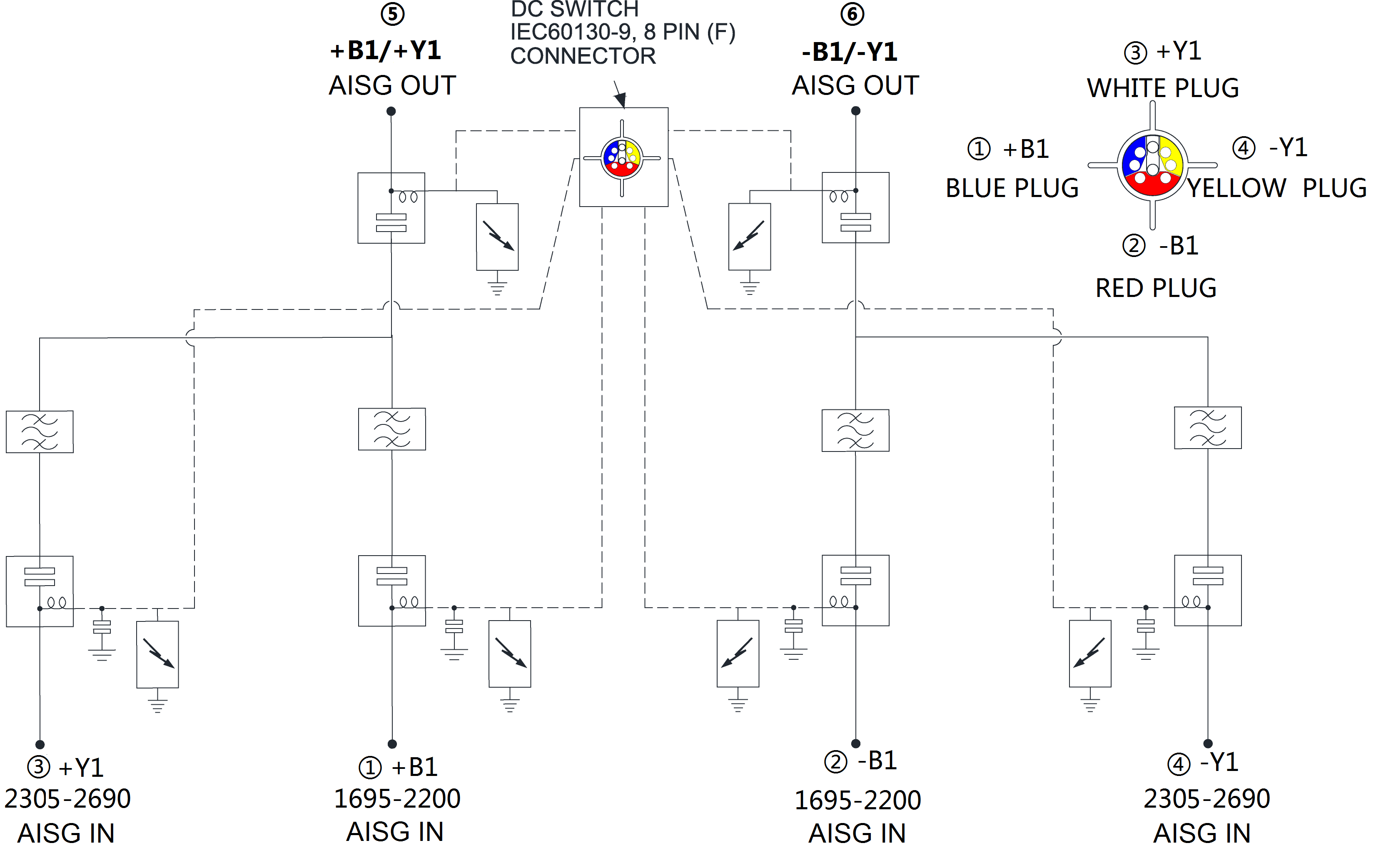

electrical block diagram

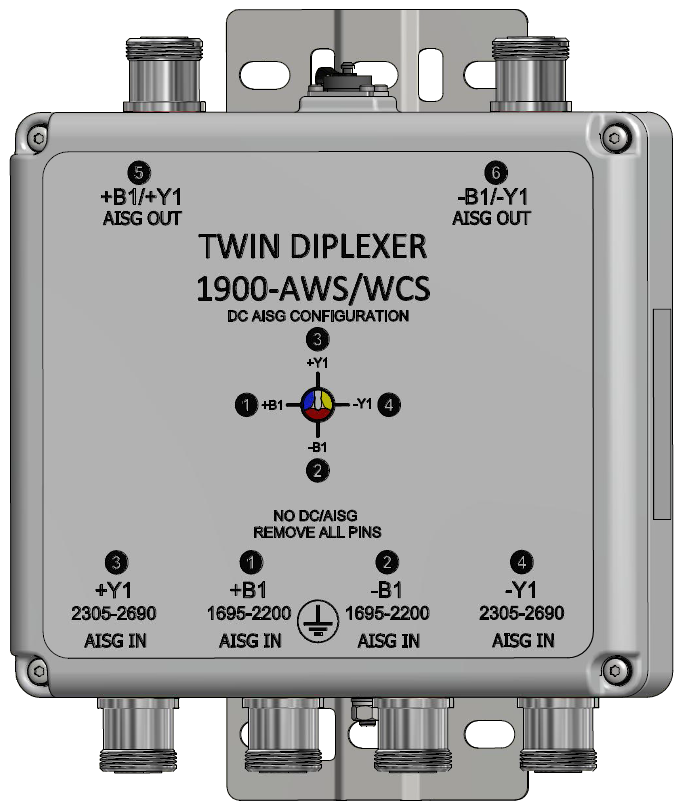

mechanical block diagram
