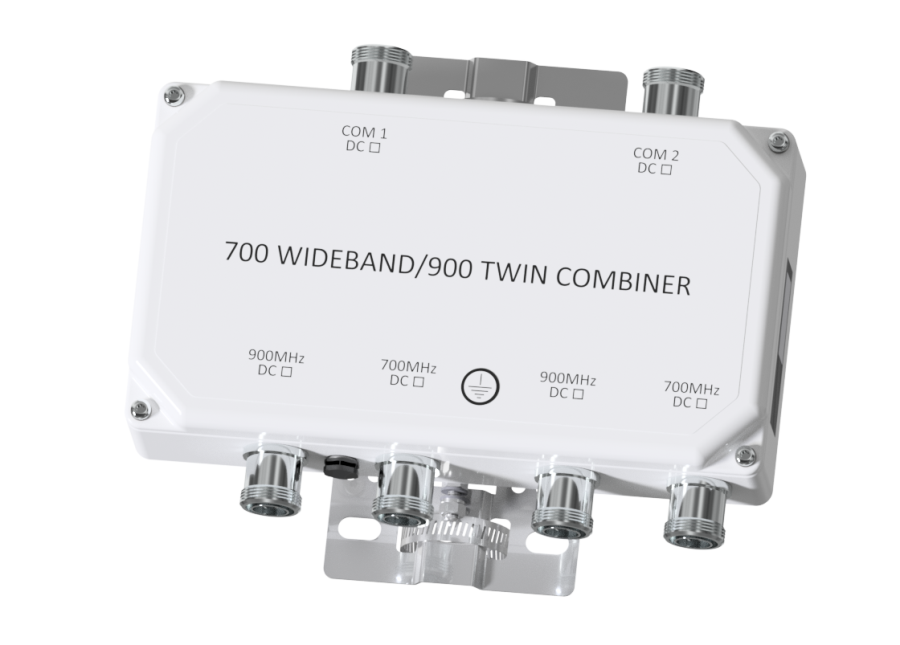

DBC0068F1V1-1

TWIN DIPLEXER 698-803/898.4-951.8

Kaelus world-proven outdoor solutions provide strong RF performance coupled with rugged operation. The DBC0068 provides the following features and benefits:

FEATURES

  • Enable feeder sharing using 700 and 900 cellular bands
  • Low passive IM performance
  • Offers low insertion loss and high isolation
  • Multiple DC by-pass/AISG configurations available
  • Twin unit wall or pole mounting
  • Outdoor/indoor

technical specifications
Port Name698-803898.4-951.8
Passband698 - 803MHz898.4 - 951.8MHz
Insertion loss0.3dB typical0.5dB typical
Return loss18dB minimum
Maximum input power160W (average) / 1.6kW (PEP)160W (average) / 1.6kW (PEP)
Attenuation898.4 - 951.8MHz = 53dB minimum
870 - 890MHz = 40dB minimum
698 - 803MHz = 55dB minimum
870 - 890MHz = 40dB minimum
electrical
Impedance50Ohms
Intermodulation products-155dBc maximum all ports with 2 x 20W carriers
dc / aisg
Passband0 - 3MHz
Insertion loss, single DC/AISG pass1dB maximum
Return loss, single DC/AISG pass12dB minimum
Insertion loss, two DC/AISG pass4.5dB maximum
Return loss, two DC/AISG pass12dB typical
Input voltage range±30V
DC current rating2A continuous, 4A peak
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range-20ºC to +65ºC | -4ºF to +149ºF
Ingress protectionIP67, Outdoor unit
Lightning protectionRF: ±5kA maximum (8/20us)
MTBF>1,000,000 hours
mechanical
Dimensions H x D x W300 x 254 x 99.6mm | 11.81 x 10 x 3.92in
Weight6.7kg | 14.8lbs
FinishPainted, light grey (RAL7035)
ConnectorsDIN 7-16 (F) x 6 long neck
MountingPole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles
ordering information
Part NumberConfigurationOptional FeaturesConnectorsDC/AISG Configuration
DBC0068F1V1-1TWIN 2 in / 4 outFIXED DC7/16 (F)DC TO 700
DBC0068F1V3-1TWIN 2 in / 4 outFIXED DC7/16 (F)DC TO 700 & 900
DBC0068F1Vxx-1TWIN 2 in / 4 outFIXED DC7/16 (F)VARIOUS CONFIGURATIONS AVAILABLE

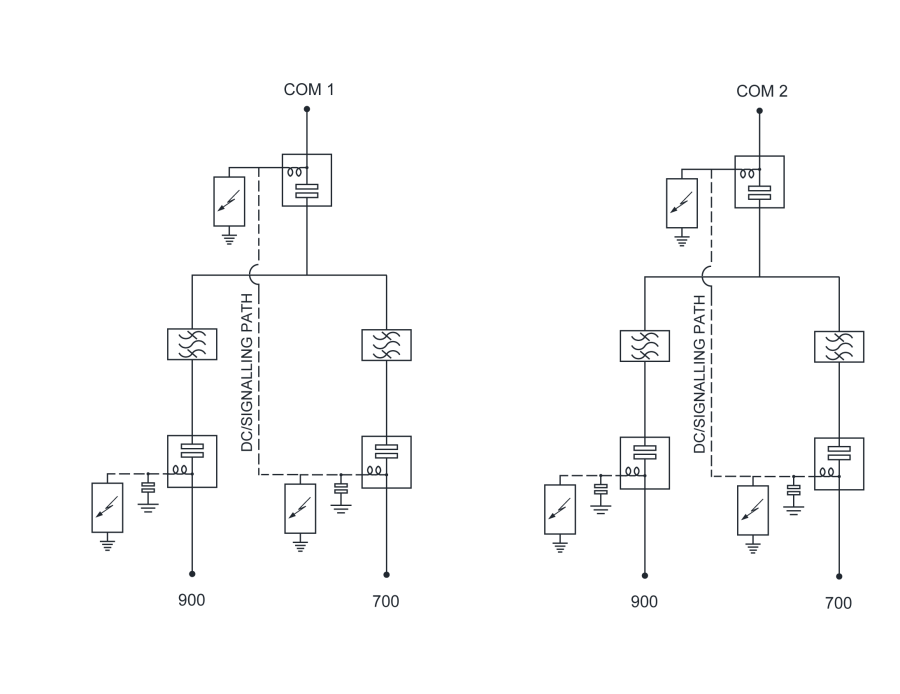

electrical block diagram
ELECTRICAL BLOCK DIAGRAM

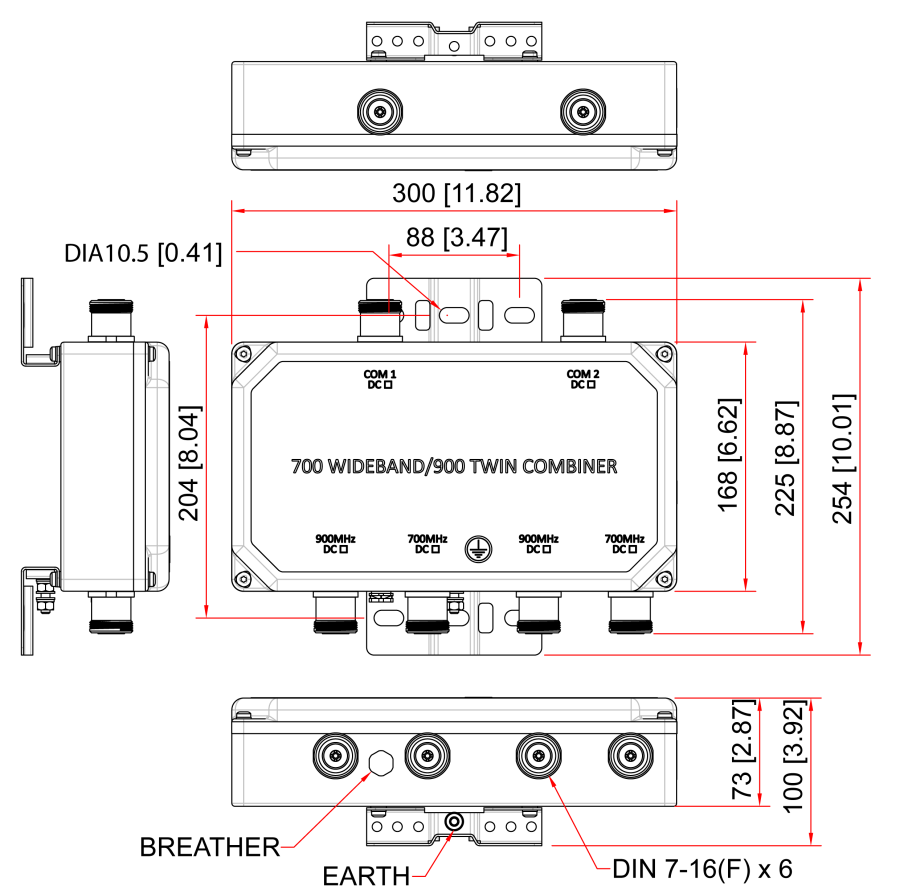

mechanical block diagram
MECHANICAL BLOCK DIAGRAM
