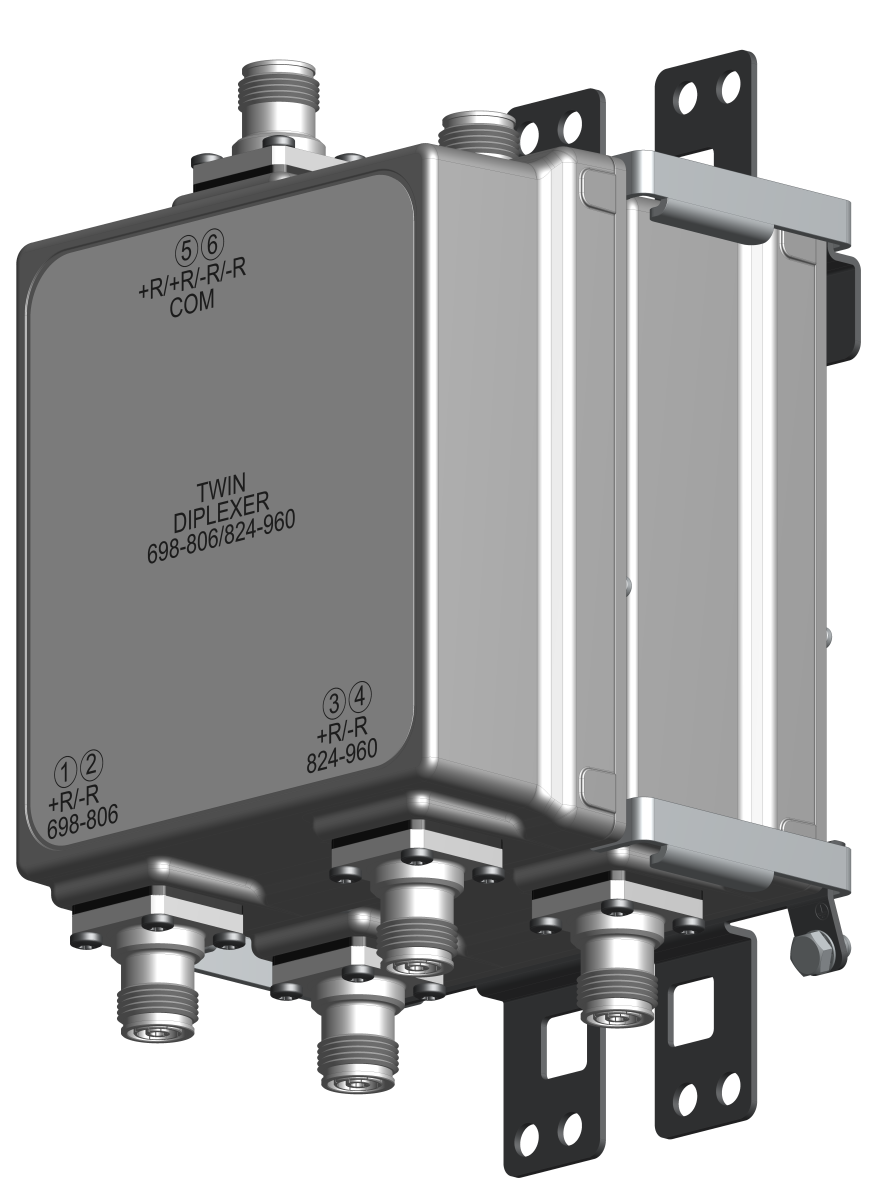

DBC0157F1V13-2

DIPLEXER 700/850-900

The Kaelus DBC0157 is a bi-directional diplexer designed to combine 700 and 850-900 technologies. The DBC0157 provides low insertion loss and excellent passive intermodulation performance. The DBC0157 can be used at either the BTS or antenna end of the feeder.

FEATURES

  • Enables antenna/feeder sharing for 700 and 850-900 networks
  • Low insertion loss & high return loss
  • Low passive IM performance
  • Multiple DC/AISG bypass configurations available with built-in lightning protection
  • Single and twin models available

technical specifications
Port Name 700 850-900
Passband 698 - 806MHz 824 - 960MHz
Insertion loss 0.35dB typical
Return loss 18dB minimum
Maximum input power 250W (average) 250W (average)
Intermodulation products -160 dBc maximum with 2 x +43dBm TX Carrier
Isolation in 700 band N/A 50dB minimum
Isolation in 850-900 band 50dB minimum N/A
electrical
Impedance 50Ohms
dc / aisg
DC/AISG path is factory configurable, see ordering information
Passband 0 – 3MHz
Insertion loss 1dB maximun
Return loss 12dB minimun
Input voltage range ± 30V
DC current rating 3A continuous
Compliance 3GPP TS 25.461
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range -40ºC to +65ºC | -40ºF to +149ºF
Ingress protection IP67
Lightning protection RF: ±5kA maximum (8/20us)
MTBF >1,000,000 hours
Compliance ETS 300 019-1-4 Class 4.1E
mechanical
Dimensions H x D x W (single unit) 159 x 174 x 62mm | 6.25 x 6.85 x 2.44in
Dimensions H x D x W (twin unit) 159 x 174 x 131 mm | 6.25 x 6.85 x 5.15in
Weight 2.6kg | 5.73lbs (single unit)
4.3kg / 9.47lbs (twin unit)
Finish NCS 1502-R (light grey)
Connectors 4.3-10 (F) x 3 long neck (single unit)
4.3-10 (F) x 6 long neck (twin unit)
Mounting Pole/wall bracket supplied with two metal clamps for 40-140 mm diameter poles
ordering information
Part Number Configuration Optional Features Connectors DC/AISG Configuration
DBC0157F1V10-1 1 in / 2 out FIXED DC
FACTORY CONFIGURABLE
4.3-10 (F) NO DC
DBC0157F1V10-2 2 in / 4 out FIXED DC
FACTORY CONFIGURABLE
4.3-10 (F) NO DC
DBC0157F1V11-1 1 in / 2 out FIXED DC
FACTORY CONFIGURABLE
4.3-10 (F) DC ON 850-900
DBC0157F1V11-2 2 in / 4 out FIXED DC
FACTORY CONFIGURABLE
4.3-10 (F) DC ON 850-900
DBC0157F1V12-1 1 in / 2 out FIXED DC
FACTORY CONFIGURABLE
4.3-10 (F) DC ON 700
DBC0157F1V12-2 2 in / 4 out FIXED DC
FACTORY CONFIGURABLE
4.3-10 (F) DC ON 700
DBC0157F1V13-1 1 in / 2 out FIXED DC
FACTORY CONFIGURABLE
4.3-10 (F) DC TO ALL PATH
DBC0157F1V13-2 2 in / 4 out FIXED DC
FACTORY CONFIGURABLE
4.3-10 (F) DC TO ALL PATH
Note: DC autosense versions available, contact Kaelus for information

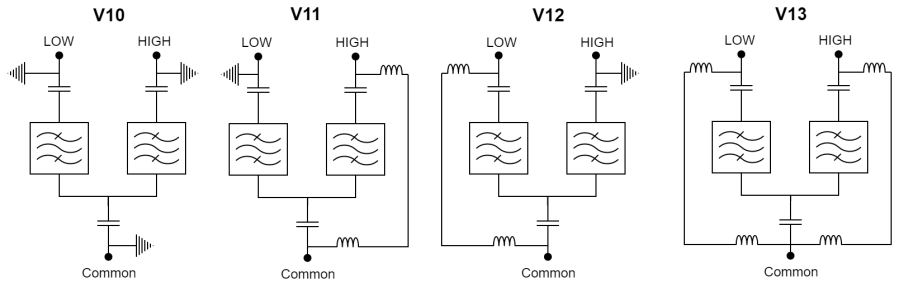

electrical block diagram
DBC0157F1VXX-Z where
    XX denotes the DC path variant
     Z denotes the mounting : "-1" = single mount and "-2" = dual mount
     LOW port is 700 band
     HIGH port is 850-900 band
ELECTRICAL BLOCK DIAGRAM

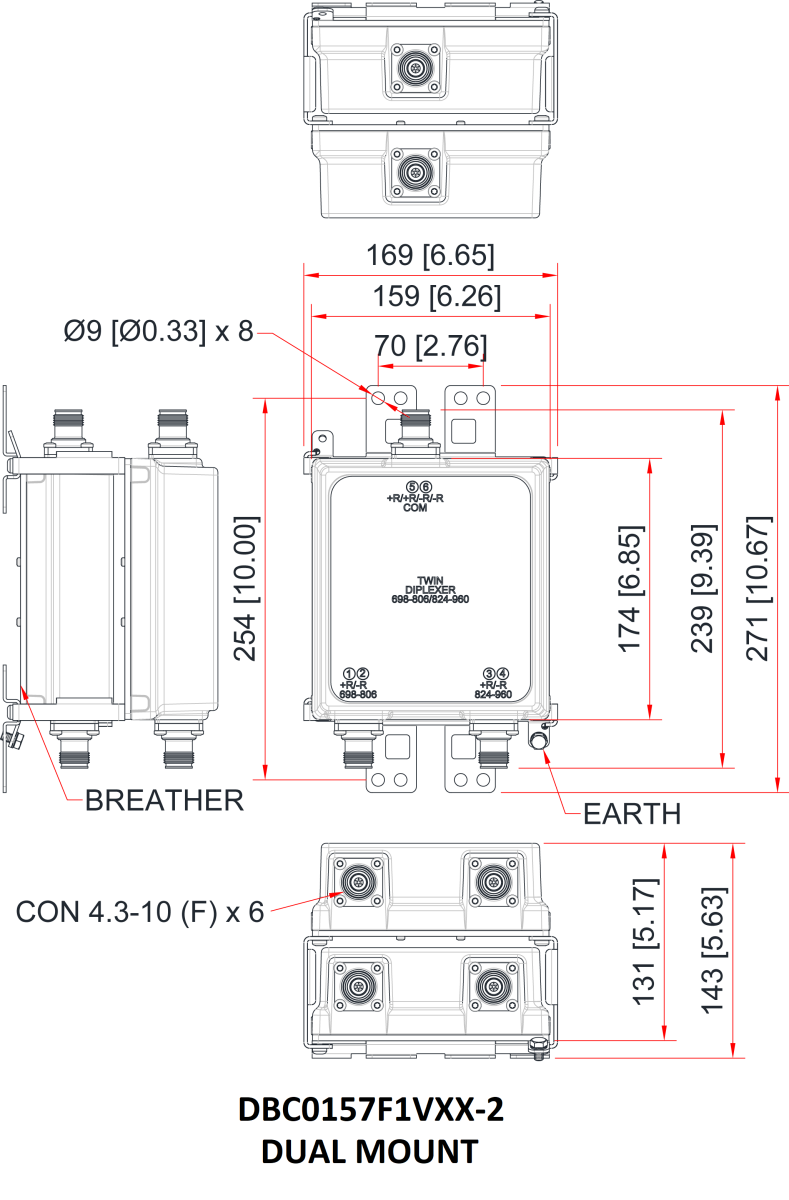

mechanical block diagram
MECHANICAL BLOCK DIAGRAM
