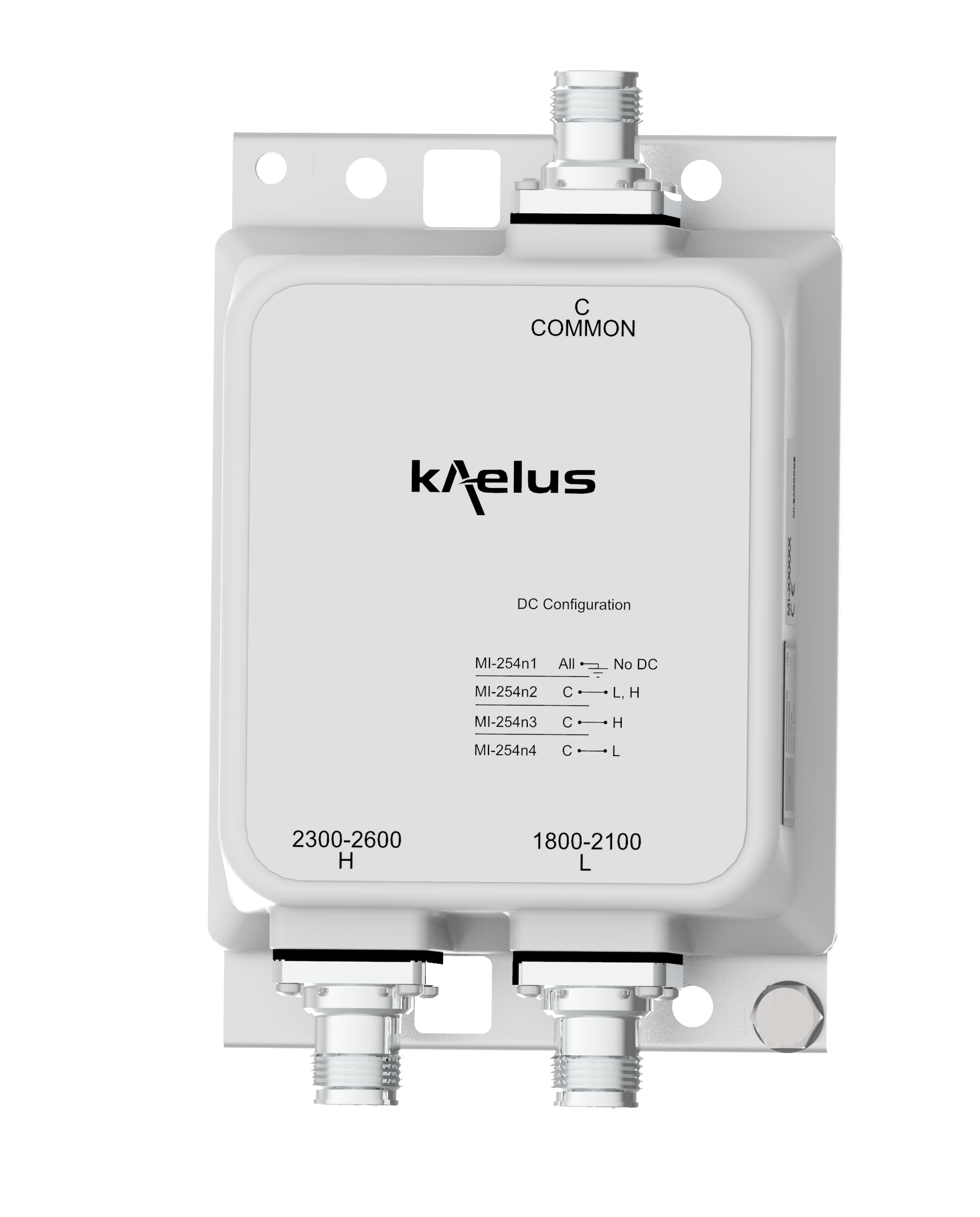

MI-254

MI-254

DIPLEXER 1695-2180/2300-2700

The Kaelus MI-254 is a bi-directional Diplexer, designed to combine or split AWS and 2600 bands. The MI-254 provides low insertion loss and high return loss with excellent passive inter-modulation performance in an extremely small and lightweight IP67 capable package

FEATURES

  • Enables antenna & coax sharing for AWS and 2600 MHz bands systems
  • Compact & lightweight - perfect for Small Cell applications
  • Low insertion loss & high return loss
  • Low passive IM performance
  • Single twin and dual twin models available
  • 7/16 (F) or 4.3-10 (F) connectors
  • Hard Wired and DC Autosense versions available
  • Provisions for wall or mast mounting
Download PDF
GET A QUOTE
Download PDF
GET A QUOTE
technical specifications
Port NameLow BandHIgh Band
Passband1695 - 2180 MHz2300 - 2700 MHz
Insertion loss0.2 dB typical
Return loss20dB typical, 18dB minimum
Maximum input power250W (average)250W (average)
Intermodulation products-160dBc with 2 x 20W carriers
Rejection50dB minimum in High band50dB minimum in Low band
electrical
Impedance50Ohms
dc / aisg
For hardwired versions, DC/AISG can be fully connected (DC all) or a specific connection can be orderd (DC custom).
For DC autosense versions, the DC/AISG path is automatically selected. In bottom of the tower applications (combiner mode), each RF channel port is sequentially checked for the presence of DC voltage. If more than one port has voltage, the port that has the highest (programmed) priority is passed to the common port. If a short circuit is detected on the common port DC/AISG is disabled. In top-of-tower applications (splitter mode), DC/AISG is passed to all ports that do not present a short circuit. If a short circuit is detected, the shorted RF port will be disabled for DC/AISG while other RF ports remain connected.
FeatureDC-FIXEDAUTOSENSE
Insertion loss, single DC/AISG pass1dB maximum
Return loss, single DC/AISG pass12dB minimum
Input voltage range8 – 30V DC, 0.3W
DC current rating3A2A, drop max 2.4V
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range-40ºC to +65ºC | -40ºF to +149ºF
Ingress protectionIP67
Lightning protection10kA maximum (8/20us)
MTBF> 1,000,000 Hours
ComplianceETSI 300 019-1-4 Class 4.1E (OPERATIONAL)
ETSI 300 019-1-1 Class 1.2 (STORAGE)
mechanical
FeatureSingle MountDual Mount
Dimensions H x D x W150 x 49 x 131mm | 5.91 x 1.93 x 5.16in
With Auto-Sense 150 x 60 x 131mm | 5.91 x 2.36 x 5.16in 		150 x 105.5 x 131mm | 5.91 x 4.15 x 5.17in
With Auto-Sense 150 x 125 x 131mm | 5.91 x 4.92 x 5.17in
Weight1.6kg | 3.53lb 3.4kg | 7.5lb
FinishPainted, NCS 1502-R
MountingPole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles
shipping information
FeatureSingle MountDual Mount
Carton size290 x 210 x 150 mm | 11.42 x 8.27 x 5.91 in320 x 250 x 220 mm | 12.60 x 9.84 x 8.66 in
Gross weight (including packaging)2.1 kg | 4.63 lb4.0 kg | 8.83 lb
Carton Qty / Pallet9860
ordering information
Part NumberConfigurationOptional FeaturesConnectorsDC/AISG Configuration
MI-25401Single MountBASE MODEL7/16 (F)NO DC
MI-25402Single MountBASE MODEL7/16 (F)DC TO ALL
MI-25403Single MountBASE MODEL7/16 (F)DC TO 2300-2700
MI-25404Single MountBASE MODEL7/16 (F)DC TO 1800-2100
MI-25411Dual MountBASE MODEL7/16 (F)NO DC
MI-25412Dual MountBASE MODEL7/16 (F)DC TO ALL
MI-25413Dual MountBASE MODEL7/16 (F)DC TO 2300-2700
MI-25414Dual MountBASE MODEL7/16 (F)DC TO 1800-2100
MI-25441Single MountBASE MODELBTS ports 7/16 (F)
Common ports N (F) 		NO DC
MI-25442Single MountBASE MODELBTS ports 7/16 (F)
Common ports N (F) 		DC TO ALL
MI-25443Single MountBASE MODELBTS ports 7/16 (F)
Common ports N (F) 		DC TO 2300-2700
MI-25444Single MountBASE MODELBTS ports 7/16 (F)
Common ports N (F) 		DC TO 1800-2100
MI-25451Dual MountBASE MODELBTS ports 7/16 (F)
Common ports N (F) 		NO DC
MI-25452Dual MountBASE MODELBTS ports 7/16 (F)
Common ports N (F) 		DC TO ALL
MI-25453Dual MountBASE MODELBTS ports 7/16 (F)
Common ports N (F) 		DC TO 2300-2700
MI-25454Dual MountBASE MODELBTS ports 7/16 (F)
Common ports N (F) 		DC TO 1800-2100
MI-25481Single MountBASE MODEL4.3-10 (F)NO DC
MI-25482Single MountBASE MODEL4.3-10 (F)DC TO ALL
MI-25483Single MountBASE MODEL4.3-10 (F)DC TO 2300-2700
MI-25484Single MountBASE MODEL4.3-10 (F)DC TO 1800-2100
MI-25491Dual MountBASE MODEL4.3-10 (F)MIXED DC:
DC TO 2300-2700
DC TO 1800-2100
MI-25492Dual MountBASE MODEL4.3-10 (F)DC TO ALL
Autosense version and other DC versions are availble upon request

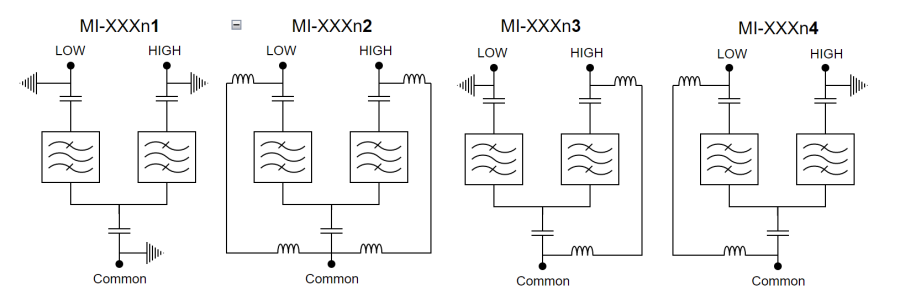

electrical block diagram
ELECTRICAL BLOCK DIAGRAM
Note: single mount shown, applicable for MI-254nx where n is 1-8.

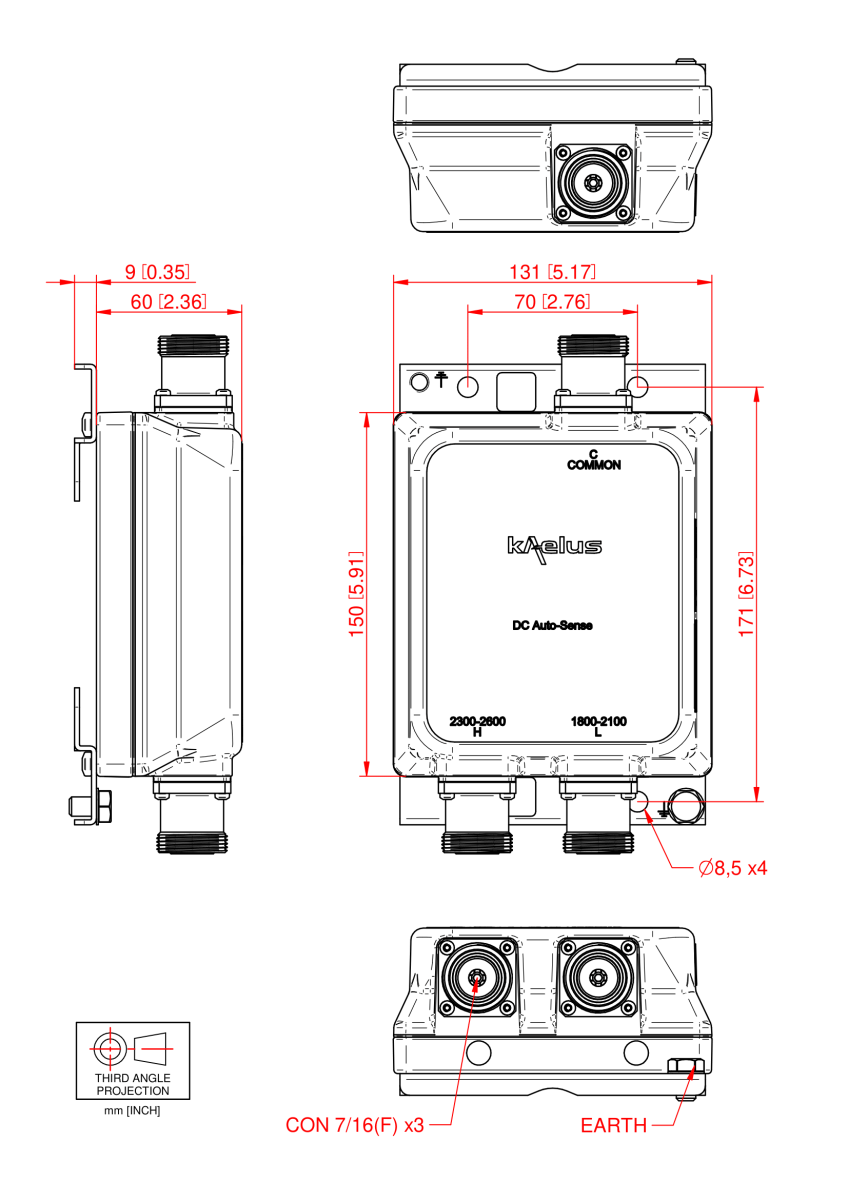

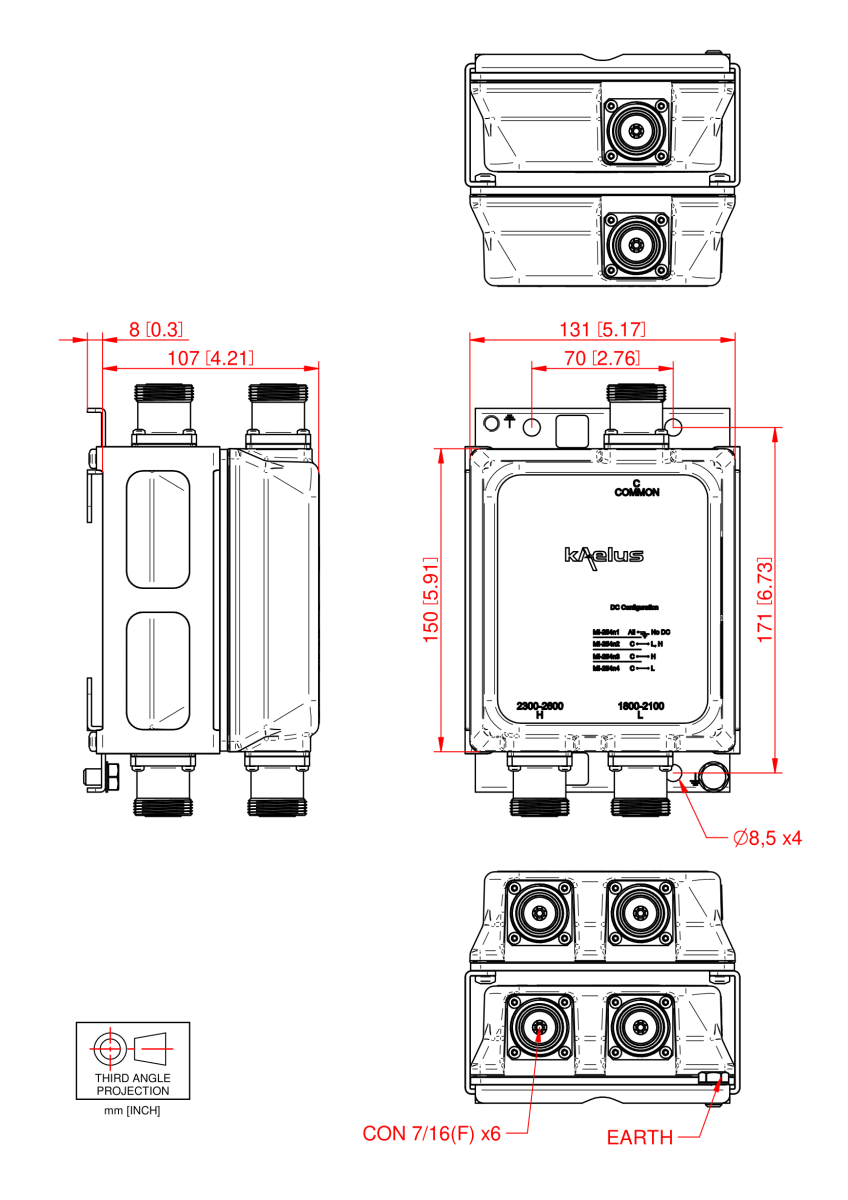

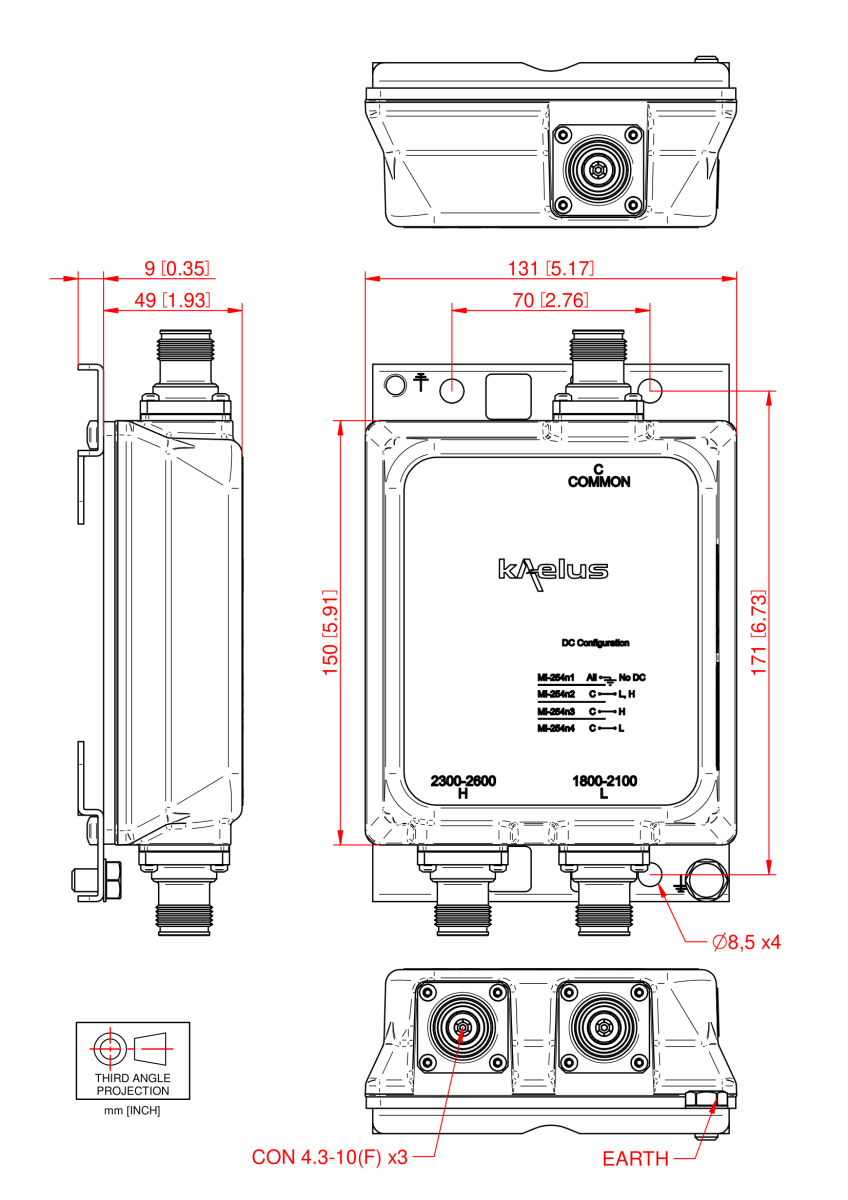

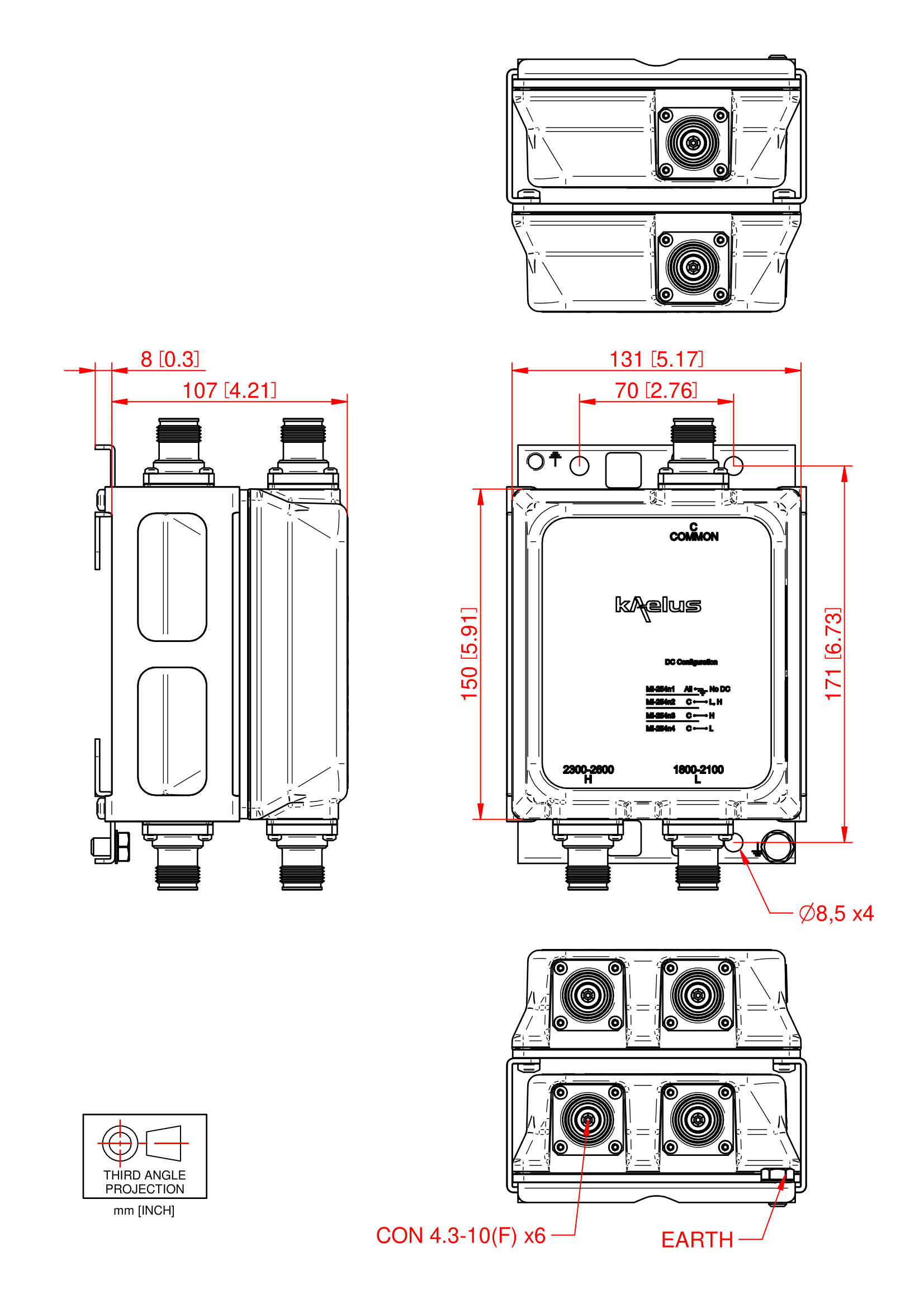

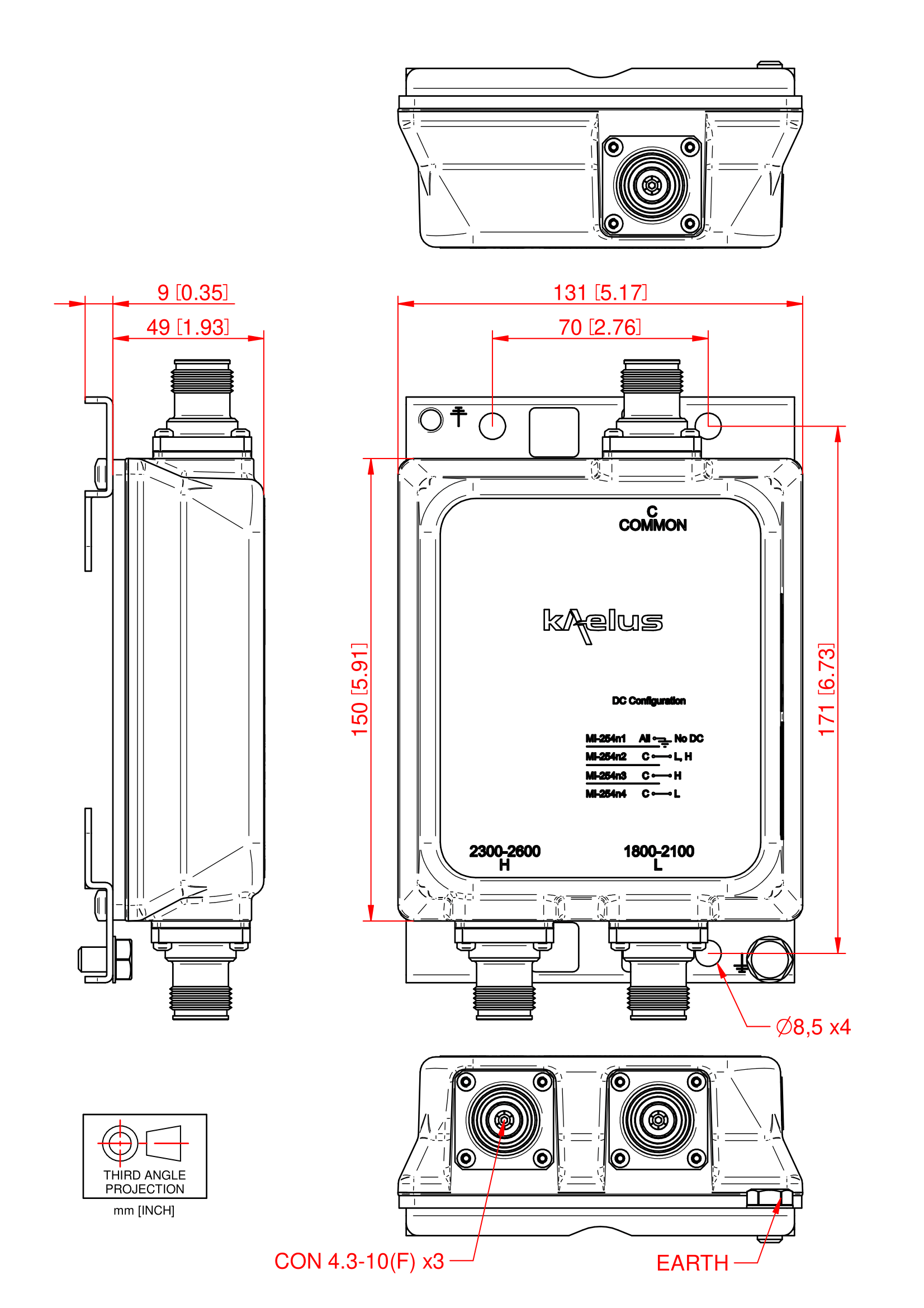

mechanical block diagram
MECHANICAL BLOCK DIAGRAM MECHANICAL BLOCK DIAGRAM
