QBC0017F1V1-1

QBC0017F1V1-1

QUADRUPLEXER 698-960/1710-1880/1920-2170/2300-2600

The Kaelus QBC0017 is a bi-directional Quadruplexer designed to combine 700- 900 with 1800, 2100 and 2300-2600 technologies, the QBC0017 provides excellent insertion loss and passive intermodulation performance. Bidirectional passage of DC/AISG is an option provided in this outdoor product.

FEATURES

  • Enables antenna/feeder sharing for 700-900, 1800, 2100 and 2300-2600 networks
  • Low insertion loss & high return loss
  • Low passive IM performance
  • Hard Wired and DC Autosense versions available
Download PDF
GET A QUOTE
Download PDF
GET A QUOTE
technical specifications
Band Name700-900180021002300-2600
Passband698 - 960MHz1710 - 1880MHz1920 - 2170MHz2300 - 2690MHz
Insertion loss0.1dB typical
0.25dB maximum		0.4dB typical
0.5dB maximum		0.3dB typical
0.55dB maximum		0.2dB typical
0.3dB maximum
Return loss18dB minimum
Maximum input power250W (average)250W (average)250W (average)250W (average)
Intermodulation products-160 dBc maximum with 2 x +43dBm TX Carrier (IM3)-160 dBc maximum with 2 x +43dBm TX Carrier (IM3)-168 dBc maximum with 2 x +43dBm TX Carrier (IM7)-160 dBc maximum with 2 x +43dBm TX Carrier (IM3)
Rejection in 700-900N/A50dB minimum55dB minimum50dB minimum
Rejection in 180050dB minimumN/A50dB minimum50dB minimum
Rejection in 210050dB minimum50dB minimumN/A50dB minimum
Rejection in 2300-260050dB minimum50dB minimum50dB minimumN/A
electrical
Impedance50Ohms
dc / aisg
For DC-FIXED versions, DC/AISG can be fully connected (DC all) or a specific connection can be ordered (DC custom).
For DC autosense versions, the DC/AISG path is automatically selected. In bottom of the tower applications (combiner mode), each RF channel port is sequentially checked for the presence of DC voltage. If more than one port has voltage, the port that has the highest (programmed) priority is passed to the common port. If a short circuit is detected on the common port DC/AISG is disabled. In top-of-tower applications (splitter mode), DC/AISG is passed to all ports that do not present a short circuit. If a short circuit is detected, the shorted RF port will be disabled for DC/AISG while other RF ports remain connected.
FeatureDC FIXEDDC AUTOSENSE
Passband0 - 3MHz0 - 3MHz
Insertion loss, single DC/AISG pass1dB maximum1dB maximum
Return loss, single DC/AISG pass12dB minimum12dB minimum
Insertion loss, two DC/AISG pass4.5dB maximum
Return loss, two DC/AISG pass6dB typical
Input voltage range8 – 30V DC8 – 30V DC
DC current rating3A2A
Compliance3GPP, TS 25.461
Port priority (combiner mode)N/ARefer to ordering table
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range-40ºC to +65ºC | -40ºF to +149ºF
Ingress protectionIP67
Lightning protection±5kA maximum (8/20us)
MTBF>1,000,000 hours
ComplianceETS 300 019-1-4 Class 4.1E, IEC/EN 62368-1
mechanical
Dimensions H x D x W250 x 160 x 49.5 mm | 9.84 x 6.30 x 1.95 in maximum
Weight4.5kg / 9.92lbs
FinishNCS 1502-R (light grey)
Connectors4.3-10 (F)
MountingPole/wall bracket supplied with two metal clamps for 40-140 mm diameter poles
ordering information
Part NumberConfigurationOptional FeaturesConnectorsDC/AISG Configuration
QBC0017F1V1-1SINGLE 1 in / 4 outBASE MODEL4.3-10 (F)NO DC
QBC0017F1V94-1SINGLE 1 in / 4 outDC AUTOSENSING WITHOUT LED4.3-10 (F)PRIORITY:
1800 / 700-900 / 2100 / 2600

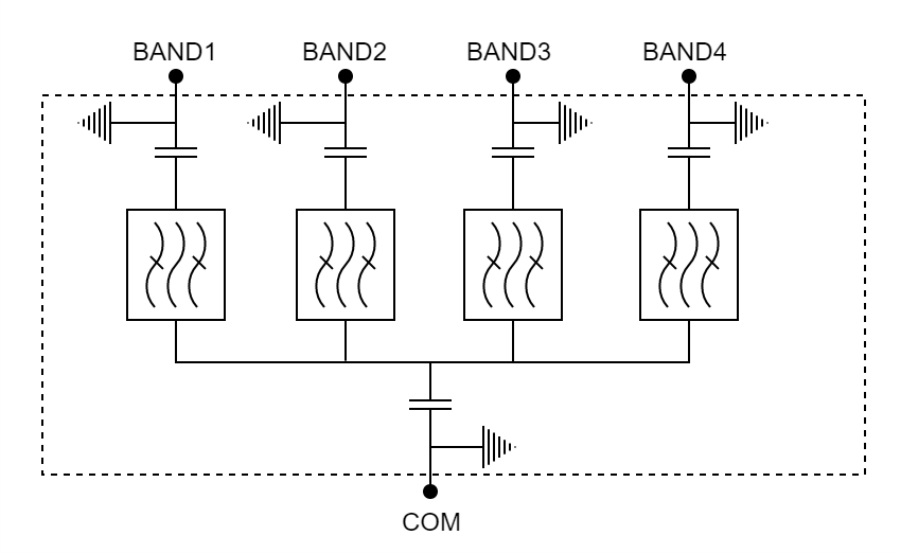

electrical block diagram
For clarity, only Electrical Block Diagram for the Fixed DC (No DC) is shown
  • BAND1 port is 700-900 band
  • BAND2 port is 1800 band
  • BAND3 port is 2100 band
  • BAND4 port is 2300-2600 band
    		•
    ELECTRICAL BLOCK DIAGRAM

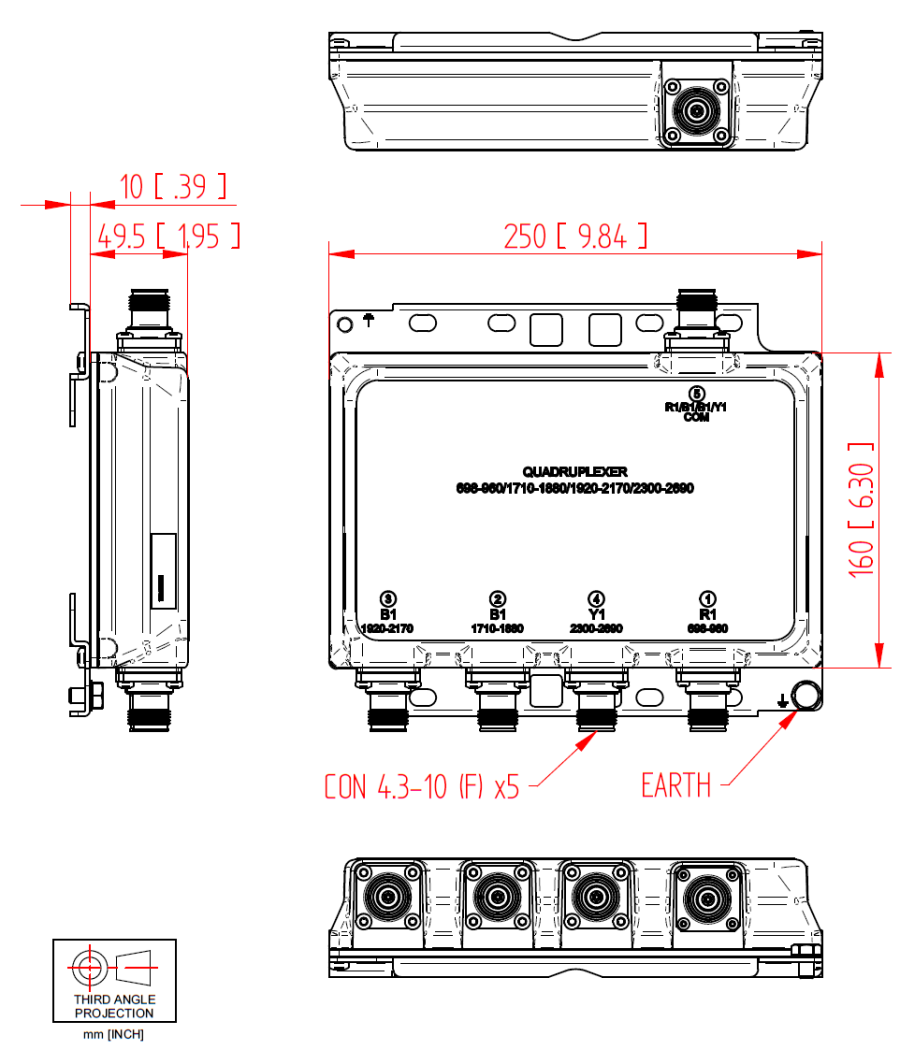

    mechanical block diagram
    MECHANICAL BLOCK DIAGRAM
